EVA glue stick machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-120

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:
Raw Material:
EVA
Capacity:
120-160kg/hr
Machine Color:
Grey
Raw Material:
EVA
Capacity:
120-160kg/hr
Machine Color:
Grey
Product Description

EVA hotmelt glue stick extrusion line configuration:

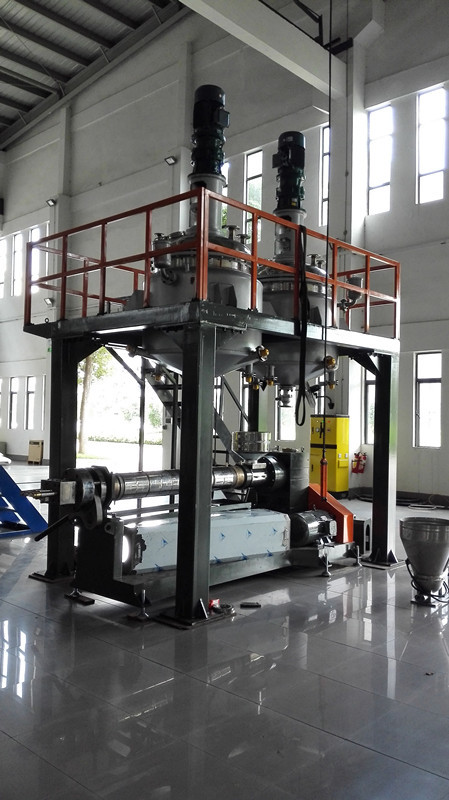

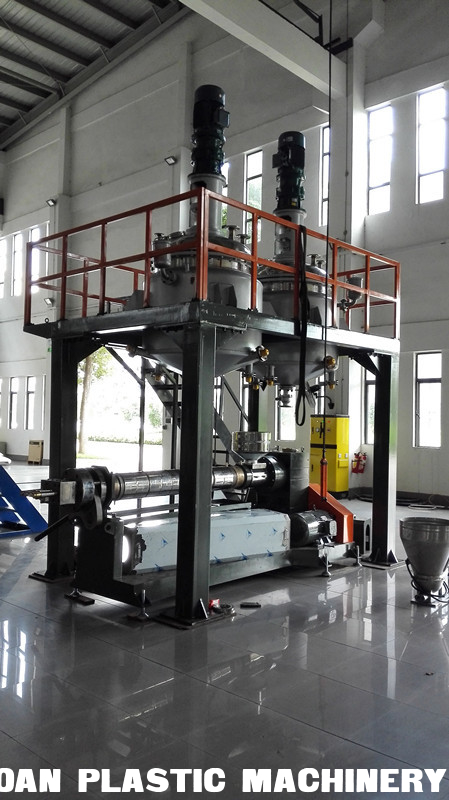

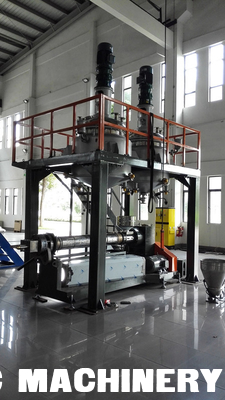

1. Hot mixing vessel: 2 sets (350L)



2. Vessel frame: one set

Material: steel



3.EVA glue stick extruder: one set

Screw:

Screw structure: special

The screw and the barrels are all made of high quality nitride steel-38CrMoAIA, and are nitration austerely according to NATIONAL STANDARD,Nitration depth: screw: 0.3-0.7mm, barrel: 0.4-0.6mm,fragility is 2 grades.

Reducer: one

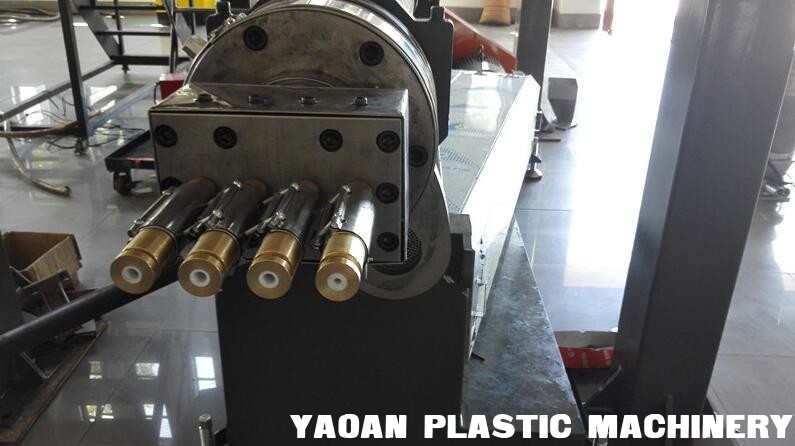

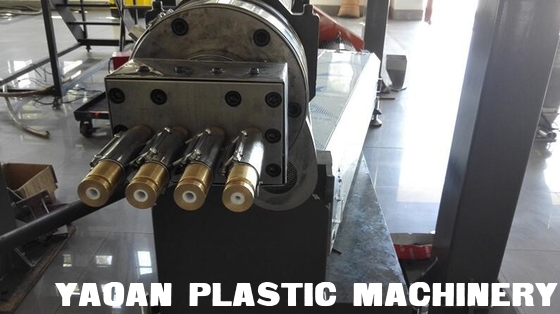

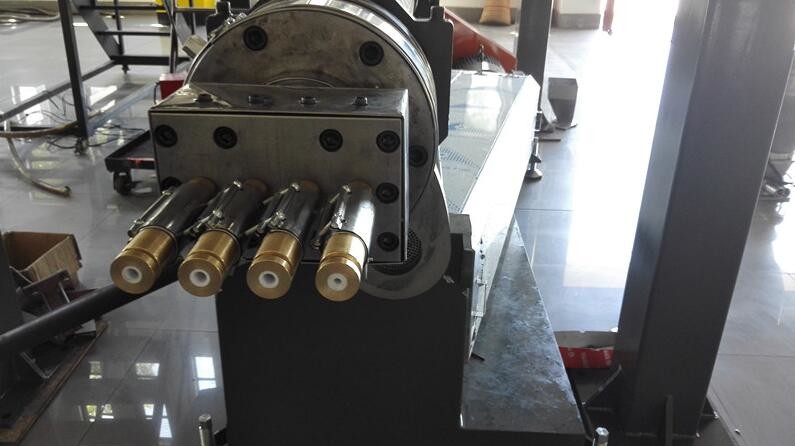

Extrusion mould with two flow channels: one (diameter: 7,11mm)



4. Cooling water tank: one set

Material: stainless steel

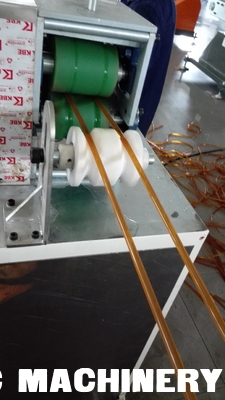

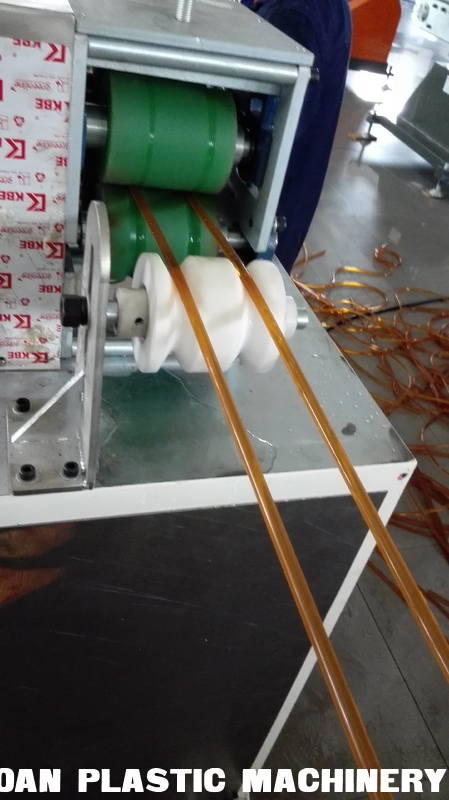

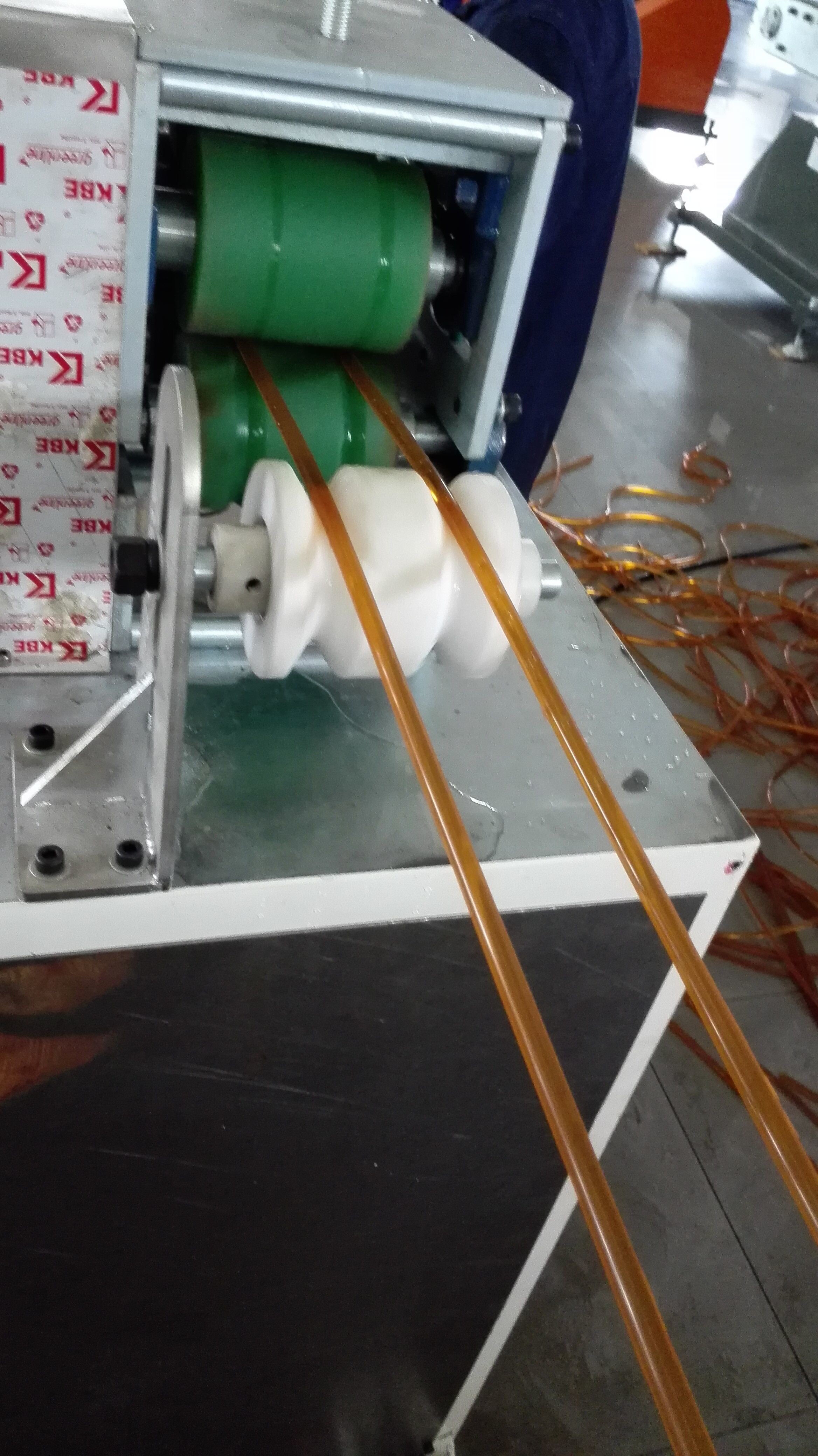

5. Two wheels haul-off unit: one set

Control power: 0.75kw

Control style: frequency conversion

Haul-off and automatic cutting machine: one set

Control power: 0.75kw

Control style: frequency conversion

Cutting motor: 0.75kw

Control style: frequency conversion

EVA glue stick machine 0EVA glue stick machine 1

EVA glue stick machine 2EVA glue stick machine 3
