Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-100,120,180
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 60 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Application: |
Glue Gun Sticks ,rods |
Screw Design: |
Single-screw |
Plastic Processed: |
EVA |
Sticks Number: |
2 Or 4 |
Warranty: |
1 Year |
Inverter: |
ABB |
HS Code: |
8477209000 |
Machine Dimension: |
20000*2500*3000mm |
Automation: |
Automatic |
Glue Stick Size: |
7mm,11mm |
Application: |
Glue Gun Sticks ,rods |
Screw Design: |
Single-screw |
Plastic Processed: |
EVA |
Sticks Number: |
2 Or 4 |
Warranty: |
1 Year |
Inverter: |
ABB |
HS Code: |
8477209000 |
Machine Dimension: |
20000*2500*3000mm |
Automation: |
Automatic |
Glue Stick Size: |
7mm,11mm |
Excellent EVA Hot Melt Adhesive Glue Stick Rod Making Machine
Features:
1. EVA Hot Melt Adhesive Glue Stick Making Machine applies to produce varieties of hot melt granules, hot melt stick, hot melt adhesive film, using extrusion method, with reactor, extruder screw is specially designed to achieve a plasticizing, mixing effects, automatic cutting, frequency adjustment speed. Good energy-saving and high degree automation. The products are bright and uniform.
2. Entire device structure is well designed. Extruding uniformly. The cooling effect is good and surface is smooth. It is also equipped with Meters and automatic cutting device to ensure the length of product be adjustable. No special conditions required, as long as electricity and water supply can be guaranteed. In order to reduce costs, can also use the corresponding recycled materials. Non-pollution, waste recyclable.
3. Production process Ingredients --Mixing --Plasticization and Extrusion--Mould--Cooling -- Traction -- Measurement-- Auto Cutting --Finished
4. The line can produce various type of hot melt adhesive sticks
5. Hot melt adhesive sticks applies to handicraft, electrical appliances, clothing, toys and so on
6. It can continuous production, overcomes the disadvantage of mixing uneven and poor transparency of reactor
7. Save energy
8. One-step of reaction and extrusion to produce
9. The screw of the main machine by special design
10. Good mixed, smooth surface, good diaphaneity, uniform specifications
11. It is the most advanced technology of producing hot melt adhesive stick.
Machine models:
Model | L/D | motor power | two vessel volume | output capacity |
AF-100 | 15:1 | 11KW | 300L*2 | 80-100kg/hr |
AF-120 | 15:1 | 11KW | 350L*2 | 120-150kg/hr |
AF-180 | 15:1 | 22KW | 500L*2 | 250-300kg/hr |
YAOAN PLASTIC MACHINE Co., Ltd. is a professional plastic machine manufacturer since 1980s. We have an excellent track record with our customers and have sold to 28 regions throughout the world. Our mission is to create high-end.

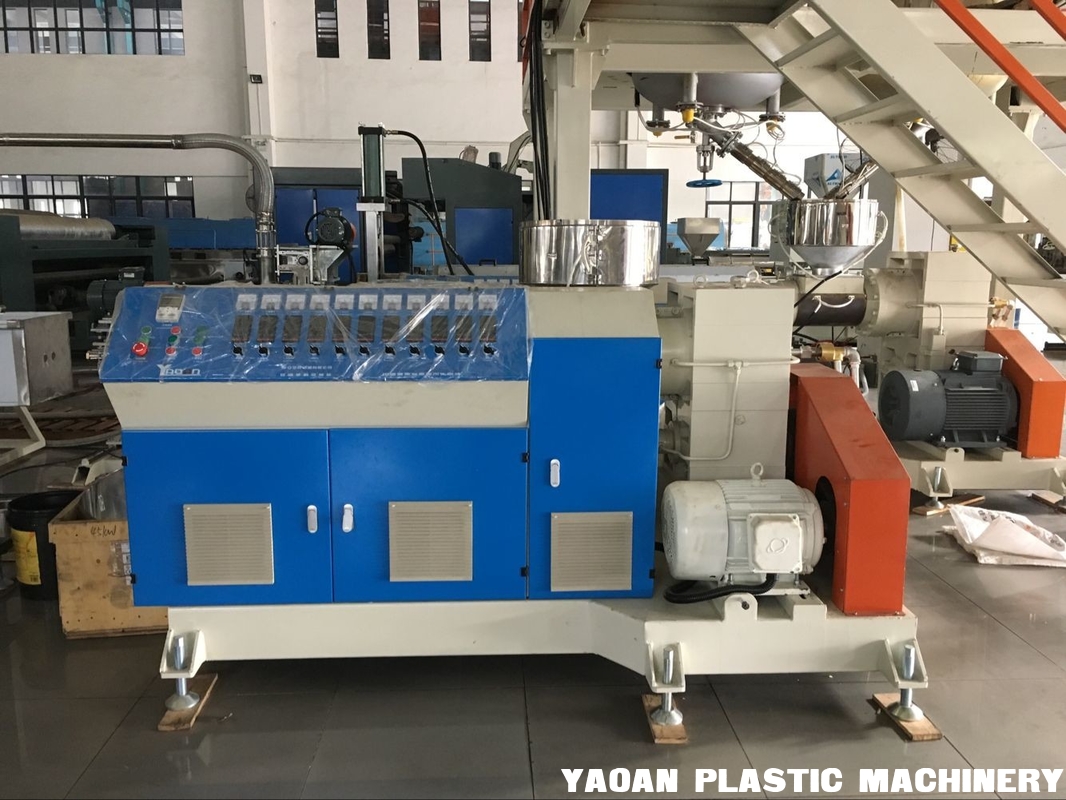

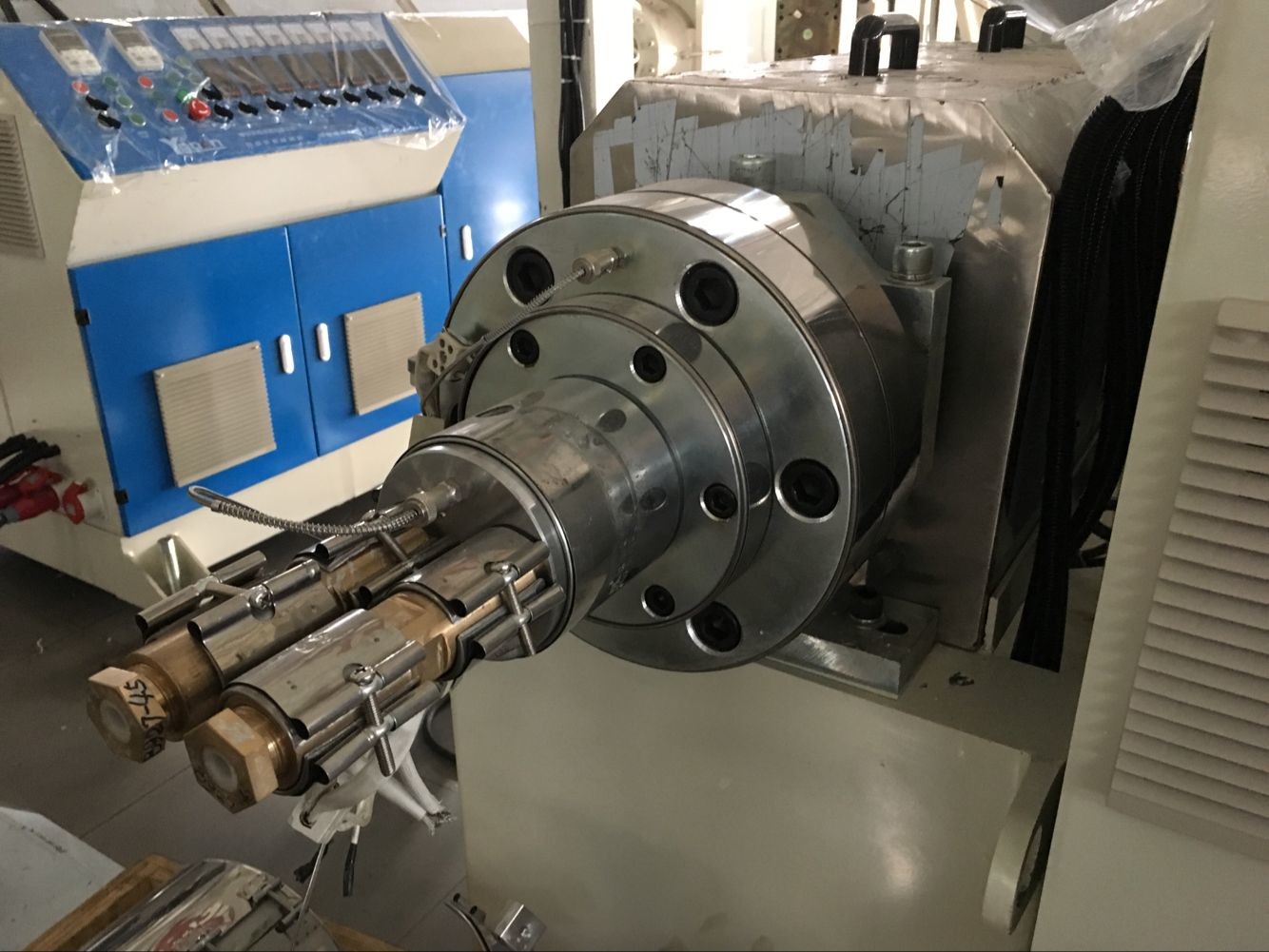

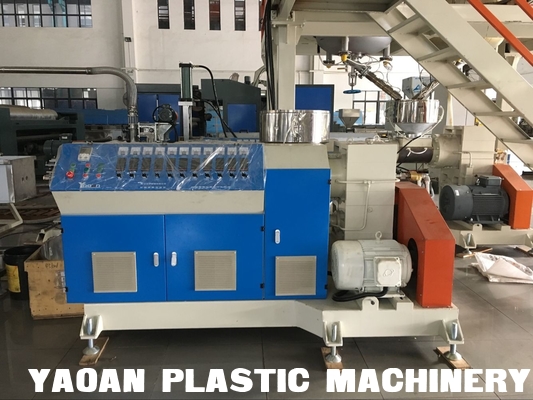

EVA Hot Melt Adhesive Glue Stick Rod Making Machine detail photo:

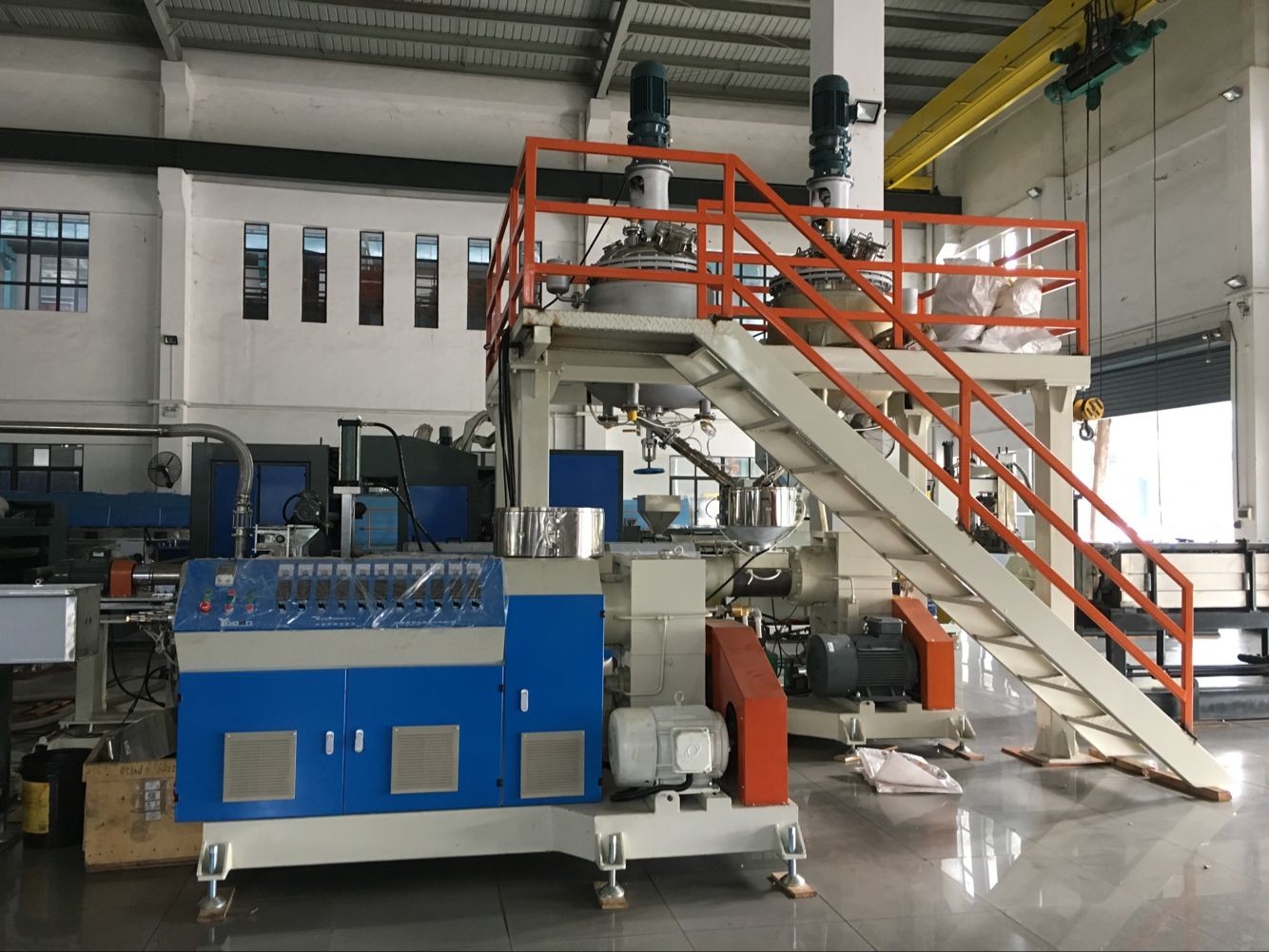

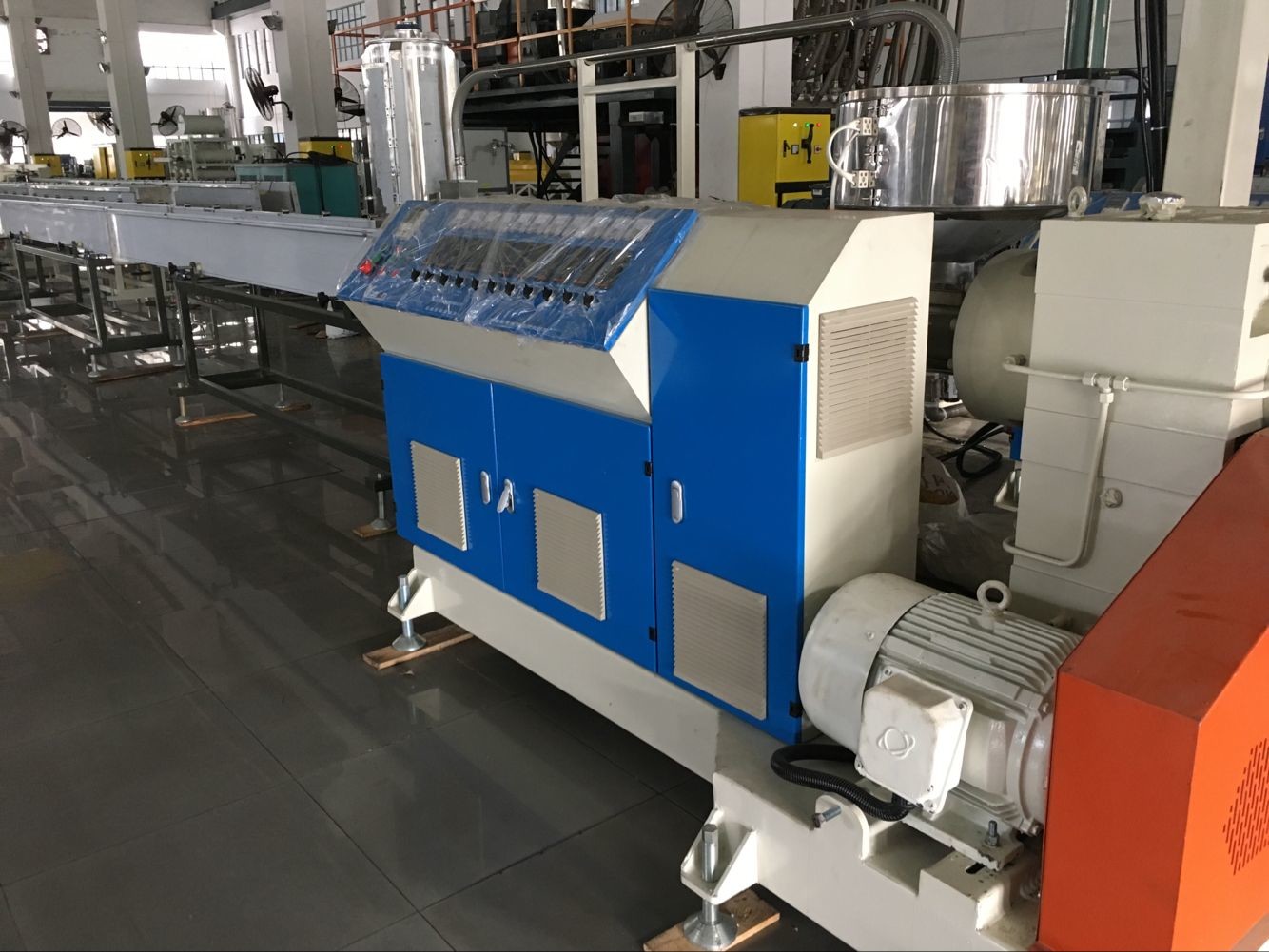

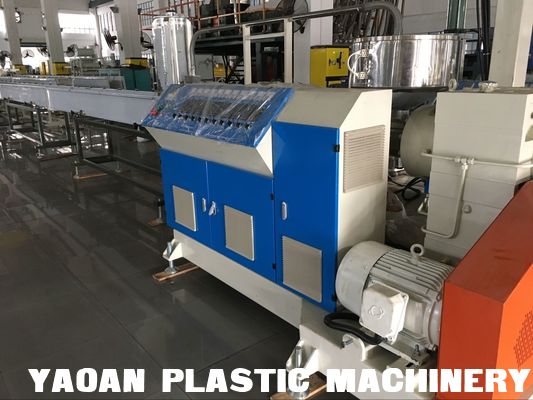

mixer, extruder, water cooling tank:

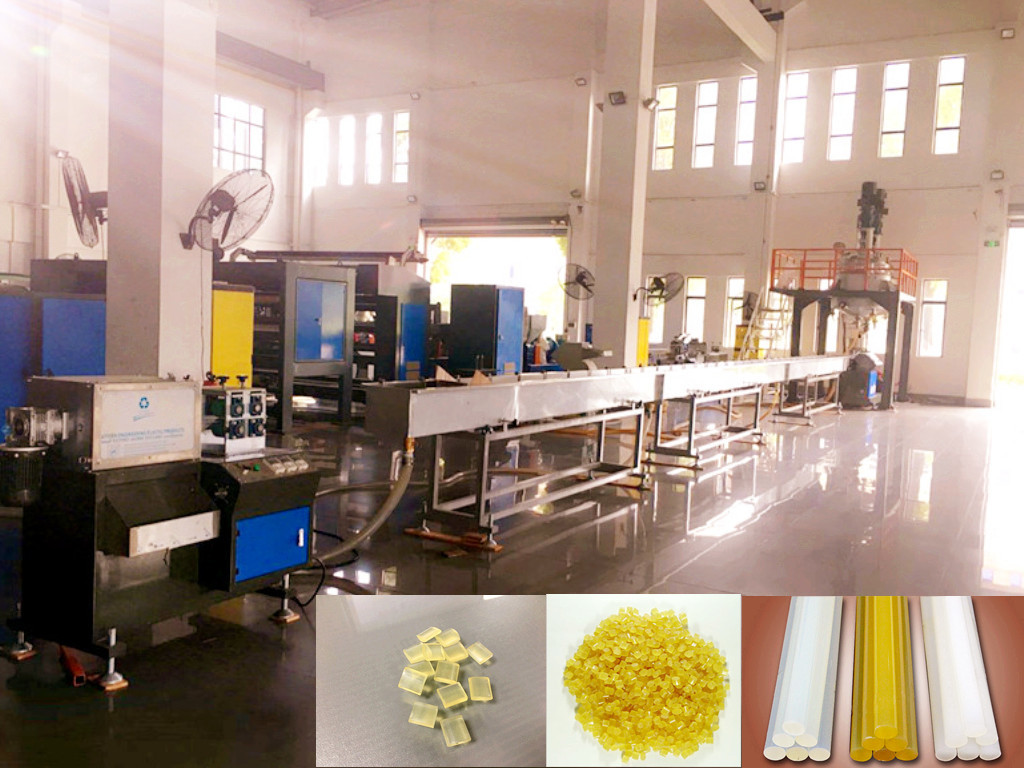

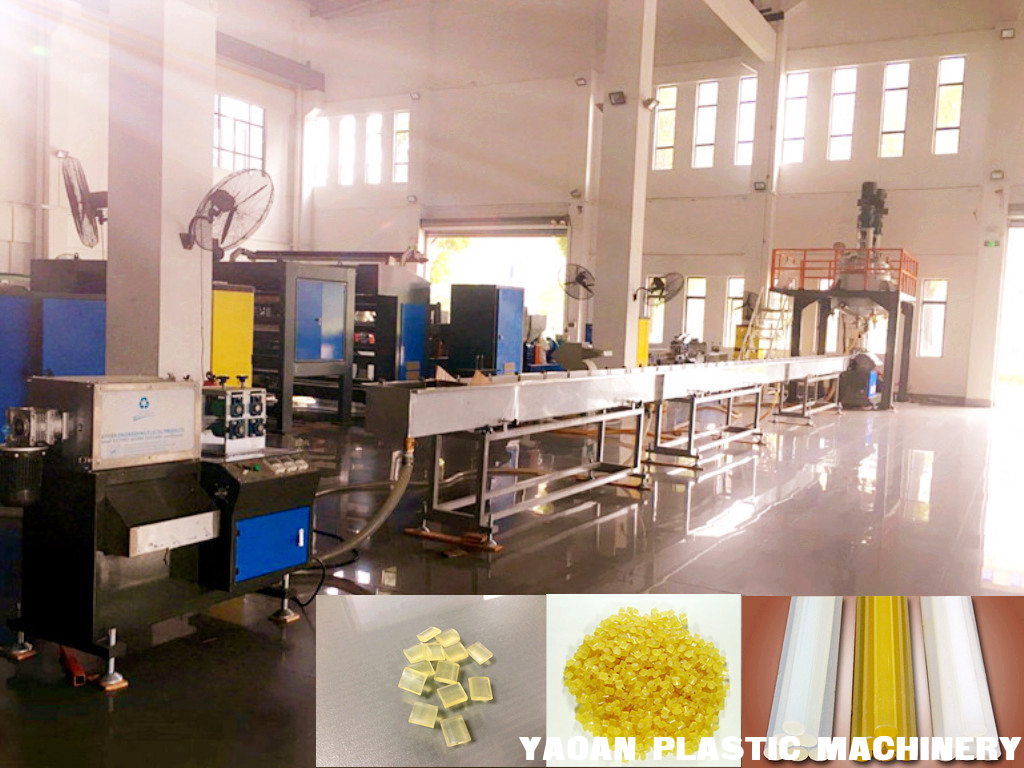

EVA hot melt glue stick rod and granules photo:
YAOAN machine shipment:
YAOAN factory panorama:
Packaging and shipping
PACKAGING | plastic film + stretch film + wooden case + drying agent. |
DELIVERY | About 50 days (all new parts) |
SHIPPING | We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent). We care each and every point so that our clients could receive the machines in perfect situation. |
What is our service system?
PRE-SALE | a. Detailed machine introduction; b. Suggest suitable turnkey solution as per clients requirements; c. Provide test production for reference; |
IN PRODUCTION | a. Supply layout drawing to clients for preparation; b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc; c. Keep the clients be informed of the production status; |
AFTER SALE | a. Send engineers to overseas for installation ,commissioning and training; b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests; c. Offer help if any need from clients like spare parts need etc; d. Supply necessary technical support at request; |
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
