2017 New EVA hot melt glue stick extrusion machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-120

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:
Raw Material:
EVA
Capacity:
120-160kg/hr
Machine Color:
Grey
Raw Material:
EVA
Capacity:
120-160kg/hr
Machine Color:
Grey
Product Description

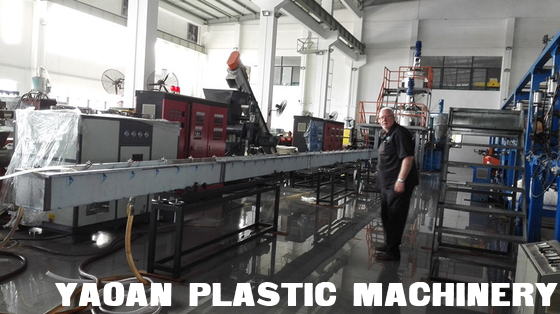

EVA hotmelt glue stick extrusion line configuration:

1. Hot mixing vessel: 2 sets (350L)



2. Vessel frame: one set

Material: steel



3.EVA glue stick extruder: one set

Screw:

Screw structure: special

The screw and the barrels are all made of high quality nitride steel-38CrMoAIA, and are nitration austerely according to NATIONAL STANDARD,Nitration depth: screw: 0.3-0.7mm, barrel: 0.4-0.6mm,fragility is 2 grades.

Reducer: one

Extrusion mould with two flow channels: one (diameter: 7,11mm)



4. Cooling water tank: one set

Material: stainless steel

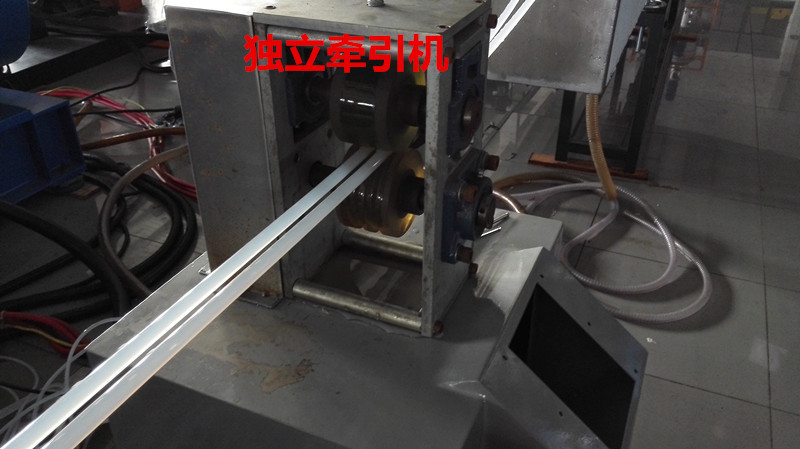

5. Two wheels haul-off unit: one set

Control power: 0.75kw

Control style: frequency conversion

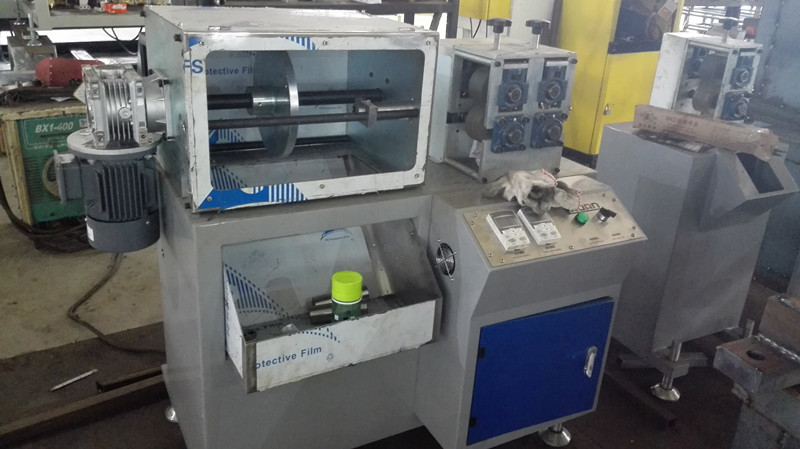

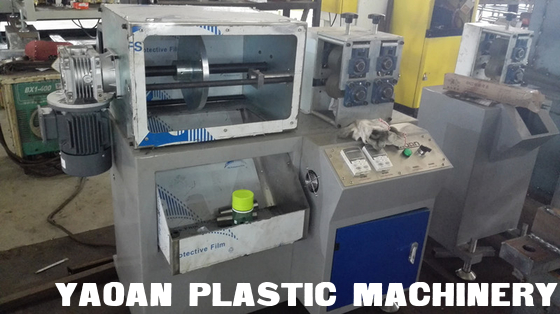

Haul-off and automatic cutting machine: one set

Control power: 0.75kw

Control style: frequency conversion

Cutting motor: 0.75kw

Control style: frequency conversion
