Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-45
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Material: |
PETG,PCTG |
Screw: |
45mm |
L/D: |
28:1 |
Warranty: |
1 Year |
Motor: |
5.5 KW |
Output: |
20-30kg/hr |
Material: |
PETG,PCTG |
Screw: |
45mm |
L/D: |
28:1 |
Warranty: |
1 Year |
Motor: |
5.5 KW |
Output: |
20-30kg/hr |

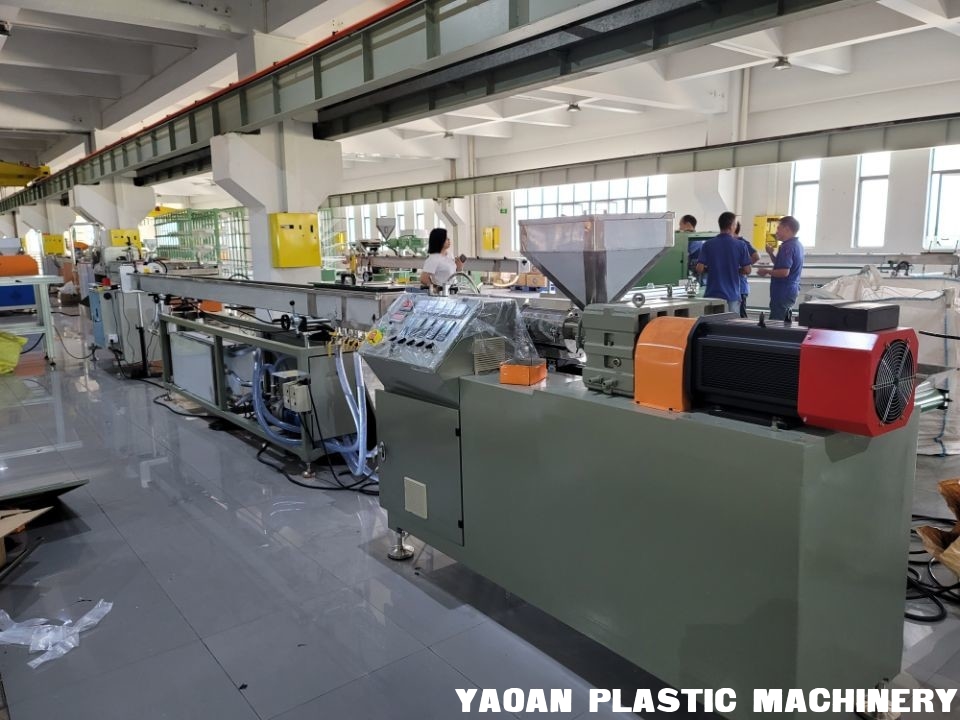

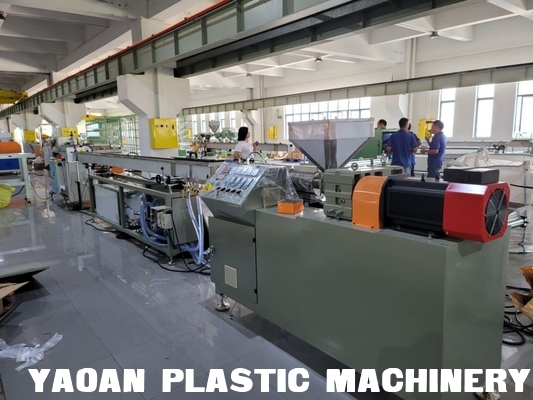

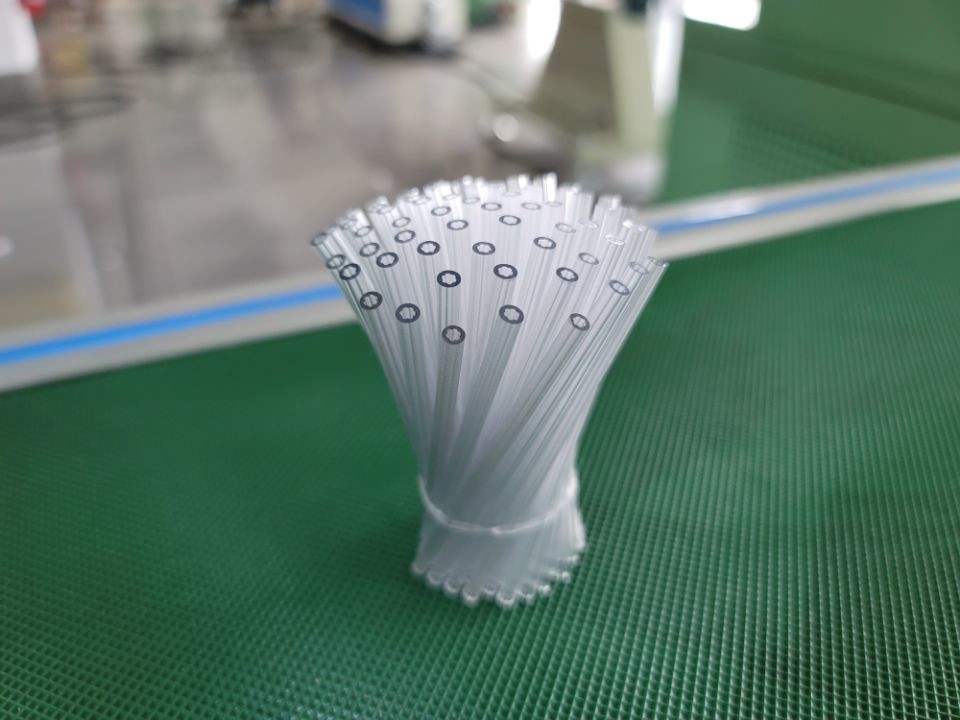

AF-45 PETG,PCTG Pipe Extrusion Machine , PETG Pipe Machine CE Certificate
1.This series equipment select single screw type main extruder ,cooling system.They are made of online precise checking system,professional servo cutting machine,etc. and applied to cleaning workshop in the line of medical treatment,electronics,etc.
2.The screw is professinal designed,ensure the stable.
3.The main engine,haul-off unit and cutting parts all under program control which dispaly in the digital screen.
4. High speed extrusion production line
Model | AF-45 | |
Feature | Material | PETG,PCTG |
Color | 1 | |

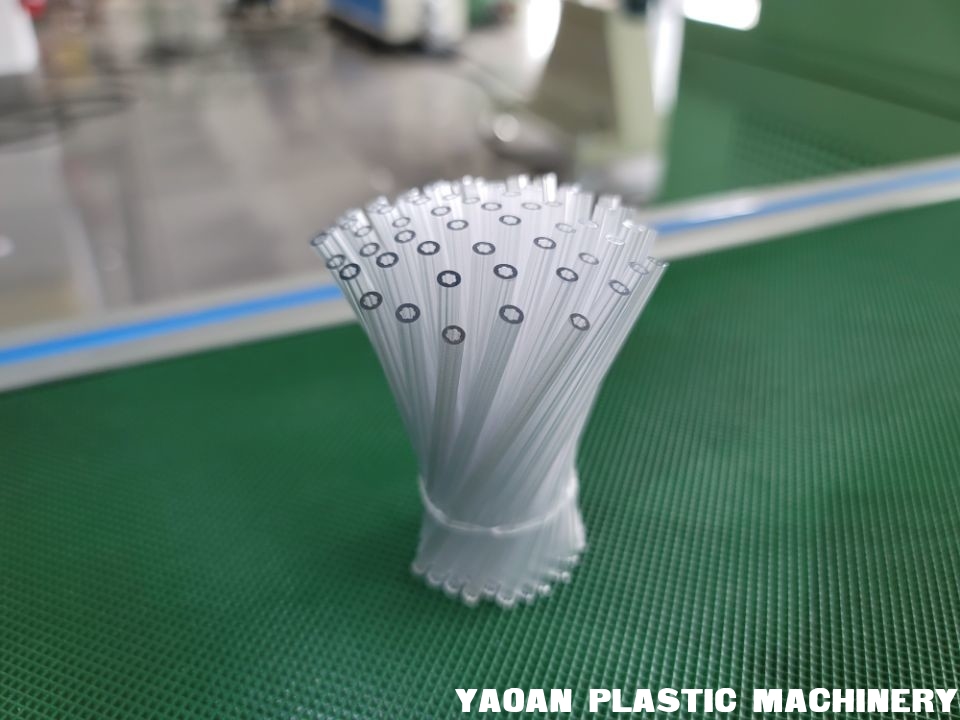

Straw diameter | φ3.0 ~ φ6 mm | |
thickness | 0.10 ~ 0.35 mm | |
Straw length | 80 ~ 300 mm | |
Stripes | Straight | |
Capability | 400 ~ 1800 pcs/min | |
Extruding output range | 20 ~ 40 kgs/hr | |

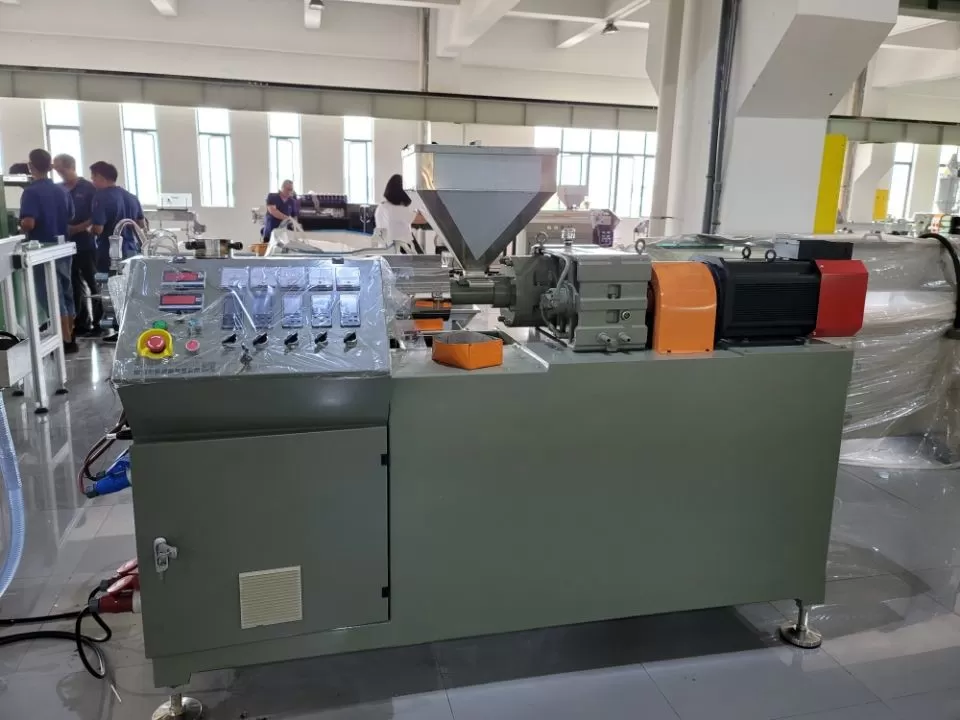

Extruder | Main Screw diameter | φ50 mm ( BM Screw) |
Screw L/D | 28 : 1 | |
Main driving motor | 11 Kw (VFD) | |
Vice screw diameter | φ25 mm×2 | |
Vice driving motor | 0.75Kw ×2(VFD) | |
Gearbox | ZLY133 | |
Automatic thermo-controller | 11 sets | |
Heating power | 14.75 kw | |
Water cooling tank | Forming device | 1 set |
Vacuum Pump motor | 1.1 kw(choose) | |
Water storage tank | (length)3400 mm /304 Steel stainless | |
Base frame material | (304 Steel stainless) | |
Blow dry device | 1 set | |

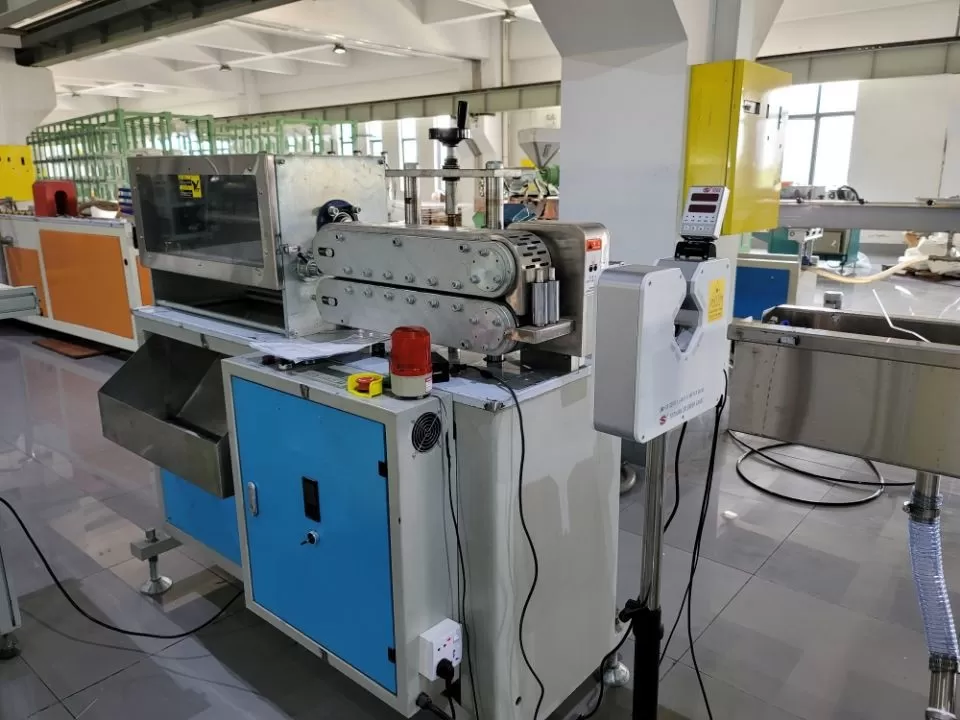

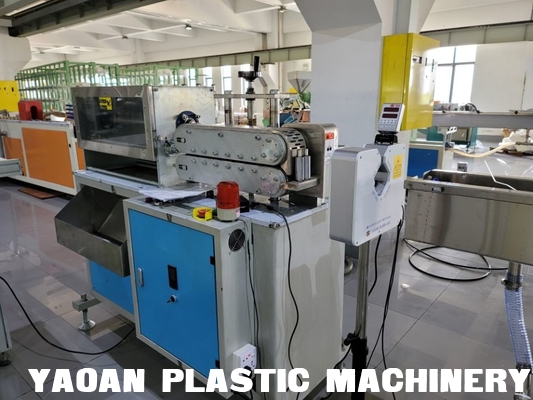

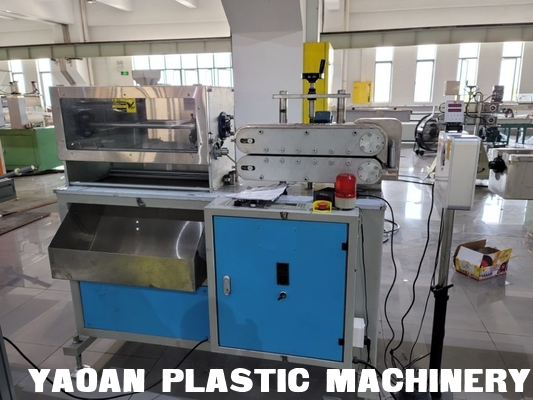

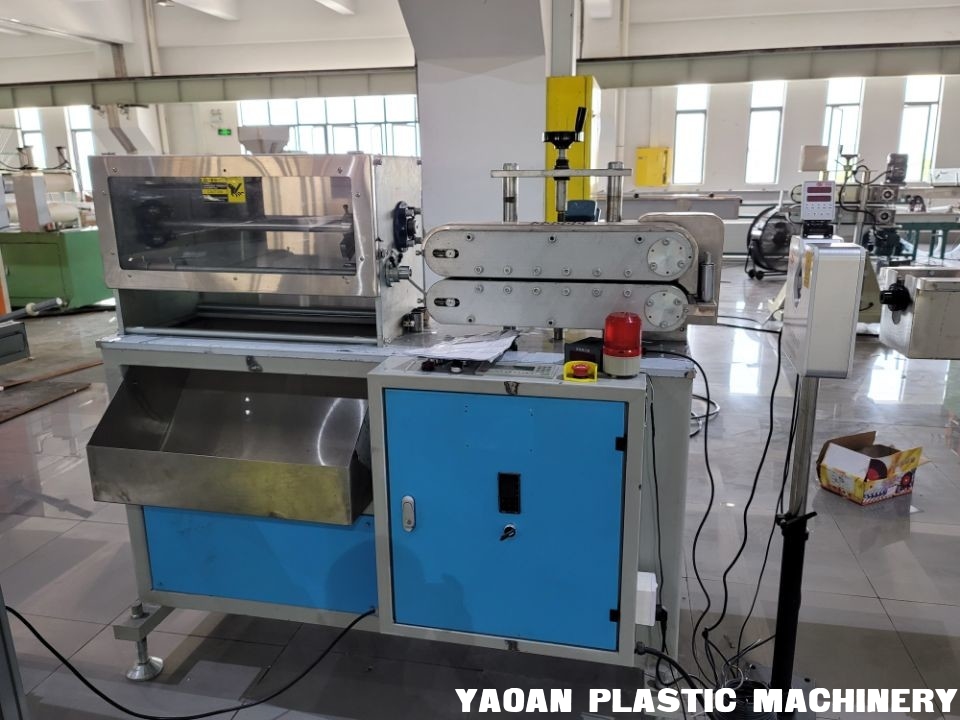

Take up & Cutting Unit | Take up unit | 1 set |
motor | 0.75kW×1(VFD) | |
Cutting knife unit | 1 set | |
motor | 0.75kW×1(VFD) | |
angle of port | 90°/60°/45° | |
Digital counter | 1 set | |
Others |
Air compressor | 1.5kw(choose) |
Dimension LxWxH | 8m×1.4m×1.6 m | |
Machine weight | 2300 kgs |
SPECIFICATIONS
Packaging and shipping
PACKAGING | plastic film + stretch film + wooden case + drying agent. |
DELIVERY | About 120 days (all new parts) |
SHIPPING | We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent). We care each and every point so that our clients could receive the machines in perfect situation. |
What is our service system?
PRE-SALE | a. Detailed machine introduction; b. Suggest suitable turnkey solution as per clients requirements; c. Provide test production for reference; |
IN PRODUCTION | a. Supply layout drawing to clients for preparation; b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc; c. Keep the clients be informed of the production status; |
AFTER SALE | a. Send engineers to overseas for installation ,commissioning and training; b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests; c. Offer help if any need from clients like spare parts need etc; d. Supply necessary technical support at request; |
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
