PVC Water Pipe Making Machine , PVC Pipe Production Line , New Design

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: 65/132

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:
Plastic Processed:
PVC Powder
Application:
Pipe
Screw Design:
Twin-screw
Motor:
Siemens
Inverter:
ABB
Warranty:
1 Year
Plastic Processed:
PVC Powder
Application:
Pipe
Screw Design:
Twin-screw
Motor:
Siemens
Inverter:
ABB
Warranty:
1 Year
Product Description
PVC Water Pipe Making Machine , PVC Pipe Production Line

This machine is mainly used to produce PVC agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. It can produce PVC pipes diameter from 16mm to 800mm.

This PVC pipe making machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

Features and application :

AF Series plastic pipe production line is mainly used in the manufacture of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural an agricultural and constructional plumbing, cable laying etc.

(1) Thin set is composed of the conical twin-screw extruder, vacuum forming table, dragger, cutter, stirring up rack etc.

(2) The screws extruder and the extractor adopt the imported AC frequency control devicc. The vacuum pump and the electric vehicle motor employ the superior goods.

(3)The prime mover has the traction modes such as to claw, three-claw and so on .It may choose the saw blade cutting type or the planet cutting type. It is additionally attached with measuring apparatus and the intensifying device.

(4) The unit is of the reliable prefor - mance and high production efficiency.

Material :

PVC ,as one of the biggest plastic production in the word ,cheaper, widely used.

Advantages :

The line is applicable to the production of PVC plastic rib spiral reinforced hose (also known as plastic rib reinforced hose). The level of automation and technological process has reached the advanced international level.

crushing resistance, negative pressure, flexural, liquidity is very good

the level of automation and technological process has reached the advanced international level.

Main use :

Gas, liquid, powder conveying, in industry, agriculture, construction etc.

Work process:

Raw and additive---mixed ---feed —heating ---enter the extruder.---- extrude the mould–adjust diameters- –cooling –hauling-cutting -stacking –packing.


Technical data
Model pipe diameter extruder line speed max output
AF-63 16~63mm SJZ65/132 1~20m/min 250kg/h
AF-160 50~160mm SJZ65/132 1~6m/min 250kg/h
AF-400 110~400mm SJZ80/156 0.2~6m/min 380kg/h
AF-630 315mm~630mm SJZ92/188 0.2~3m/min 800kg/h



Machine Pictures :

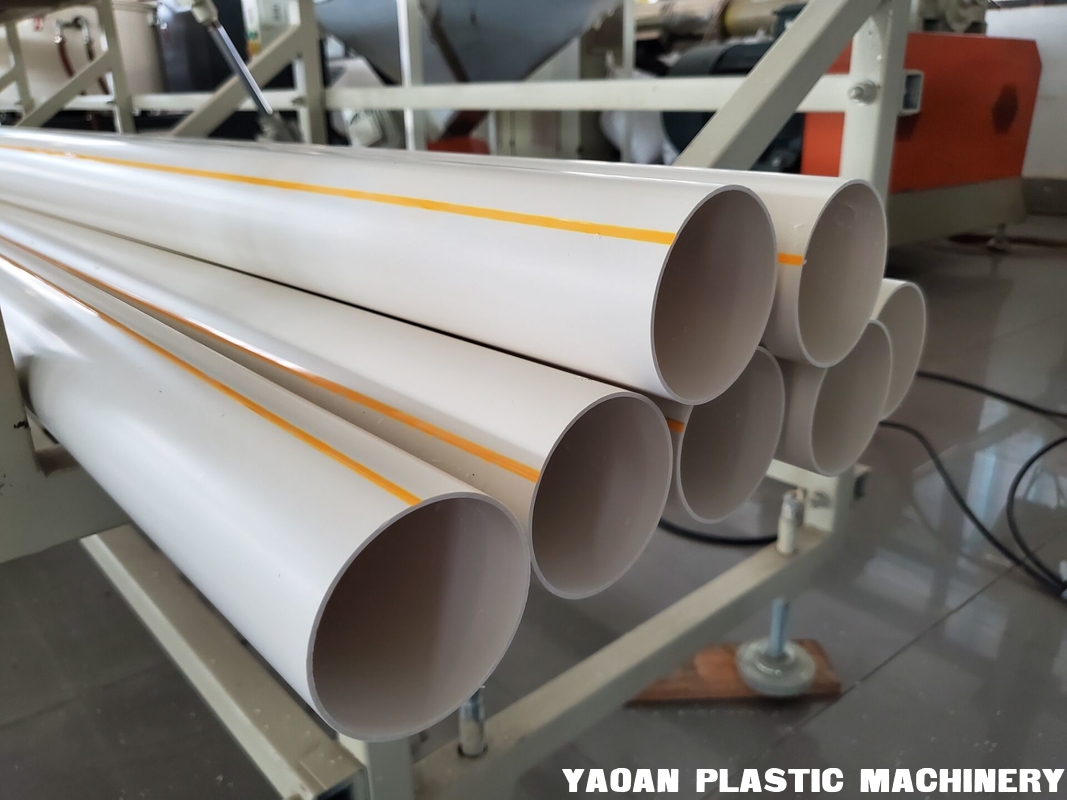

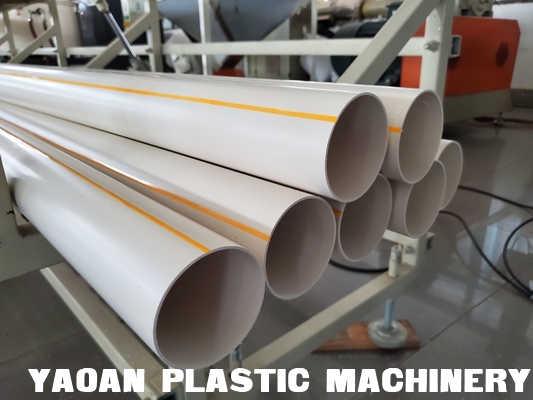

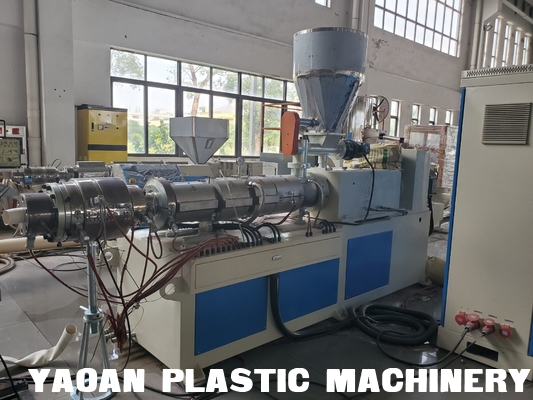

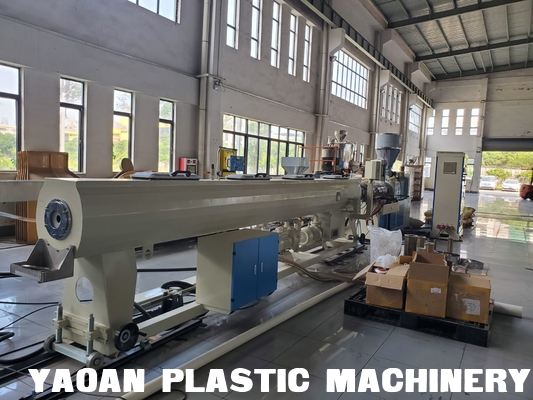

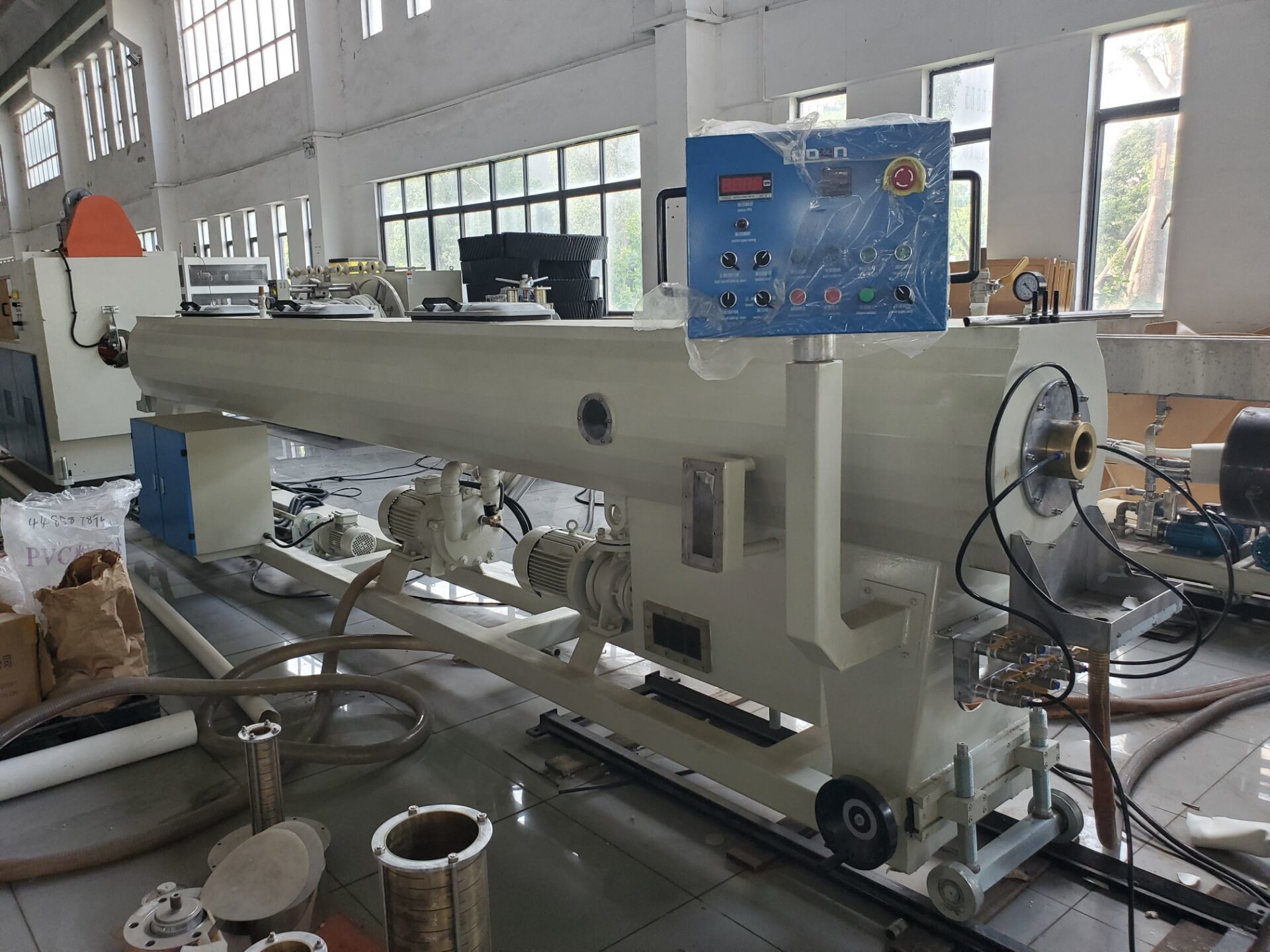

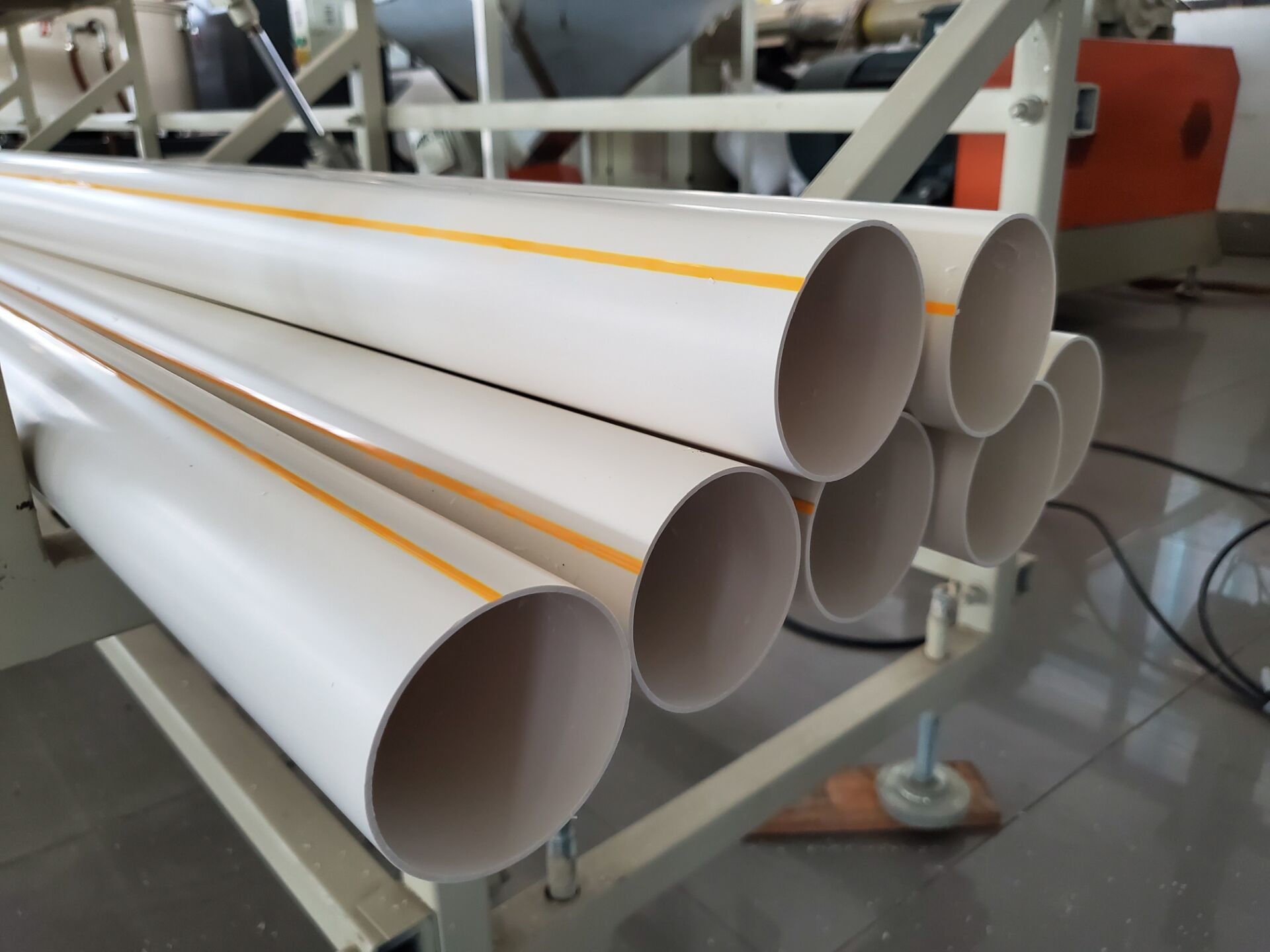

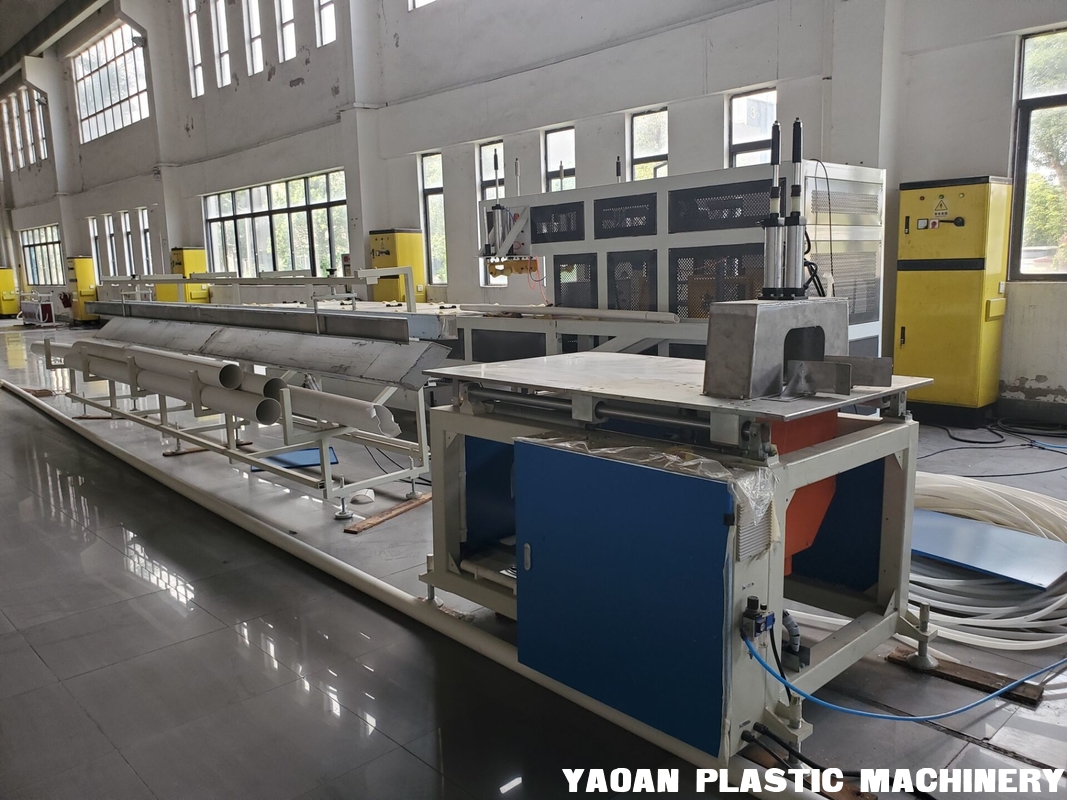

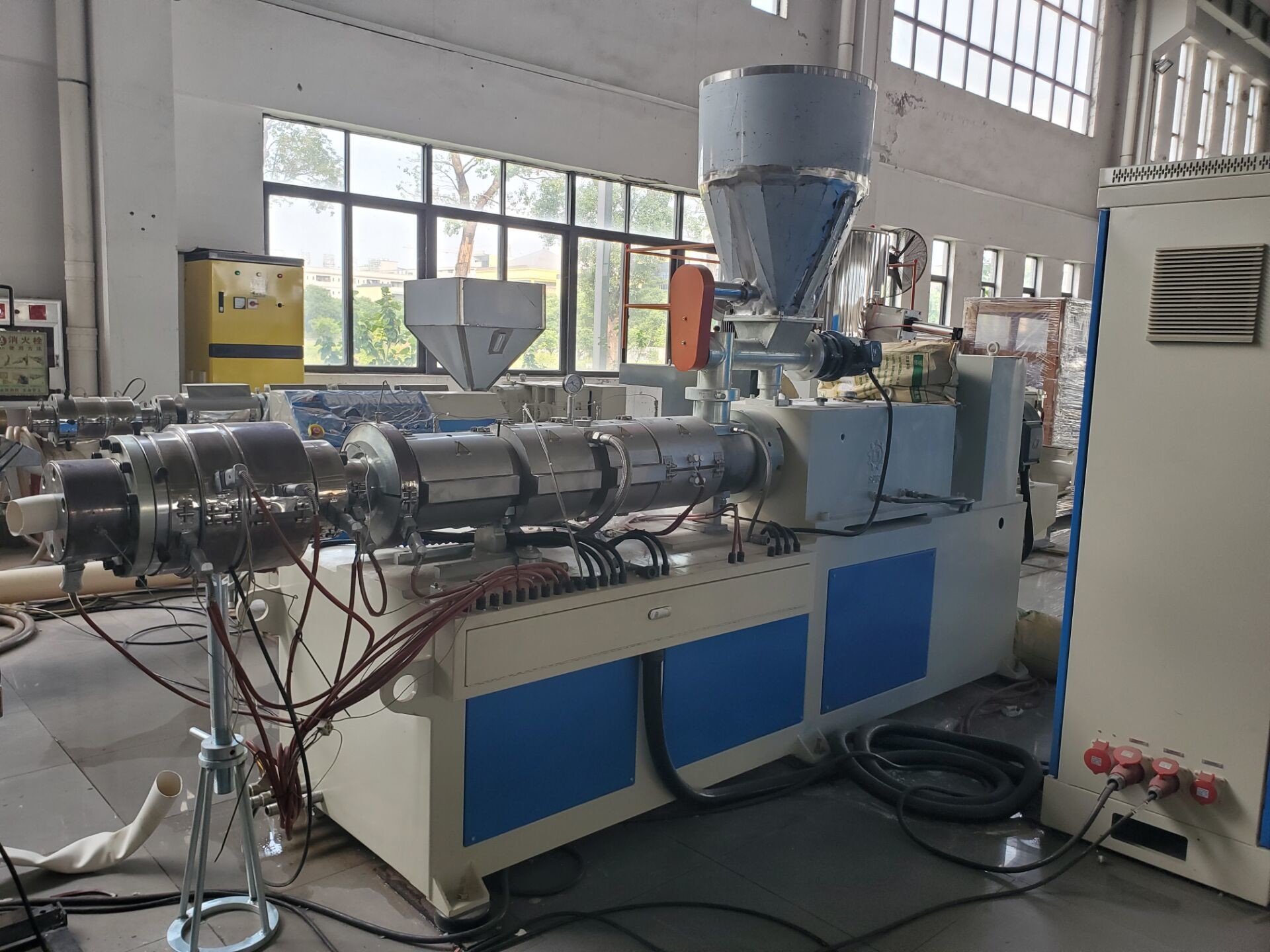

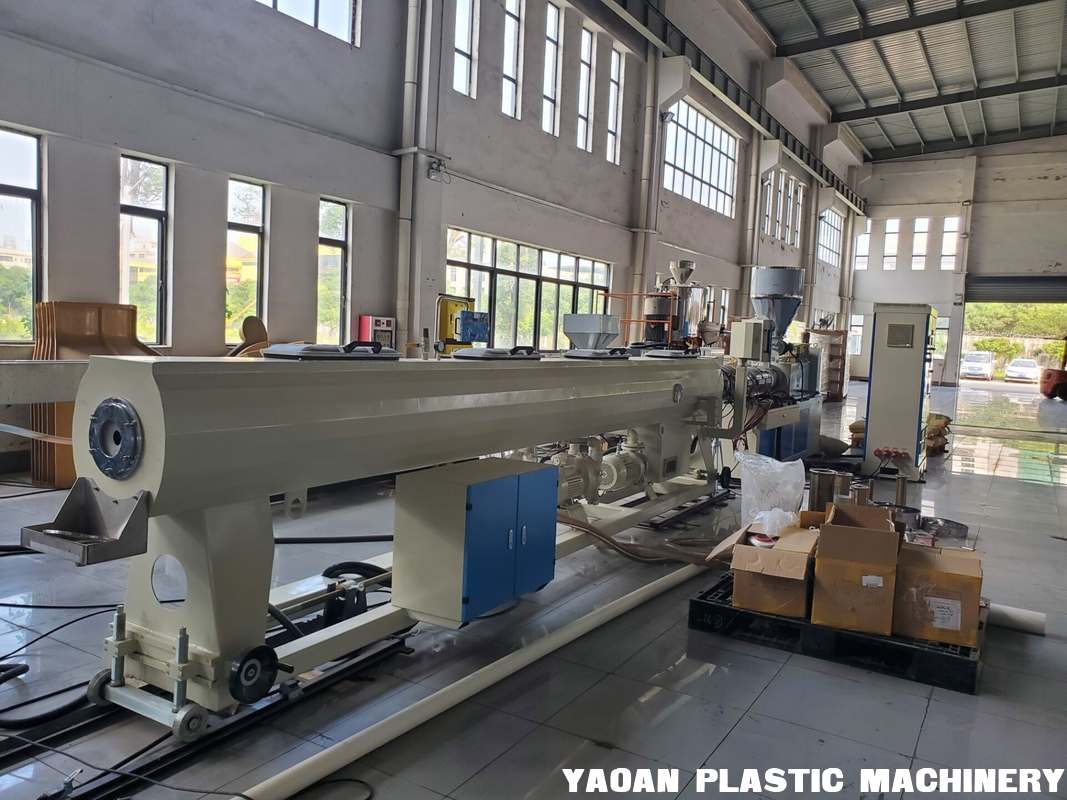

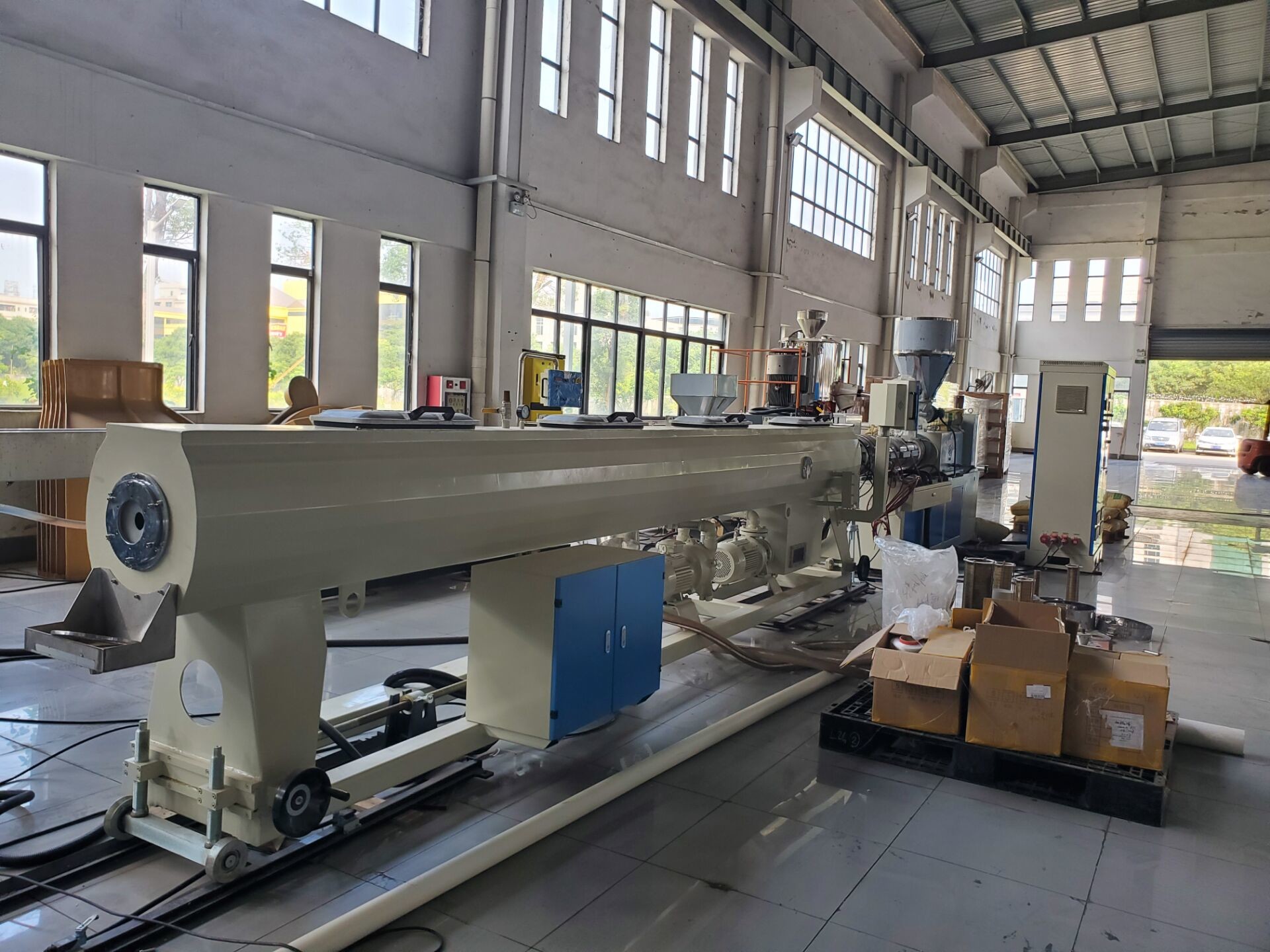

PVC Water Pipe Making Machine , PVC Pipe Production Line , New Design 0

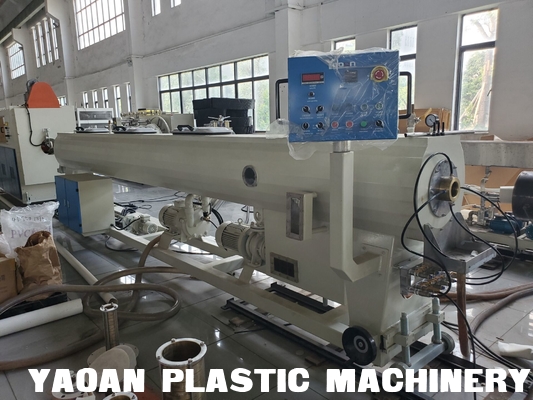

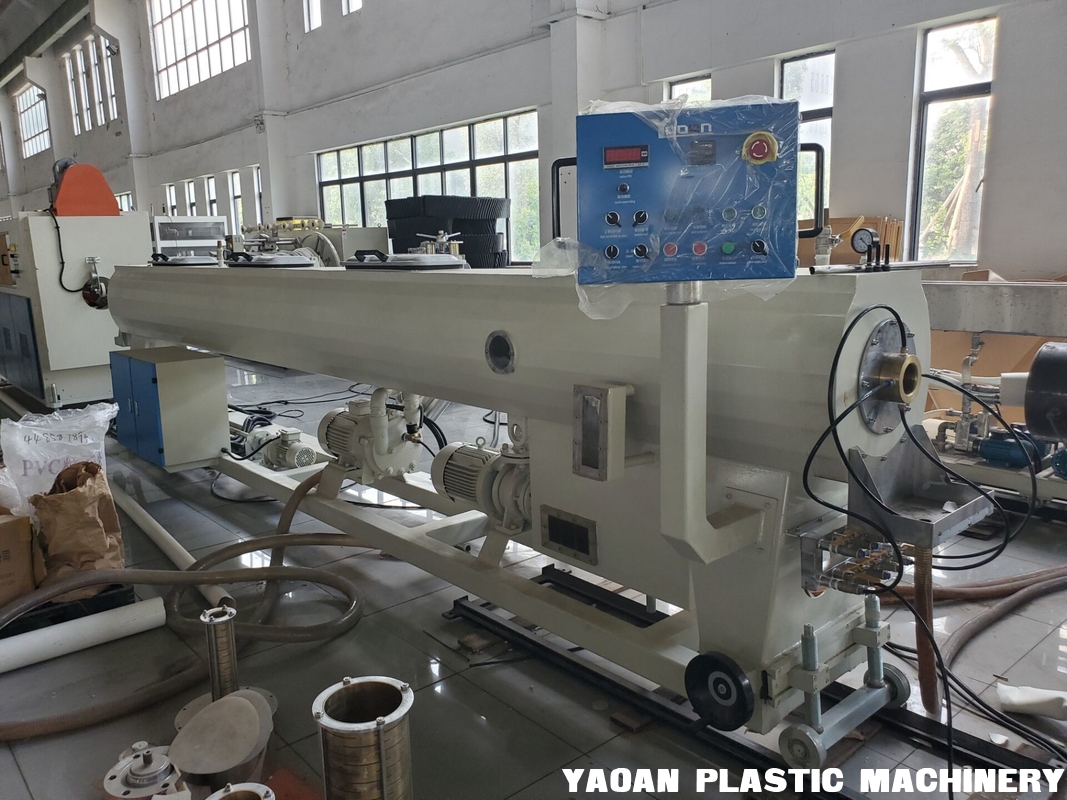

PVC Water Pipe Making Machine , PVC Pipe Production Line , New Design 1

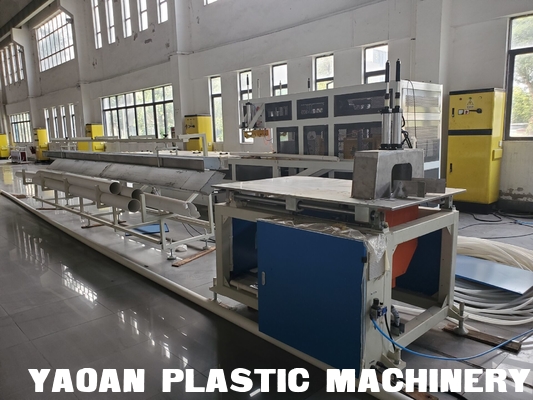

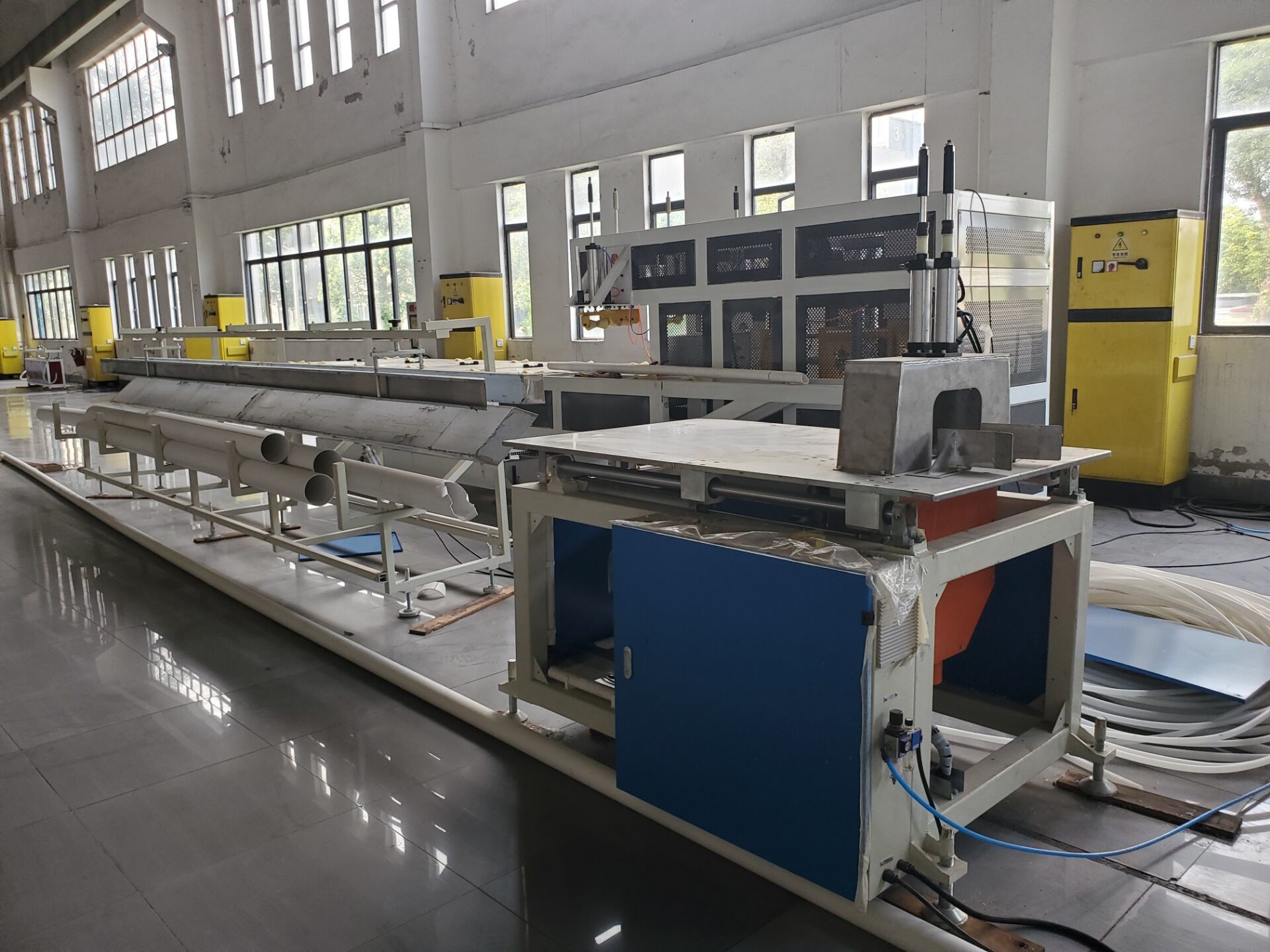

PVC Water Pipe Making Machine , PVC Pipe Production Line , New Design 2

Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 100 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?



PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
