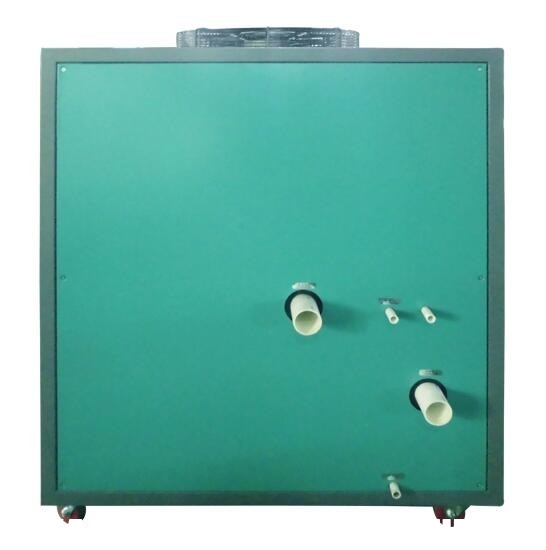

20HP Air Cooled Type Chiller

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 20HP
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 1-5 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SETS PER MONTH
Contact Now
Evaporator: Shell And Tube Or Plate Heat Exchanger Condenser: Finned Copper Tube With Low Noise Axial Fan
Voltage: 380V/50HZ Refrigerant Type: R407c, R404a, R410a
Compressor: Hermetic Scroll Type Compressor Brand: Copeland/Panasonic/Danfoss
Electric Parts: Schneider Temperature: -10C To +30C
Controller: Microcomputer Or PLC Warranty: 1 Year

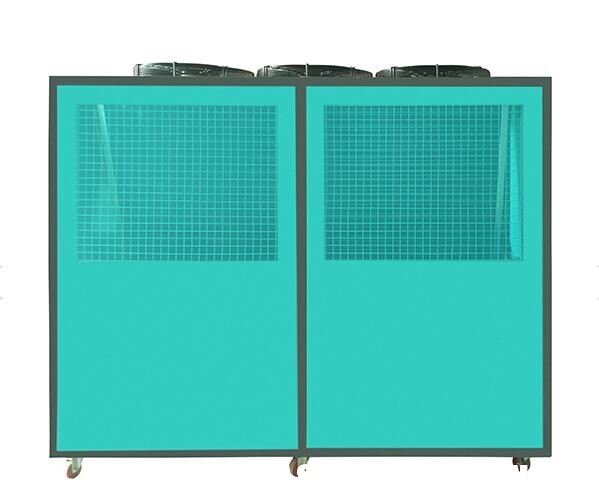

20HP Air Cooled Type Chiller


About Product
(1).The Temperature Range:-40ºC to +35ºC.
(2).Cooling Capacity Range: 2 RT to 500RT / 7 kw to 1750kw / 6020Kal to 1505000Kal
(3). The Refrigerant: R22/R404a/R134a/R507c.
(4). We can also produce the chiller according to your requirements

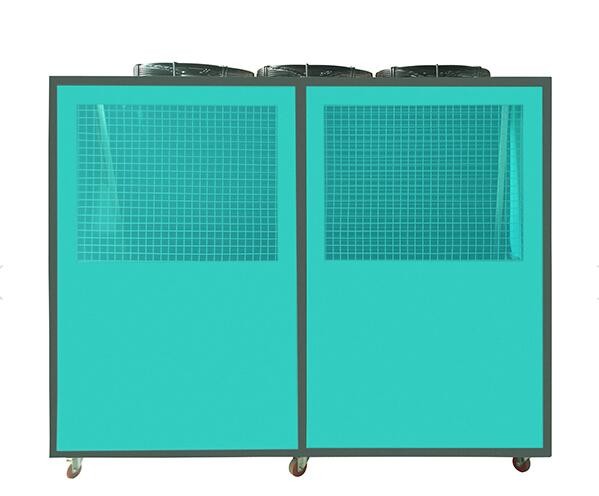

20HP Air Cooled Type  Chiller



1. Chiller General Introduction

Cooling capacity: 2 Ton~50 Ton, 8Kw~175kw

Outlet temperature: -10 C ~ +35C, can be adjusted on the chiller control panel

Electric power supply available: 3PH-208V/220V/380V/415V/460V-50Hz/60Hz

Temperature stability ±0.5 ºC to ±1 ºC

Built-in SS water tank and water pump

Shell&tube or SS PHE for optional

Easy installation and energy saving

All models and cooling capacity are available

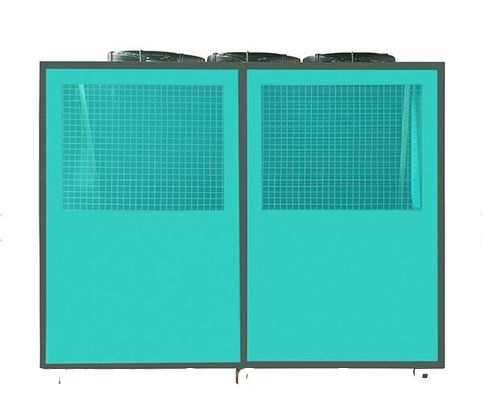

20HP Air Cooled Type  Chiller20HP Air Cooled Type  Chiller


2.Chiller Description
(1).Compressor
It has the advantages of smooth and reliable operation, low efficiency and lower fault, low vibration noise, convenient maintenance and long life. High-quality compressor as the heart of the chiller, we choose Europe, the United States, Japan High-quality import brand original compressor, built-in safety protection, low noise, power saving and durable, in order to increase the service life of the equipment.

(2).High-efficiency air-cooled condenser high-speed punch punch perforation, the quality of the piece is reliable. Second turn edge, copper pipe and fins more closecontact, heat exchange efficiency, the use of fully imported copper pipe and automatic elbow welding, greatly enhance the air tightness, to eliminate refrigerant leakage phenomenon. It is particularly suitable for use in areas where water resources are scarce or water quality is high.

(3).The use of 304 full stainless steel thick water tank, one welding molding, rust-proof, anti-corrosion, put an end to water pollution, once wiped, as fresh as new.Inside the automatic rehydration device, high-efficiency internal thread double-layer copper coil, real foot number evaporator, with large stainless steel water tank, quickly reduce heat, to achieve cooling effect.Compared with other machines of the same model, more cooling capacity, higher efficiency, more energy saving, cleaning and maintenance more convenient and fast.

(4).Much high effficiency Shell and tube or Plate Evaporator core corrosion resistance, good thermal conductivity, high temperature, heat exchange performance, non-polluting media (non-toxic), not easy to scale, non-magnetic, not easy to leak. The inner core adopts a high-strength sealing structure, which is sealed well and increases heat exchange performance.

(5).Punpu Microcomputer Control System
The intelligent control system of microcomputer is precisely controlled, Simple operation, intelligent start and stop, Precision temperature control within -10c to 45 degrees of arbitrary adjustment, LCD display, all kinds of faults at a glance, Monitor ingends in real time, Multiple protection features, The Chinese and English interface sits to switch, To meet the needs of different users, Easy to operate.

(6).High wind volume axial flow design, imported heat-changing fan, heat exchange efficiency is significant. Low noise fan and high efficiency motor, with large air volume, small vibration, external protection fence, to achieve a good heat dissipation effect, its fan using high-strength hard aluminum alloy production, blade stamping molding, and by strict movement of the two balance test, quality is better than peers.
20HP Air Cooled Type  Chiller

4.Air Cooled Water Chiller Parameter

Model HX-3 HX-5 HX-6 HX-8 HX-10 HX-12
Cooling capacity 0ºC kw 6.8 10.5 12.2 16.2 22.8 24.8
-5ºC kw 5.7 8.9 10.3 13.8 19.3 21
Power kw 3.45 5.45 6.31 8.22 10.54 12.33
Power input 3PH-380V-50HZ
Refrigerant Type R22/R407C
Control Thermostatic expansion valve( Capillary)
Compressor Type Hermetic scroll type
Power kw 2.84 4.36 5.2 3.5*2 4.4*2 5.2*2
Evaporator Type SS Tank with coil or Shell and tube
m³/h 0ºC 1.29 1.99 2.31 3.07 4.32 4.7
Flow -5ºC 1.17 1.83 2.12 2.84 3.97 4.32
Capacity L 50 70 70 120 200 200
pipe diameter of chilled water DN25 DN25 DN25 DN32 DN32 DN32
Condenser Type High efficiency hydrophilic aluminum foll finned type
Power kw 0.19 0.52 0.52 0.24*2 0.46*2 0.46*2
pump Type Centrigual water pump
Power kw 0.37 0.55 0.55 0.55 0.55 0.55
lift m 24 25 24 20 20 20
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
  L mm 1100 1200 1200 1400 1560 1560
Dimension W mm 600 600 600 800 850 850
  H mm 1100 1100 1100 1400 1500 1500
Wight kg 150 200 230 310 450 500
Model HX-15C HX-20 HX-25 HX-40 HX-50
Cooling capacity 0ºC kw 33.4 44.2 50.5 87.7 110.6
-5ºC kw 28.4 37.6 43 74.5 94
Power kw 15.84 20.51 23.52 40.18 47.92
Power Supply 3PH-380V-50HZ
  Type R22/R407C
Refrigerant Control Thermostatic expansion valve
  Type Hermetic scroll type
Compressor Power kw 4.4*3 8.7*2 10.2*2 8.7*4 10.2*4
  Type SS Tank with coil or Heat exchanger plate
Evaporator m³/h 0ºC 6.33 837 9.57 16.62 20.96
  Flow -5ºC 5.84 7.73 8.85 15.33 19.34
  Capacity L 270 350 350 580 580
  Pipe diameter DN40 DN40 DN40 DN65 DN80
  Type High efficiency hydrophilic aluminum foll finned type
Condenser Power kw 0.55*2 0.78*2 0.78*2 0.78*4 0.78*4
  Type
pump Power kw 1.5 1.5 1.5 2.2 2.2
  lift m 20 20 20 20 19
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
  L mm 1800 2100 2100 2000 2000
Dimension W mm 1000 1000 1000 2000 2000
  H mm 1600 1700 1700 1750 1750
Wight kg 750 850 900 1350 1600
