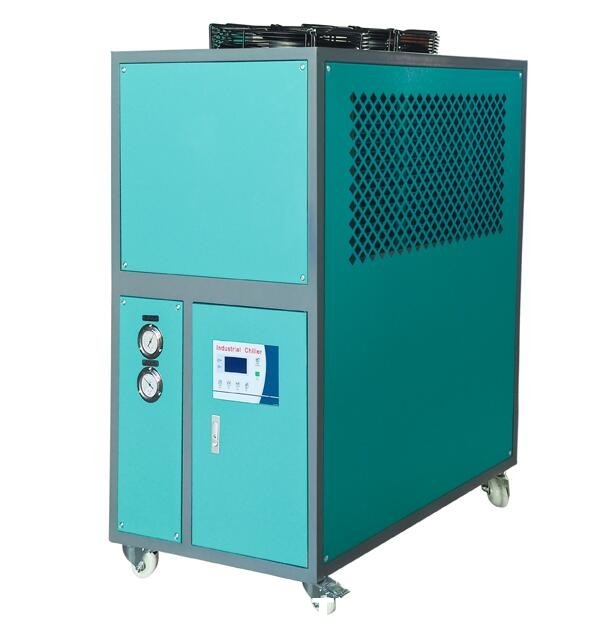

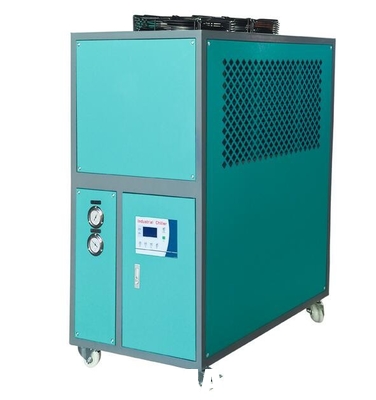

5HP Air Cooled Type Chiller
About Product
(1).The Temperature Range:-40ºC to +35ºC.
(2).Cooling Capacity Range: 2 RT to 500RT / 7 kw to 1750kw / 6020Kal to 1505000Kal
(3). The Refrigerant: R22/R404a/R134a/R507c.
(4). We can also produce the chiller according to your requirements
1. Chiller General Introduction
Cooling capacity: 2 Ton~50 Ton, 8Kw~175kw
Outlet temperature: -10 C ~ +35C, can be adjusted on the chiller control panel
Electric power supply available: 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
Temperature stability ±0.5 ºC to ±1 ºC
Built-in SS water tank and water pump
Shell&tube or SS PHE for optional
Easy installation and energy saving
All models and cooling capacity are available
2.Chiller Description
(1).Compressor
It has the advantages of smooth and reliable operation, low efficiency and lower fault, low vibration noise, convenient maintenance and long life. High-quality compressor as the heart of the chiller, we choose Europe, the United States, Japan High-quality import brand original compressor, built-in safety protection, low noise, power saving and durable, in order to increase the service life of the equipment.
(2).High-efficiency air-cooled condenser high-speed punch punch perforation, the quality of the piece is reliable. Second turn edge, copper pipe and fins more closecontact, heat exchange efficiency, the use of fully imported copper pipe and automatic elbow welding, greatly enhance the air tightness, to eliminate refrigerant leakage phenomenon. It is particularly suitable for use in areas where water resources are scarce or water quality is high.
(3).The use of 304 full stainless steel thick water tank, one welding molding, rust-proof, anti-corrosion, put an end to water pollution, once wiped, as fresh as new.Inside the automatic rehydration device, high-efficiency internal thread double-layer copper coil, real foot number evaporator, with large stainless steel water tank, quickly reduce heat, to achieve cooling effect.Compared with other machines of the same model, more cooling capacity, higher efficiency, more energy saving, cleaning and maintenance more convenient and fast.
(4).Much high effficiency Shell and tube or Plate Evaporator core corrosion resistance, good thermal conductivity, high temperature, heat exchange performance, non-polluting media (non-toxic), not easy to scale, non-magnetic, not easy to leak. The inner core adopts a high-strength sealing structure, which is sealed well and increases heat exchange performance.
(5).Punpu Microcomputer Control System
The intelligent control system of microcomputer is precisely controlled, Simple operation, intelligent start and stop, Precision temperature control within -10c to 45 degrees of arbitrary adjustment, LCD display, all kinds of faults at a glance, Monitor ingends in real time, Multiple protection features, The Chinese and English interface sits to switch, To meet the needs of different users, Easy to operate.

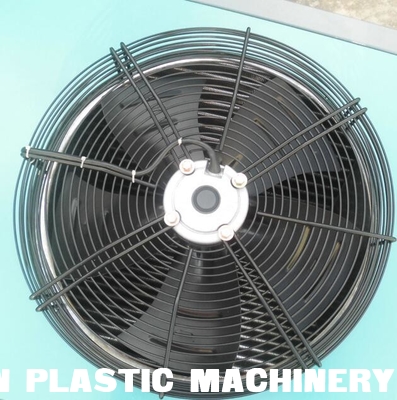

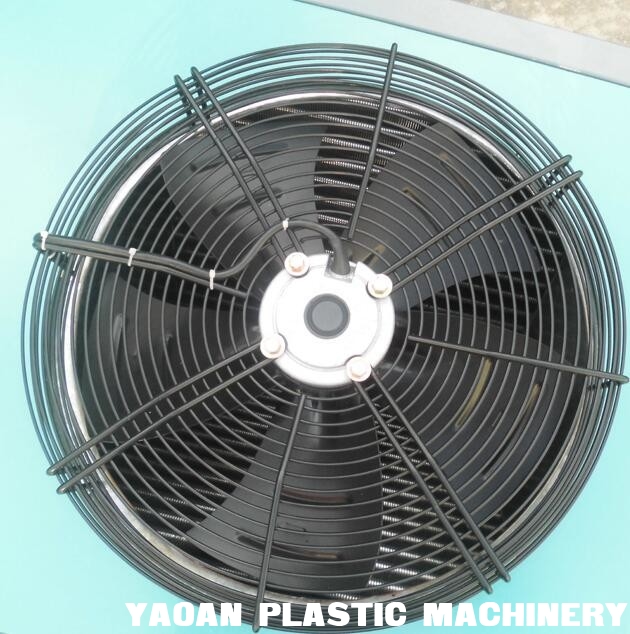

(6).High wind volume axial flow design, imported heat-changing fan, heat exchange efficiency is significant. Low noise fan and high efficiency motor, with large air volume, small vibration, external protection fence, to achieve a good heat dissipation effect, its fan using high-strength hard aluminum alloy production, blade stamping molding, and by strict movement of the two balance test, quality is better than peers.
4.Air Cooled Water Chiller Parameter
Model | HX-3 | HX-5 | HX-6 | HX-8 | HX-10 | HX-12 | ||
Cooling capacity | 0ºC | kw | 6.8 | 10.5 | 12.2 | 16.2 | 22.8 | 24.8 |
-5ºC | kw | 5.7 | 8.9 | 10.3 | 13.8 | 19.3 | 21 | |
Power | kw | 3.45 | 5.45 | 6.31 | 8.22 | 10.54 | 12.33 | |
Power input | 3PH-380V-50HZ | |||||||
Refrigerant | Type | R22/R407C | ||||||
Control | Thermostatic expansion valve( Capillary) | |||||||
Compressor | Type | Hermetic scroll type | ||||||
Power | kw | 2.84 | 4.36 | 5.2 | 3.5*2 | 4.4*2 | 5.2*2 | |
Evaporator | Type | SS Tank with coil or Shell and tube | ||||||
m³/h | 0ºC | 1.29 | 1.99 | 2.31 | 3.07 | 4.32 | 4.7 | |
Flow | -5ºC | 1.17 | 1.83 | 2.12 | 2.84 | 3.97 | 4.32 | |
Capacity | L | 50 | 70 | 70 | 120 | 200 | 200 | |
pipe diameter of chilled water | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | ||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | ||||||
Power | kw | 0.19 | 0.52 | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | |
pump | Type | Centrigual water pump | ||||||
Power | kw | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
lift | m | 24 | 25 | 24 | 20 | 20 | 20 | |
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||
L | mm | 1100 | 1200 | 1200 | 1400 | 1560 | 1560 | |
Dimension | W | mm | 600 | 600 | 600 | 800 | 850 | 850 |
H | mm | 1100 | 1100 | 1100 | 1400 | 1500 | 1500 | |
Wight | kg | 150 | 200 | 230 | 310 | 450 | 500 |
Model | HX-15C | HX-20 | HX-25 | HX-40 | HX-50 | ||
Cooling capacity | 0ºC | kw | 33.4 | 44.2 | 50.5 | 87.7 | 110.6 |
-5ºC | kw | 28.4 | 37.6 | 43 | 74.5 | 94 | |
Power | kw | 15.84 | 20.51 | 23.52 | 40.18 | 47.92 | |
Power Supply | 3PH-380V-50HZ | ||||||
Type | R22/R407C | ||||||
Refrigerant | Control | Thermostatic expansion valve | |||||
Type | Hermetic scroll type | ||||||
Compressor | Power | kw | 4.4*3 | 8.7*2 | 10.2*2 | 8.7*4 | 10.2*4 |
Type | SS Tank with coil or Heat exchanger plate | ||||||
Evaporator | m³/h | 0ºC | 6.33 | 837 | 9.57 | 16.62 | 20.96 |
Flow | -5ºC | 5.84 | 7.73 | 8.85 | 15.33 | 19.34 | |
Capacity | L | 270 | 350 | 350 | 580 | 580 | |
Pipe diameter | DN40 | DN40 | DN40 | DN65 | DN80 | ||
Type | High efficiency hydrophilic aluminum foll finned type | ||||||
Condenser | Power | kw | 0.55*2 | 0.78*2 | 0.78*2 | 0.78*4 | 0.78*4 |
Type | |||||||
pump | Power | kw | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
lift | m | 20 | 20 | 20 | 20 | 19 | |
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||
L | mm | 1800 | 2100 | 2100 | 2000 | 2000 | |
Dimension | W | mm | 1000 | 1000 | 1000 | 2000 | 2000 |
H | mm | 1600 | 1700 | 1700 | 1750 | 1750 | |
Wight | kg | 750 | 850 | 900 | 1350 | 1600 |
