Automatic Face Mask Making Machine , Automatic disposable 3 layers mask machine

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 1600MM
Minimum Order Quantity: 1
Price: 1-99
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Material: PP Nonwoven Fabric Name: Full Automatic Three-layer Mask Machine
Motor: Servo Motor Spec: 175X95mm
Capacity: 100pcs/min Dimension: 6500X5000X1800mm

Automatic Face Mask Making Machine , Automatic disposable 3 layers mask machine

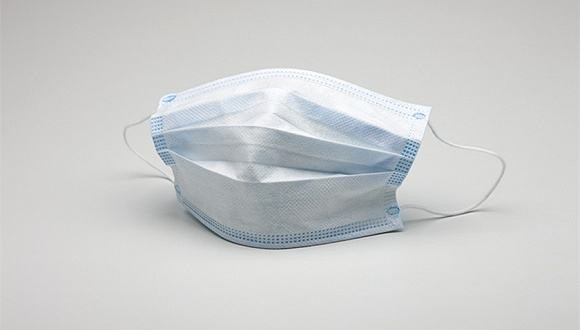

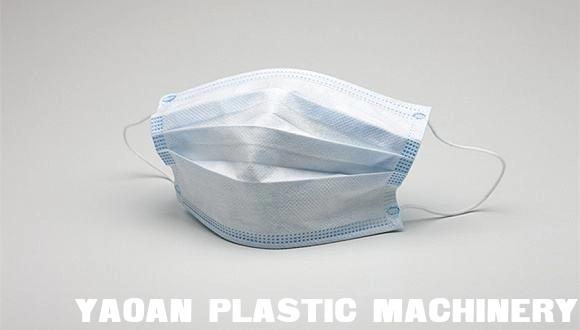

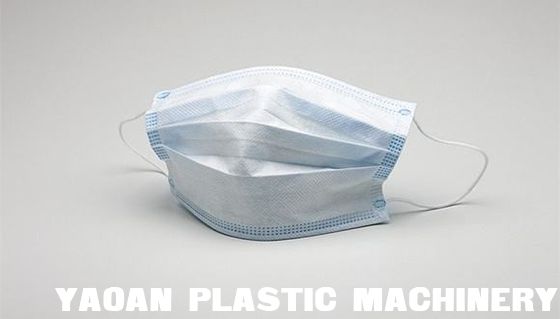

1. Disposable three-layer mask is a kind of flat mask.

Disposable three-layer masks are made of two layers of non-woven fabric and filter paper( Meltblown nonwoven fabric);

2. The required materials:

Spunbond Non-woven fabric 2 layers, the middle layer is melt-blown fabric, the nose bridge is PP5.0MM * 0.5MRR, ear band: round band 2.5-3MM diameter.

Finished product specifications: 175 * 95MM,

Applicable materials: PP non-woven fabric

Quality requirements: Comply with the manufacturing standards for disposable medical supplies cover standards (YY / T0960-2013) in the pharmaceutical industry. No leakage, no damage, nose strips, and ear hooks.

3. The process of the mask machine (efficiency of 100 per minute) The process of making the mask can be divided into three parts:

① Mask body

② Outer ear band of mask

③ Mask connecting line

4. Process:

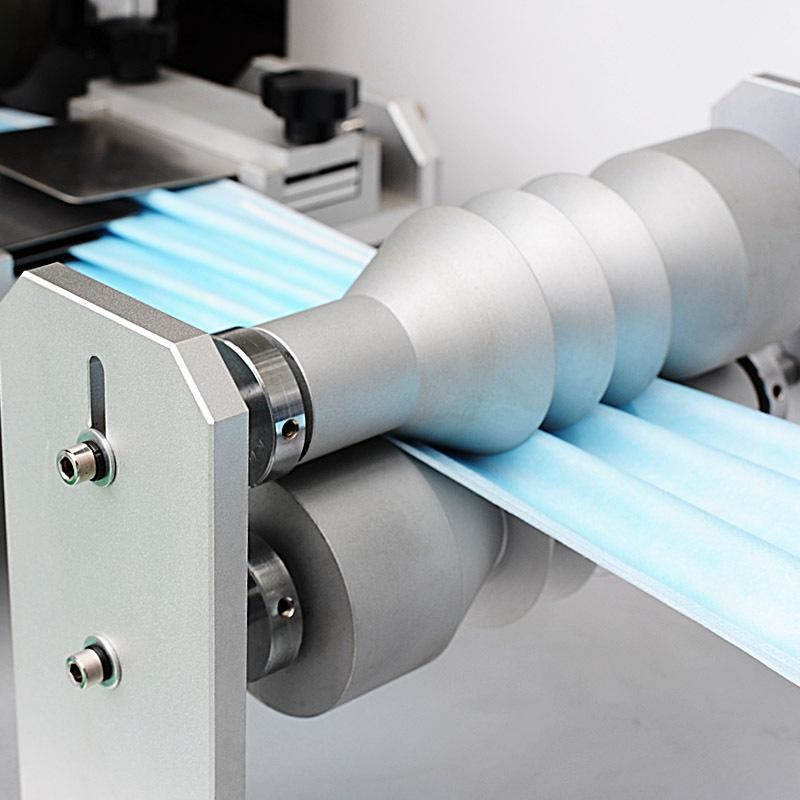

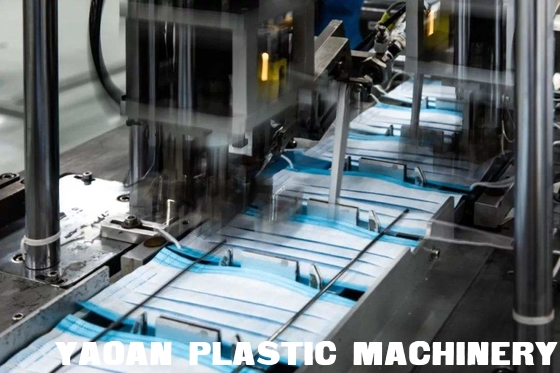

①Mask body-Unwinding-Ultrasonic compound-Nose insertion-Precompression compound-Folding view-Precompression compound-Ultrasonic compound

② Mask external ear band-feed into the body-cutting tape-ultrasonic adhesive tape:

③ Mask connecting line-Automatically convey the finished body to the mask ear band machine conveying line-Weld the elastic band to the body with ultrasonic waves.

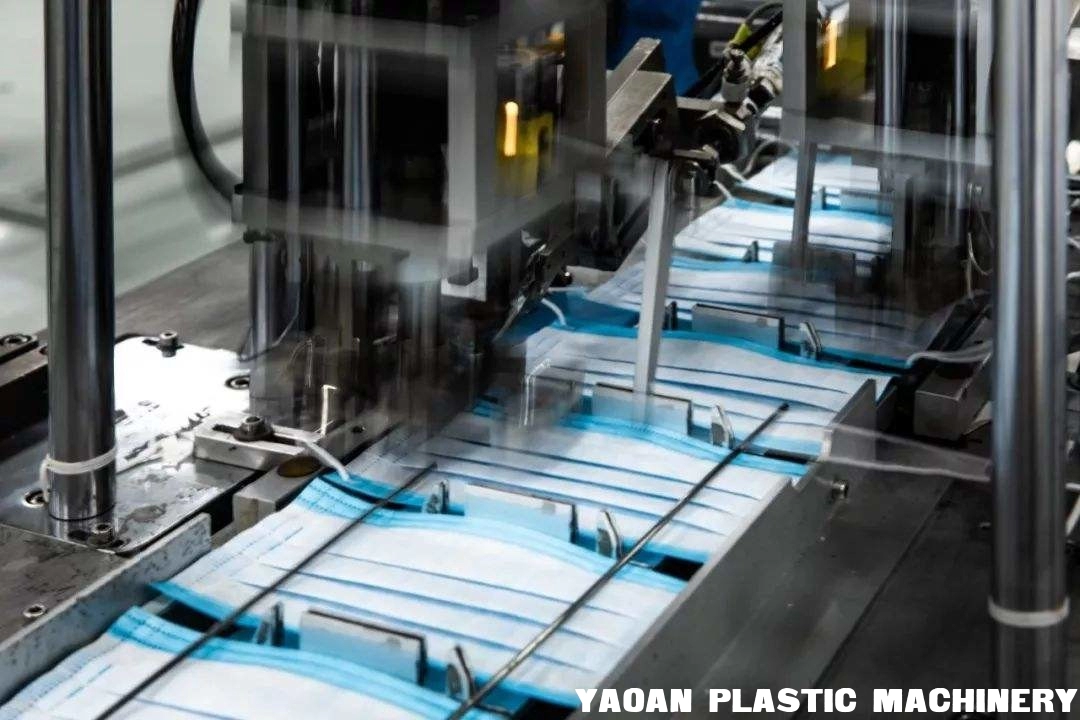

Automatic Face Mask Making Machine , Automatic disposable 3 layers mask machine

Automatic Face Mask Making Machine , Automatic disposable 3 layers mask machine

Technical parameters:

Table 1:

Name Dimension Driving method Control Panel Voltage Material Spec Output
Full automatic three-layer mask machine (outer ear) 6500X5000X1800 Servo motor and stepping motor Human-machine interface and (touch screen) 220V/50HZ PP nonwoven fabrics 175X95mm 100pcs/min

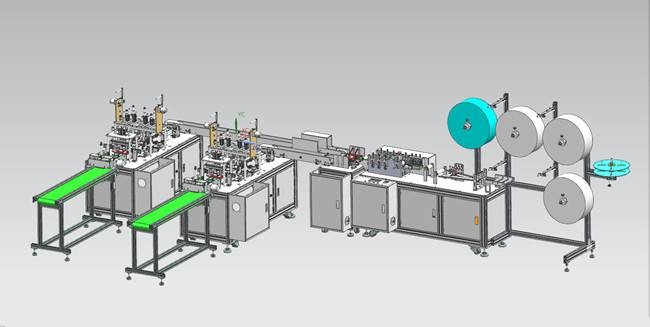

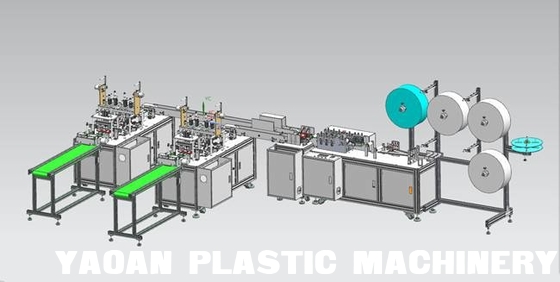

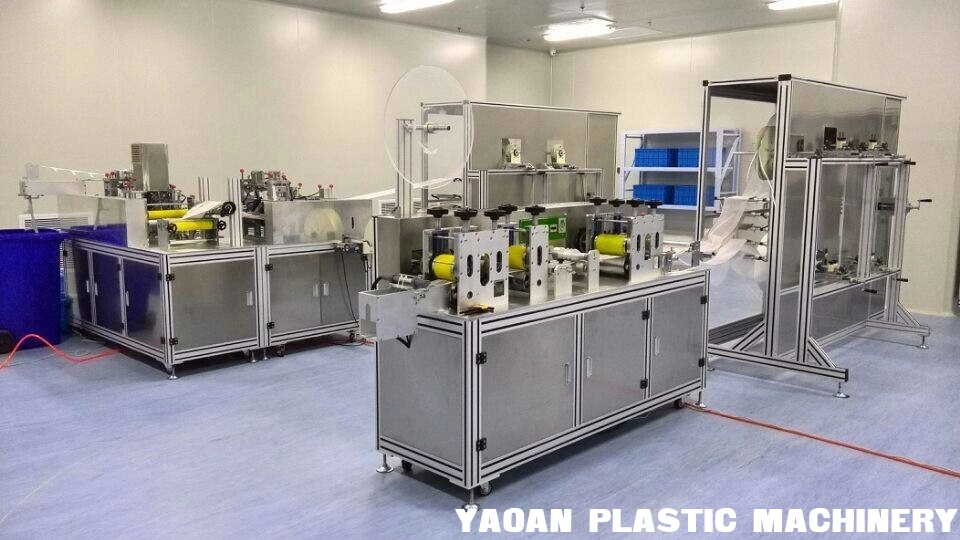

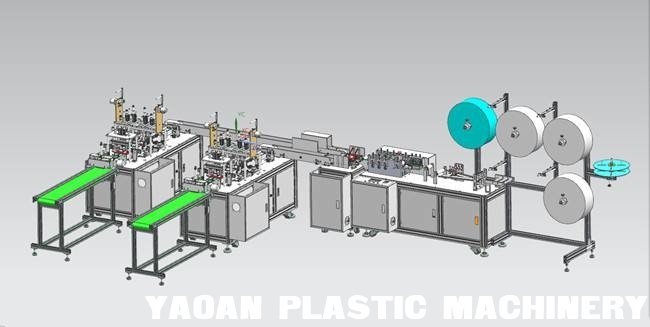

3. Equipment composition:

Paying off unit (raw material)

Flat mask slice feeder

Flat mask body conveyor

Flat mask outer ear strap machine


4. Equipment parameters:

1. Paying off unit (raw material)

1.1 Friction tension adjustment (manual adjustment)

1.2. Quick roll changing design, convenient and quick. (Change materials manually)


2.Flat mask film feeder

2.1 Ultrasonic system 20KHZ 1 set

2.2. Horizontal motor reduction 750W 1

2.3 One speed motor 40W

2.4, static electricity generator 50W 1


3.Face mask body conveyor

3.1, 2 sets of speed regulating motors 150W

3.2 Stepper motor 15N.m 4 sets


4, flat mask outer ear strap machine

4.1, 2 sets of 750W servo motor

4.2 Ultrasonic system 20KHZ 4 sets

4.3, 2 speed regulating motors 40W

4.4 2 fixed speed motors 60W

4.5, fixed speed motor 250W 4 sets


PLC control system

Touch screen man-machine interface

Automatic Face Mask Making Machine , Automatic disposable 3 layers mask machine
Packaging and shipping


PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 120 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
