AF-875mm PP Melt Blown PP Non Woven Fabric Machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: 875MM

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 1-99

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:
Material:
PP
Fabric GSM:
10-150
Die Brand:
High Quality
Screw Diameter:
65mm
Fabric Width:
875mm
Speed:
10-80m/min
Filtration:
70-95%
Applications:
Mask, Garment Material, Diaper,Filter
Material:
PP
Fabric GSM:
10-150
Die Brand:
High Quality
Screw Diameter:
65mm
Fabric Width:
875mm
Speed:
10-80m/min
Filtration:
70-95%
Applications:
Mask, Garment Material, Diaper,Filter
Product Description

AF-875mm PP Melt Blown PP Non Woven Fabric Machine

Meltblown fabric mainly use polypropylene as the main material, the fiber diameter can reach 1 ~ 5 micron.The microfiber with unique capillary structure increases the number and surface area of fiber per unit area, so that the meltblown cloth has good filtering, shielding, insulation and oil absorption.Can be used for air, liquid filtration materials, isolation materials, absorption materials, warm materials, oil absorption materials and wiping cloth and other fields.
1. Working principle of melt blown making machine
Polypropylene PP material through the feeding machine into a single screw extruder to squeeze out the polymer melt, through high-speed hot air or other means, the polymer by extreme stretch and form very fine short fiber, and agglomerate on the porous formation of fiber network, and finally through its own bonding and strengthening to form non-woven fabric, finally produce meltblown fabrics.
Raw material
100% New Polypropylene
Fiber micro
15-30μm
Fabric width
525mm
Fabric weight
15-100gsm
Fabric thickness
2-5mm
Production capacity
400-500kg/day
Actual running
50KWH
Total installed

60-80kw 380v

Mold width
1000 mm
Mole hole size
0.2-0.4mm (can be customized)



2. The Features of meltblown nonwoven fabric making machine.

  • The whole line is well-structured and easy to operate
  • The whole line highly automated
  • Control elements are of well-known make, high performance and reliable technologies.
  • The whole line are controlled by PLC and operated with touch -scree.
  • The allocation of the main frame and auxiliary equipment can be special designed and configurated according to customer's requirements.

3. Meltblown nonwoven fabric making machine Working Process.

Flow chart

Raw Material(Edge Material Recycling)- Melt Extrusion -Meltblow device - Web Forming Machine - Winding and Slitting Machine -Finished Products

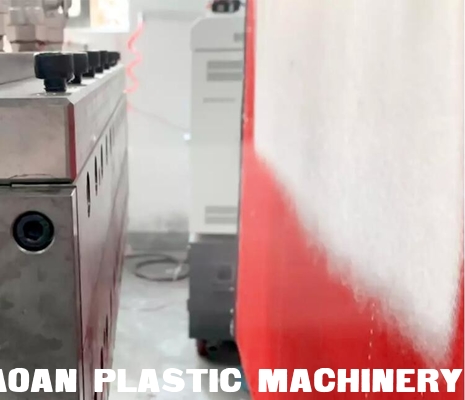

AF-875mm PP Melt Blown PP Non Woven Fabric Machine 0

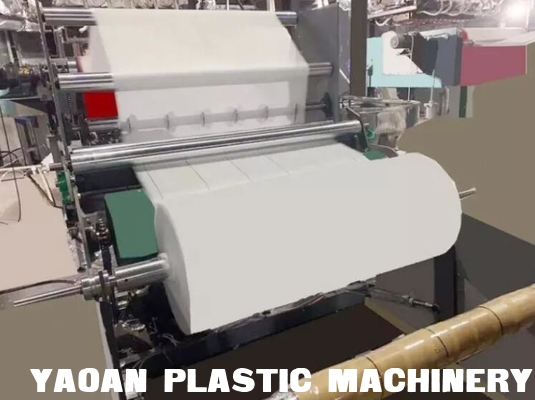

AF-875mm PP Melt Blown PP Non Woven Fabric Machine 1

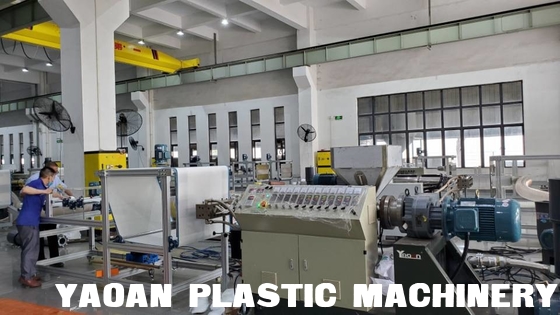

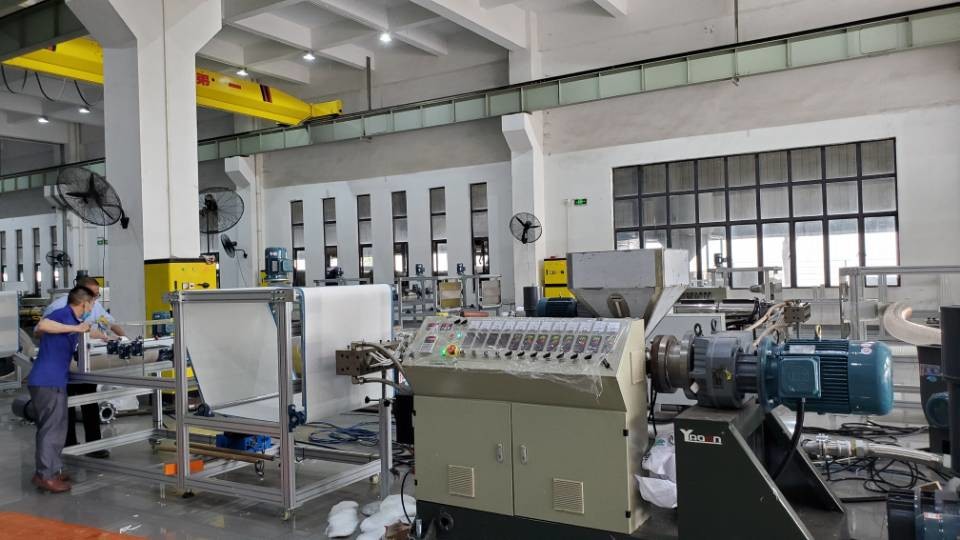

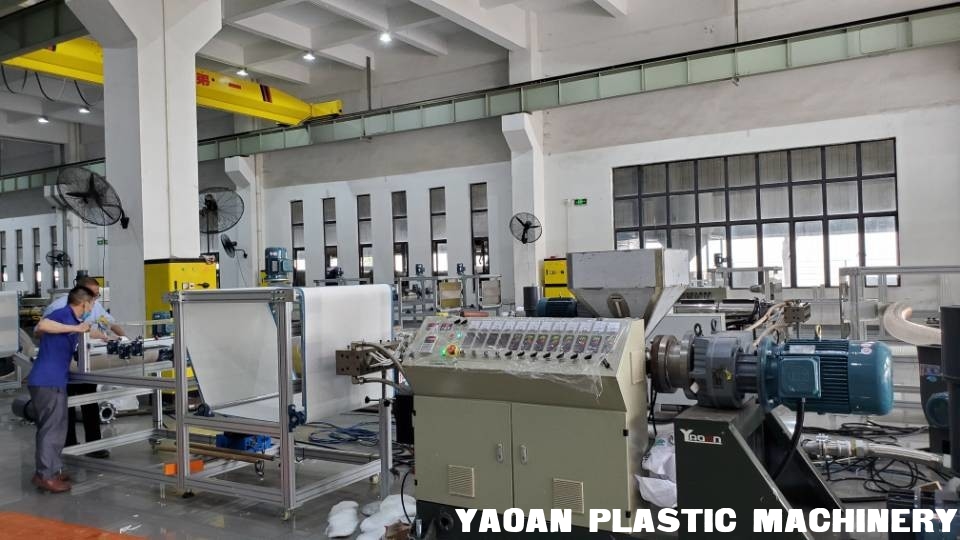

Our company plant and nonwveon fabric machine workshop:


High Quality S Ss SMS PP Spunbond Nonwoven Fabric Making Machine

Nonwoven machine shipment:
High Quality S Ss SMS PP Spunbond Nonwoven Fabric Making Machine

Packaging and shipping



PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 120 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;



Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
