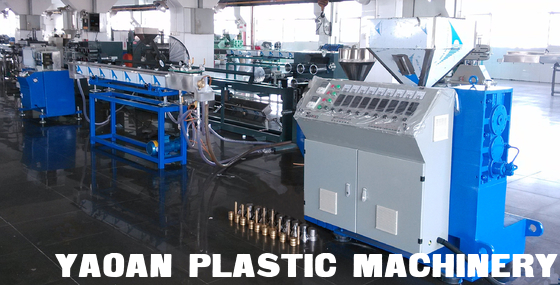

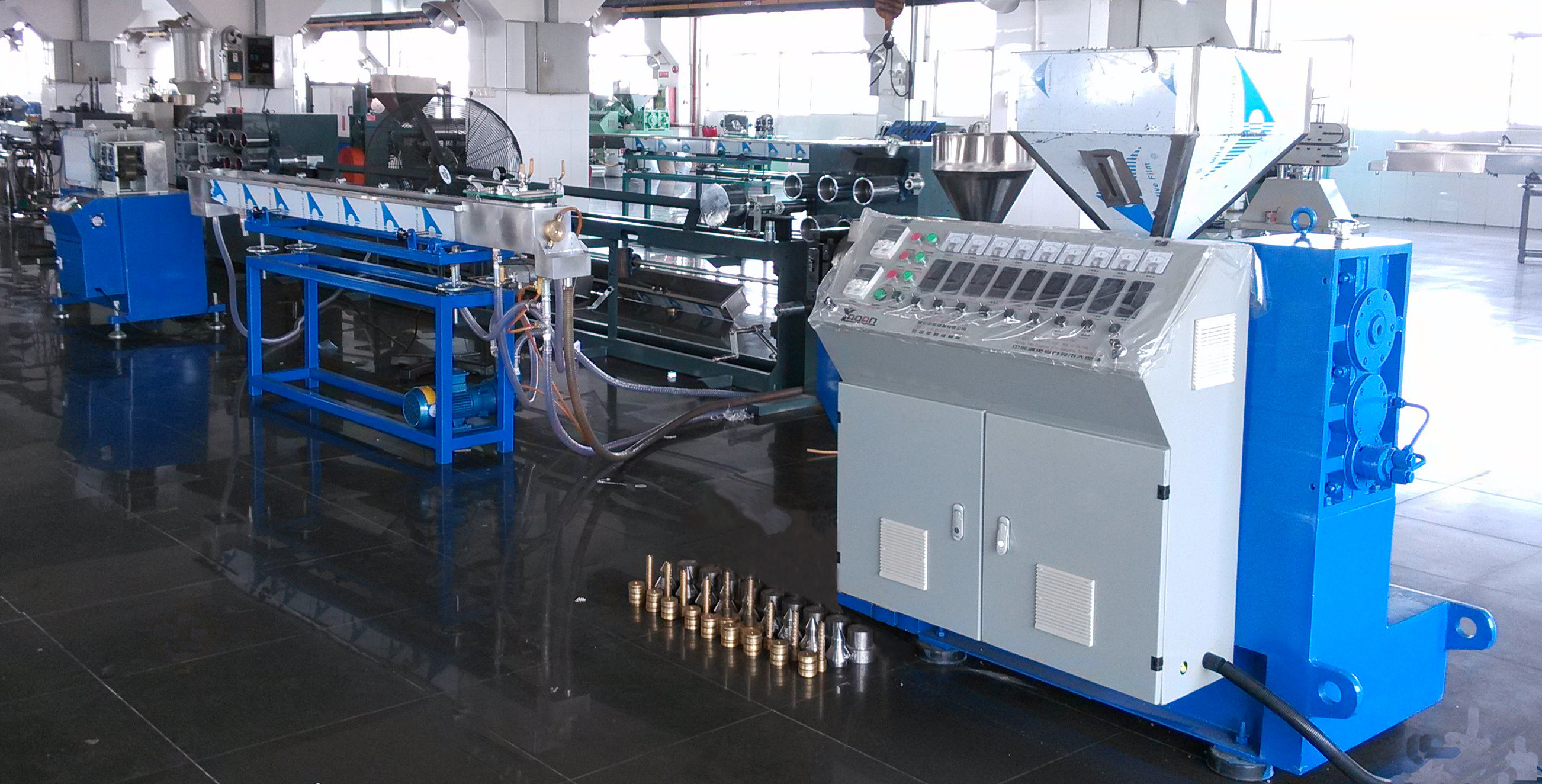

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-50
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Material: PP CE: Yes
Screw Size: 50mm L/D: 28:1
Warranty: 1 Year Capacity: 30-50kg/hr

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine

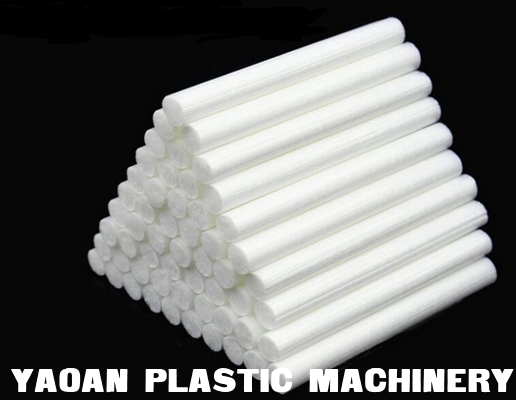

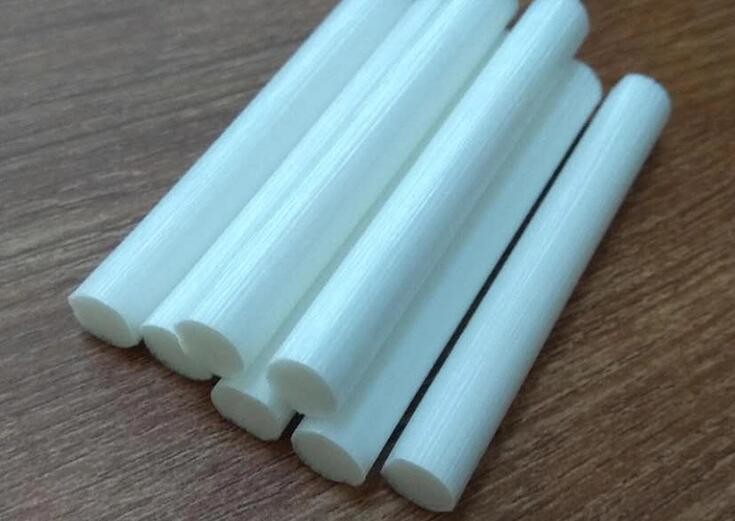

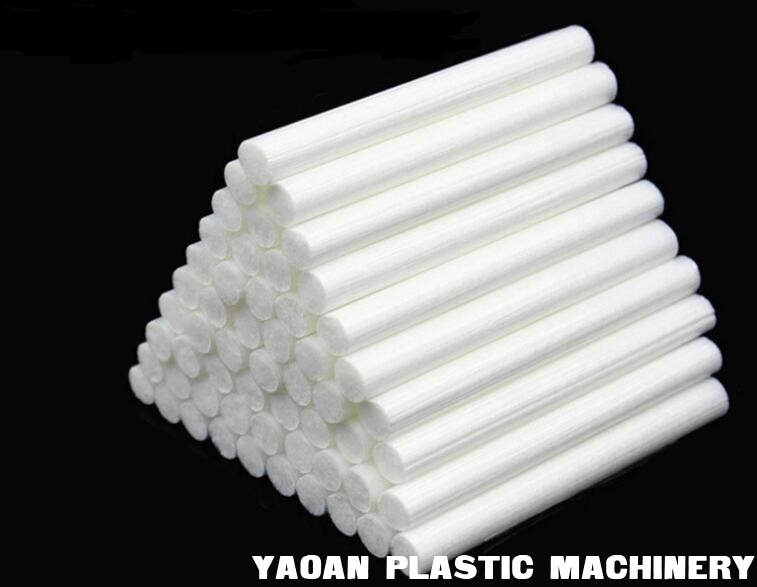

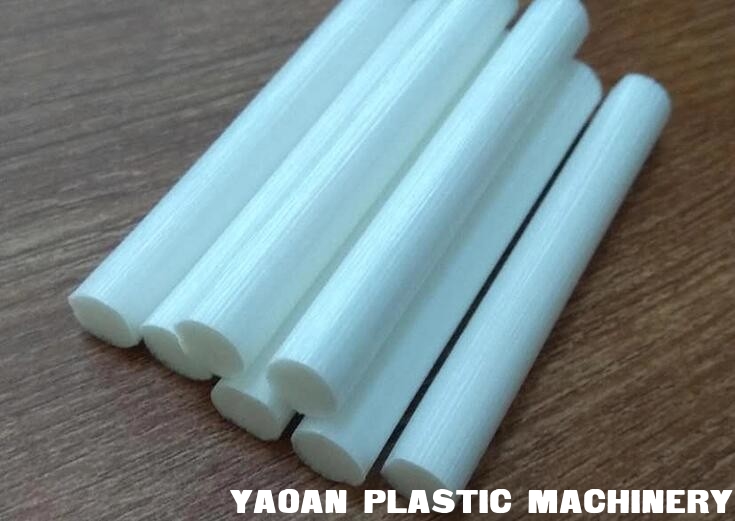

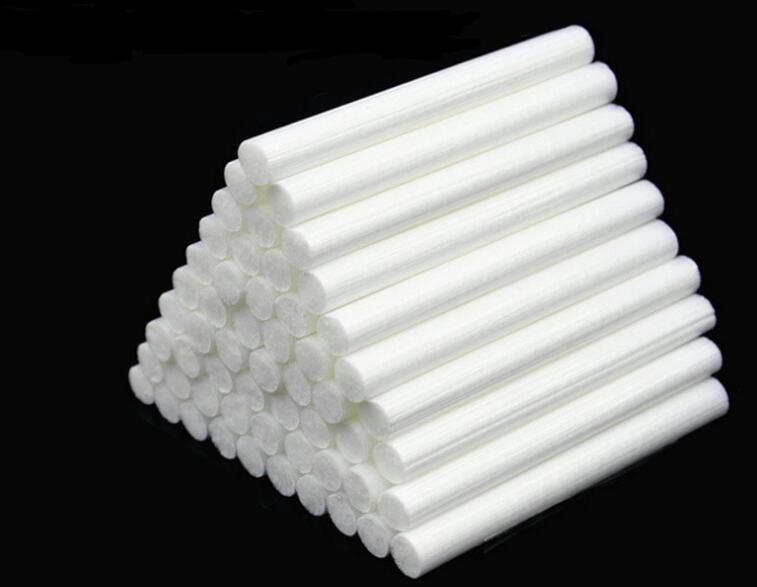

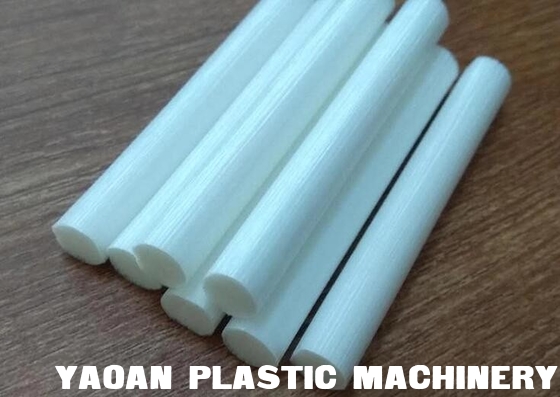

This machine is used to make fiber marker pen reservoir,the product is made of polyester fiber 300DTY+pp.

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine

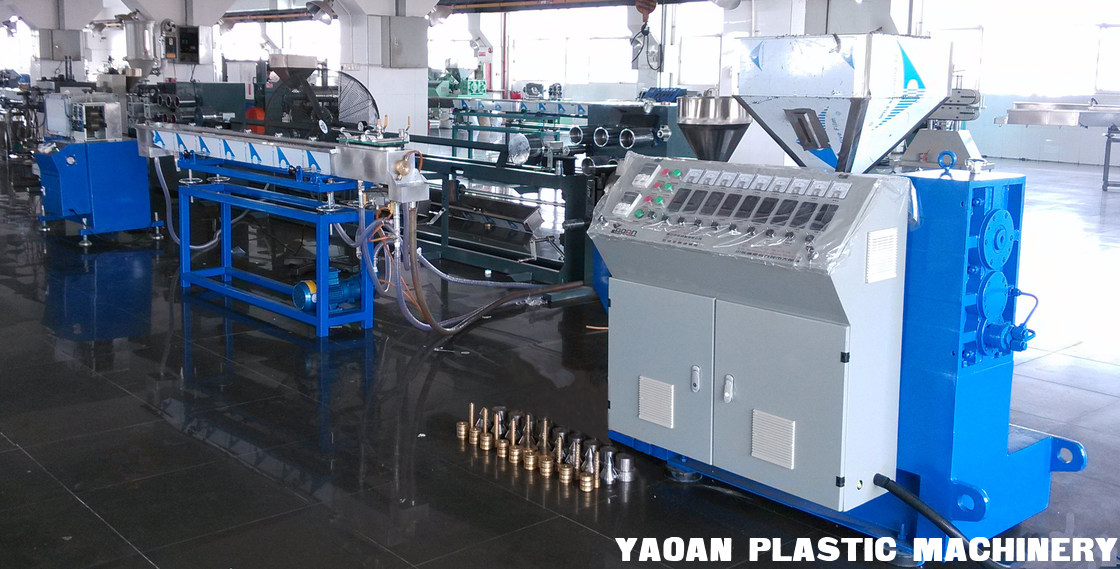

Machine specifications as below:



Rewinding stand: one set

Shafts: 320pcs



4 rollers stretch unit: one set

Rubber rollers: 2pcs



Φ50 extruder: one set

Hopper: one set

Screw diameter: 50mm

Screw L/D: 28:1

Screw structure: special for PP

The screw and the barrels are all made of high quality nitrided steel-38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness: screw≧740HV;barrels≧940HV. Nitration depth: screw: 0.4-0.6mm, barrel: 0.6-0.7mm, fragility is 2 grades

Gear box (one set)

The gear box materials is made of alloy cast steel, contract surface of up, down box deal with precision tempering, quenching heat treatment, the teeth deal with grinding and peeling eventually, the teeth surface harshness is Ra 0.8, and provided with damping, antifriction, low-noise etc. characteristics.



Electric control cabinet: one set

Include stretch unit speed control, extruder speed control, water tank movement control, vacuum control, water pump control, vacuum dewater unit control



Extruding die: one set



5m stainless steel vacuum cooling water tank: one set

Tank size: L5000mm*W220mm*H200mm

Water tank frame: one set



Four rollers hauls off/cutting combination machine (one set)

Roller material: PU, hardness about

Haul off control power: 1.5kw (Mitsubishi servo motor)

Haul off control style: servo controller

Cutting unit control power: 1.5kw (Mitsubishi servo motor)

Cutting unit control type: servo controller

Cutter speed: 200-1600RPM

Cutting length: 40-120mm

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine

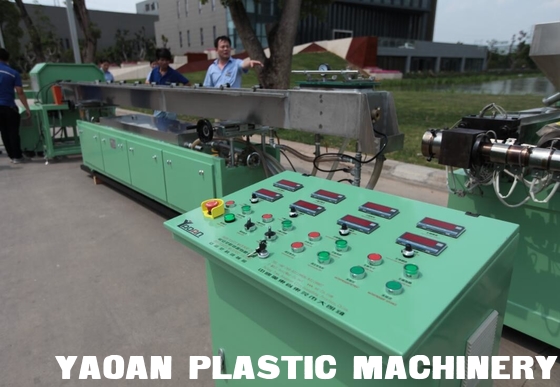

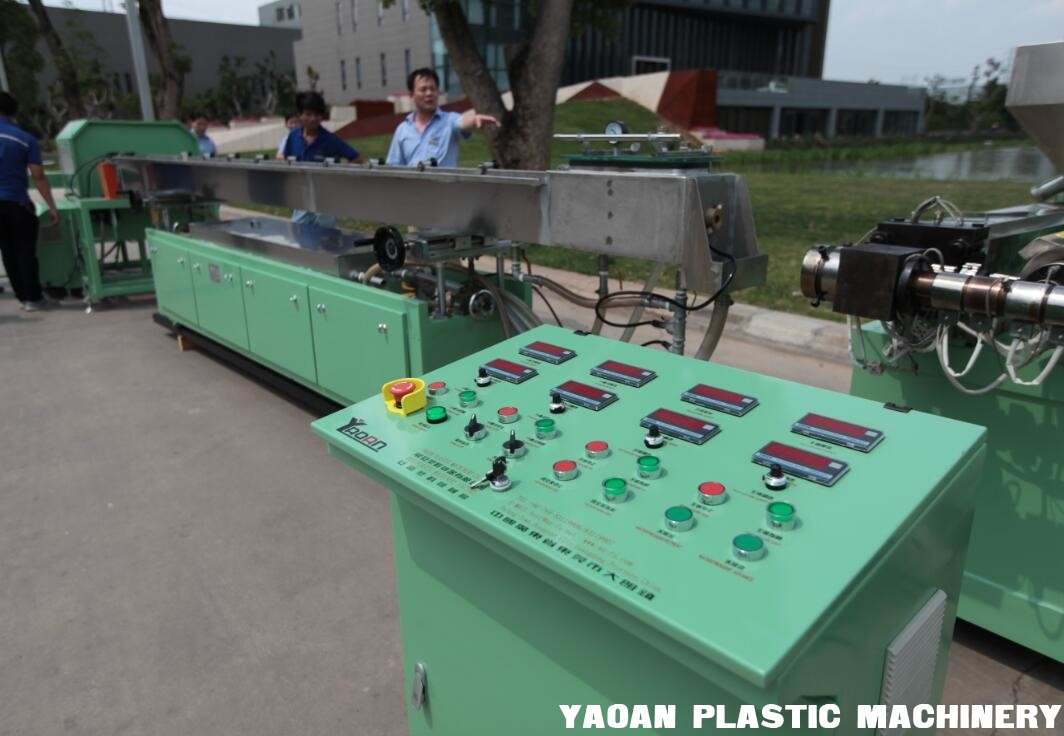

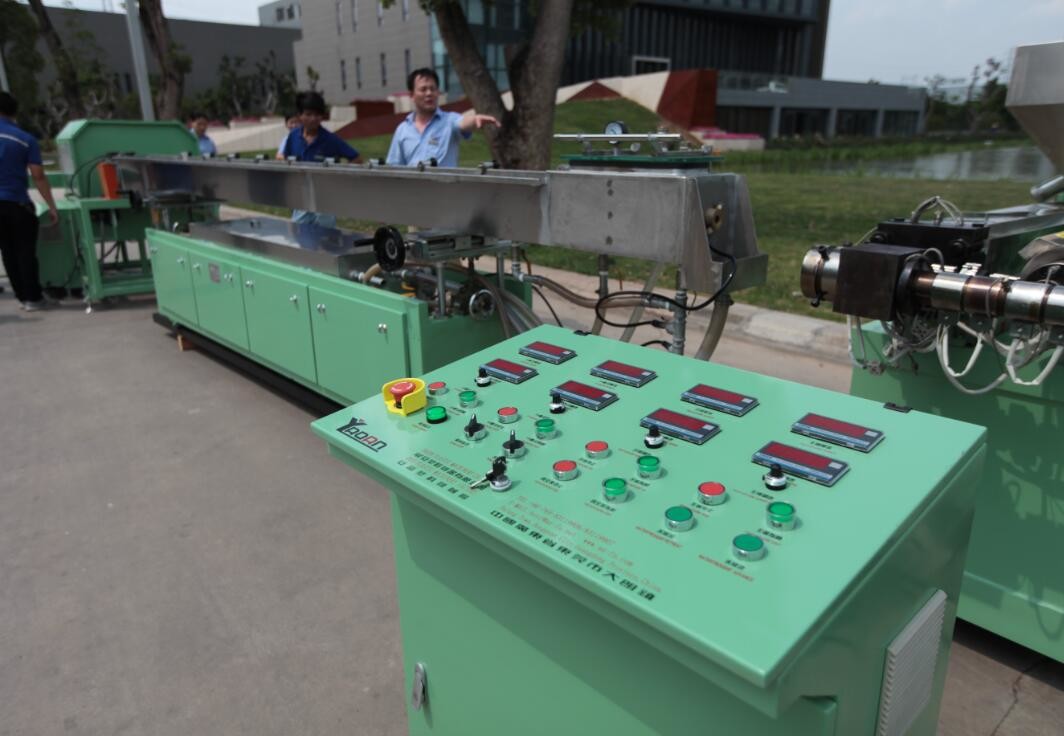

YAOAN machine shipment:
Excellent EVA Hot Melt Adhesive Glue Stick Rod Making Machine

YAOAN factory panorama:
Excellent EVA Hot Melt Adhesive Glue Stick Rod Making Machine

Packaging and shipping



PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 50 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
