|Raw Material:||TPU,EVA,PP||Coating Layer:||1-3 Layers|

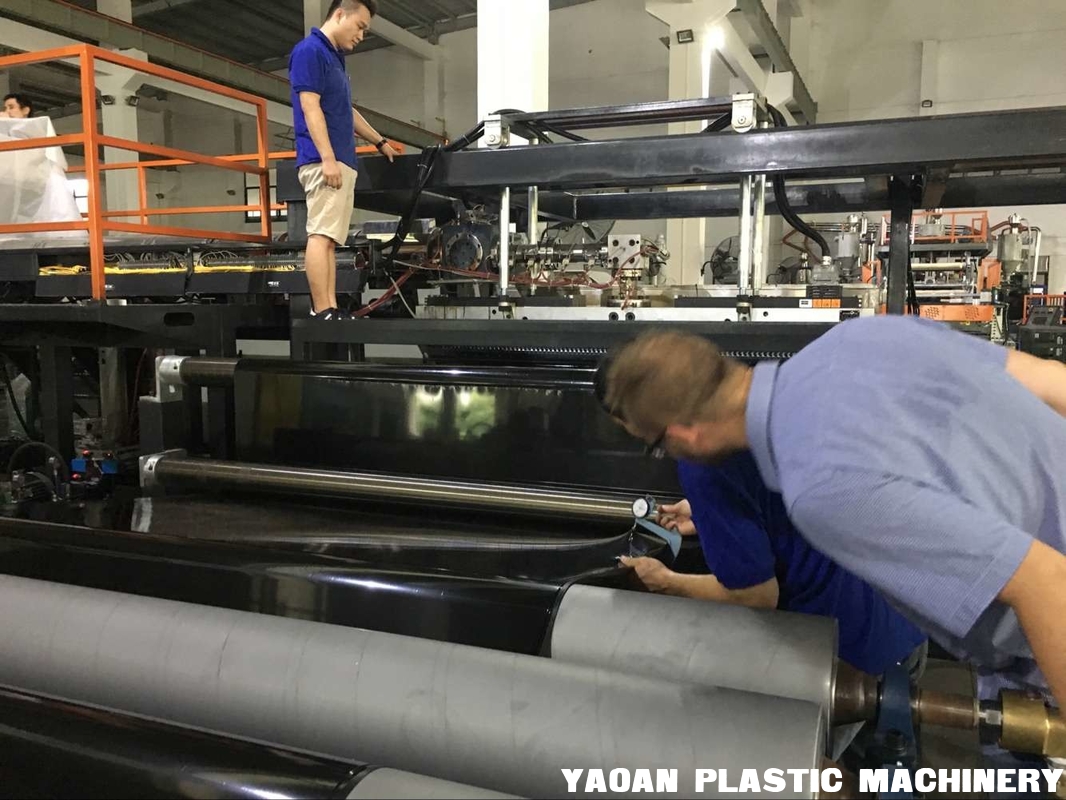

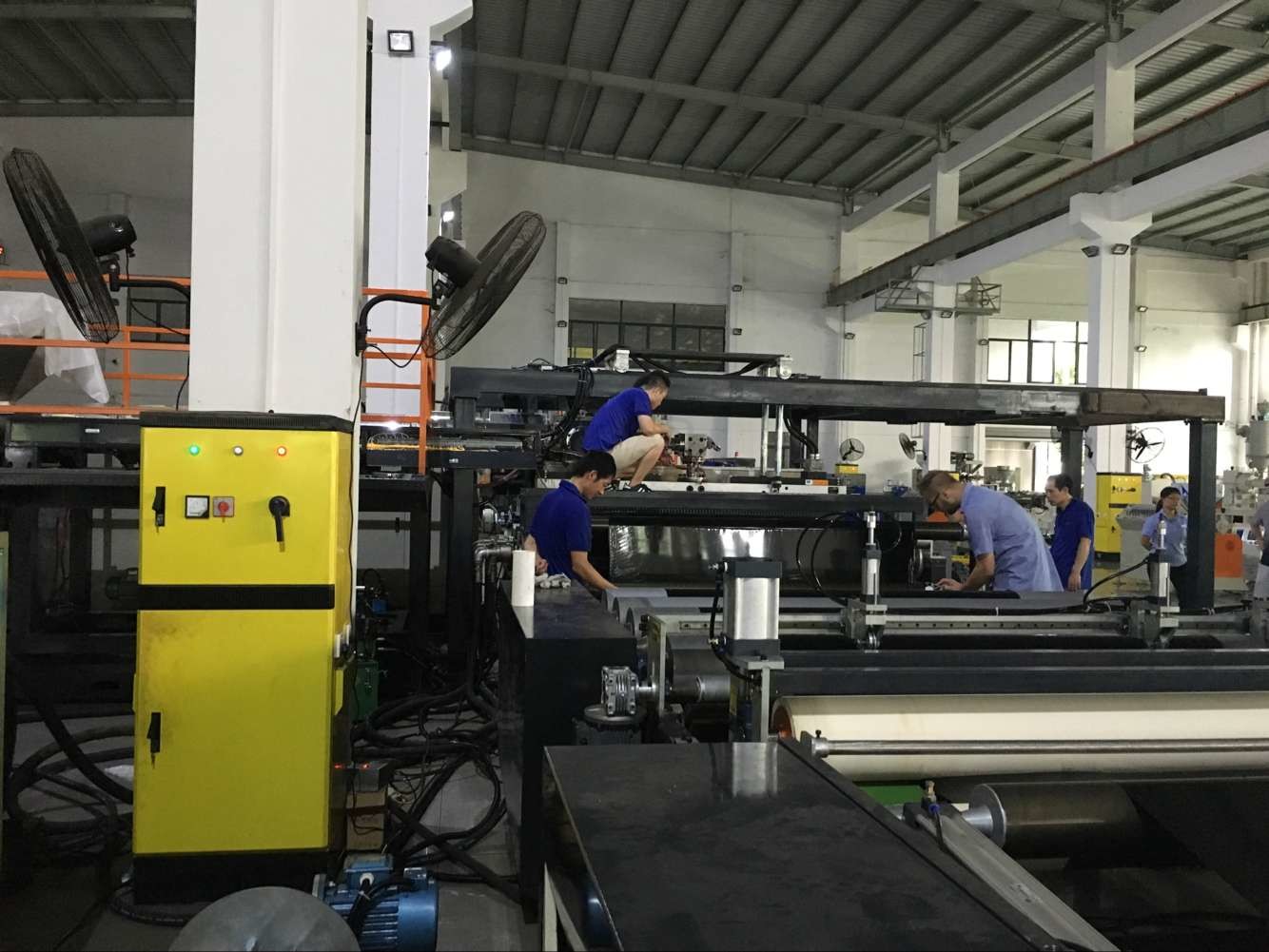

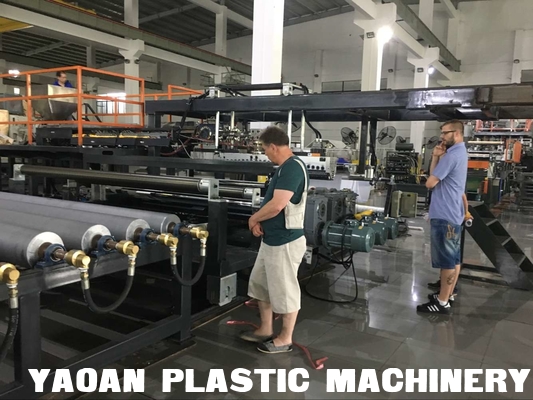

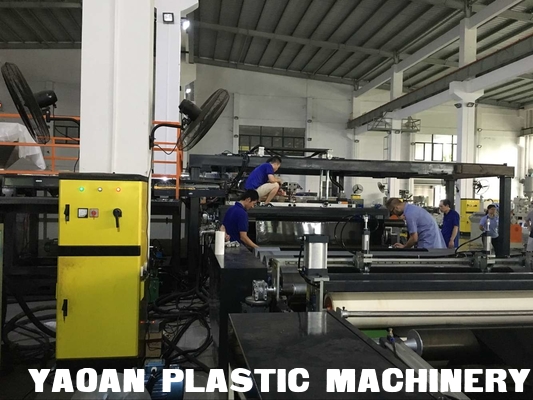

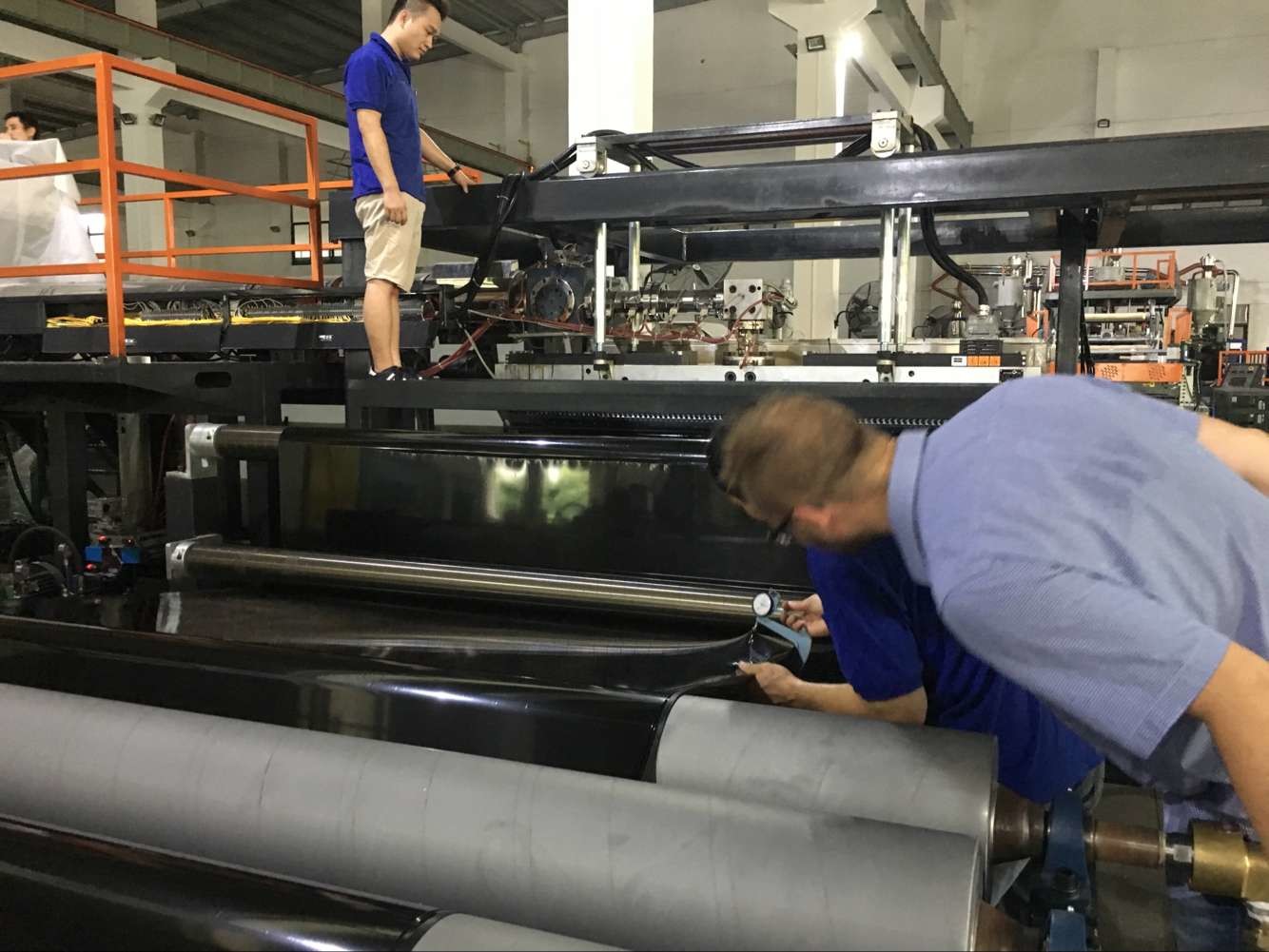

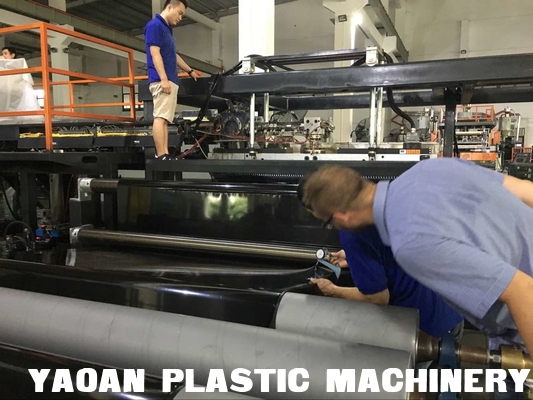

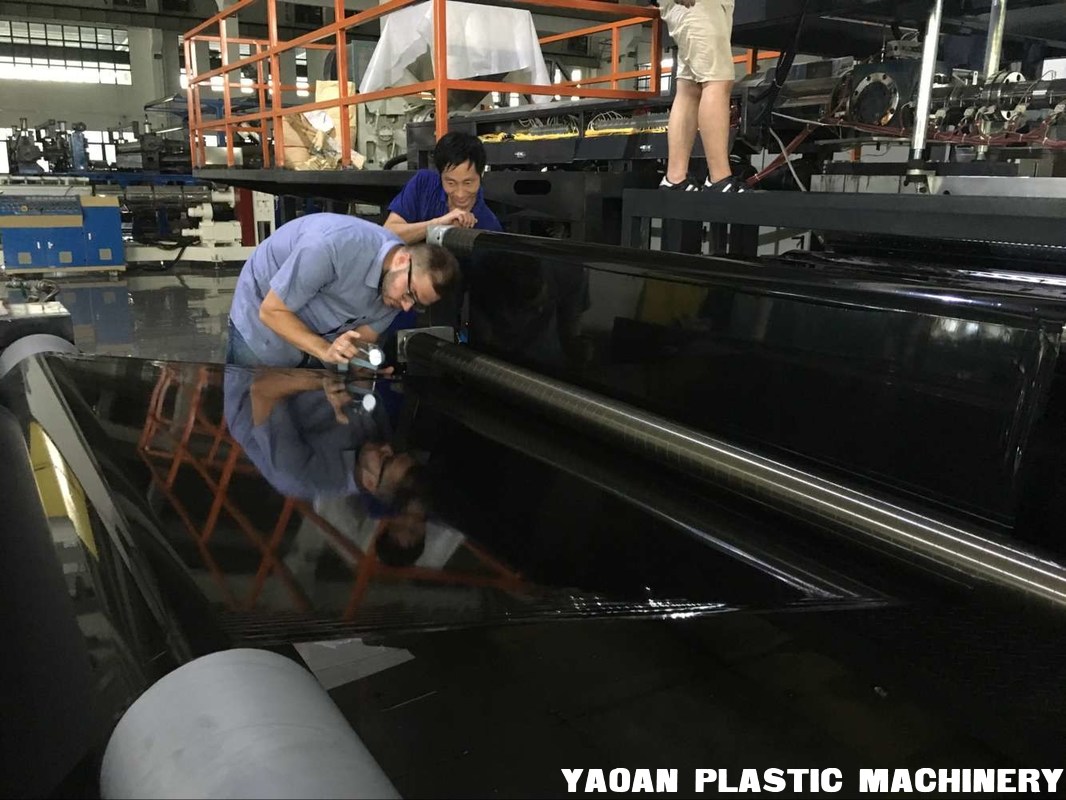

TPU,EVA film & fabric lamianting production line is made by YAOAN. Rely on independent innovation master core tehnologies, we own brand in China TPU film extrusion machine first.
1.Cooling roller adopts high degree of finish roller, which can eliminate bubbles produced during the compounding process.
2. Silicone roller and cooling roller adopt screw-type cooling structure,to make cooling quickly and laminating easily.
3.Compounding roller is drived by one vector frequency electric motor
1.Applicable coating film resin: Coating grade like LDPE ,PP ,EVA,EAA etc .
2.Based material:paper (30~425g/m2 ) , textile fibre ,non-woven fabric, paper .
3.Max working speed: 80~150m/min
4.Max width of coating film: 3200mm
5.Thickness of coating film: 0.01–0.11mm
6.Inaccuracy thickness of coating film: ±6%
7.Max extrusion: 500kg/h
8.Overall dimension: 9600mm×9000×3250mm(L×W×H)
9.Machine colour: can choose
If you are interesting in this machine,please feel free to contact with Mr.Ryan Tan
Mobile phone:+86-13825752088 (wechat,whatsapp)
