Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine, Back counter material coating machine
Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine, Back counter material coating machine
Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine, Back counter material coating machine
Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine, Back counter material coating machine
Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine, Back counter material coating machine

Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine, Back counter material coating machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-1000., AF-1500

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price

Product Details

Product Description
Product Details
High Light:
Material:
TPU
Screw:
120mm
L/D:
28:1
Machine Speed:
30m/min
Capacity:
250kg/hr
Warranty:
1 Year
Material:
TPU
Screw:
120mm
L/D:
28:1
Machine Speed:
30m/min
Capacity:
250kg/hr
Warranty:
1 Year
Product Description

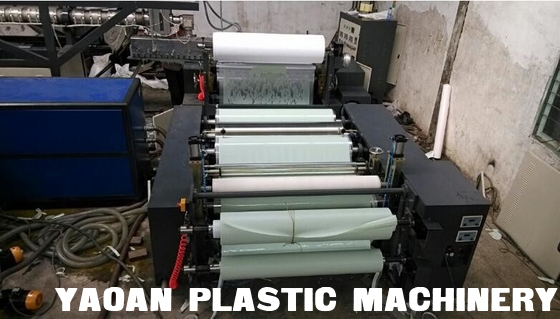

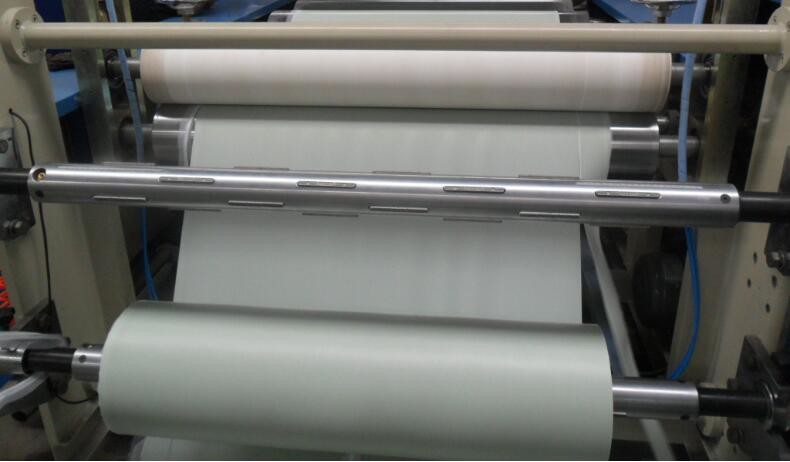

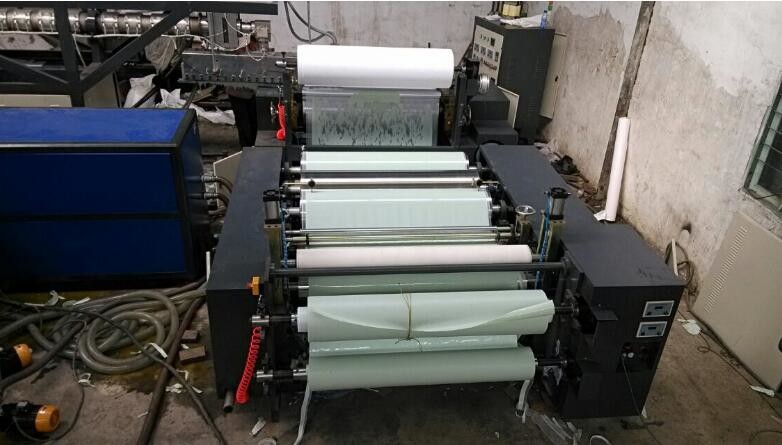

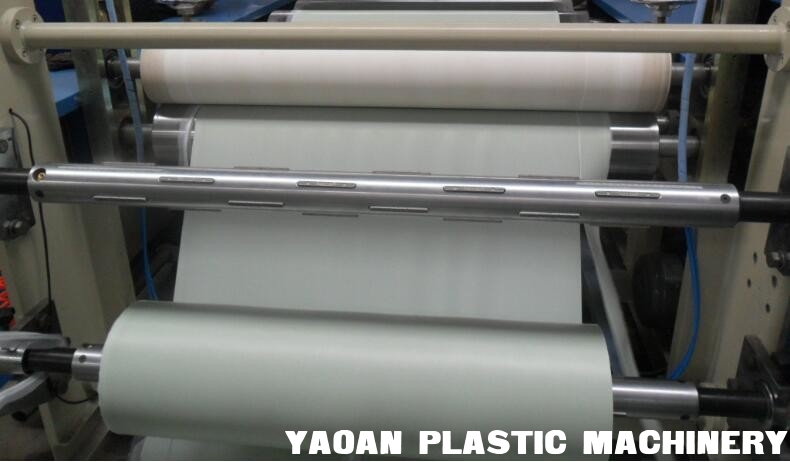

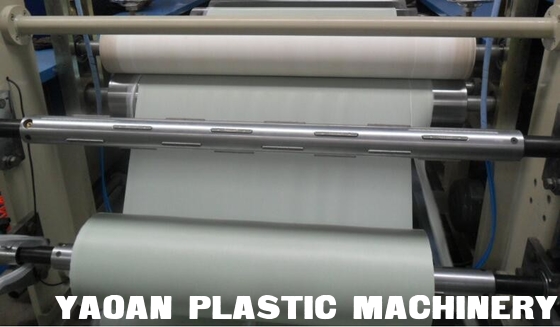

Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine





Main characteristic of back counter material coating machine :



1. The main parts such as screw, roller and die are made of 38crmoala, and have given hydro-treating, so they are wearproof and corrosion resistant.



2. Major axis screw is well plastified to guarantee the uniformity of film.



3. Exchanging filter net in die head and adopting up and down device with motor to get convenient operating, thus to improve the production efficiency. (Hydraumatic net changer can be collocated as customers requirement).



Application of back counter material coating machine :

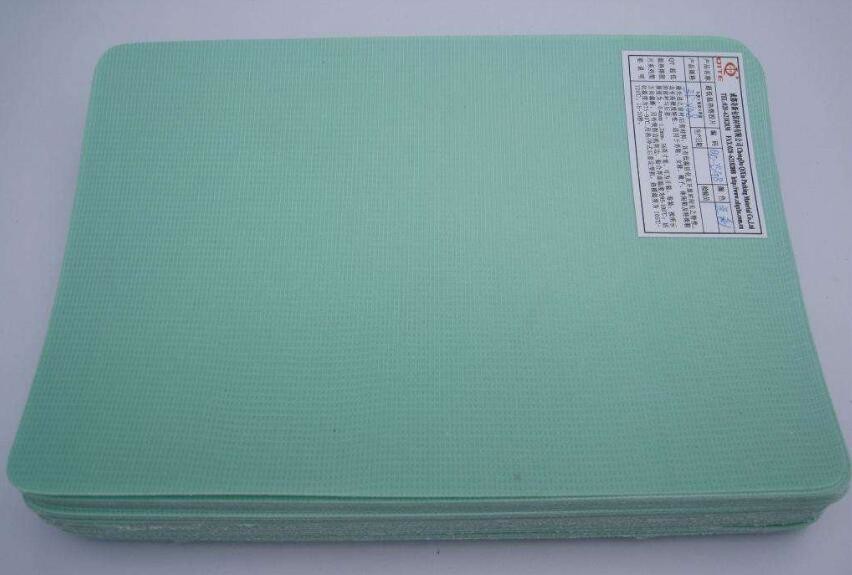

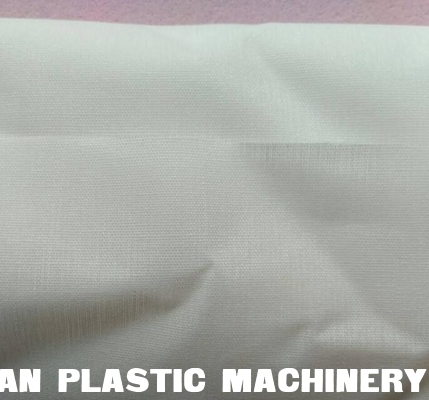

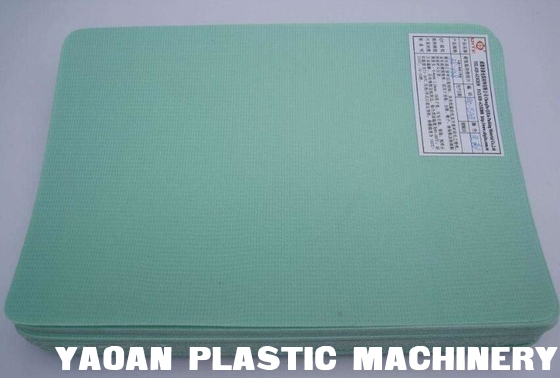

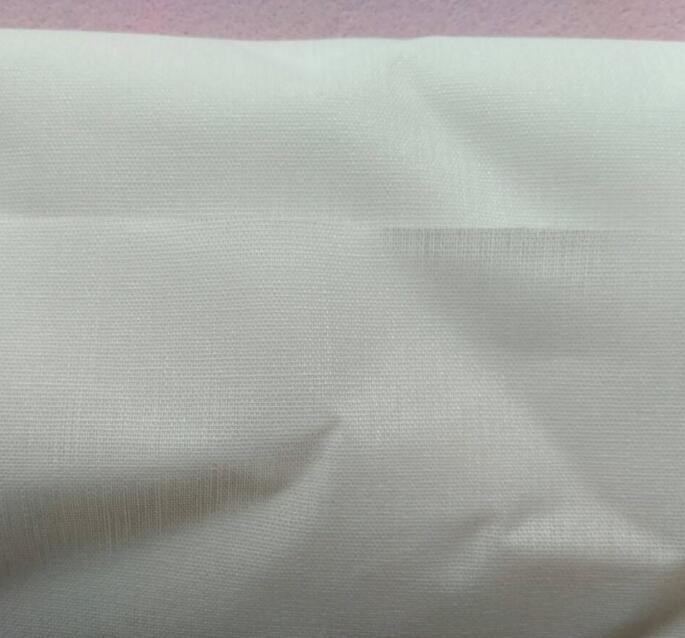

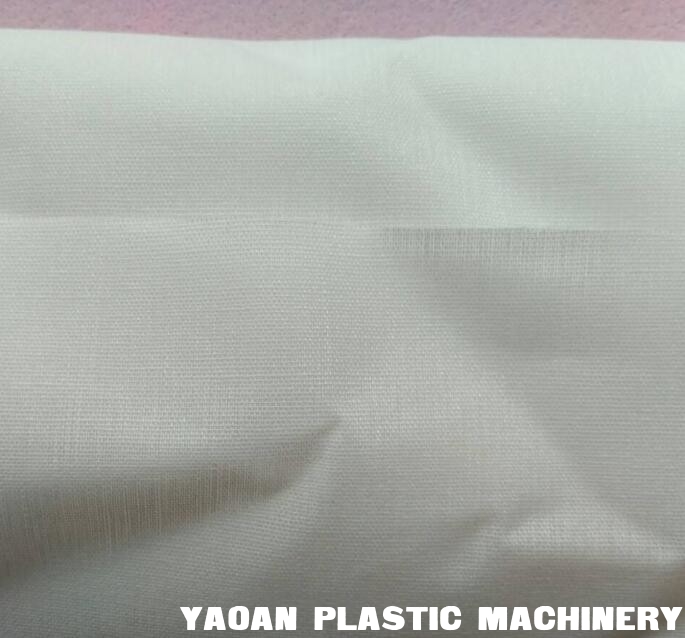

This kind of machine is designed and manufactured by taking the advanced technology from home and abroad. It can be applied in all kinds of shoes materials (box toe material, back counter material nd so on.) , such as hot melt adhesive film, KP, absorbing cloth and so on.



Technical parameters of back counter material coating machine :



Model AF-670 AF-1000 AF-1400
Film width 670mm 1000mm 1400mm
Film thickness 0.3-2mm 0.3-2mm 0.3-2mm
Screw diameter 110mm 115mm 120mm
Main motor power 45kw 45kw 55kw
Max. yield 135kg/h 180kg/h 250kg/h
Total 65kw 80kw 100kw
Overall dimension(L×W×H) 11×2×1.8m 12×2.4×1.8m 13×2.8×1.



Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine

Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine

Toe Puff Chemical Sheet Extrusion Machine , Toe Puff Sheet Laminating Machine
