Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-1600
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH

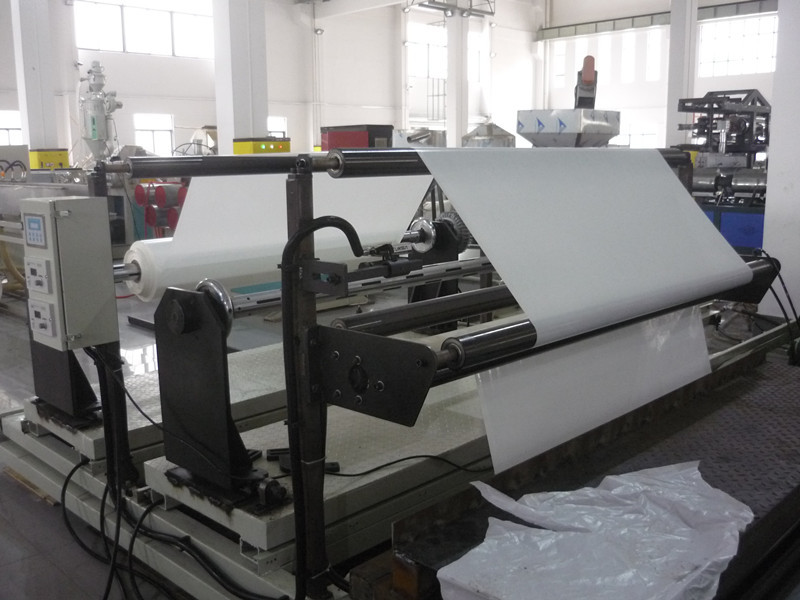

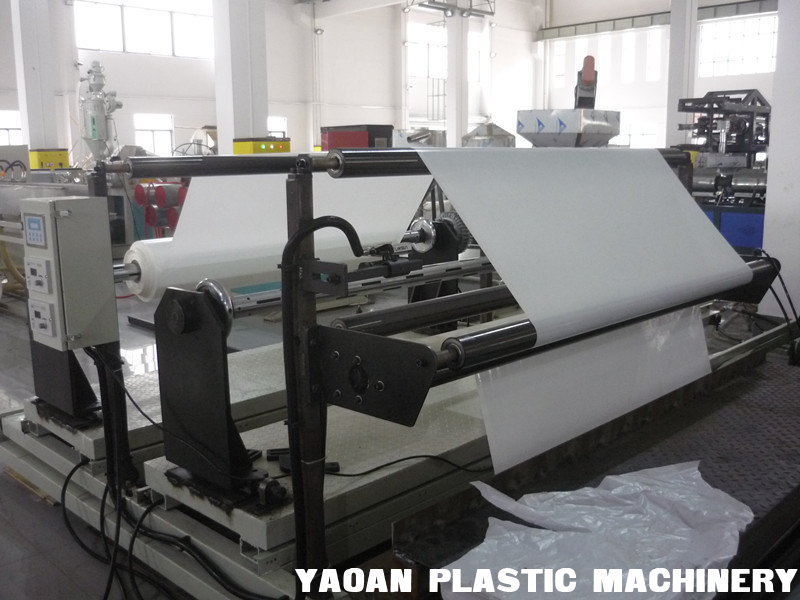

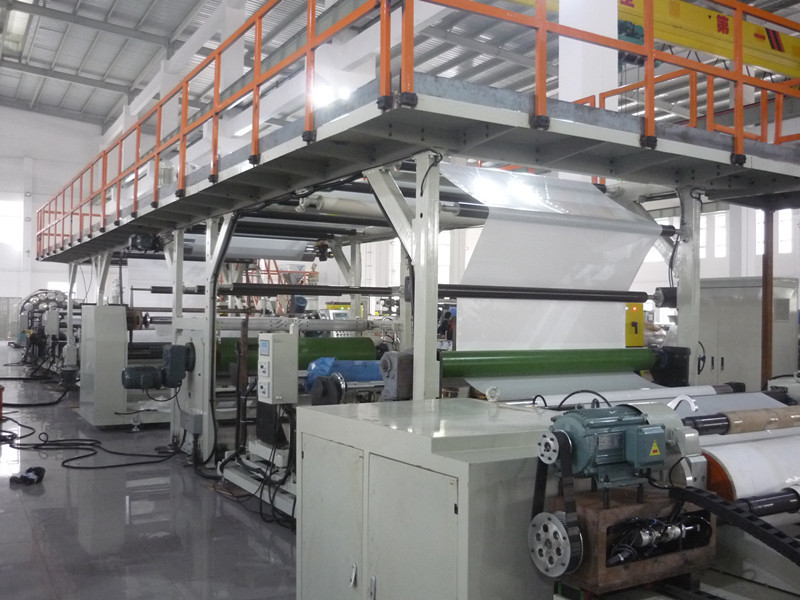

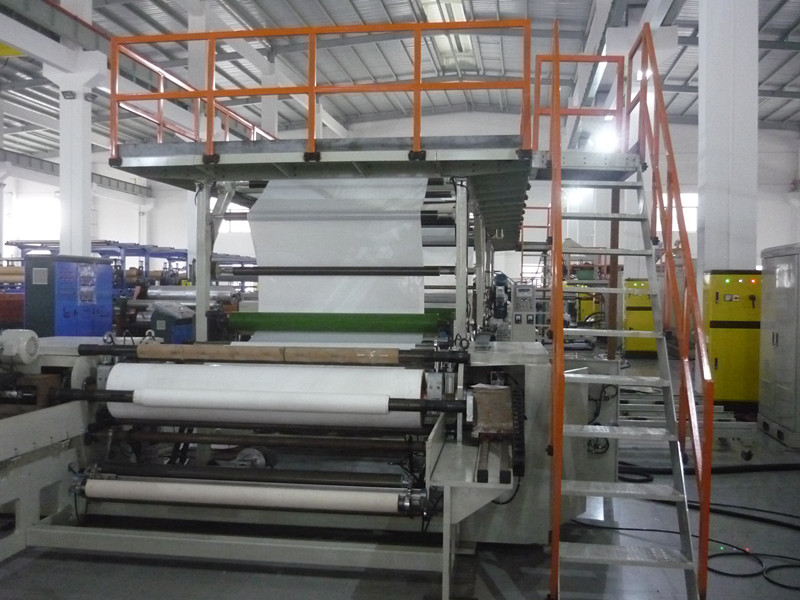

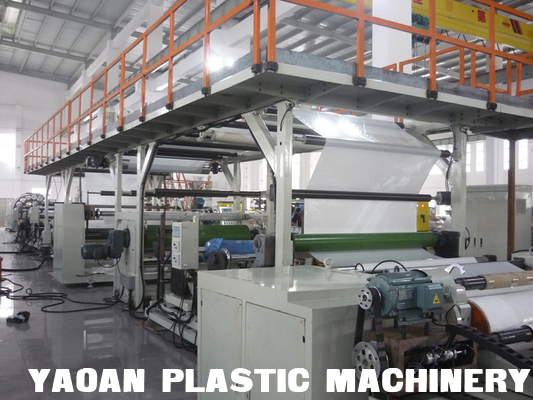

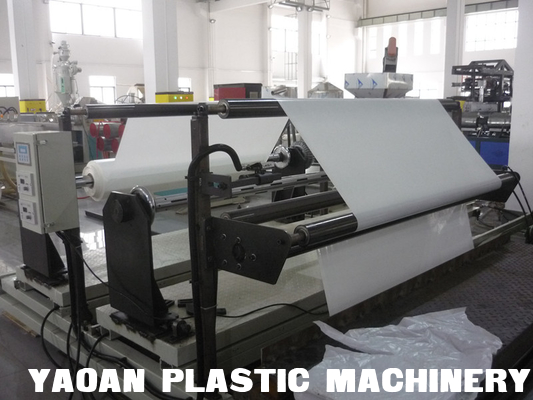

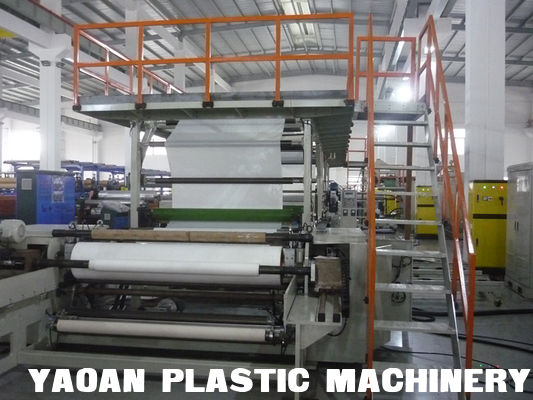

Product Description:
1.Cooling roller adopts high degree of finish roller, which can eliminate bubbles produced during the compounding process.
2. Silicone roller and cooling roller adopt screw-type cooling structure,to make cooling quickly and laminating easily.
3.Compounding roller is drived by one vector frequency electric motor
Technical Parameter
1.Applicable coating film resin: Coating grade like LDPE ,PP ,EVA,EAA etc .
2.Based material:paper (30~425g/m2 ) , textile fibre ,non-woven fabric, paper .
3.Max working speed: 80~150m/min
4.Max width of coating film: 3200mm
5.Thickness of coating film: 0.01–0.11mm
6.Inaccuracy thickness of coating film: ±6%
7.Max extrusion: 500kg/h
8.Overall dimension: 9600mm×9000×3250mm(L×W×H)
9.Machine colour: can choose
