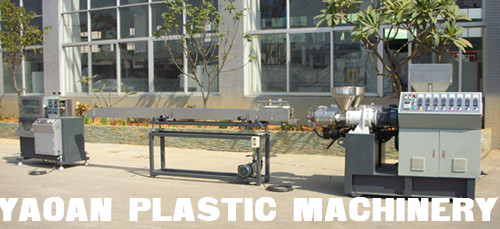

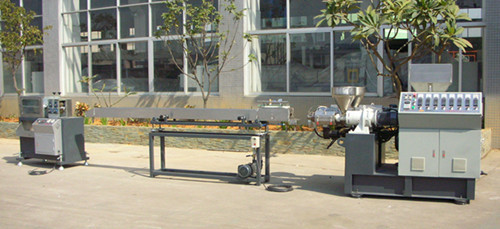

Straw machine series are commposed of frequency conversion extrusion machine, mould, vacuum diameter-fixed device, traction and cutting units and etc. Auailable of monochromaticdichromatictricolorfour color and etc.
The machines are widely used for producing drink strawnozzlecotton sliplollipop sticktooth pipkball-pen corewatercolor pen core toy tubedrop tube and other small industrial irregular shape pipes only by changing the moulds.
Main Technical Parameter:
Model Screw dia. Screw speed Max. (rpm) Power Heating zones Cooling set Traction & Cutting Power specif
Monochromatic Straw Machine 50mm 28: 1 11KW*1 5 3m cold water tank 0.75kw*2 1mm-9mm
55mm 15KW*1 3m vacuum water tank 1mm-13mm
Dichromatic Straw Machine 50mm*1
25mm*1 28: 1 11KW*1
0.75KW*1 6 3m cold water tank 0.75kw*2 1mm-9mm
0.75KW*1 3m vacuum water tank 1mm-13mm
Tricolor Straw Machine 50mm*1
25mm*2 28: 1 11KW*1
0.75KW*2 8 3m cold water tank 0.75kw*2 1mm-9mm
0.75KW*2 3m vacuu4m water tank 1mm-13mm
: PP. PE. Raw Material: PP. PE.
≥3mm Product Length≥3mm
: 500-900/ Extruding output: 500-900PCS/min
: L6500mm*W1120mm*H1200mm Machine size: L6500mm*W1120mm*H1200mm
