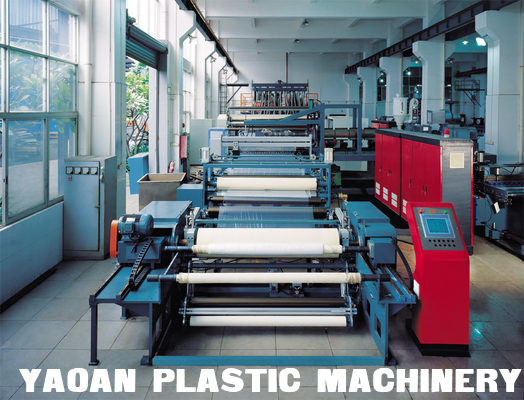

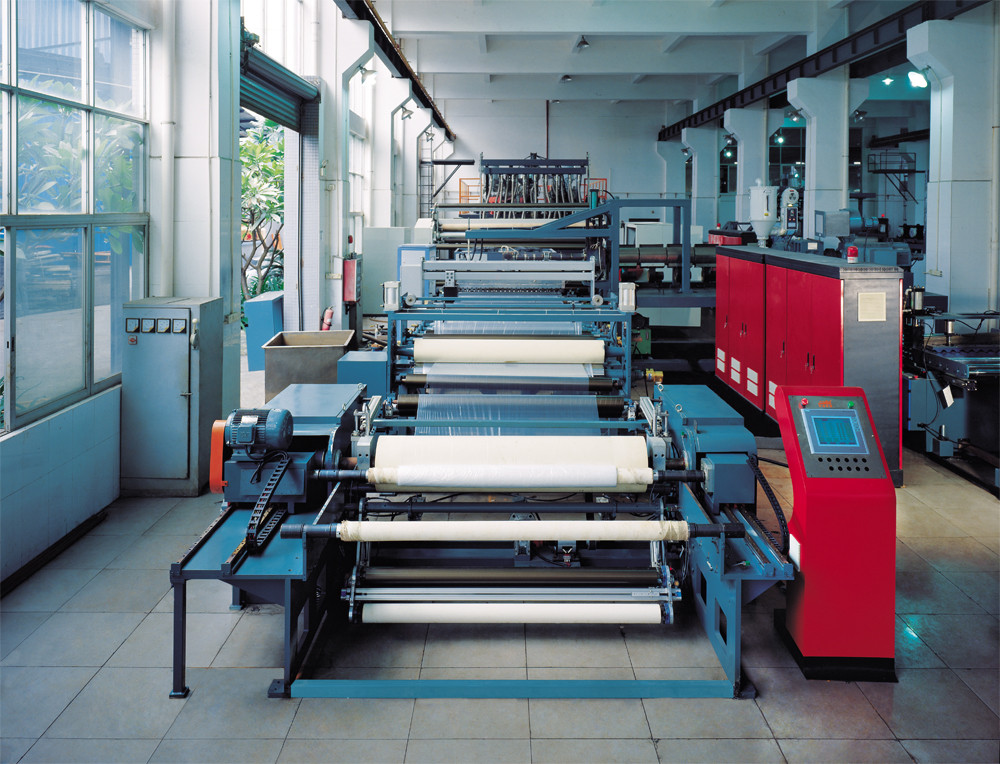

CPP/CPE Cast film Production Line

Single layer and multi-layer co-extrusion casting film production line, high speed and professional, active and multi-application. The most optimized production line configuration is suitable to many kinds of raw material: PE, PP, PA, PET, EVA, etc.
Design for following application:
A) CPP, CPE casting film
B) High obstruction film containing PET and PA, usually used in food paking
C) On line single-direction stretch film
D) LLDPE, LDPE and EVA film, felted film, fresh-keeping film
3-layer co-extrusion casting film machine
STRUCTURE: A/B/C,A/B,A/B/A
Product width: 1000-2400mm
Product thichness: 0.012-0.05mm
Max. Line speed of the machine: 30-180m/min
Feature: Adopted high-speed surface winding-up device and dividing and cutting on-line.

In a cast film extrusion process, a thin film is extruded through a slit onto a chilled, highly polished turning roll, where it is quenched from one side. The speed of the roller controls the draw ratio and final film thickness. The film is then sent to a second roller for cooling on the other side. Finally it passes through a system of rollers and is wound onto a roll.
Thicker polymer sheets can be manufactured similarly. A sheet is distinguished from a film by its thickness; by definition a sheet has a thickness exceeding 0.25 mm. Otherwise, it is called a film.
The cast film process is used for very tight tolerances of thin film, or for lowviscosity resins. Most flat dies are of T-slot or coat hanger designs, which contain a manifold to spread the flowing polymer across the width of the die, followed downstream by alternating narrow and open slits to create the desired flow distribution and pressure drop. Most cast film lines manufactured today are coextrusion lines, combining layers from as many as 7 extruders into the product through multimanifold dies, or else single manifold dies with the aid of feedblocks.
