Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-72
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Machine Color: |
Any Color |
Main Motor: |
A.C Motor |
Inverter Brand: |
ABB |
Suitable Raw Material: |
PET Flakes |
Sheet Width: |
600-1500mm |
Sheet Thickness: |
0.2-2.0mm |
Line Speed: |
20-25m/min |
Warranty: |
1 Year |
Machine Color: |
Any Color |
Main Motor: |
A.C Motor |
Inverter Brand: |
ABB |
Suitable Raw Material: |
PET Flakes |
Sheet Width: |
600-1500mm |
Sheet Thickness: |
0.2-2.0mm |
Line Speed: |
20-25m/min |
Warranty: |
1 Year |
Twin Screw PET Sheet Extrusion Machine, Using PET Bottle Regrind Flakes As Raw Material, No need Dehumidifier System
I. Parameters
Mode No. | PET72/72-1000 |
Available material | PET,PLA |
Diameter of screw(mm) | φ72X2 |
Ratio of screw L/D | 1:40 |
Max. sheet width(mm) | 750 |
Sheet thickness (mm) | 0.2-1.8 |
Capacity (kg) | 400 |
Power of the whole machine(kw) | 220 |
Keywords:pet sheet extruder thermoforming machine
II. Function
1. Available material: PET, PLA.
2. Extruder is designed with double vacuum system to vent water very fast.
3. Close-circuit control ans servo-rolls contron system.
4. Integration of machinery, PLC control, parameter setting, alarm feedback and automatic control.
5. Convenient operation & excellent function.
III. Main Fittings
1. Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider
Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2. Lubricating System: Taiwan Famous Automatic Oiling System;
3. Pneumatic System: Japan SMC;
This twin screw extrusion line is specially designed for producing APET, PETG and CPET single-layer and multi-layer sheet with thickness of 0.15mm to 1.5 mm and width of 500mm to 1500mm. It can be for produce PS, PP and PE sheet also.
This sheet line is especially for APET, PETG single and multi-layer sheet. Thickness: 0.14mm to 1.5mm. Width: 500mm to 1500mm. Capacity: 200kg/h to 500kg/h. PP, PS, PE are available on the same machine.
For the PET sheet products, now there are at least over 5 kind of PET sheet. PETG/APET/PETG; V/R/V, Static surface PET sheet; Silicon surface PET sheet; Food thermoforming machine, thick PET sheet
From the extruder type, we have both single screw extruder style and double screw extruder style
We are offering the whole line include crystallizer-dehumidifier, extruder, screen changer, gear pump, die, 3-roller calander, cooling rocket, haul-off unit, 2-station winding unit^etc. As a turn-key line.
The PET sheet is widely used in vary industry such as food package, electronic parts package, drugs package, medical equipment package, microwave stove plate, stationery package, etc.

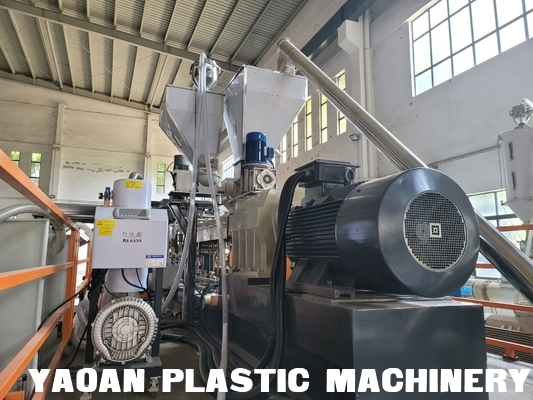

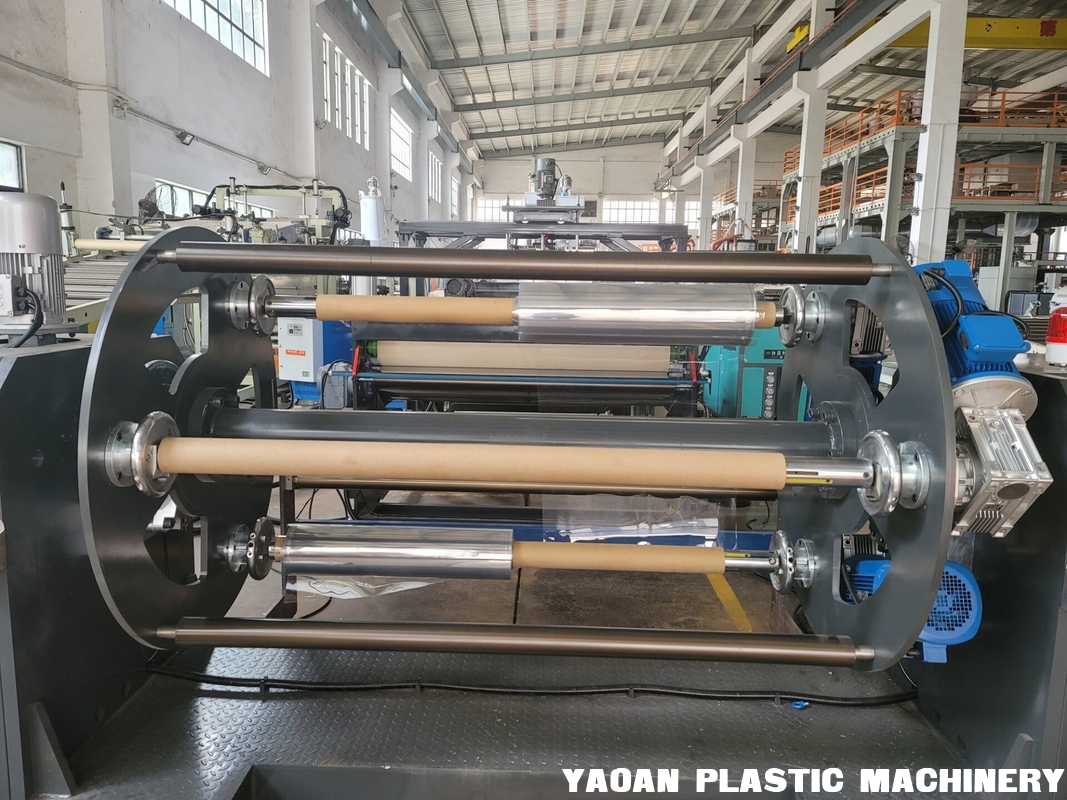

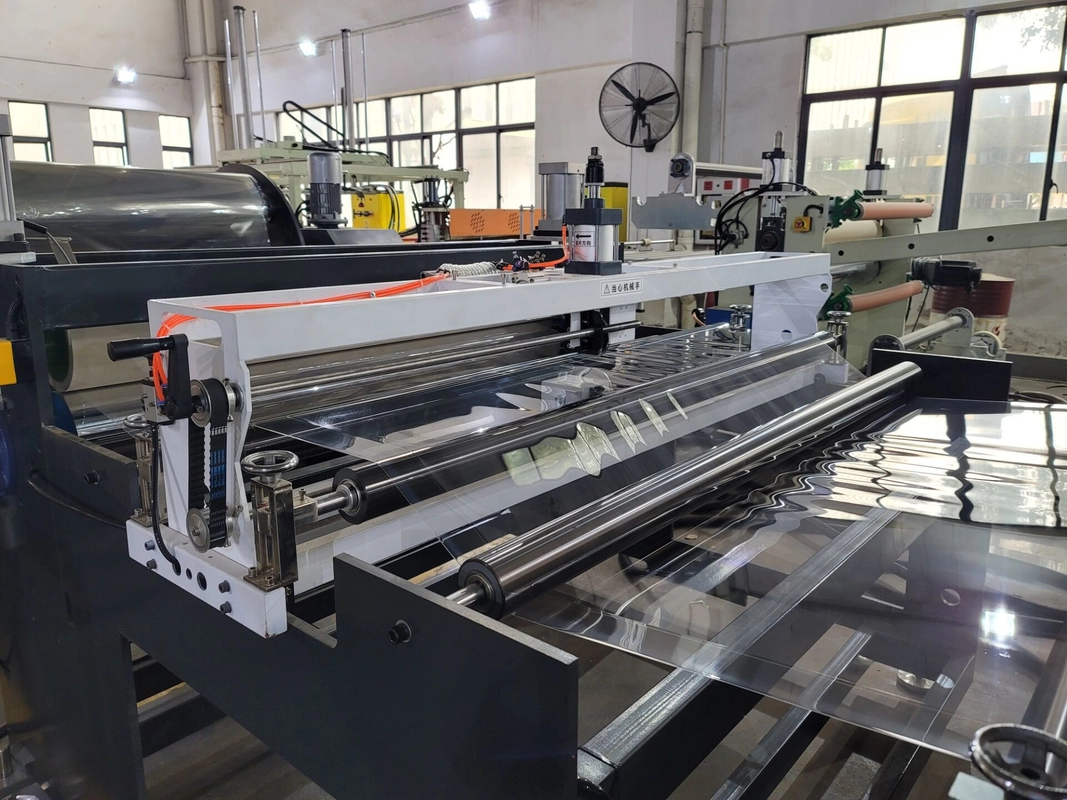

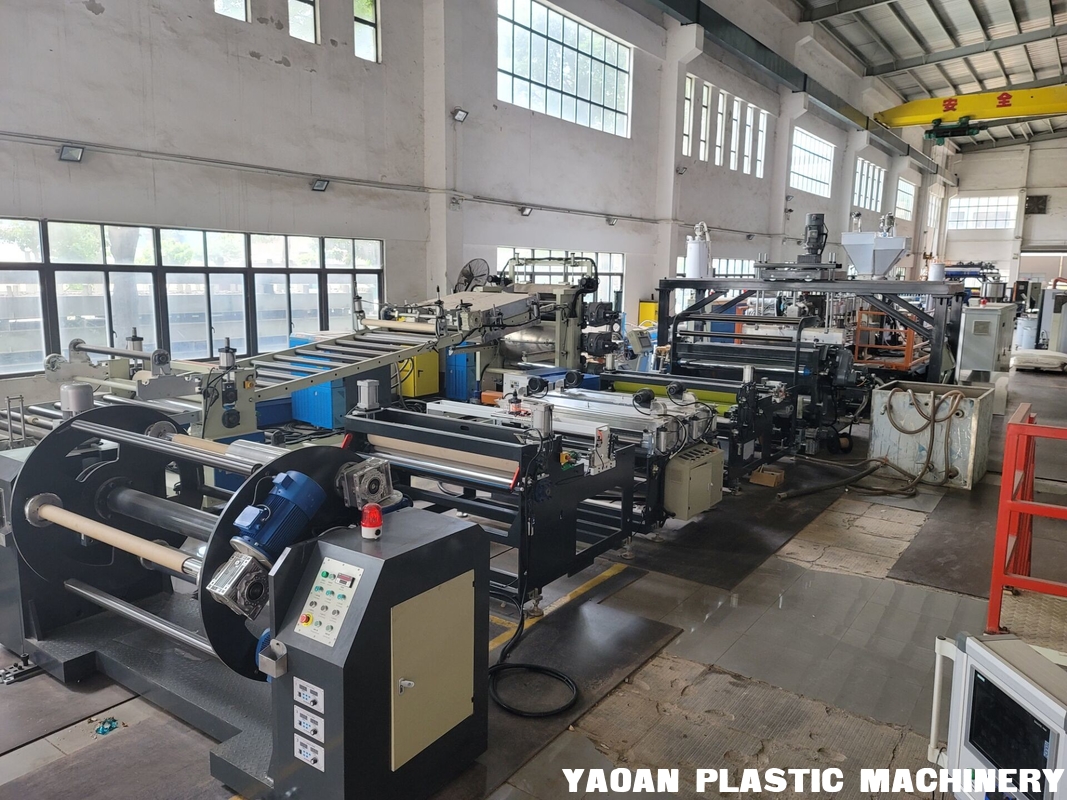

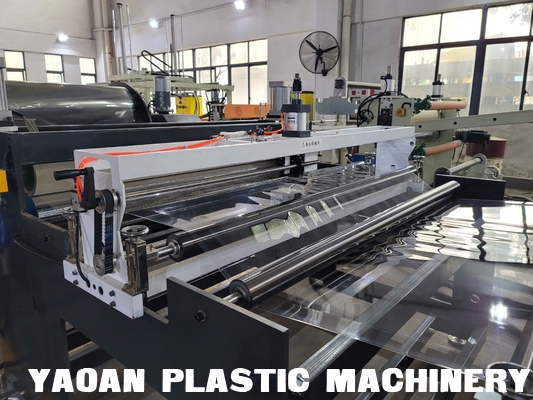

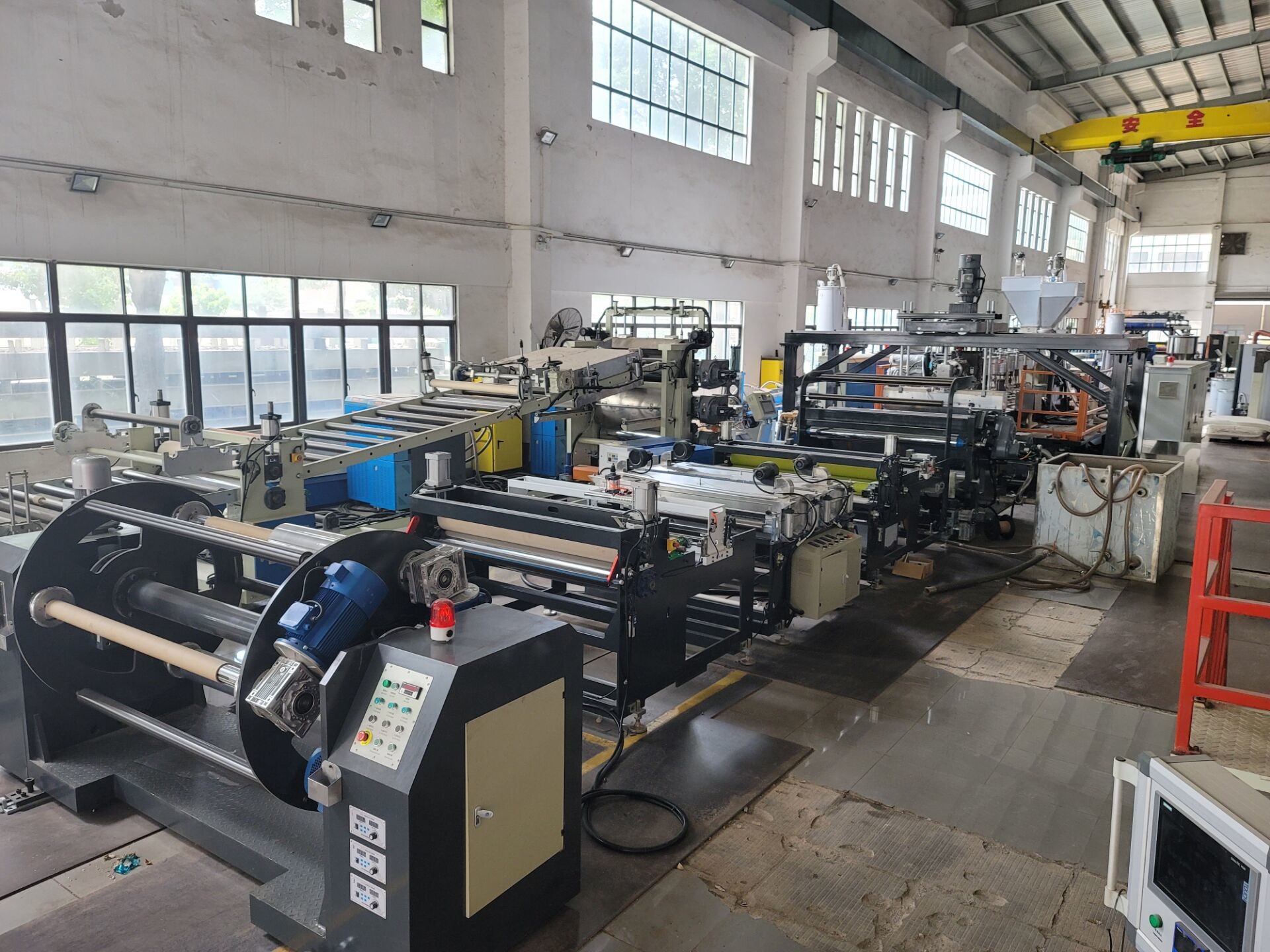

Machine Pictures
Packaging and shipping
PACKAGING | plastic film + stretch film + wooden case + drying agent. |
DELIVERY | About 100 days (all new parts) |
SHIPPING | We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent). We care each and every point so that our clients could receive the machines in perfect situation. |
What is our service system?
PRE-SALE | a. Detailed machine introduction; b. Suggest suitable turnkey solution as per clients requirements; c. Provide test production for reference; |
IN PRODUCTION | a. Supply layout drawing to clients for preparation; b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc; c. Keep the clients be informed of the production status; |
AFTER SALE | a. Send engineers to overseas for installation ,commissioning and training; b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests; c. Offer help if any need from clients like spare parts need etc; d. Supply necessary technical support at request; |
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
