8000mm HDPE Waterproof/Geomembrane Sheet Extrusion Machinery , CE Certificate

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-8000
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Plastic Processed: HDPE Machine Name: Geomembrane Sheet Machine
Screw Design: Single-screw LD: 28:1
Application: Reservoirs, Dams, Ponds, Sewage Tunnel, Landfill Sites Sheet Width: 1-8 Meters

8000mm Geomembranep HDPE sheet extrusion line



I. general

1. Voltage:380V / 3P / 50HZ

2. Control voltage:220 V, 50 Hz, 24 V DC

3. Air pressure:6 bar local supply

4. Suitable materials: HDPE granules

5. Specification of the finished product :Width=8000mm ; Thickness=3mm

6. Output capacity: about 1000kg/h(max)

7. Max. line speed:3m/min (Max)



II.Equipment list

1.180/30 single screw extruder 2 units
2. Hydraulic screen changer 2 units
3. Gear pump 1 unit
4. static mixer 1 unit
5. T-die (This T-die is including one die lip) 1 unit
6. Three-roller calender 1 unit
7. roller temperature controller 1 unit
8. Unreeling machine 1 unit
9. Cooling Bracket 1 unit
10. Haul off unit 1 unit
11. Traverse shear cutter 1 unit
12. Friction winder 1 unit
13. auxiliary equipment 1 unit
14.full set of electric 1 unit

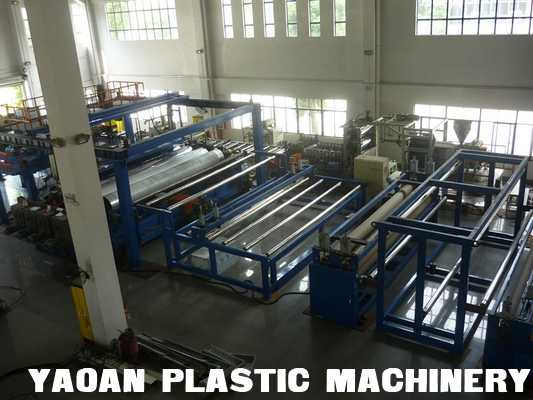

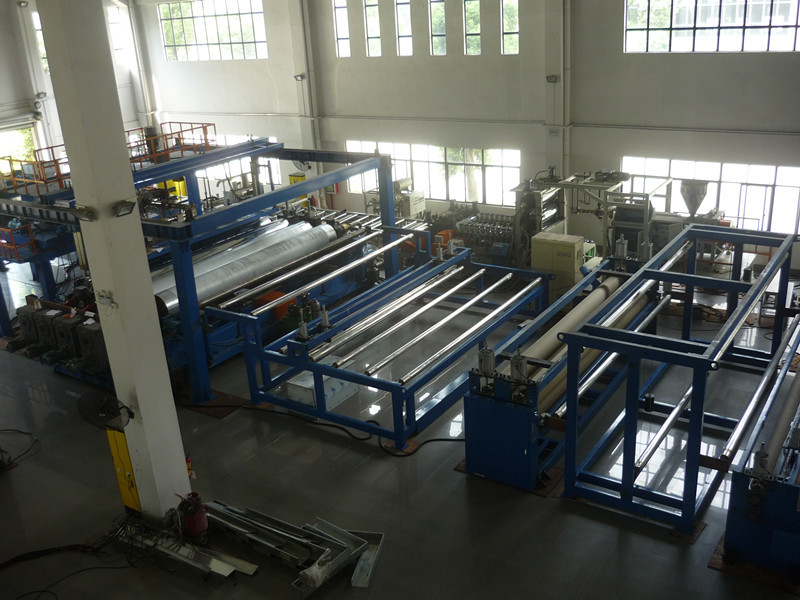

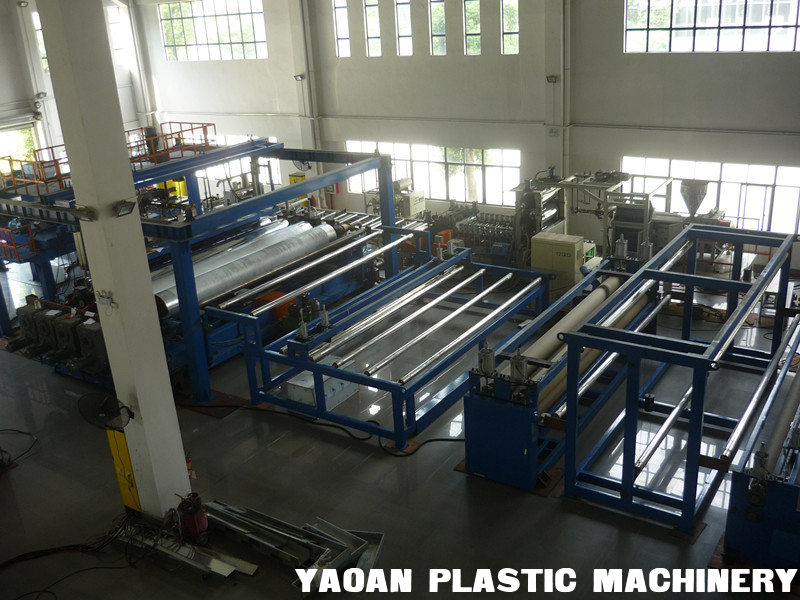

PE/PVC/TPO geomembrane waterproof sheet extrusion line

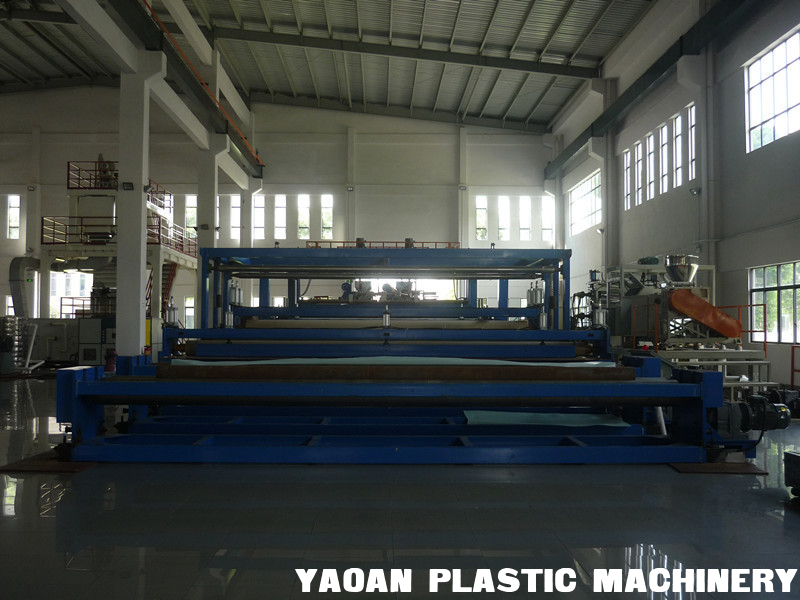

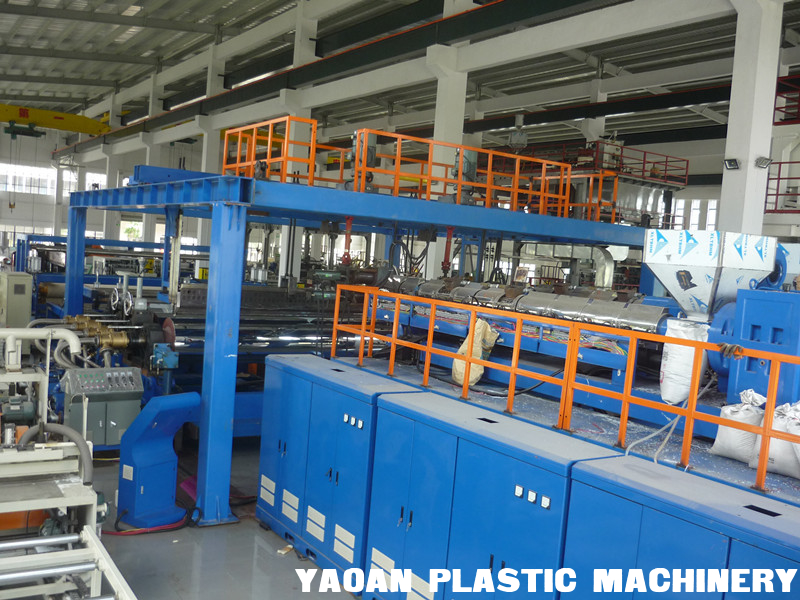

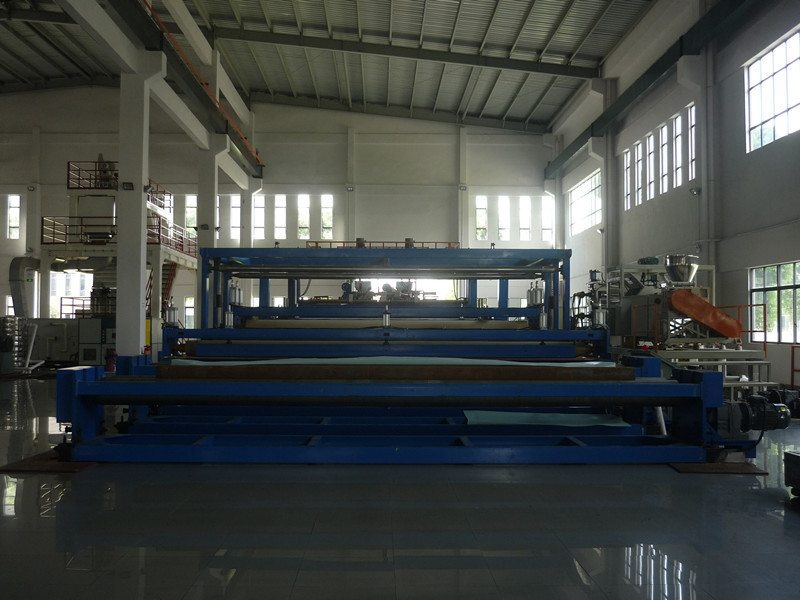

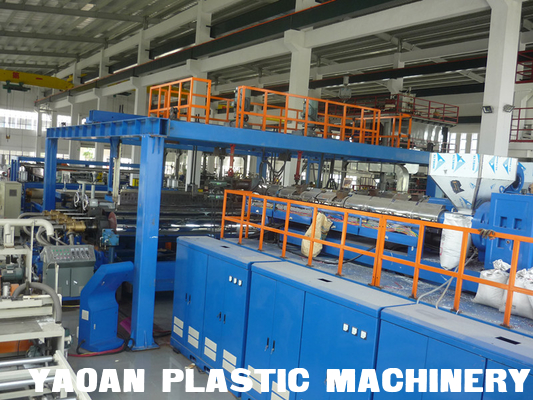

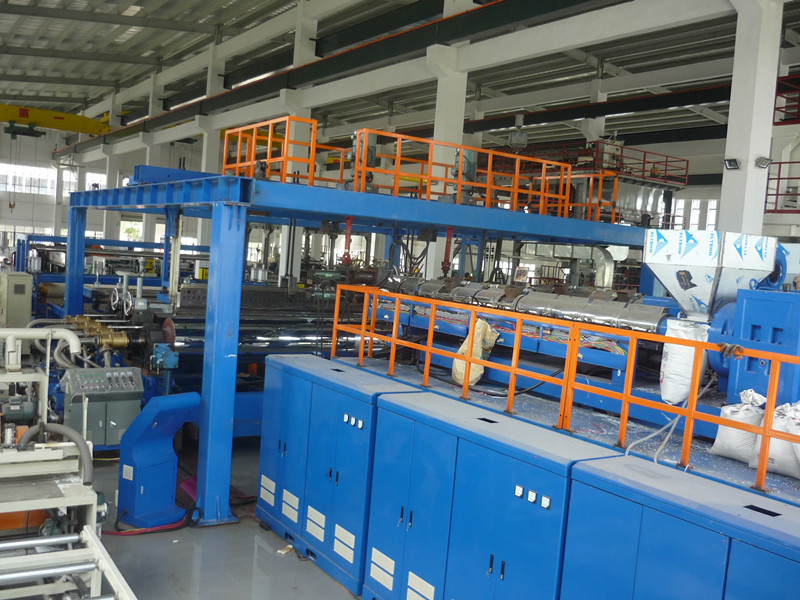

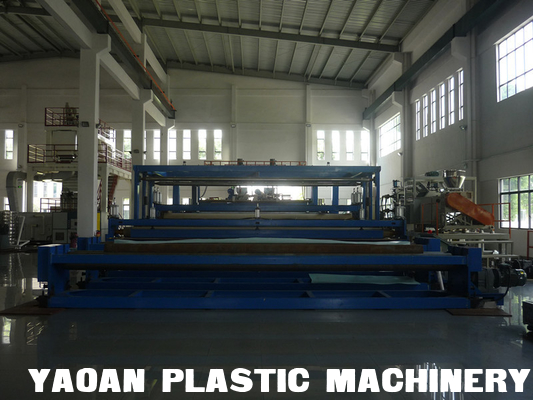

8000mm HDPE geomembrane waterproof sheet extrusion line



Application:For waterproofing usage in industrial & civil buildings including the green roof, flat roof and the sloping roof. Underground waterproof:reservoir,dam,pool. waterproof usage in Tunnel,grain depot,artificial engineering,landfill, Artificial lake





PE/PVC/TPO geomembrane waterproof sheet extrusion line

8000mm HDPE geomembrane waterproof sheet extrusion line



Model

AF150-4000

Non-woven fabric-PE-non-woven fabric

AF180-8000

Non-woven fabric-PE-non-woven fabric

Product width 4000mm 8000mm
Product thickness 0.5-3mm 0.8-3mm
Extruder model 150/35 180/35
Capacity 1000kg/h 1500kg/h



8000mm HDPE Waterproof/Geomembrane Sheet Extrusion Machinery , CE Certificate8000mm HDPE Waterproof/Geomembrane Sheet Extrusion Machinery , CE Certificate


Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 90 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
