Polycarbonate Ultra Precision Carrier Tape Machine , Embossed Carrier Tape Machine

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-45
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Material: PC PS Screw Diameter: 45mm
Speed: 25m/min Cavities: 4-9
Punching: Automatic Slitting: Automatic

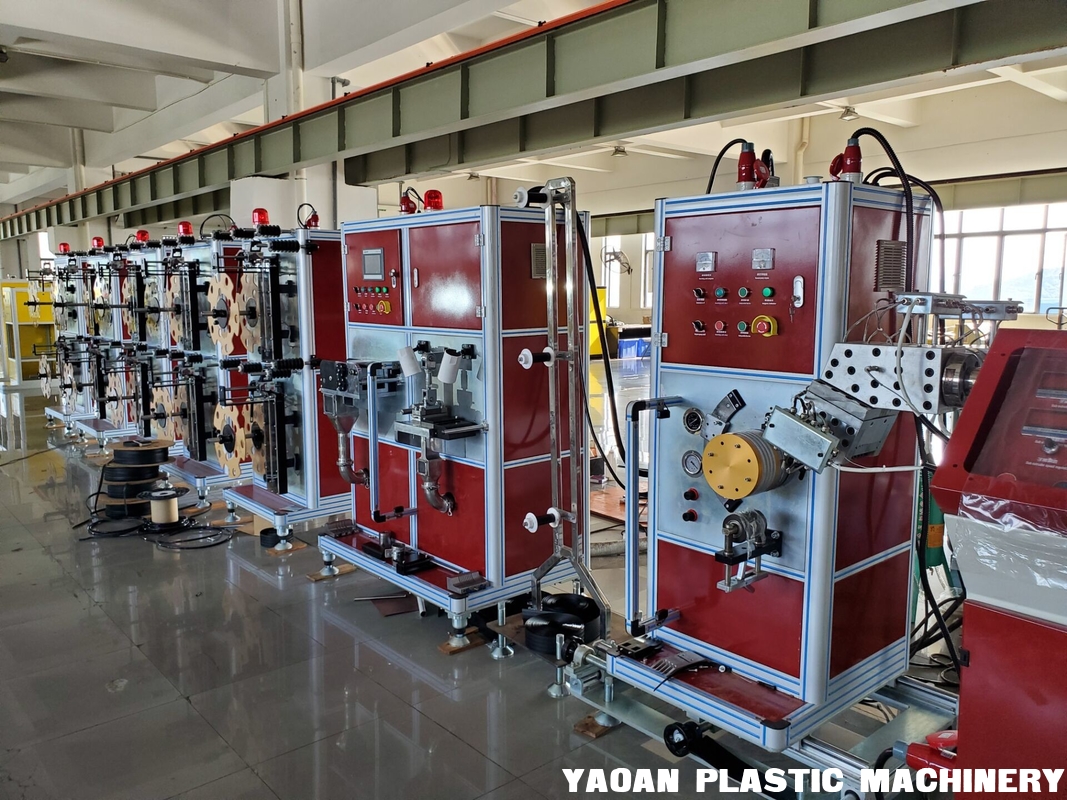

Polycarbonate Ultra Precision Carrier Tape Machine , Embossed Carrier Tape Machine



High-speed particle forming carrier tape machine named particle forming machine for short, it is researched and developed successfully in 2005 by YAOAN. After years of accumulation and improvements, our machine is at a leading position in this industry.



Linear speed of the machine can reach 25m/min as each individual tape; there are two models of our machines: one into 4; one into six. In the market, single layer tape and 3-layer tape are available. The single layer tape is made of PC; the 3-layer tape is made of PC and PS: top layer and bottom layer are of conductive PS; the middle layer is transparency PC.



It is featured by an advanced production technology: Putting plastic raw materials directly in the machine, then extruding--molding --punching – slitting- final winding in mode of complete automation. Since three layers coming into shape at one time; simple process and high efficient utilization rate of raw materials, it has replaced the traditional 2-time forming technology. It greatly reduces the production cost and its production efficiency is dozens of times of the traditional one.

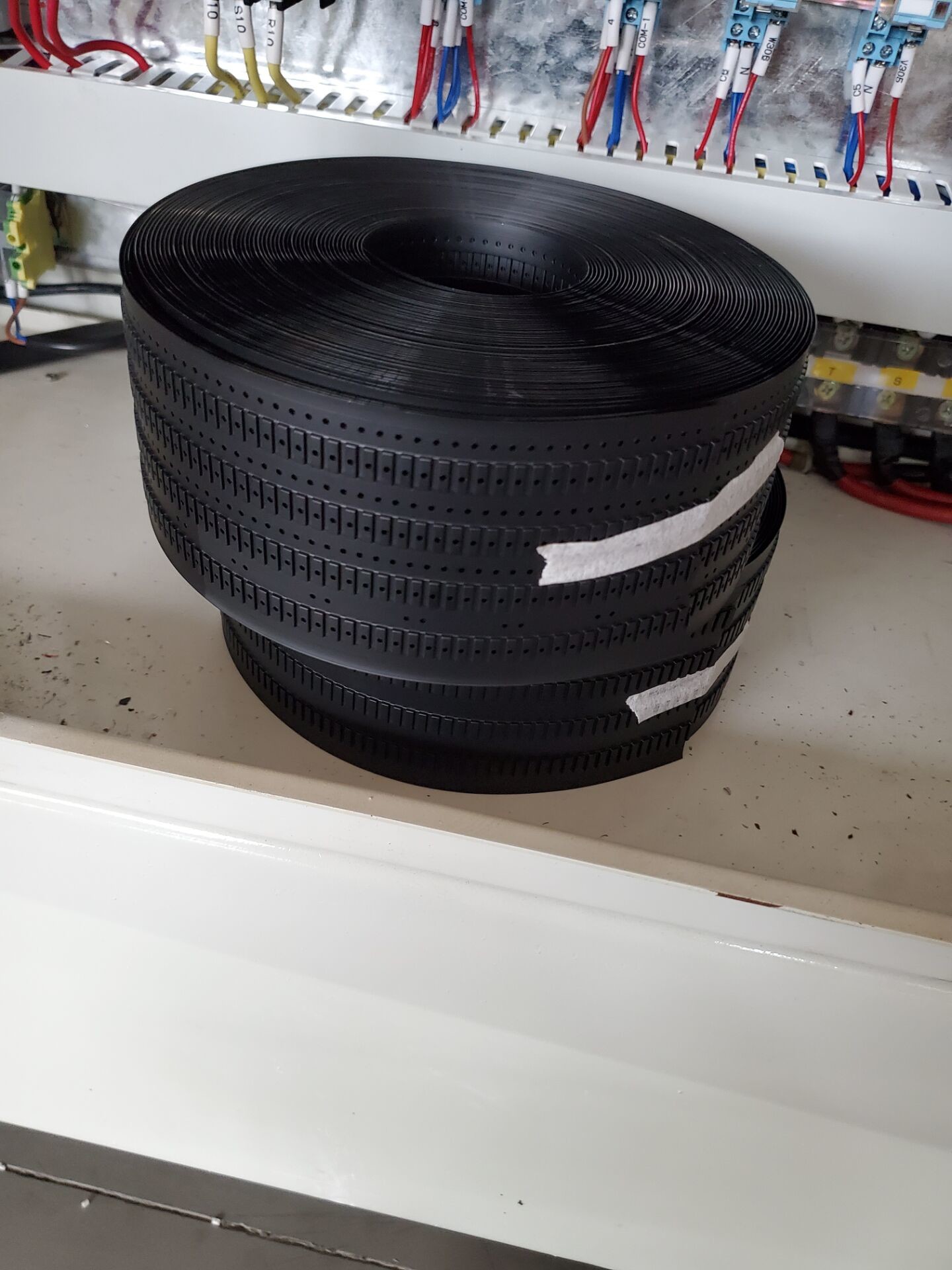

Tape specifications:

Thickness: 0.2mm-0.5mm
width:12mm,16mm,24mm,32mm,44mm,etc.
Black Conductive PS Sheet for Carrier Tape
RoHS standard



PS Sheet is black carrier tape material with good rigidity and strong toughness
Recommended for packaging of IC electronic components

Polycarbonate Ultra Precision Carrier Tape Machine , Embossed Carrier Tape Machine

Polycarbonate Ultra Precision Carrier Tape Machine , Embossed Carrier Tape Machine

Polycarbonate Ultra Precision Carrier Tape Machine , Embossed Carrier Tape Machine



Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 100 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?



PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
