EVA Mat Making Machine , Hollow EVA Mattress Machine , Polymer Bed Mattress Production Line

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-1200-2200
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Plastic Processed: EVA Machine Name: EVA Mattress Machine
Screw Design: Single-screw Sheet Thicknes: 20-120mm
Warranty: 1 Year Speed: 3m/min

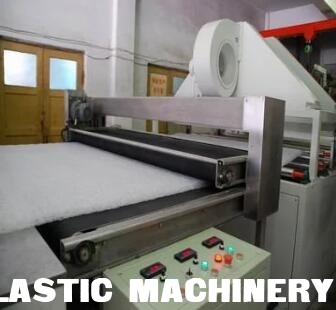

EVA Mat Making Machine , Hollow EVA Mattress Machine, Polymer Bed Mattress Production Line

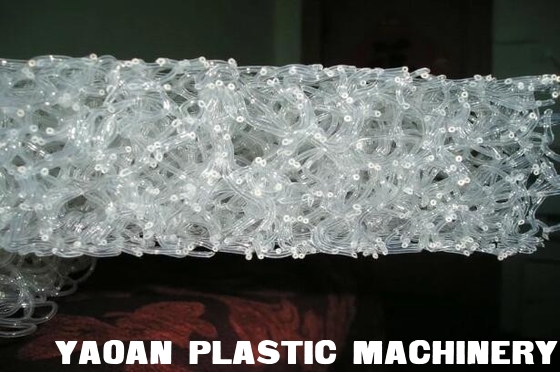

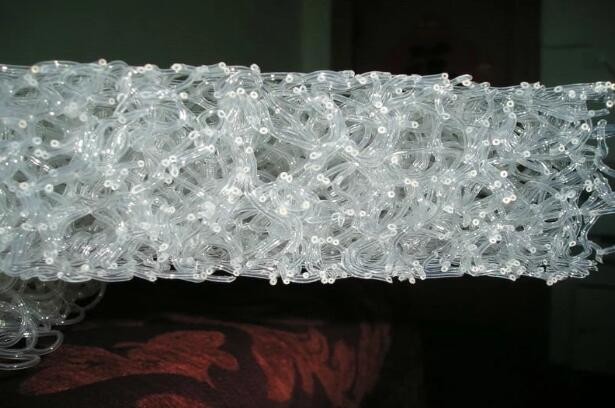

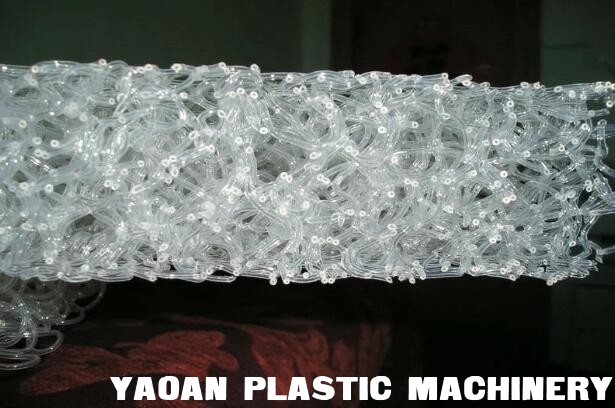

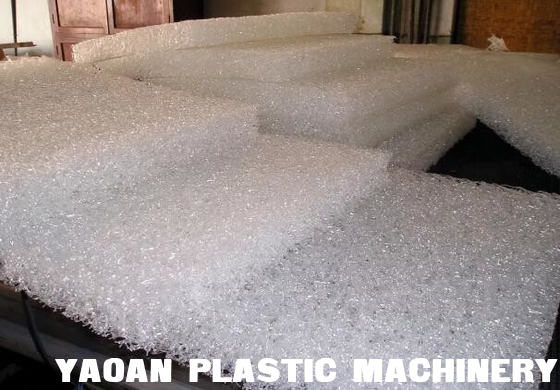

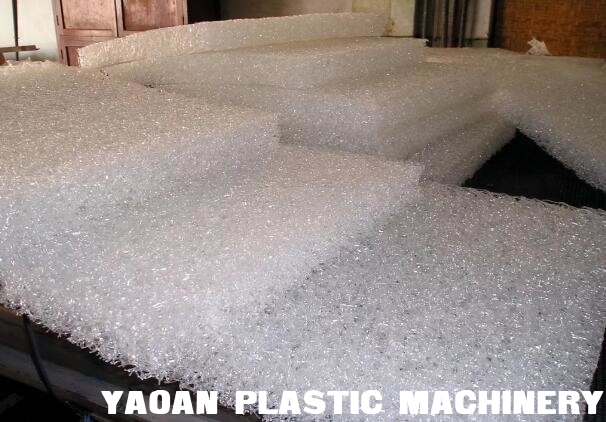

Hollow polymer coil mattress designed by ergonomic theory is made of green polymer material EVA. The polymer thread forms 3D network structure through its fusion, and adopts no-connection-point tangling and an net-type support. It can form strong, durable surface and internal network structure with full flexibility, playing a balanced role in supporting the human body, fully conforming to the body curve. It brings about natural, comfortable and healthy quality sleep and top-grade seating comfort for you.


EVA Mat Making Machine , Hollow EVA Mattress Machine , Polymer Bed Mattress Production Line

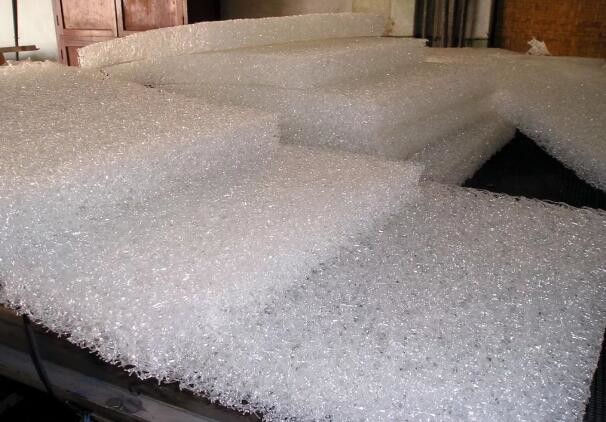

Now the EVA mattress has been widely used for mattress inner things in Europe, America, Japan, Korea and other countries. They can completely to comply with human body. They have good air permeability, impact resistance and high-strength elasticity. And they have mould proof and germ-proof, easy cleaning fuction. What’s more they have many other functions.


Technical parameters :

Model AF-1500

AF-2000

AF-2500

Width of products

(mm)

1200 1800 2200
Extruder SJ120/30 SJ150/30 SJ180/30
T-Die (mm) 1300 1900 2300
Water tank 1400 2000 2400
Dewater device 1400 2000 2400
Transmission frame 1400 2000 2400
Traction trimming 1400 2000 2400
Cooling water (m3) 20 30 50
Power 380V 50Hz 380V 50Hz 380V 50Hz
Compression air (mpa) 0.6 0.6 0.6
Max speed(m/mim) 3.0 3.0 3.0
Total power(kw) 350 400 450
Equipment size(m) 25×2.5×4.5 25×3.0×4.5

25×3.5×4.5

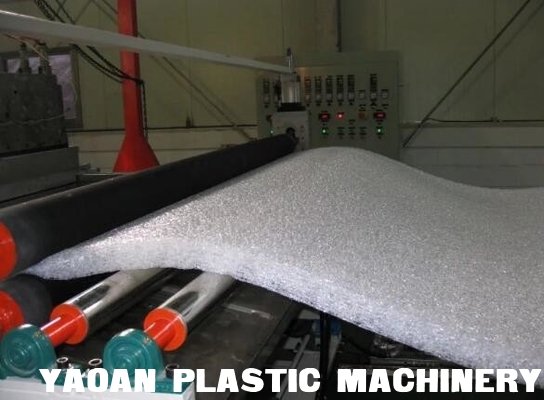

EVA Mat Making Machine , Hollow EVA Mattress Machine , Polymer Bed Mattress Production Line

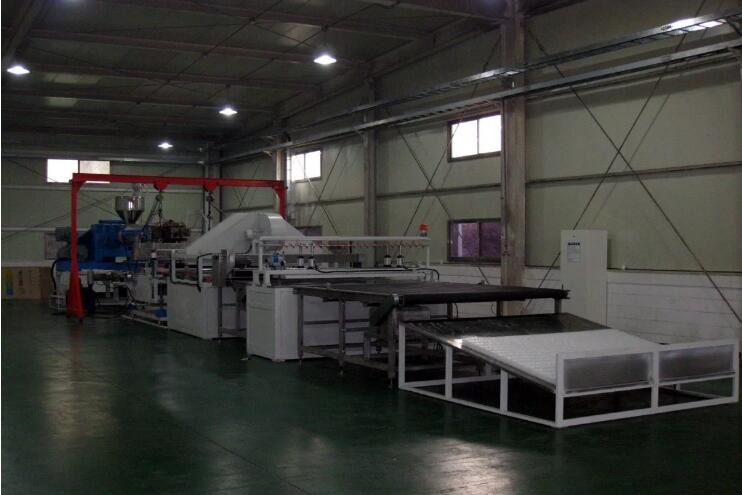

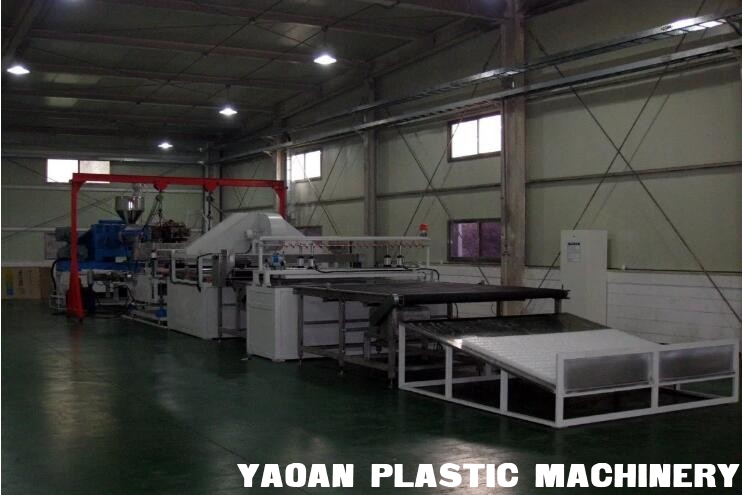

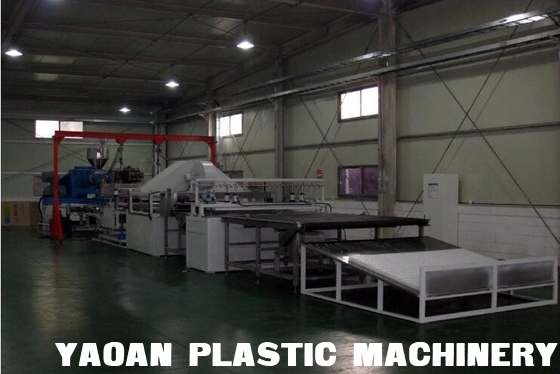

Whole equipment contains as below:

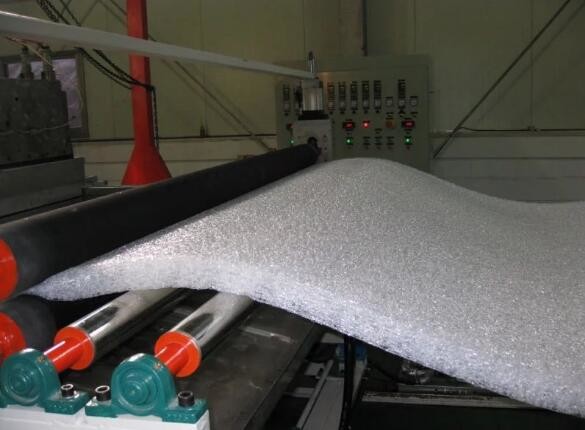

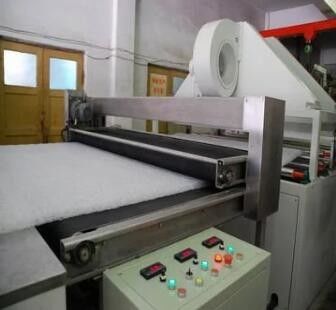

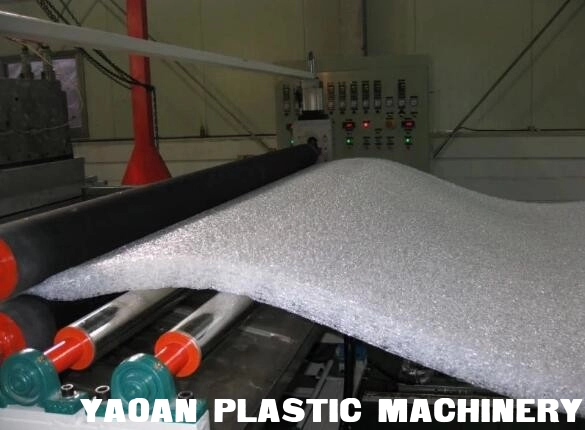

Screw loader →extruder→Hydraulic screen exchanger→Melt metering pump→mould→Spinneret plate→molding water tanks→dehydration system→Draper-type transmission frame→Trimming and cross-cutting device→transmission frame


EVA Mat Making Machine , Hollow EVA Mattress Machine , Polymer Bed Mattress Production Line

Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 90 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
