Shampoo Nozzle Tube Extrusion Machine

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-55
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Material: PP, PE Screw: 55mm
L/D: 28:1 Warranty: 1 Year
Motor: 11 KW Output: 20-50kg/hr

Shampoo Nozzle Tube Extrusion Machine

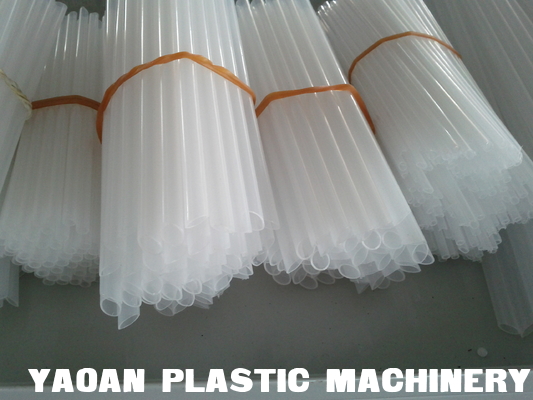

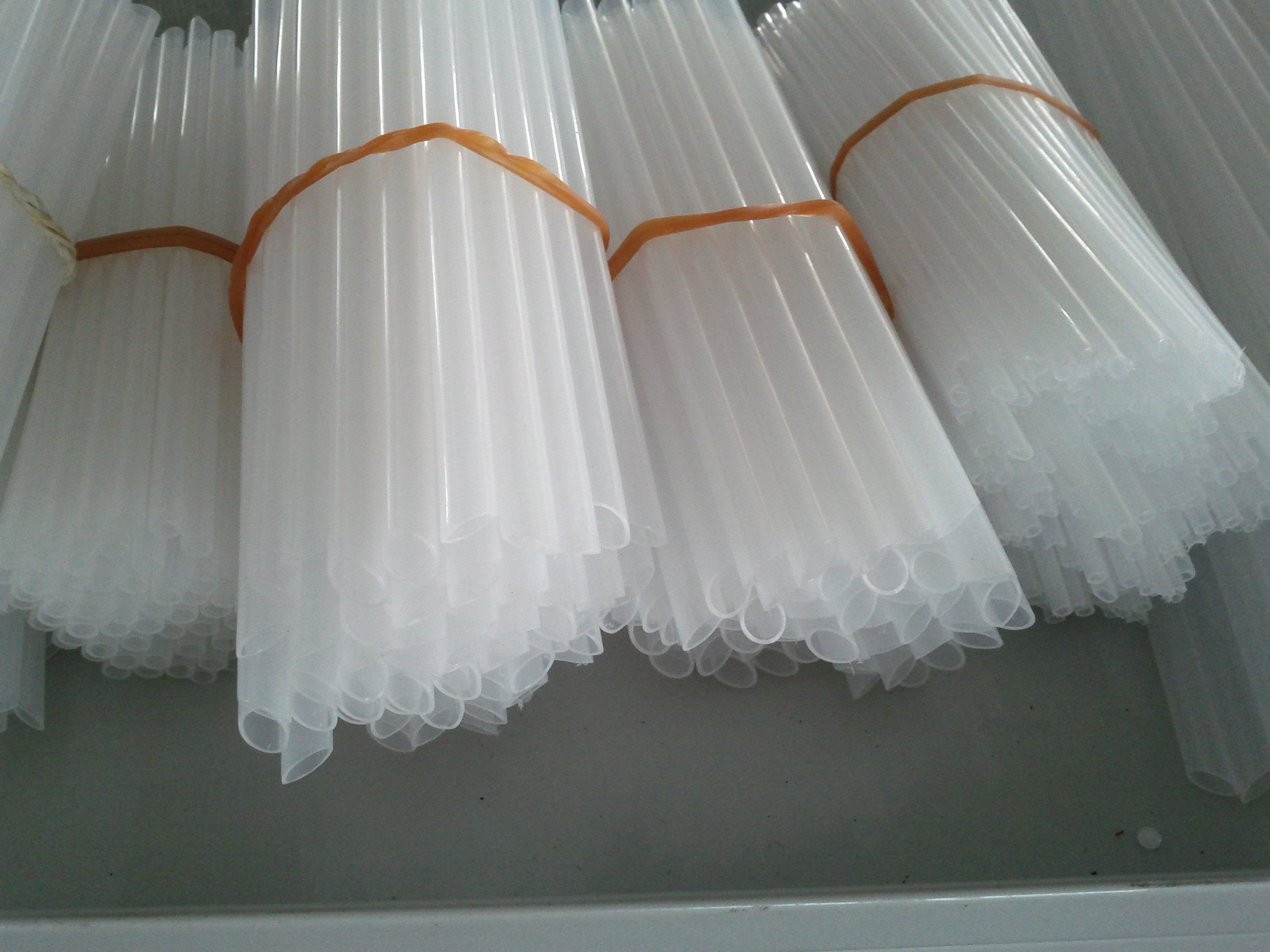

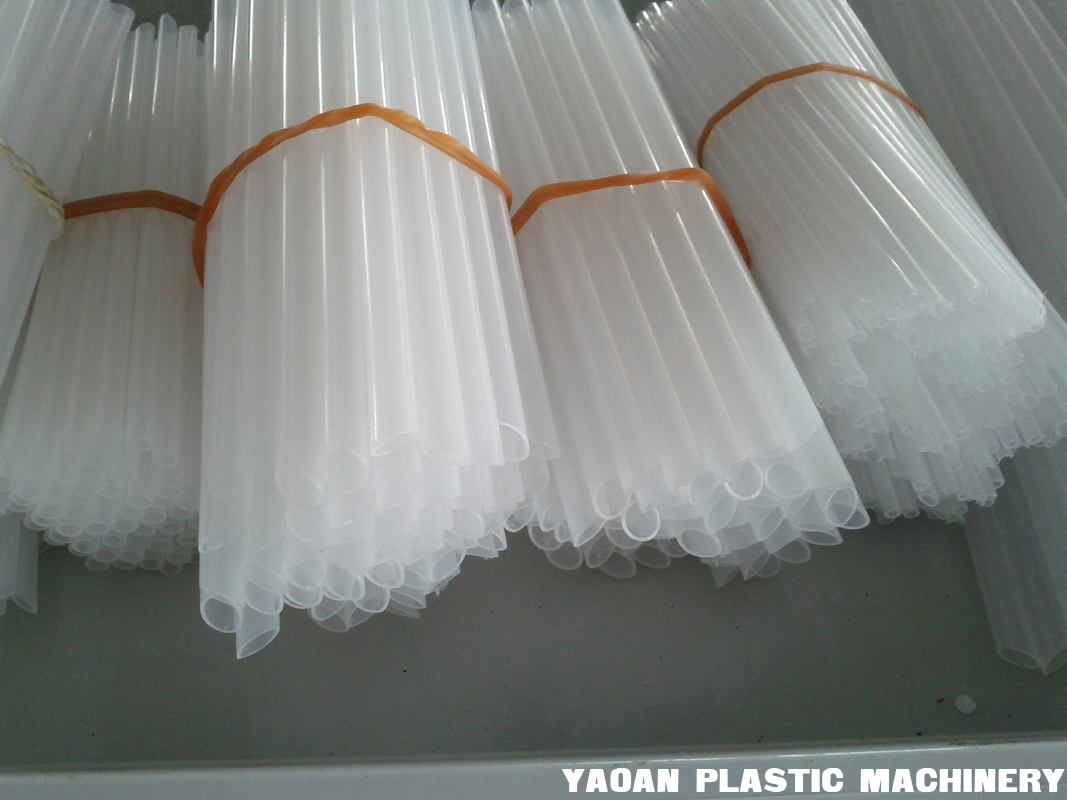

This production line mainly use to produce pen core tube / refill tube, which output can be single color , double , three color, twist color line, straight color line. we are expreienced in making this kind of machine. the output tube presice tolerance can be+-0.02mm, which means it can adapt to all kinds of ball pen production line
Aappllied material : PP PE HDPE LDPE
Capacity : 35-40kg/hr

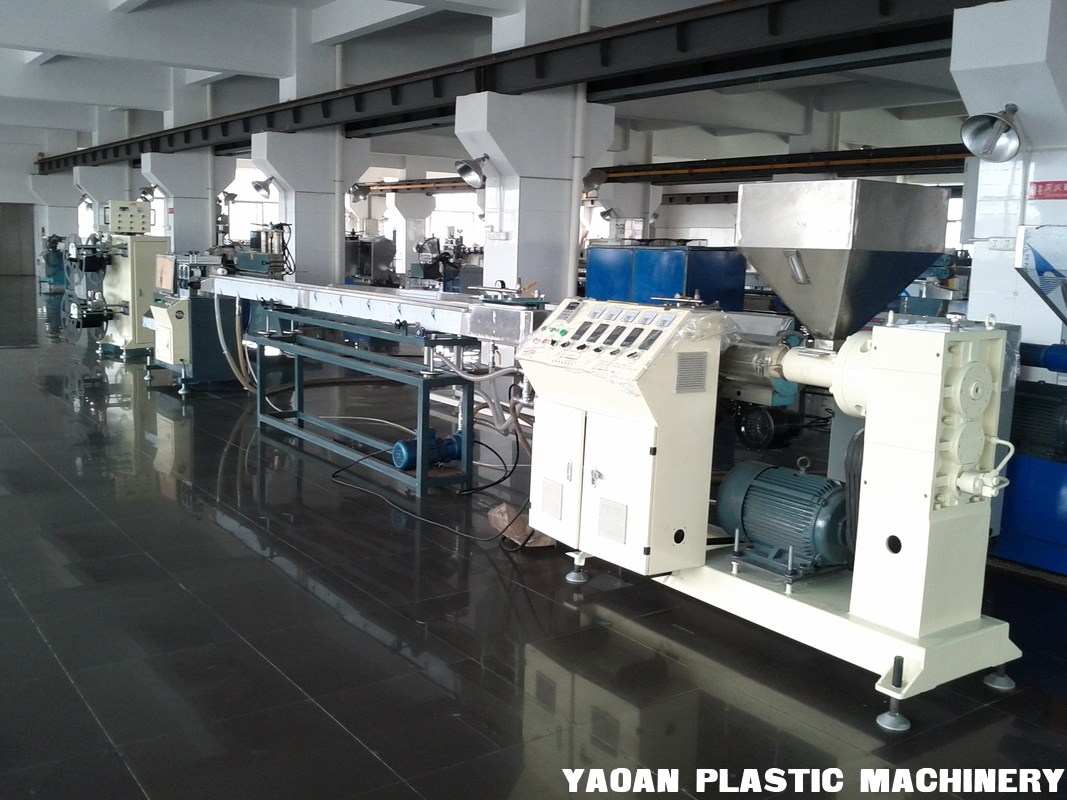

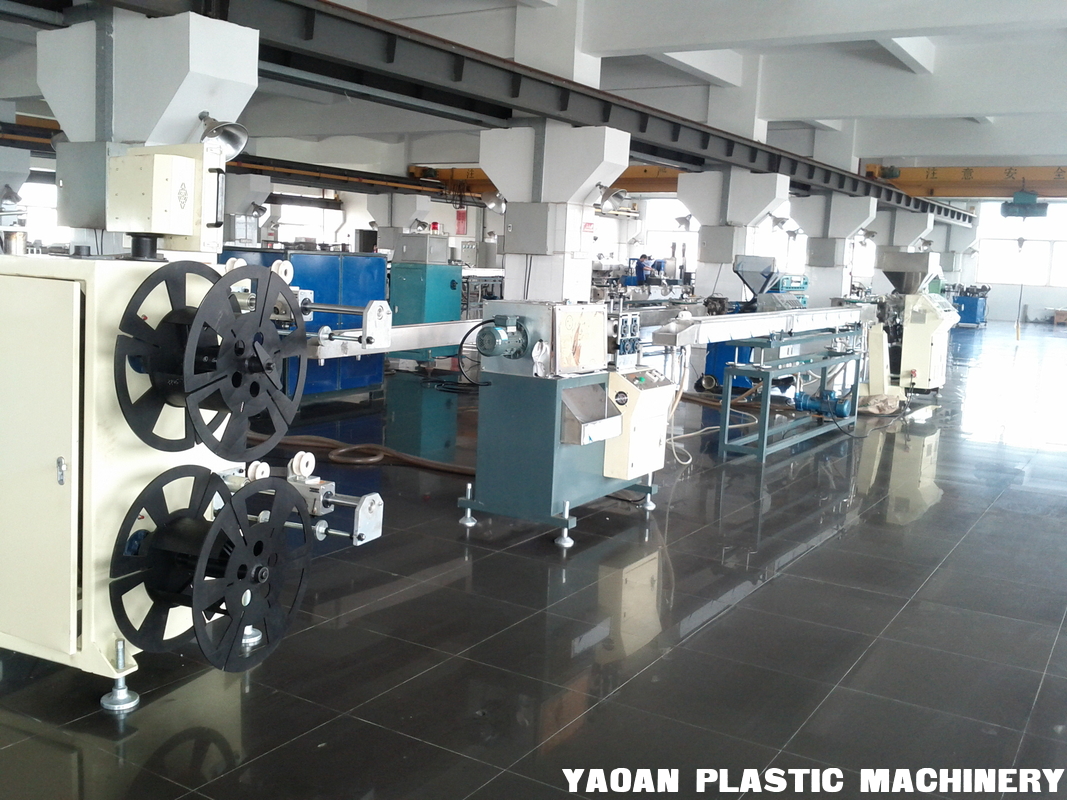

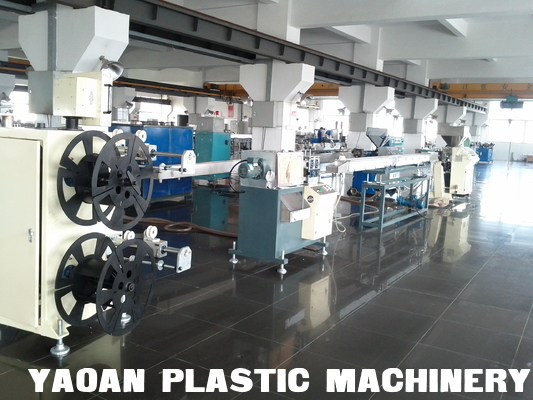

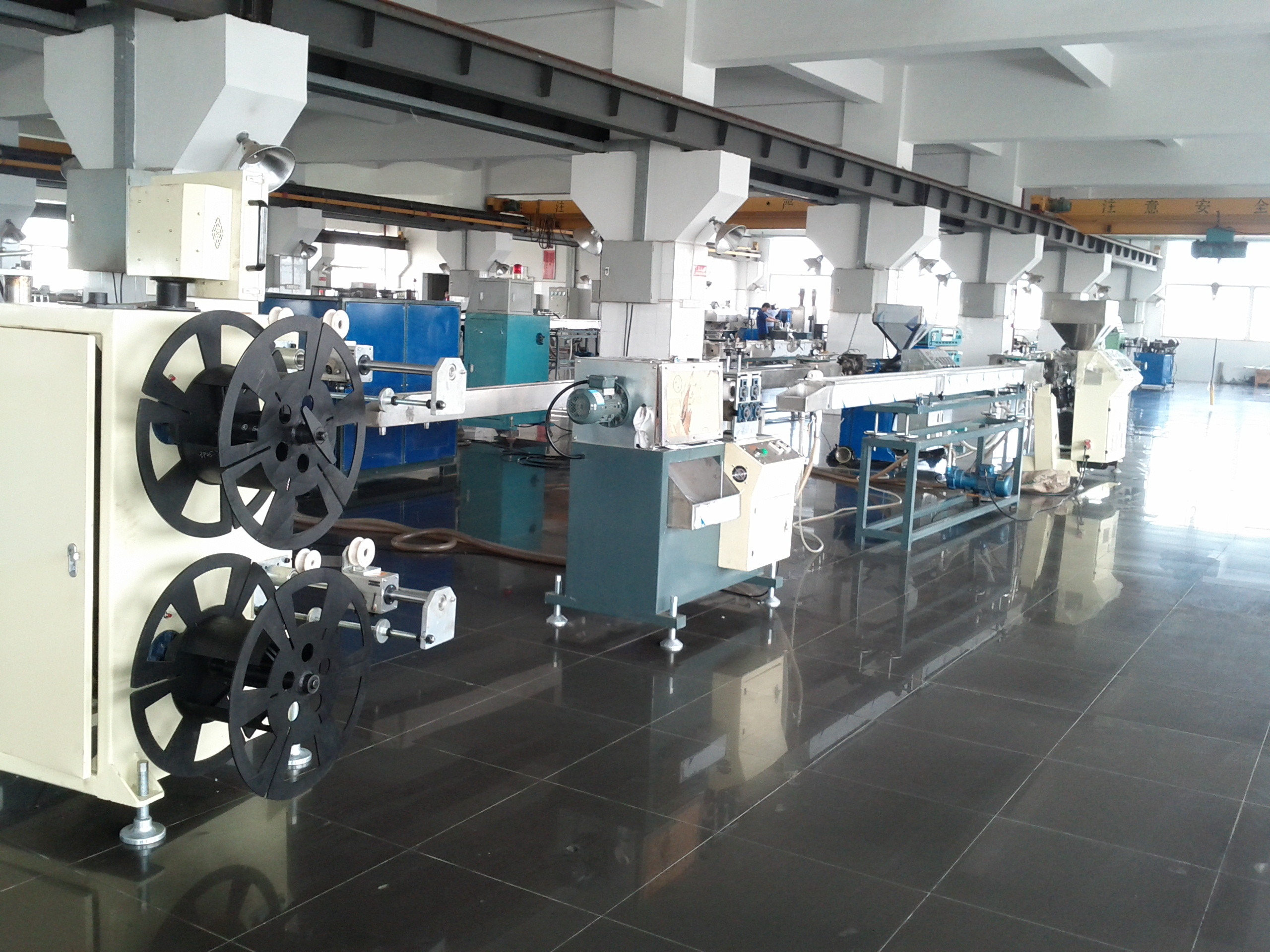

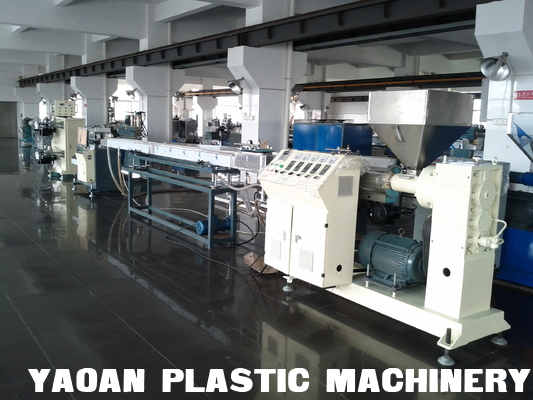

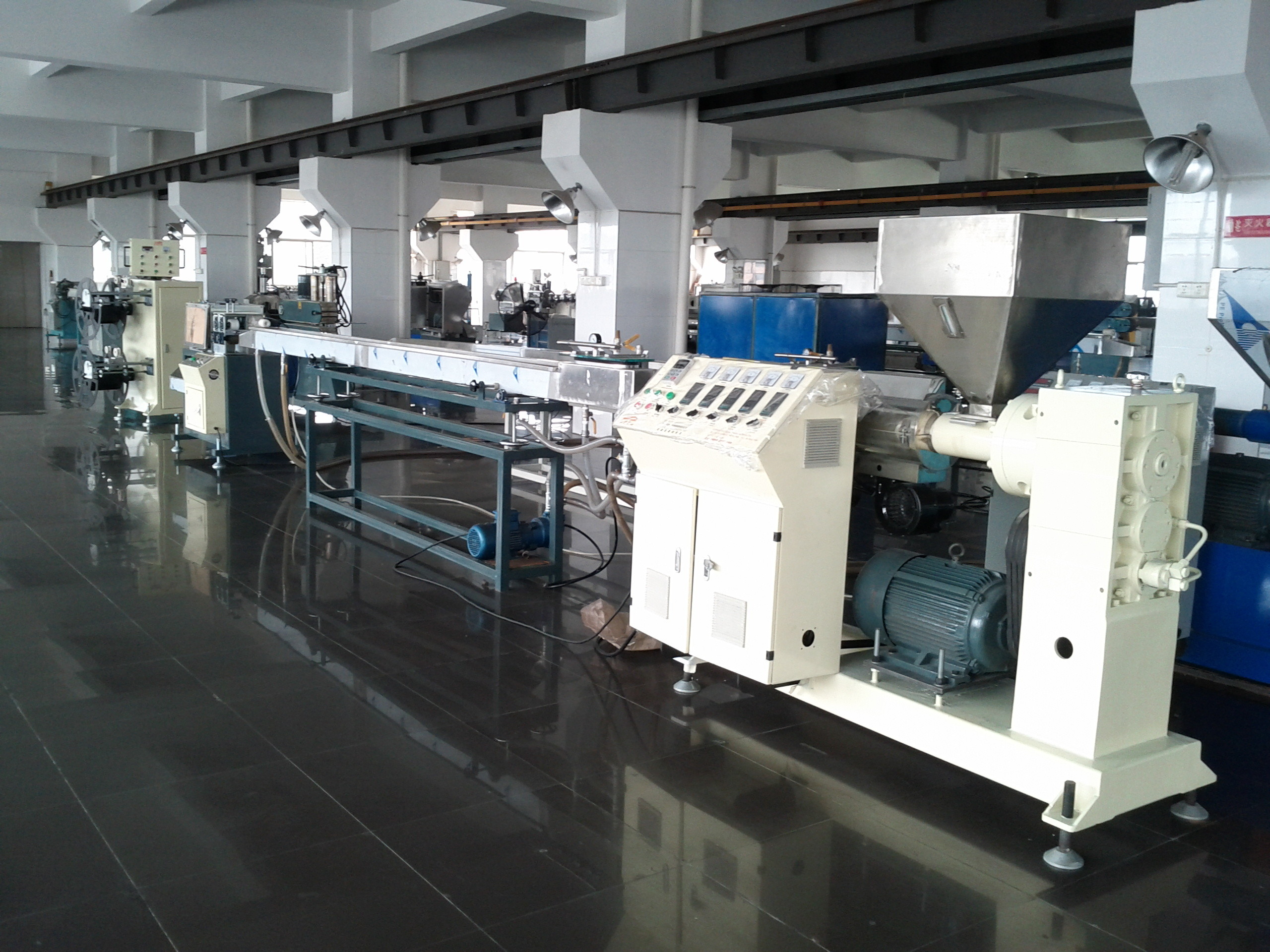

The line is including : Extruder--mould--vacuum cooling tank--belt pulling machine--Cuttingmachine

Shampoo Nozzle Tube Extrusion Machine


Shampoo Nozzle Tube Extrusion Machine


Shampoo Nozzle Tube Extrusion Machine
Item Unit part(s) QTY Description
1 Three-in-one extruder

Main extruder

screw & barrel

1 set Ø55; L/D:28:1,
substrate: 38CrMoAlA, nitriding


screw & barrel

2 sets Ø30 ; L/D:25:1,
substrate:38CrMoAlA, nitriding
Main gear box 1 set oblique gear, hardening, polished
Main Motor 1 set 15kW,frequency varying
Sub-motor 1 set 3kw
Hopper & Fan Cover 1 each stainless steel
2 Cooling bath   1 set length:6m, stainless steel

Drawing &

Cutting Machine

  1 set drawing motor:1.5kW,
Cutter motor:0.75 kW,
both frequency varying
4 Panel   1 set 11 zone temperature control, 7 air cooling


Shampoo Nozzle Tube Extrusion Machine

Our Services


1.To create a space that customers can make a reasonable plan with less cost
2.We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
3.We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.


1. we are responsible for installation, debugging and training, you just pay for the engineer’s air tickets, eating, housing and 80 dollars each day.
2. provide service manual and maintenance instruction of main electric appliance, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
3. 12 months for warranty.

4. Fittings of the machine will be supplied at preferential price after one year .
