LDPE Pipe Extrusion Machine For Perfume Pump Sprayer Dip Tube Diameter Of 3-9mm

Name: LDPE Pipe Extrusion Machine For Perfume Pump Sprayer Dip Tube Diameter Of 3-9mm
Brand: YAOAN
SKU: AF-55
Rating: 4.5 (161 reviews)

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-55

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price

Product Details

Product Description

Product Details

High Light:

Material:	LDPE , HDPE	Screw:	55mm
L/D:	28:1	Warranty:	1 Year
Motor:	11 KW	Output:	20-50kg/hr

Material:	LDPE , HDPE
Screw:	55mm
L/D:	28:1
Warranty:	1 Year
Motor:	11 KW
Output:	20-50kg/hr

Product Description

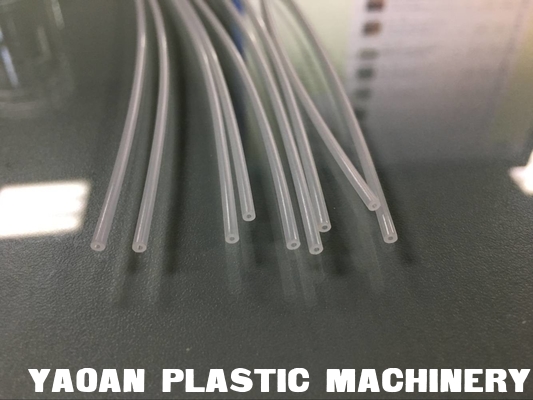

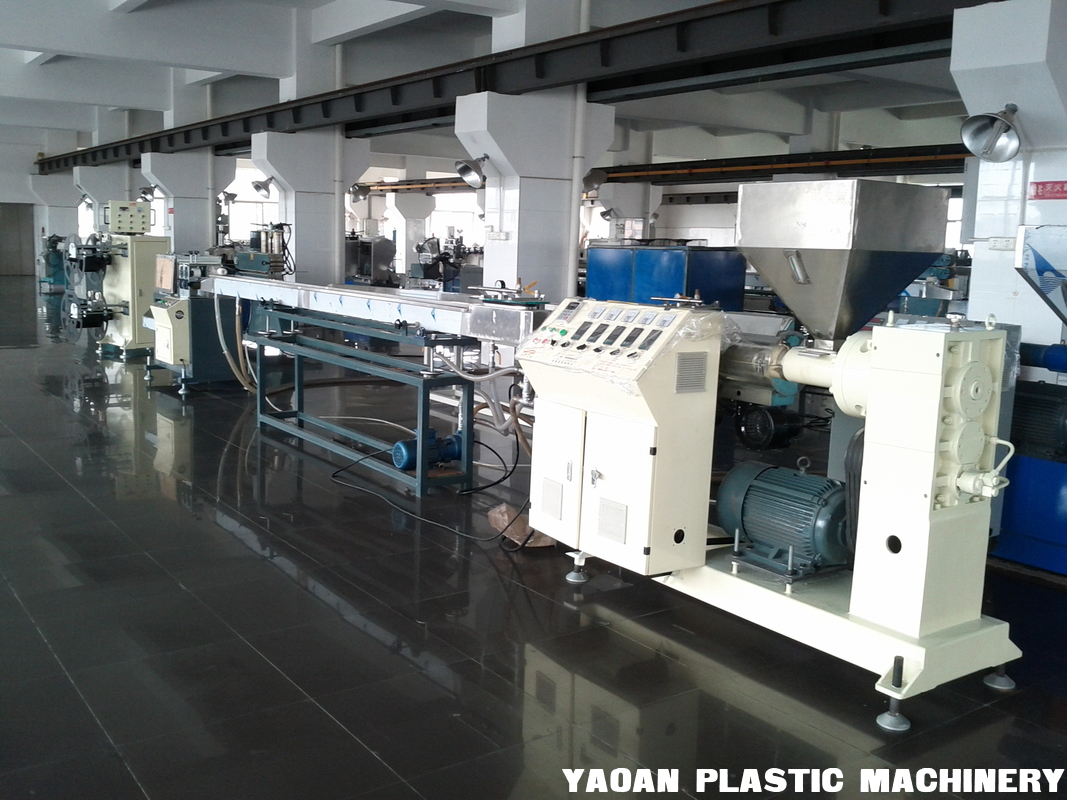

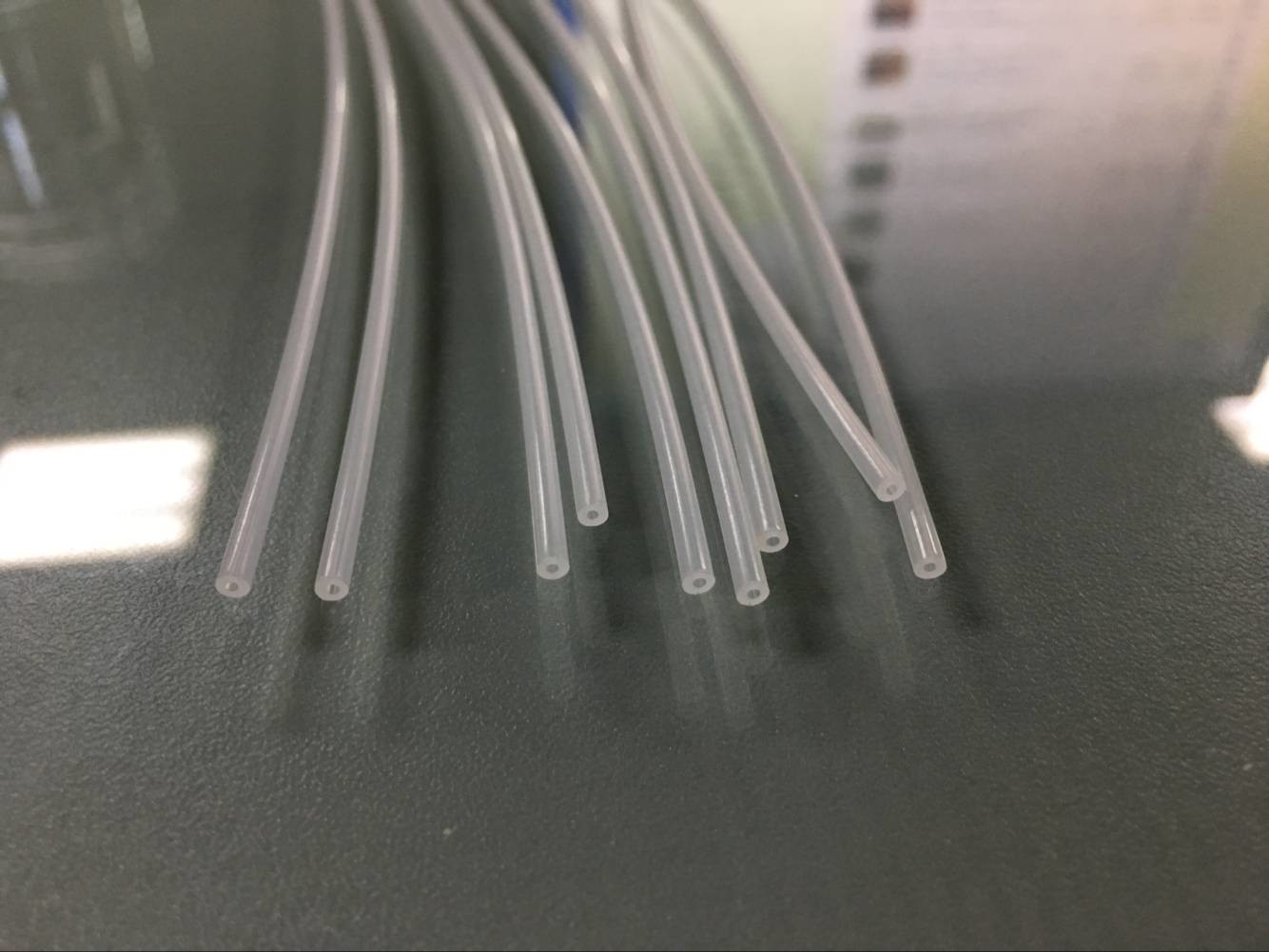

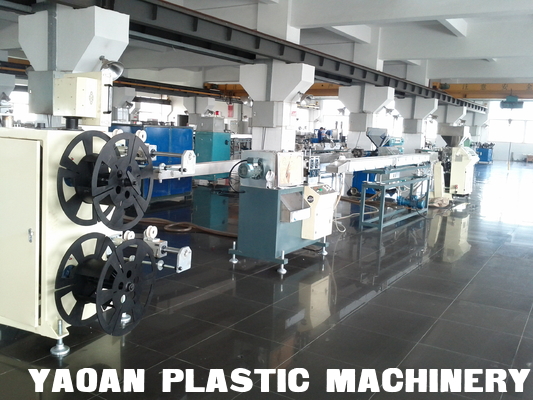

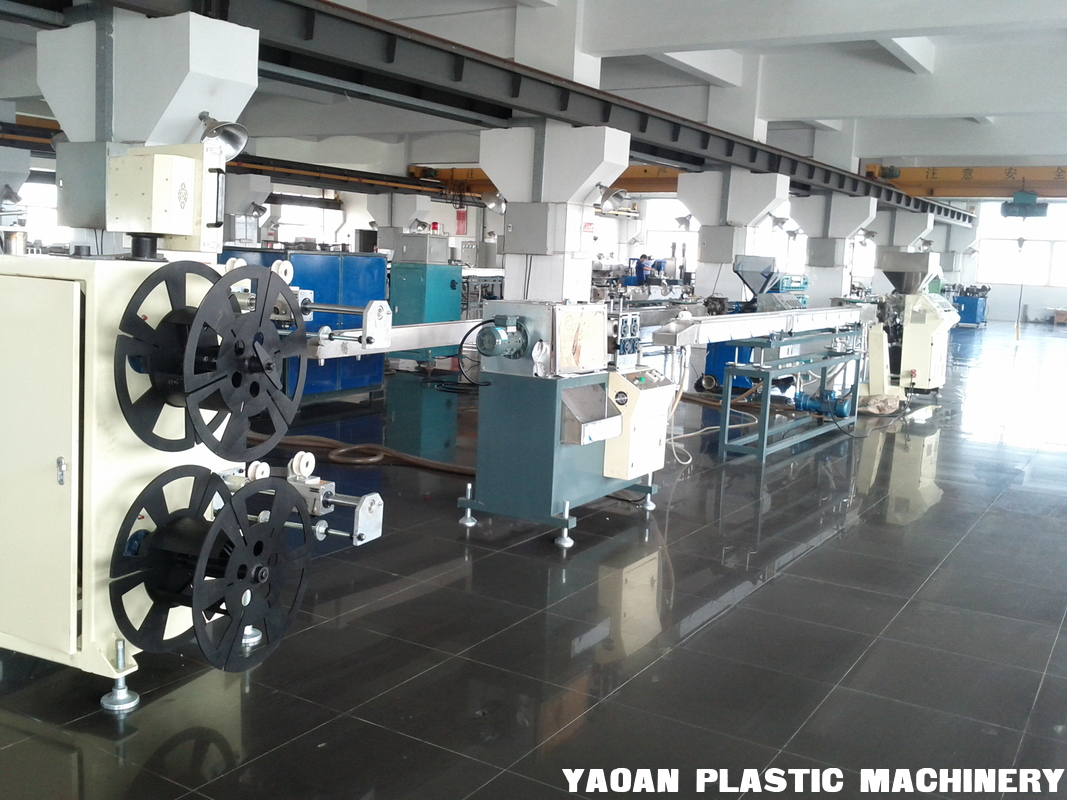

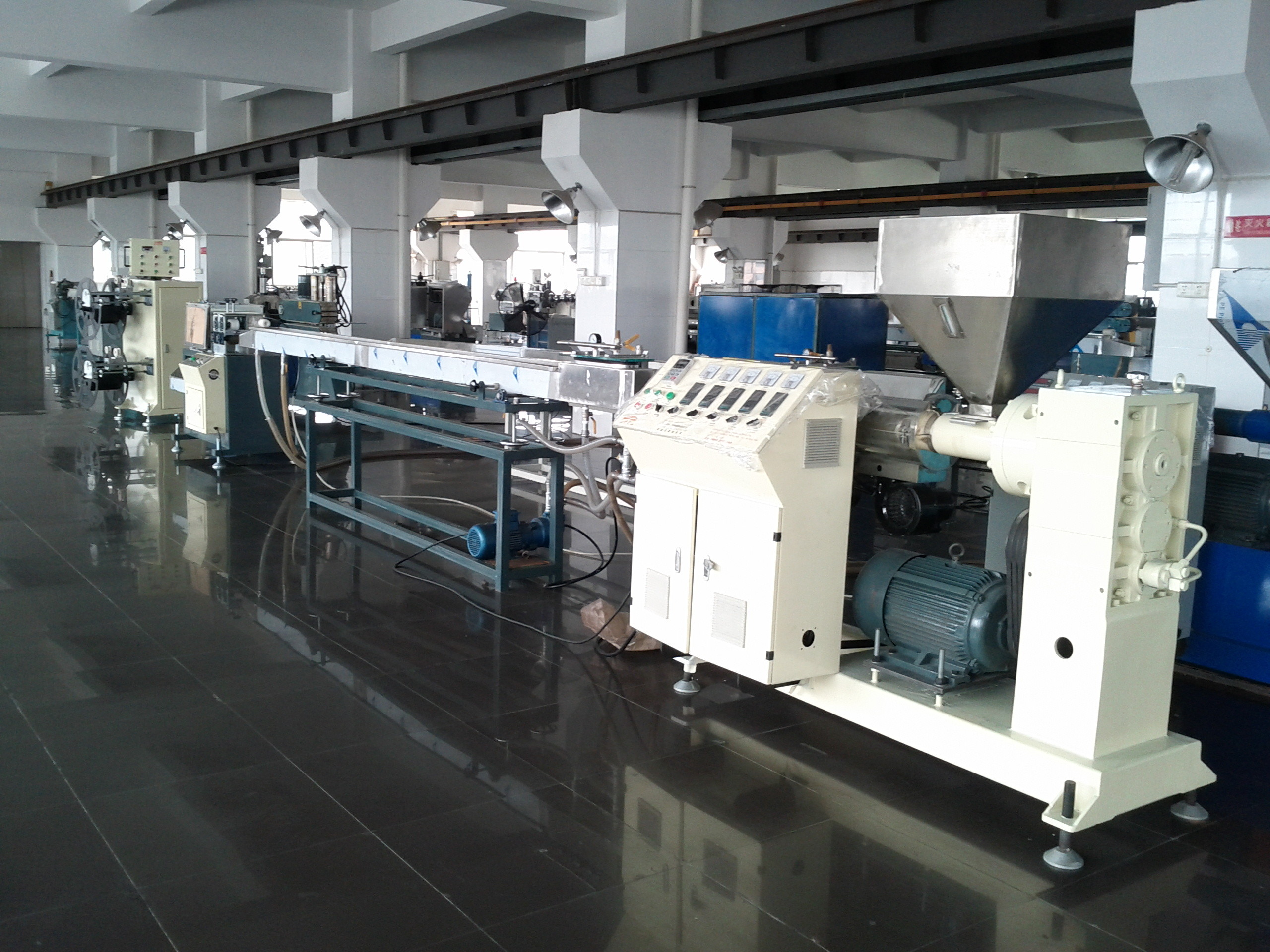

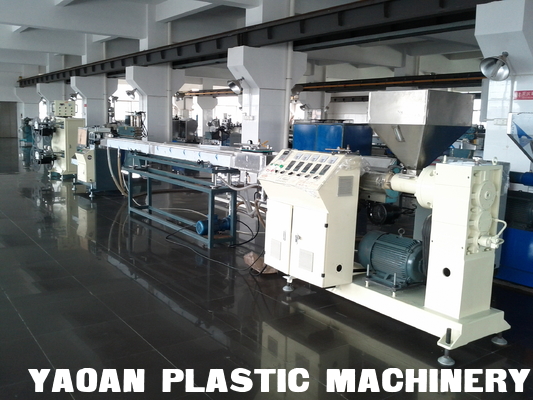

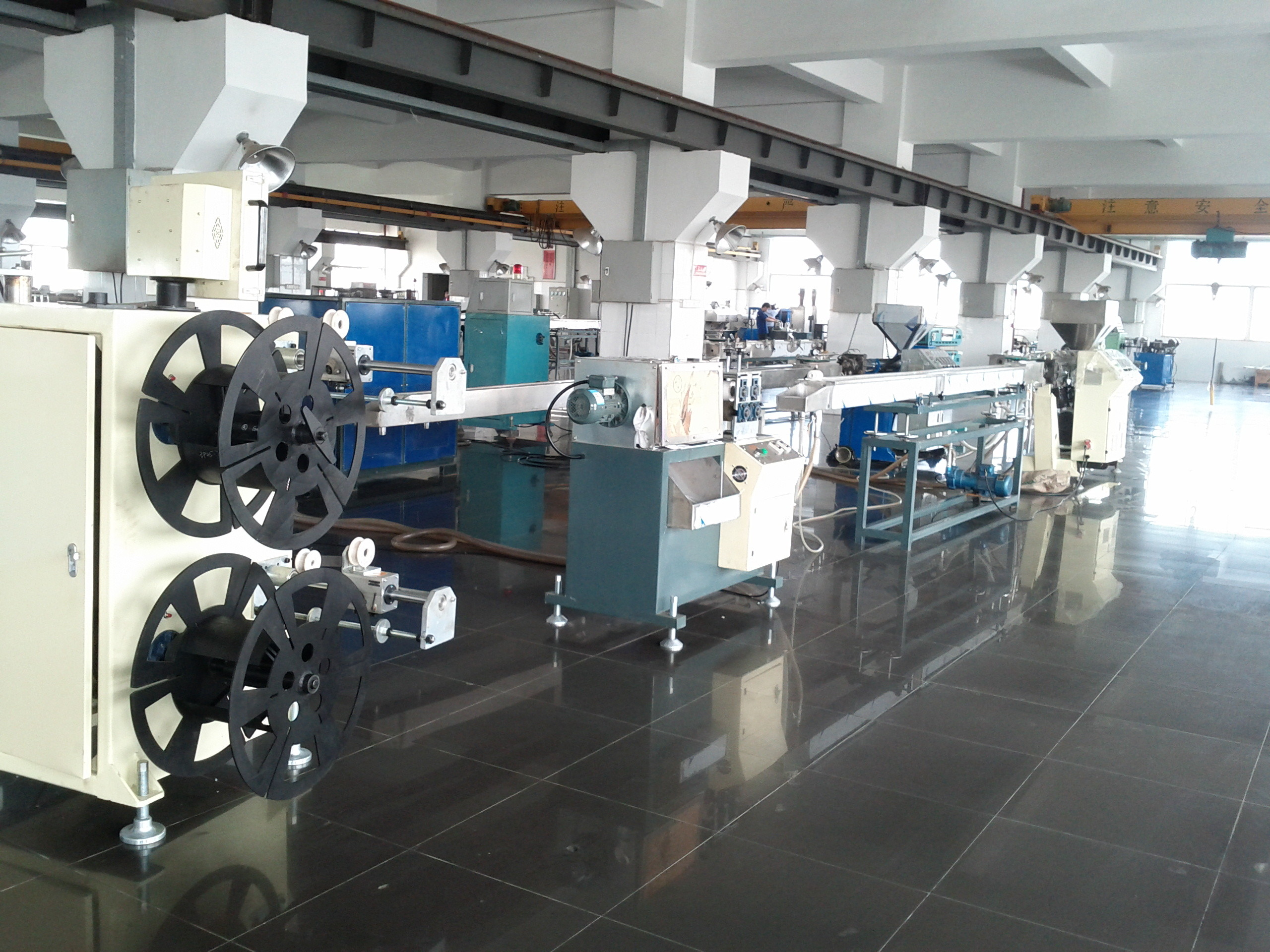

LDPE Pipe Extrusion Machine For Perfume Pump Sprayer

1.This series equipment select single screw type main extruder ,cooling system.They are made of online precise checking system,professional servo cutting machine,etc. and applied to cleaning workshop in the line of medical treatment,electronics,etc.

2.The screw is professinal designed,ensure the stable.

3.The main engine,haul-off unit and cutting parts all under program control which dispaly in the digital screen.

4. High speed HDPE extrusion production line

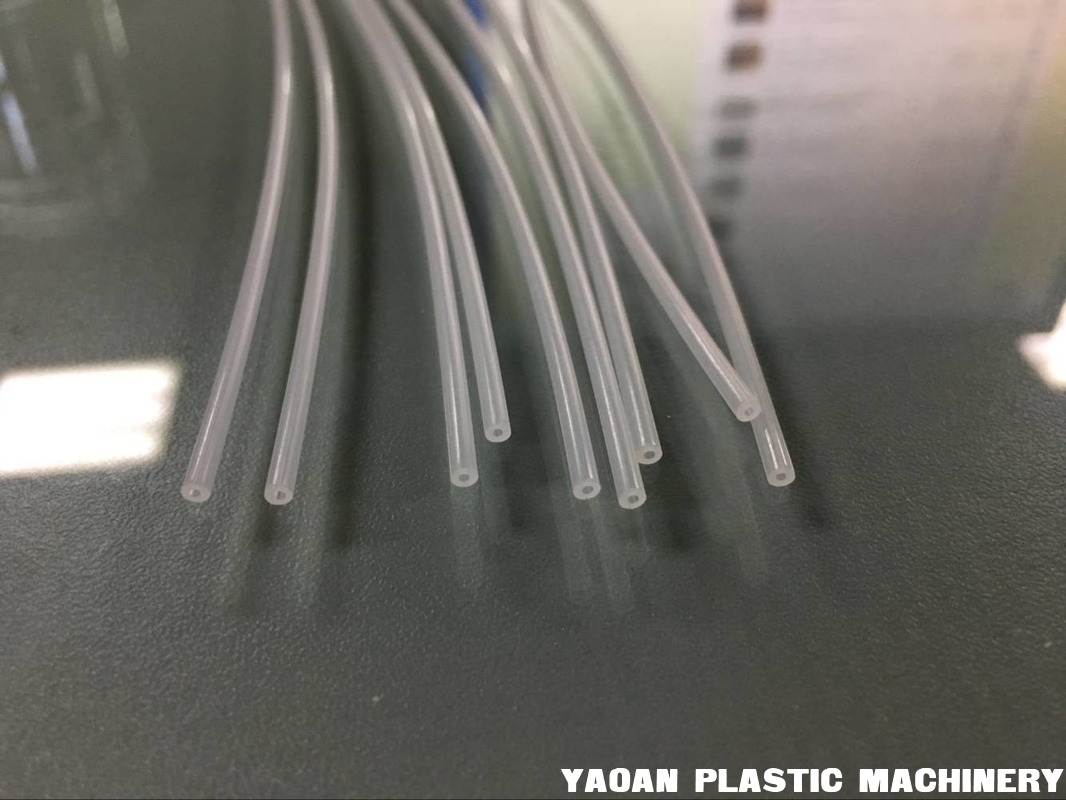

5.For perfume pump sprayer

6.Single screw extruder PE pipes for perfume pump sprayer

SPECIFICATIONS

Model		AF-55
Feature	Material	PP PE
	Color	3
	Straw diameter	φ3.0 ~ φ12 mm
	thickness	0.10 ~ 0.35 mm
	Straw length	80 ~ 300 mm
	Stripes	Straight / Helical
	Capability	400 ~ 1800 pcs/min
	Extruding output range	20 ~ 40 kgs/hr
Extruder	Main Screw diameter	φ50 mm ( BM Screw)
	Screw L/D	28 : 1
	Main driving motor	11 Kw (VFD)
	Vice screw diameter	φ25 mm×2
	Vice driving motor	0.75Kw ×2(VFD)
	Gearbox	ZLY133
	Automatic thermo-controller	11 sets
	Heating power	14.75 kw
Water cooling tank	Forming device	1 set
	Vacuum Pump motor	1.1 kw(choose)
	Water storage tank	(length)3400 mm /304 Steel stainless
	Base frame material	(304 Steel stainless)
	Blow dry device	1 set

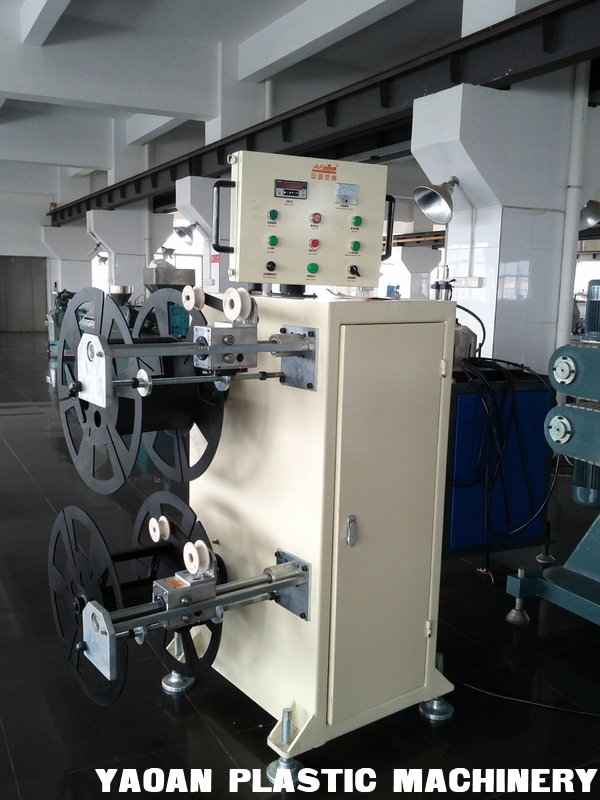

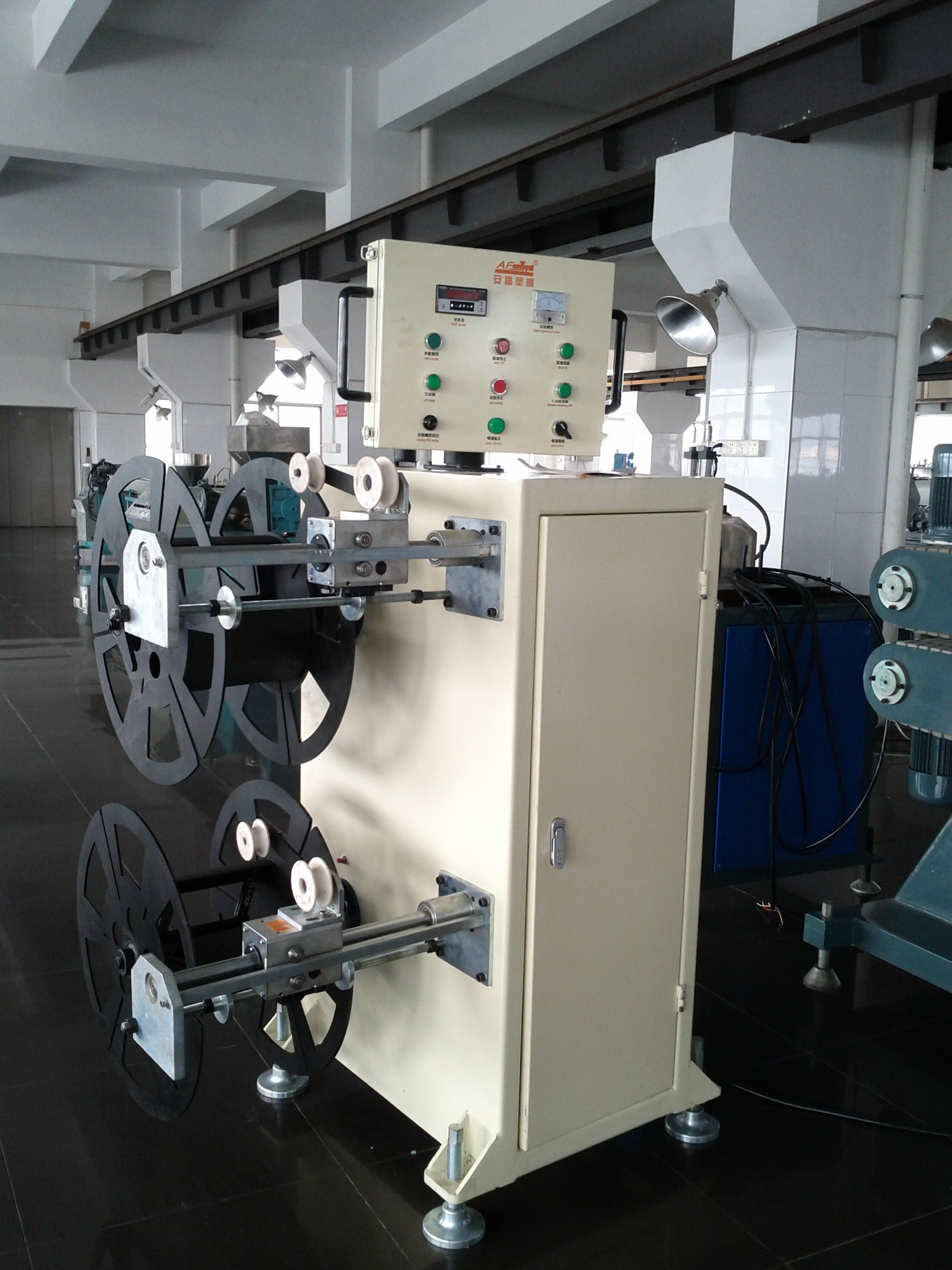

Take up & Cutting Unit	Take up unit	1 set
	motor	0.75kW×1(VFD)
	Cutting knife unit	1 set
	motor	0.75kW×1(VFD)
	angle of port	90°/60°/45°
	Digital counter	1 set
Others	Air compressor	1.5kw(choose)
	Dimension LxWxH	8m×1.4m×1.6 m
	Machine weight	2300 kgs

SPECIFICATIONS

LDPE Pipe Extrusion Machine For Perfume Pump Sprayer Dip Tube Diameter Of 3-9mm

Our Services

Pre-service

1.To create a space that customers can make a reasonable plan with less cost
2.We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
3.We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.

After-service.

1. we are responsible for installation, debugging and training, you just pay for the engineer’s air tickets, eating, housing and 80 dollars each day.
2. provide service manual and maintenance instruction of main electric appliance, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
3. 12 months for warranty.

4. Fittings of the machine will be supplied at preferential price after one year .
