Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-600
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Raw Material: |
PP |
Material Grade: |
Extrusion |
Machine Capacity: |
50-80kg/hr |
Film Width: |
600mm |
Motor: |
Siemens |
Inverter: |
ABB |
Raw Material: |
PP |
Material Grade: |
Extrusion |
Machine Capacity: |
50-80kg/hr |
Film Width: |
600mm |
Motor: |
Siemens |
Inverter: |
ABB |

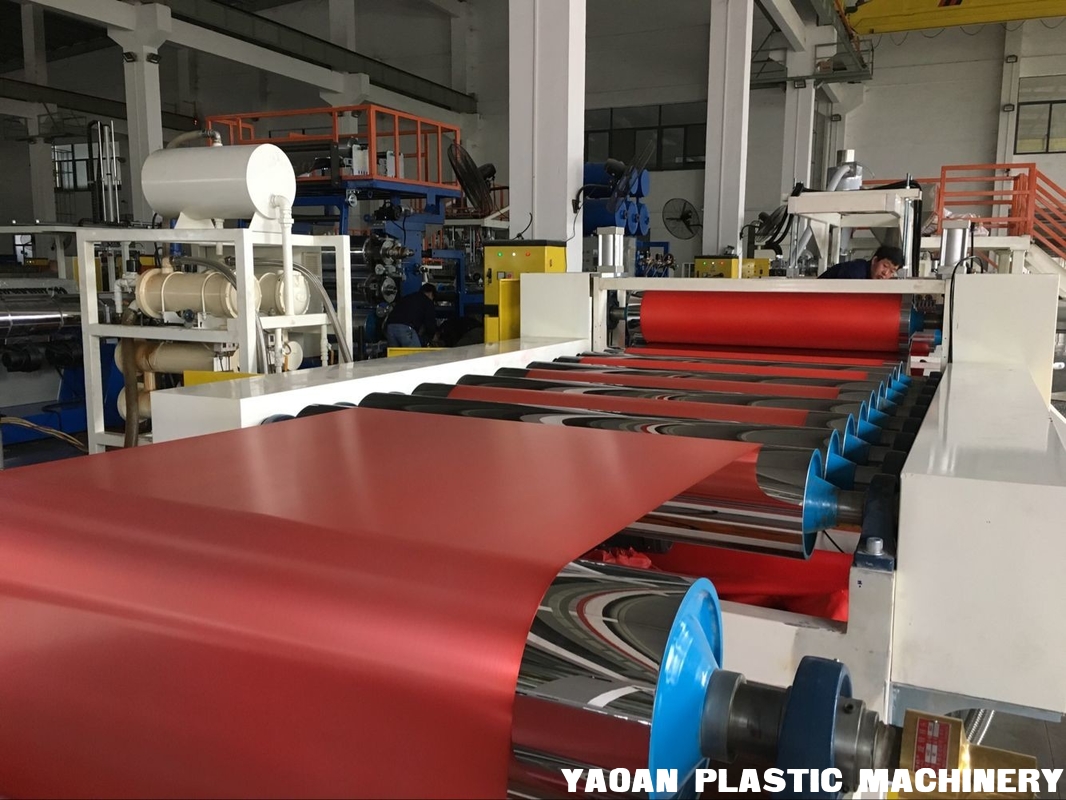

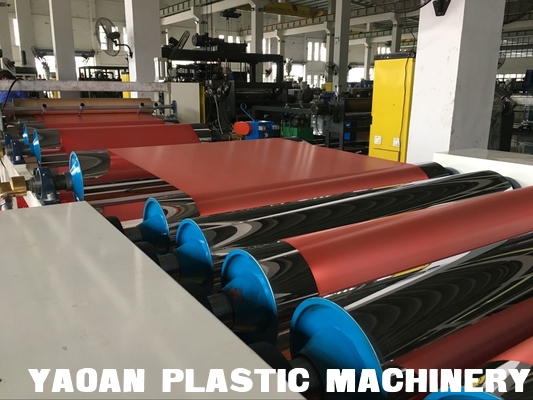

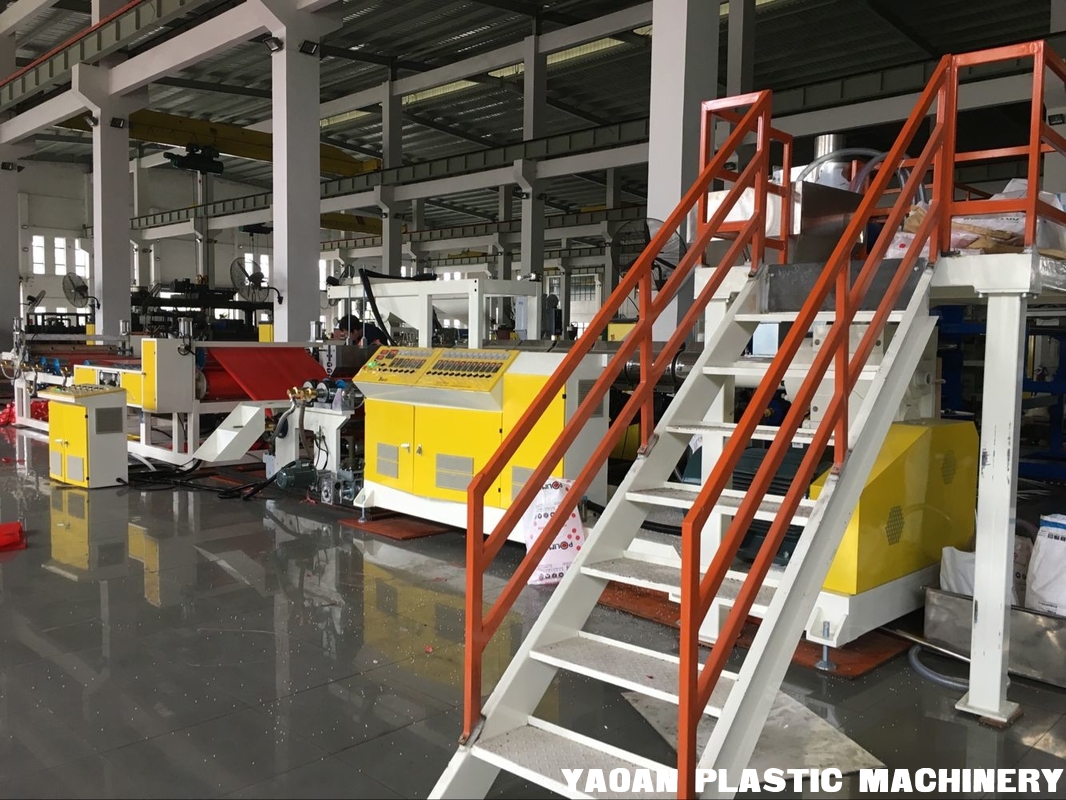

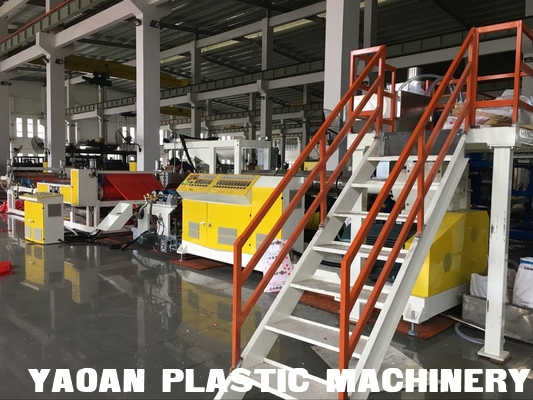

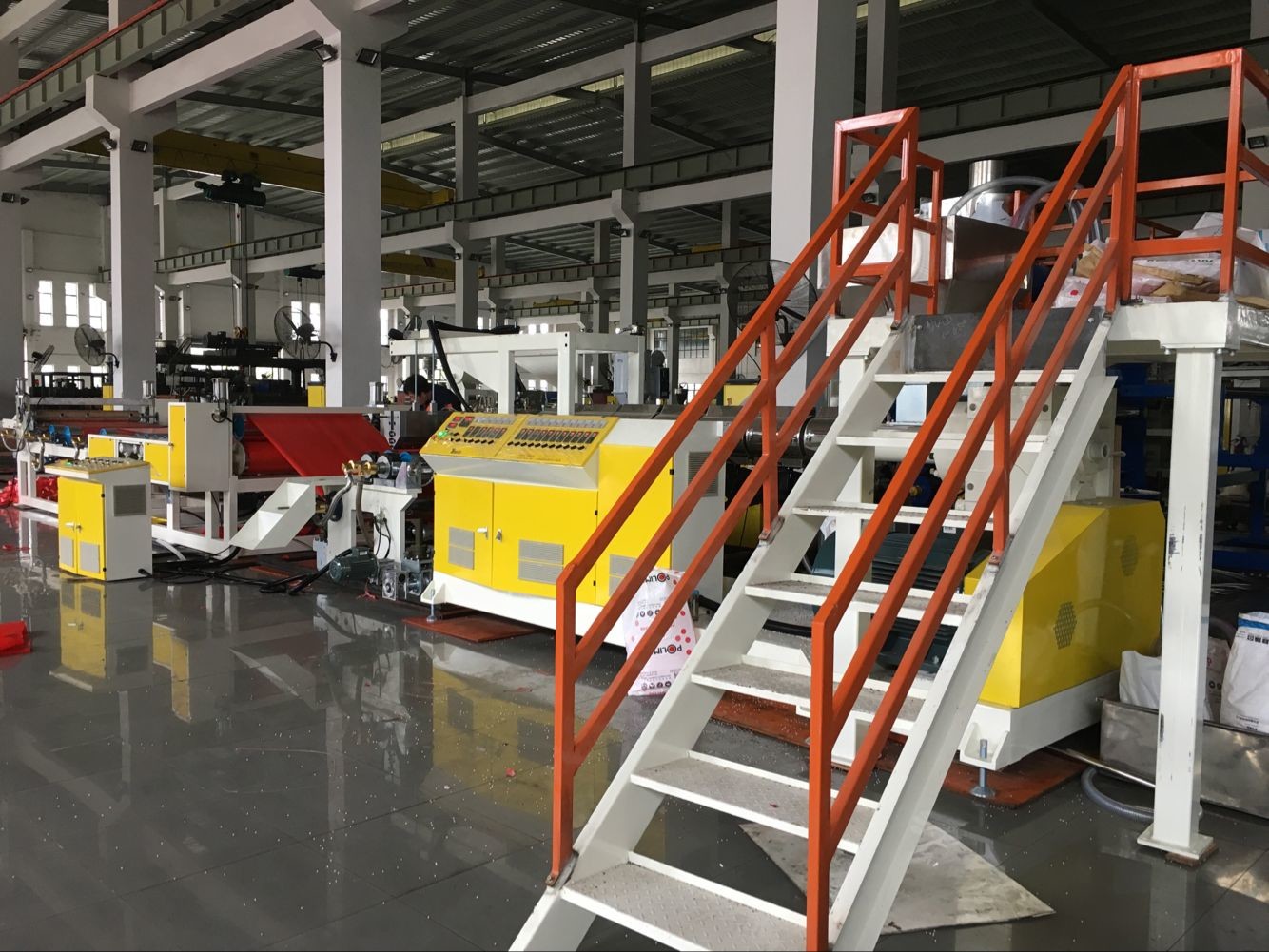

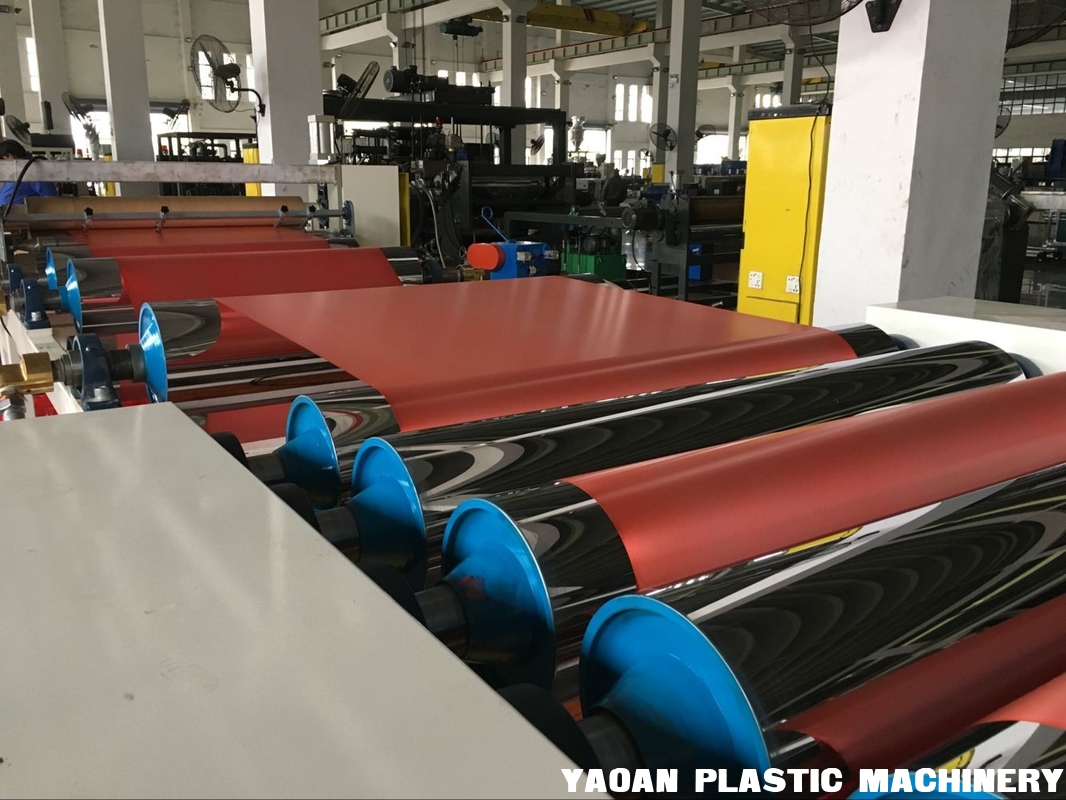

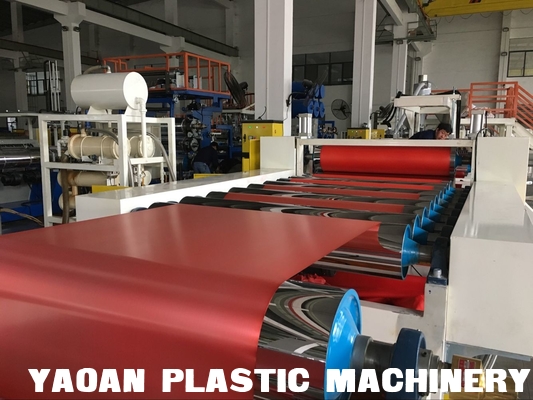

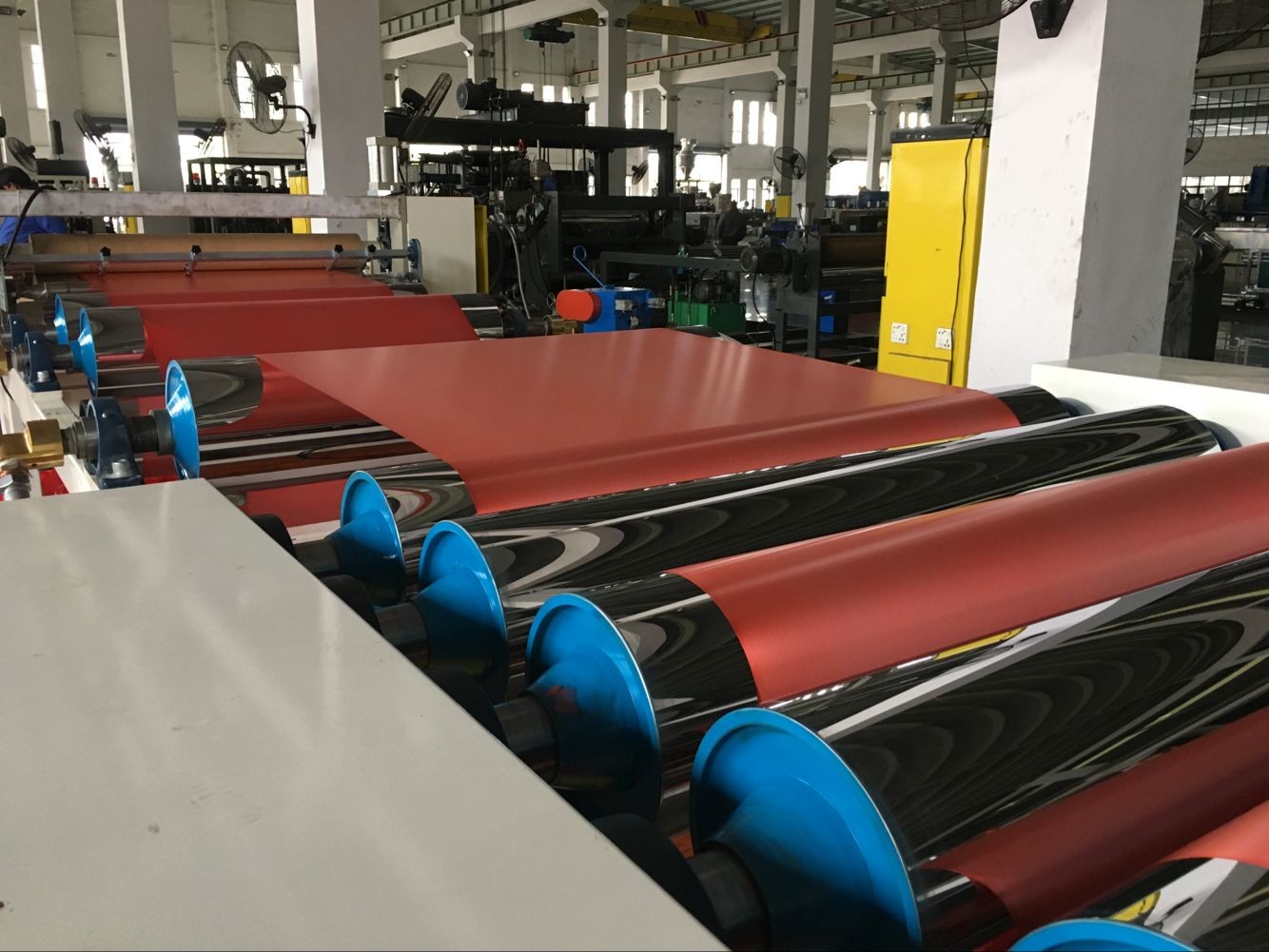

AF-1000mm PP Ribbon Film Extrusion Production Line For Gifts Packaging
We have manufactured 5 sets of ribbon film machines in 2017 and 3 sets in the year of 2018;
UPTODATE design ensures power save, high output(speed can be 40 meters/minute, even can be 50ms/minute in some clients' factory.) The film made our machine is shinning with uniform thickness and big width.
New technology is using T-Die extrusion and calender forming to ensure product thickness with high precision. It changed traditional single and double cavities ribbon strap production method which can increase production capacity, reduce energy consuption, it greatly improving production efficiency and effectiveness. Product width: 800-1200mm. thickness of 0.08-0.2mm
This ribbon film machine is for 1000mm wide. Thickness range is from 0.09-0.18mm,
The line speed is 40-50ms/m.We supply you a turn-key project.
We have a lot of experience and manufacture good machines.
PP ribbon film machine is made by YAOAN, which has grasped core technologies.
YAOAN can provide full techonogy and formualtion to customers once placed the order!
Model: | AF/CPP-φ100-1050 mm |
Structure of layer | A |
Film width after trim: | 1050 mm |
Film thickness | 0.09-0.15mm |
Stretching times | 8 |
Extrusion capacity:(Max.) | 120-160 Kg/h |
2 :Consisting parts of machines:
1 | Extruder | 1set |
2 | Extrusion die head | 1 set |
3 | Casting unit | 1 set |
4 | Stretching system | 1 set |
5 | Winding unit | 1 set |
6 | Control unit | 1 set |
7 | Edge collecting unit | 1 set |
