Lab size 3D printer filament extrusion machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-20

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
Highlight:
Material:
PLA,ABS,PP,PE
Screw Dia.:
20mm
Ratio:
28:1
Line Speed:
10m/min
Machine Dimension:
2085×780×1320
Material:
PLA,ABS,PP,PE
Screw Dia.:
20mm
Ratio:
28:1
Line Speed:
10m/min
Machine Dimension:
2085×780×1320
Product Description

Equipment performance and technical indicators

Screw diameter Φ20mm

Screw length to diameter ratio (L / D) 25

Screw speed range 94rpm

Traction roll rate of 10m / min

Capacity: 3kg / h

Filament size Φ1.75mm;

Filament diameter accuracy ± 0.05

Extruder power 1.5kW

Total power ≈ 5kW

Length × width × height 2085mm × 180mm × 1320mm

Control mode PLC control



Lab size 3D printer fialment extrusion machine

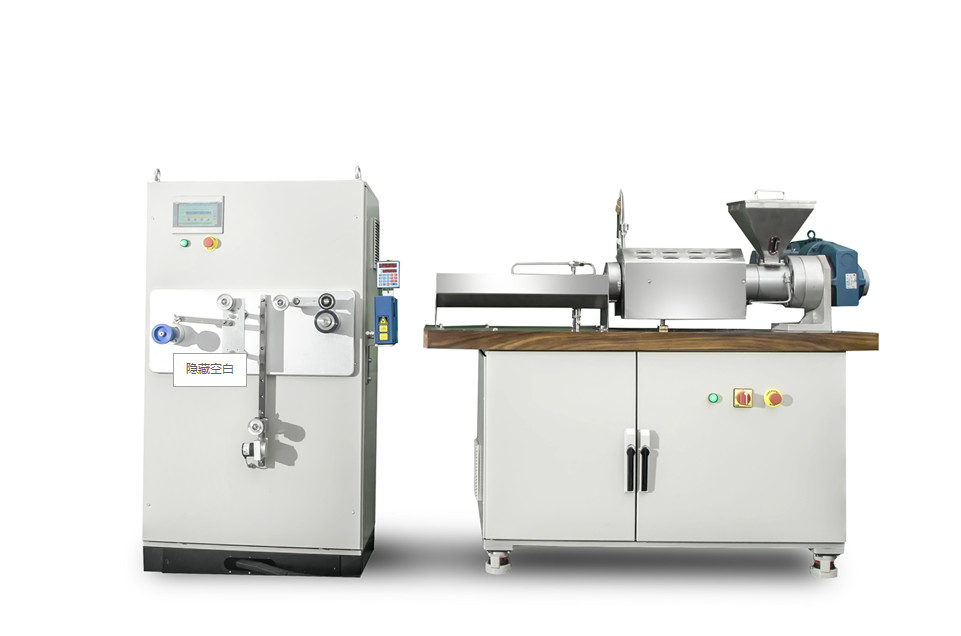

Lab size 3D printer filament extrusion machine 0



Beatiful layout

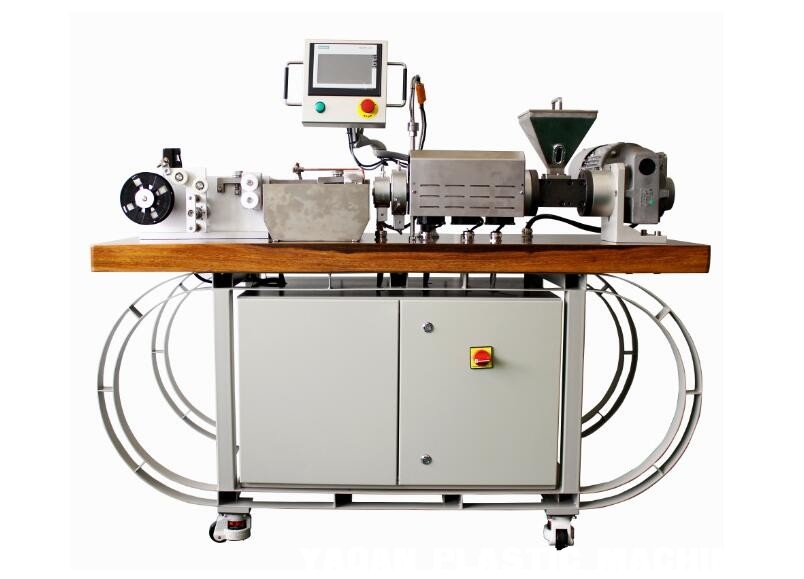

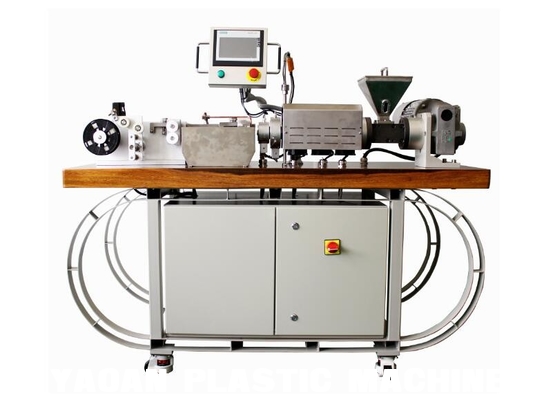

Lab size 3D printer filament extrusion machine 1

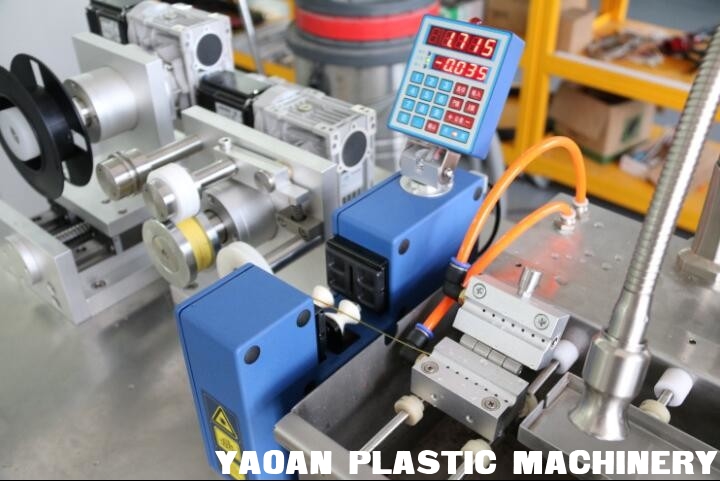

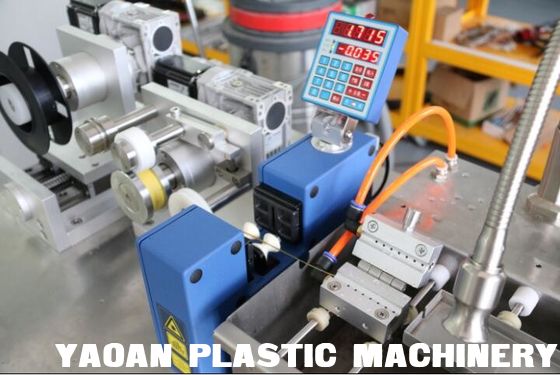

Lab size 3D printer filament extrusion machine 2
