Nonwoven fabric recycling & granular making machine,High quality,High capacity, Low power consumption

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-150
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Machine Color: Blue Screw: Single Screw
Capacity: 100-500kg/hr Processing Material: PP Nonwoven Fabric

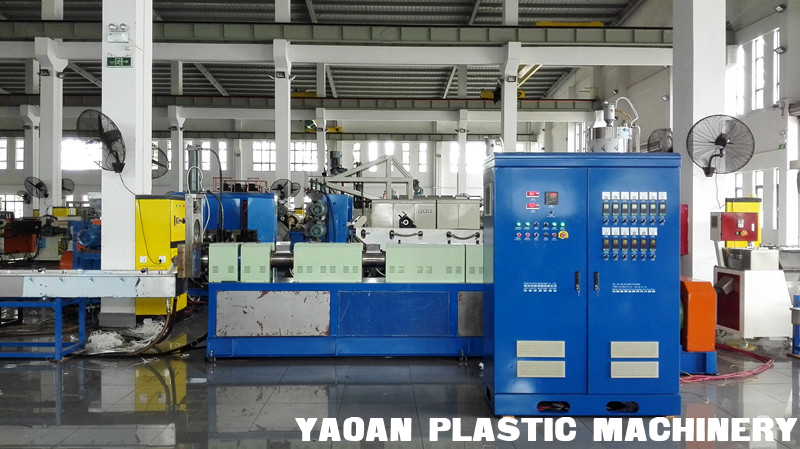

PP Nonwoven fabric recycling & pelletizing extrusion machine : one set

Diameter: 65mm-150mm

Screw L/D: 30:1

Screw structure: special (for PP nonwoven fabric )

The screw and the barrels are all made of high quality nitrified steel-38CrMoAIA, and are nitration austerely according to NATIONAL STANDARD, nitration hardness: screw≧740HV; barrels≧940HV. Nitration depth: screw: 0.3-0.6mm, barrel: 0.4-0.7mm, fragility is 2 grades.

Gearbox: one set

The gear box materials is made of alloy cast steel, contract surface of up, down box deal with precision tempering, quenching heat treatment, the teeth deal with grinding and peeling eventually, the teeth surface harshness is Ra 0.8, and provided with damping, antifriction, low-noise etc. characteristics.

Control style: A.C control

The inverter adopts Taiwan Delta

The heaters are made of stainless steel

The blowers are of noiseless high effective cooling blower

Hydraulic non- stop quick screen changer: one set

(Including hydraulic oil station: one set)

Electrical control box: one set

Extruding die: one set



5m stainless steel cooling water trough: one set

Water trough stand: one set

Dewater blower: one set

Motor power: 2.2KW



Cutting machine :one set

No. of blade of the cutting head: 20pcs

Control power: 5.5kw

Control style: frequency conversion (ABB inverter)



Output capacity: 50-500kg/h
