High Quality CaCO3 filler Masterbatch machine/masterbatch production line

High Quality CaCO3 filler Masterbatch machine/masterbatch production line

High Quality CaCO3 filler Masterbatch machine/masterbatch production line

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 72

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description
Plastic Processed: PP Application: Granules
Screw Design: Double-screw

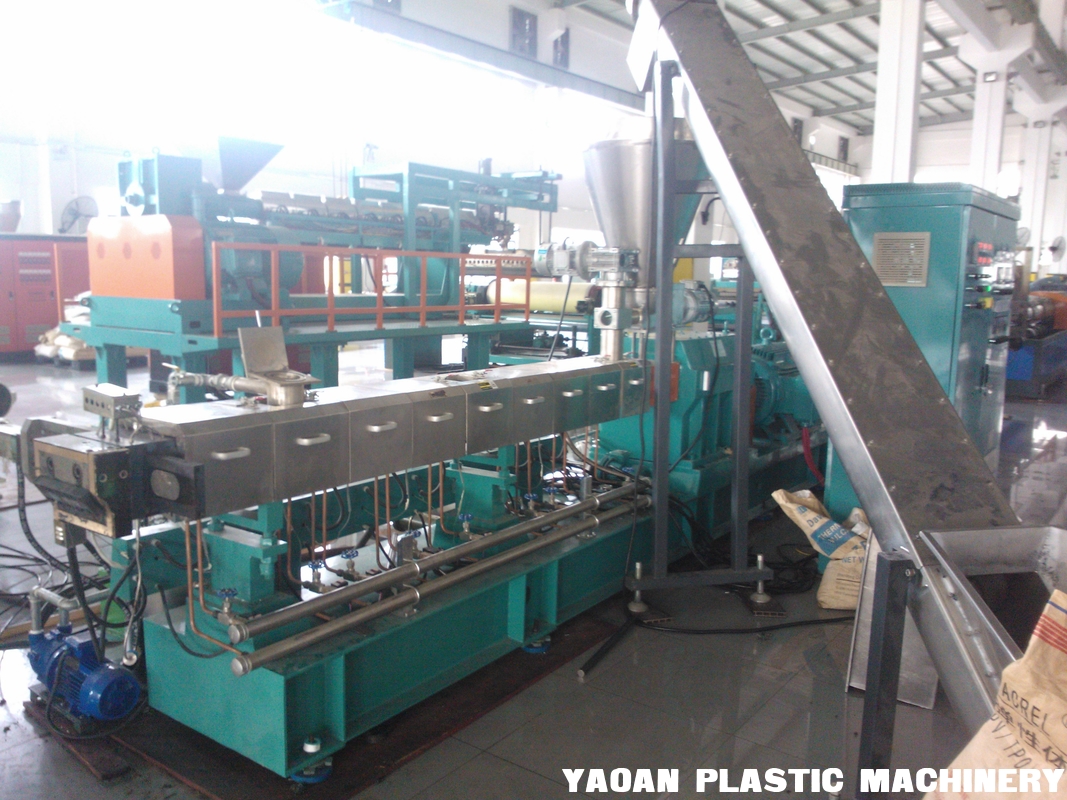

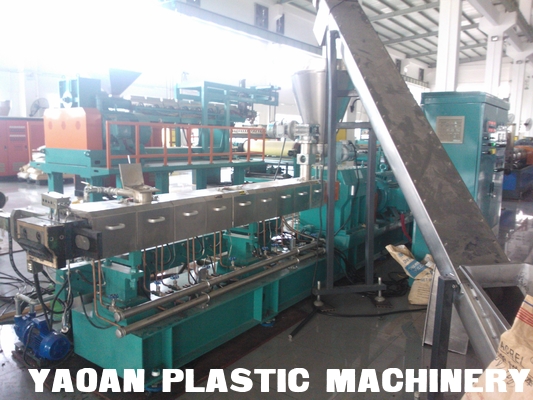

High Quality Co-rotating- Parallel twin Screw Extruder for CaCO3 filler masterbatch



1.Features:

  Parallel co-rotating twin screw extruders have excellent mixing performance,good self cleaning performance and flexible modular configuration characteristics which make them suitable for processing different types of material systems,and are extensively used in fields of polymer processing ,foodstuff processing and chemical products, especially for various high molecular materials.



  In most cases ,parallel co-rotating twin screw extruders are used as mixing equipments .ln processing high molecular materials,the modification process and master batch preparation of polyolefin materials and engineering plastics require sufficient and intensive mixing,which differs depending on material systems, Excellent equipment performance,reasonable mixing process,advanced combination technique and rich processing experience are the key factors determining the success and efficiency of mixing.



  This screw of the co-rotation twin-screw exturder are composed of multi-sections. The raw material obtain optimization of compounding after undertaking high speed, hith torque, compounding in the barrels, fixed feeding system, it can input glass fibers, additives. It'smainly used to process the products such as engineering plastic, plastic including glass fiber, high density master batch etc.

Main Technical Parameter:
Model Screw dia. L/D Screw speed Max. (rpm) Power of main motor Output (kg/h)
PS-36 36mm 36: 1 600 15-18.5KW 10-80
PS-52 52mm 36: 1 500 37-45KW 50-200
PS-57 57mm 36: 1 400 or 500 37-45KW 50-200
PS-62 62mm 36: 1 400 or 500 55-75KW 80-300
PS-72 72mm 36: 1 400.500.600 75-90KW 100-350
PS-82 82mm 36: 1 400 110-180KW 200-500
PS-92 92mm 36: 1 300 or 400 180-220KW 300-900







If you need more information,please feel free to contact with Mr.Ryan Tan
