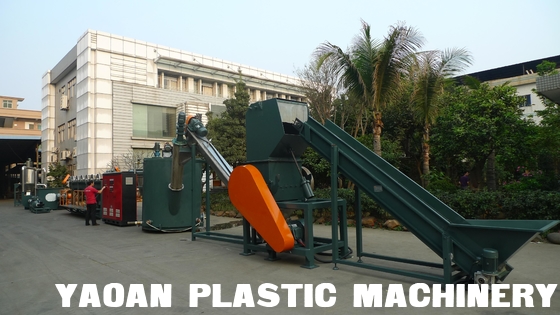

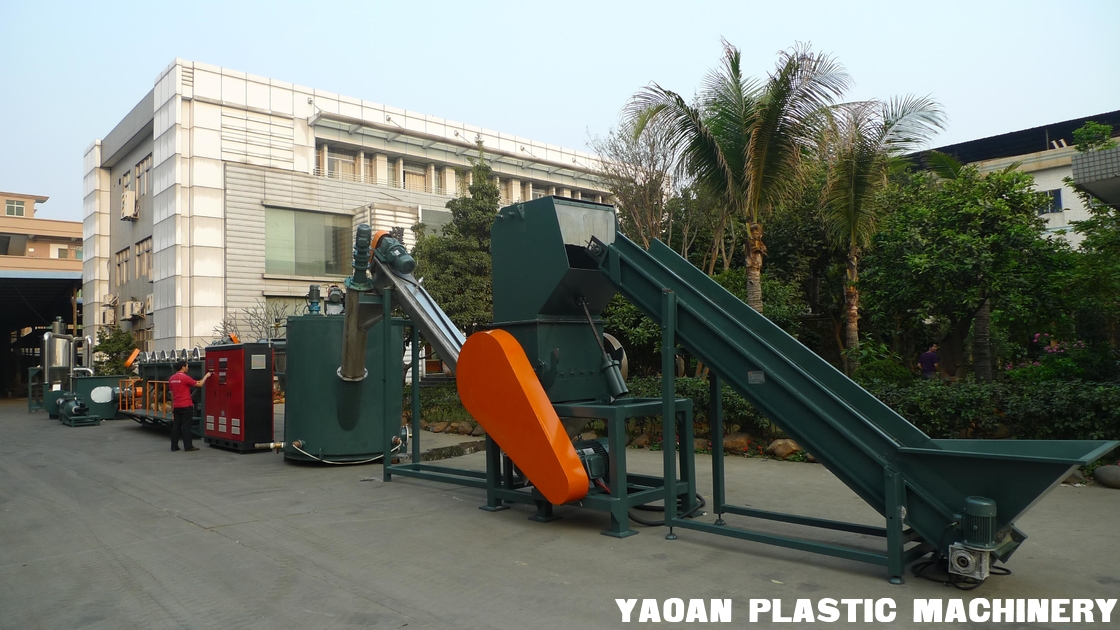

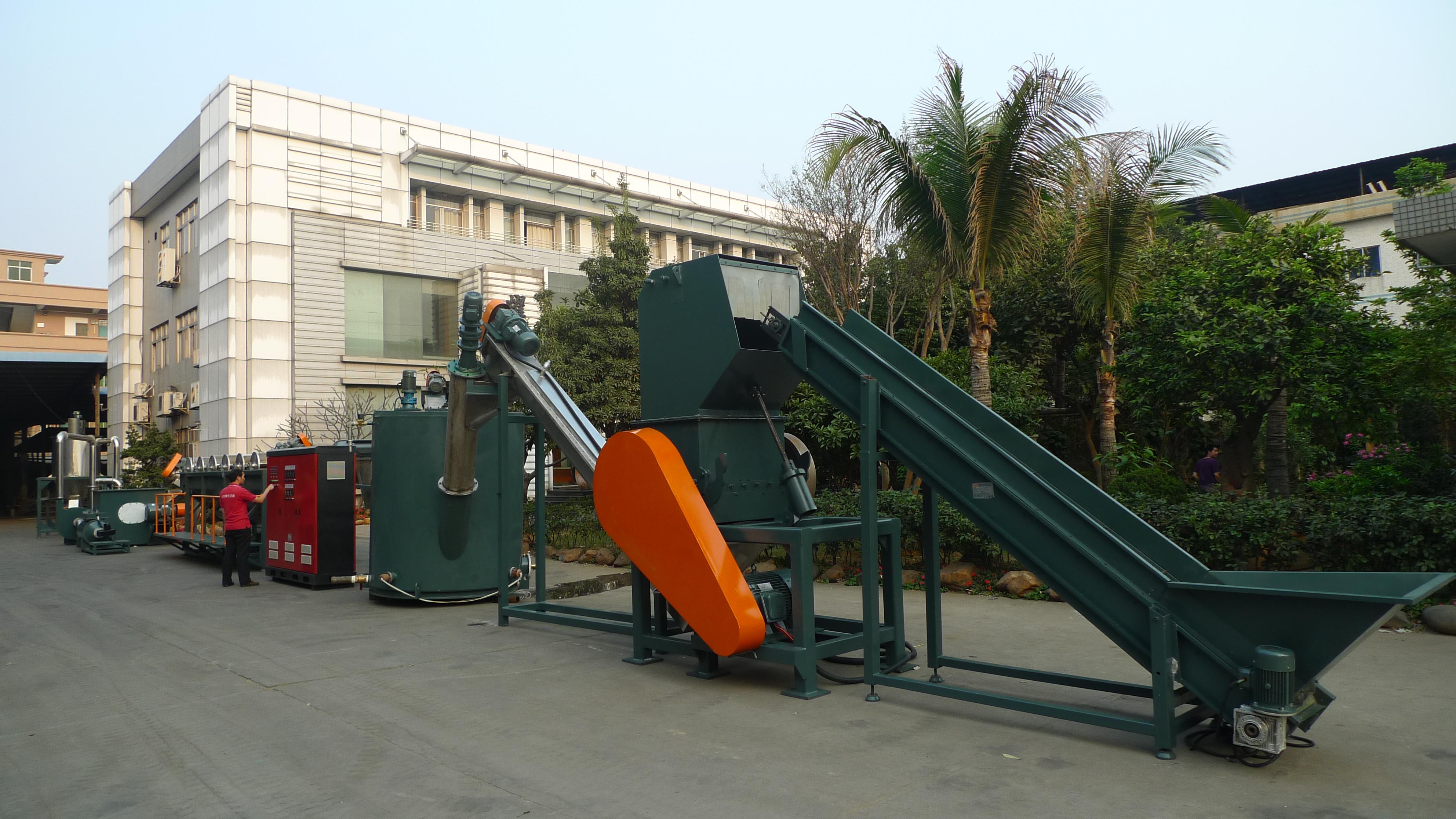

PET bottles crushing,washing machine,drying production line

PET bottles crushing,washing machine,drying production line

PET bottles crushing,washing machine,drying production line

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-65

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

No.

Items

Specifications:

Quantity

1

Belt conveyor

Effective transmission4000

Motor power1.5KW

The speed of convey belt: 40rpm

With of convey belt 600mm

The height of the conveyor is adjustable

One set

2

Wet crusher

Motor power55KW

Capacityabove 500kg/h

Crushing style: with water

Blade material 9CrSi

Mesh diameter φ20

One set

3

Spiral feeder

Screw diameterφ250

Motor power:1.5KW

Screw rpm:35rpm

The parts tangled with the material is made of stainless steel

One set

4

Hot washer

Connected with steam boiler. Steam is supplied into washing tank to heat water and flakes. Hot water makes waste; label and glue loosen from bottles. Meanwhile you need to add caustic soda and other cleaning chemicals into tank to clean bottle body.

Motor power 5.5kW

Dimension of hot chamber (Dia.×Height): 1.6M×2.1M

Volume of hot chamber≈4.2m3

Part contact with raw materials: stainless steel

One set

5

Spiral feeder

Screw diameterφ250

Motor power 1.5KW

Screw rpm 35rpm

The parts tangled with the material is made of stainless steel

One set

6

Double screw washing machine

Effective length6000

Motor power 2.2kw+2.2kw

Screw rpm 500rpm

The parts tangled with the material is made of stainless steel

Waste discharging function

One se
