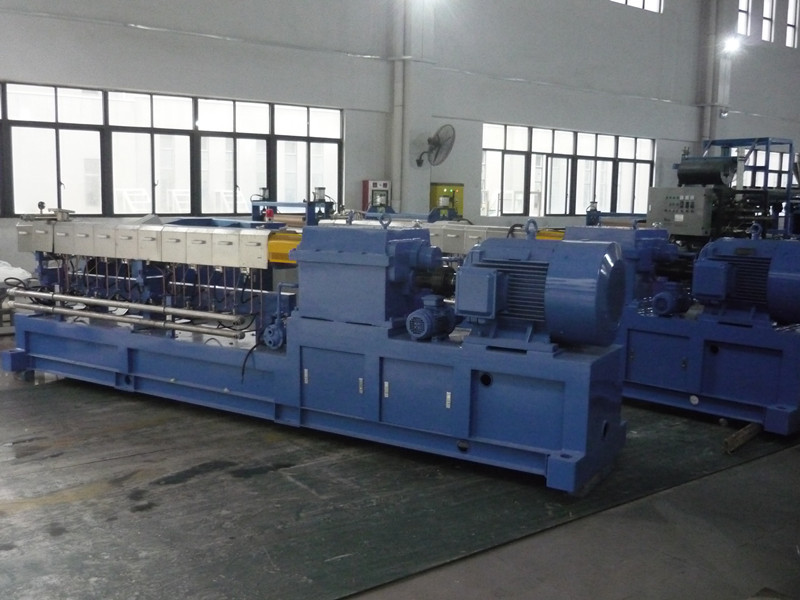

Compounding parallel co-rotation twin screw extruder

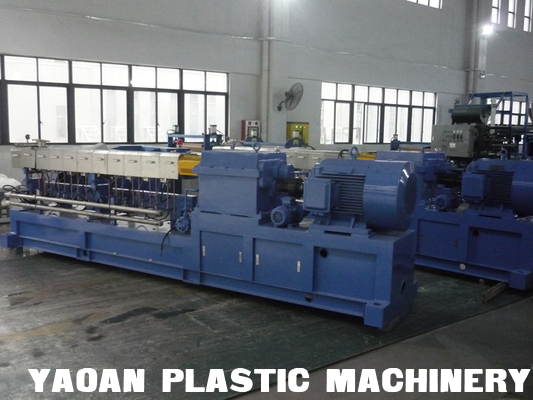

Compounding parallel co-rotation twin screw extruder

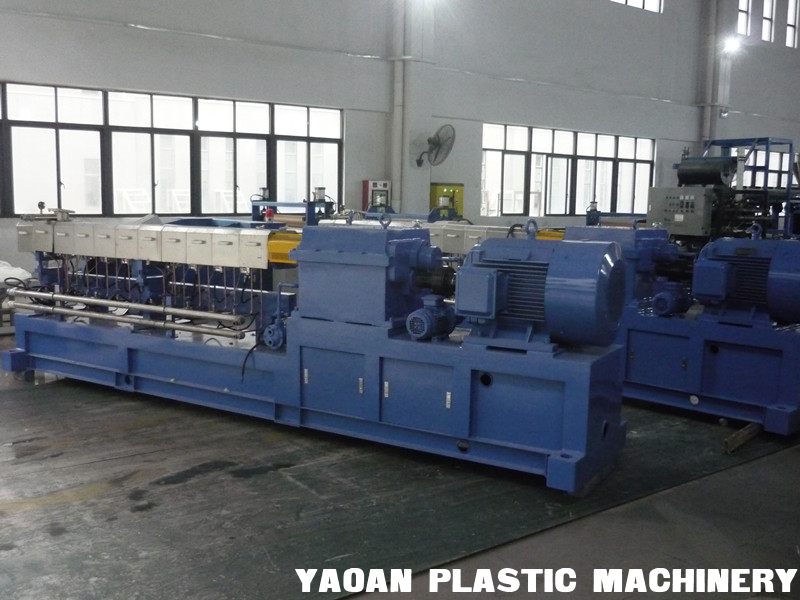

Compounding parallel co-rotation twin screw extruder

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 72MM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description

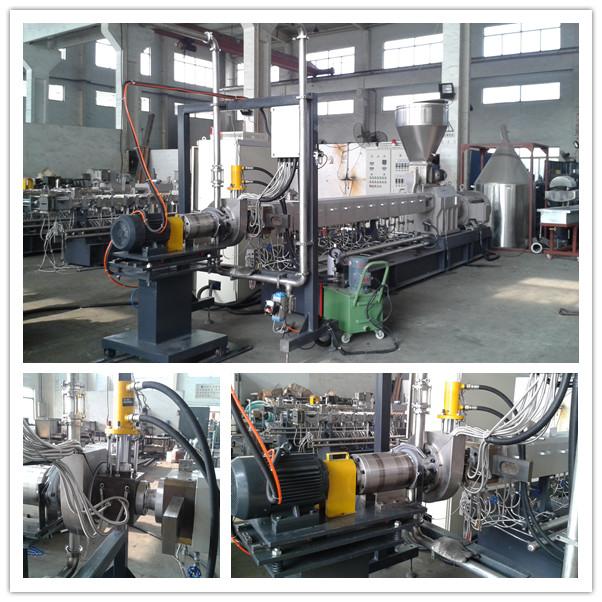

TSE-75 masterbatch Co-rotating twin screw extruder line is best applicable for:



  • Mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc.



                    PE,PA,PC,CEP+ABS(alloy);PBT+PET;PP+PE,etc.



  • Filling nature-changing: PE,PP,EVA etc+aluminum hydroxide,magnesium hydroxide,antimony oxide.



                    PP,PA,ABS+ferrous powder, sulphuric powder, ceramic powder

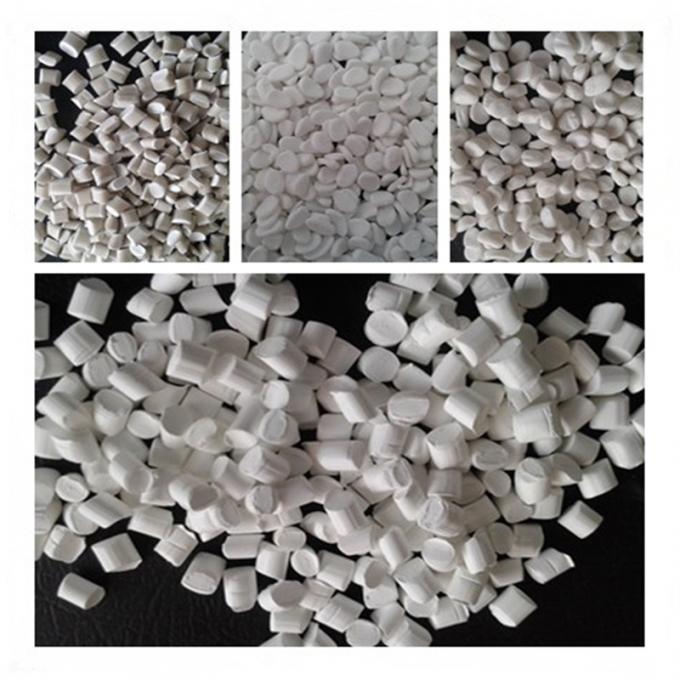

  • Colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET etc+long fires,small fibres, carbon fibres, crystals and so on, etc.





CE Compounding parallel co-rotation twin screw extruder



2.Features of extruder

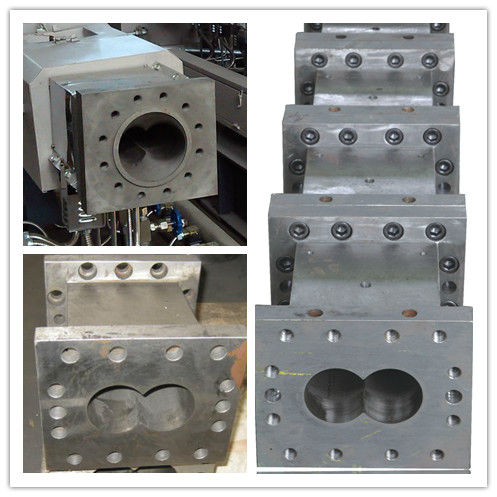

 (1) Barrel



  • euro-style rectangle barrl, reflux refrigeration channel is optimized and disposed,which makes temperature difference in D areas smaller.
  • innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
  • the material  is used high quality nitrided steel ,corrosion proof or antifriction with correspounding process.

 CE Compounding parallel co-rotation twin screw extruder

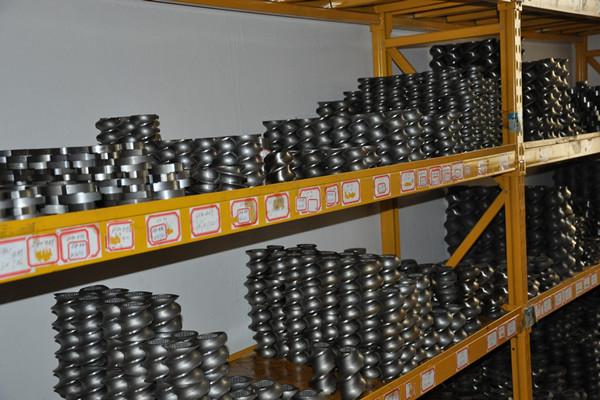

(2) screw



---.the screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment , which is possessed with high corrosion-resistat and high functions



 CE Compounding parallel co-rotation twin screw extruder

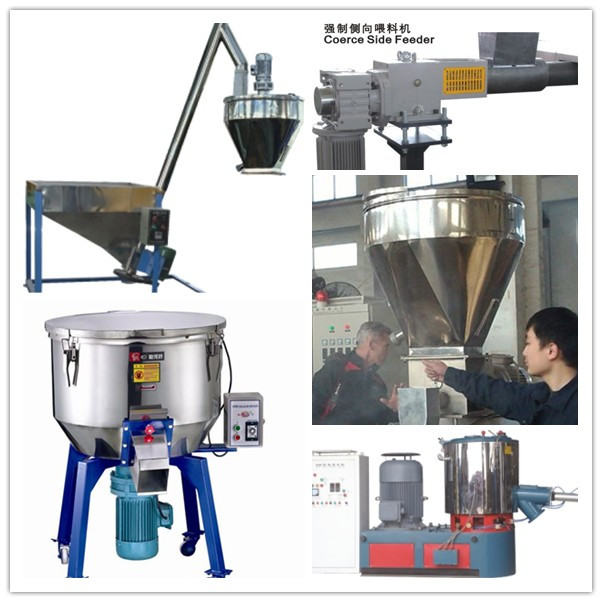

(3)metering feeders



  • various metering feeders --- single screw ,twin screw ,hollow screw,forced-feeding, side-    feeding.

 Compounding parallel co-rotation twin screw extruder





(4) new-style gear transmission system



  • new-style project of parallel three-axises driving makes the conve axis,convey
  • chain,decelerate and torque get together ,which keep it compact ,and the key bearings are imported
  •  soakage and spraying lubriation integrate smoothly
  • technics,strengthening of tooth face,so they can ensure high torque,high precision and     low noise
  • the selecte material of drive components is dainty,including super intention alloy cementiteing steel,cementiting and grinding.

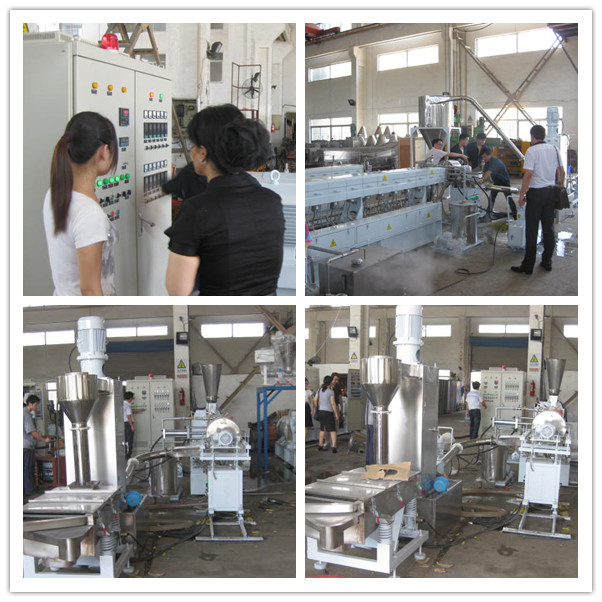

(5)electric  control cabinet

  • frame structure control cabinet
  • imported electrical elements
  • imported temperature control system
  • imported driving system
  • interlock and multi-protection
  • adopting  imported PLC(OMRON or SIMES) to achieve optimized process control. stronger function,steady performance and much higher accurancy
  • it can be also accomplished full-set link-lock protection,trouble safeguard,fault alarm cluing and so on
  • operation interface on touching screen is visual and marked ,which is brief and easy to use.

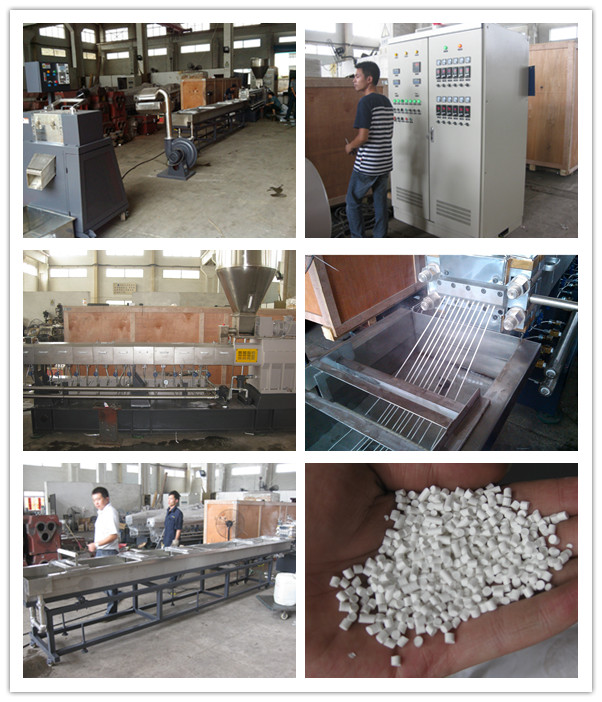

(6) pelletizing system



---.various modes of pelletizing,such as water-cooling strand,air-cooling pelletizing,water-ring pelletizing,under water pelletizing



CE Compounding parallel co-rotation twin screw extruder



CE Compounding parallel co-rotation twin screw extruder

CE Compounding parallel co-rotation twin screw extruder





3.Parameter table of twin screw extruder



Model Screw Diameter D(mm) L/D Screw Rotation N(r/min) Motor Power P(kw) Screw Torque T(N.m) Torque Rating Output Q(kg/h)
TSE-75A          71 32-56   400   90 1074  4.9  250-350
500  110  1050  4.8 300-420
TSE-75B  71 32-64  600  132  1050  4.8  350-550
TSE-75C 62.4 32-64 600 160 1273 5.8 400-600
TSE-75D  71  32-64 600 200-250 1990 9.2 500-1000
