TPU sheet extrusion machine

TPU sheet extrusion machine

    • TPU sheet extrusion machine
    • TPU sheet extrusion machine
  • TPU sheet extrusion machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-1600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Raw Material: TPU,EVA Coating Layer: 1-3 Layers
    Screw: Single Screw Capacity: 100-400kg/hr
    Line Speed: 10-120m/min

    TPU sheet extrusion machine is made by Dongguan city Yaoan plastic machinery. The sheet thickness range: 1mm to 1.5mm. Also this machine can be designed to make TPU film on line laminating.



    Product Description:



    1.Cooling roller adopts high degree of finish roller, which can eliminate bubbles produced during the compounding process.

    2. Silicone roller and cooling roller adopt screw-type cooling structure,to make cooling quickly and laminating easily.

    3.Compounding roller is drived by one vector frequency electric motor





    Technical Parameter

    1.Applicable coating film resin: Coating grade like LDPE ,PP ,EVA,EAA etc .

    2.Based material:paper (30~425g/m2 ) , textile fibre ,non-woven fabric, paper .

    3.Max working speed: 80~150m/min

    4.Max width of coating film: 3200mm

    5.Thickness of coating film: 0.01–0.11mm

    6.Inaccuracy thickness of coating film: ±6%

    7.Max extrusion: 500kg/h

    8.Overall dimension: 9600mm×9000×3250mm(L×W×H)

    9.Machine colour: can choose

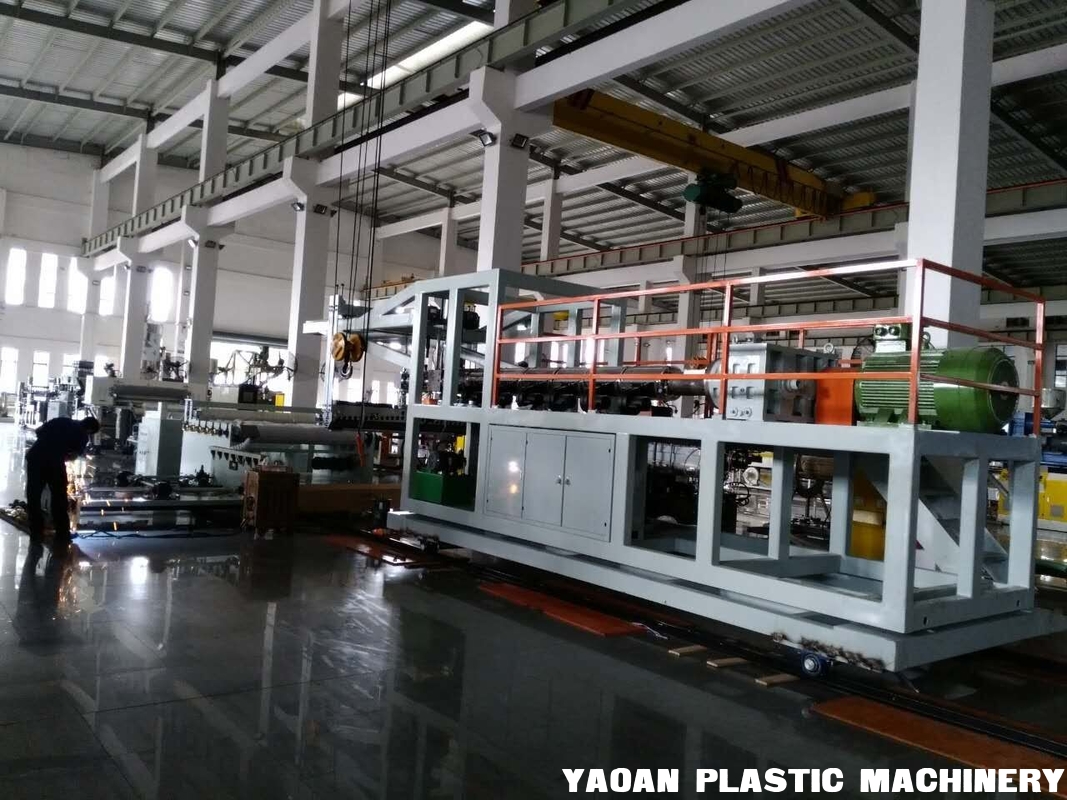

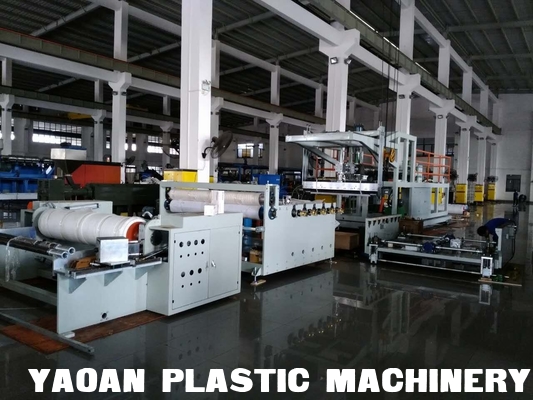

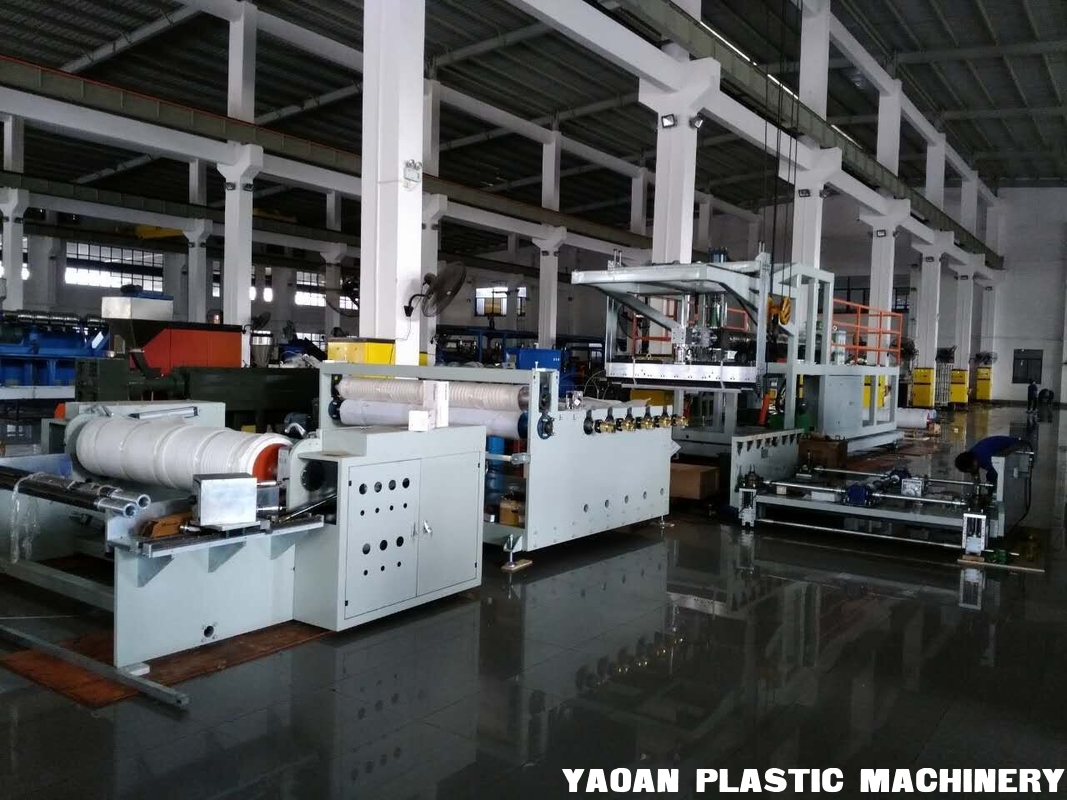

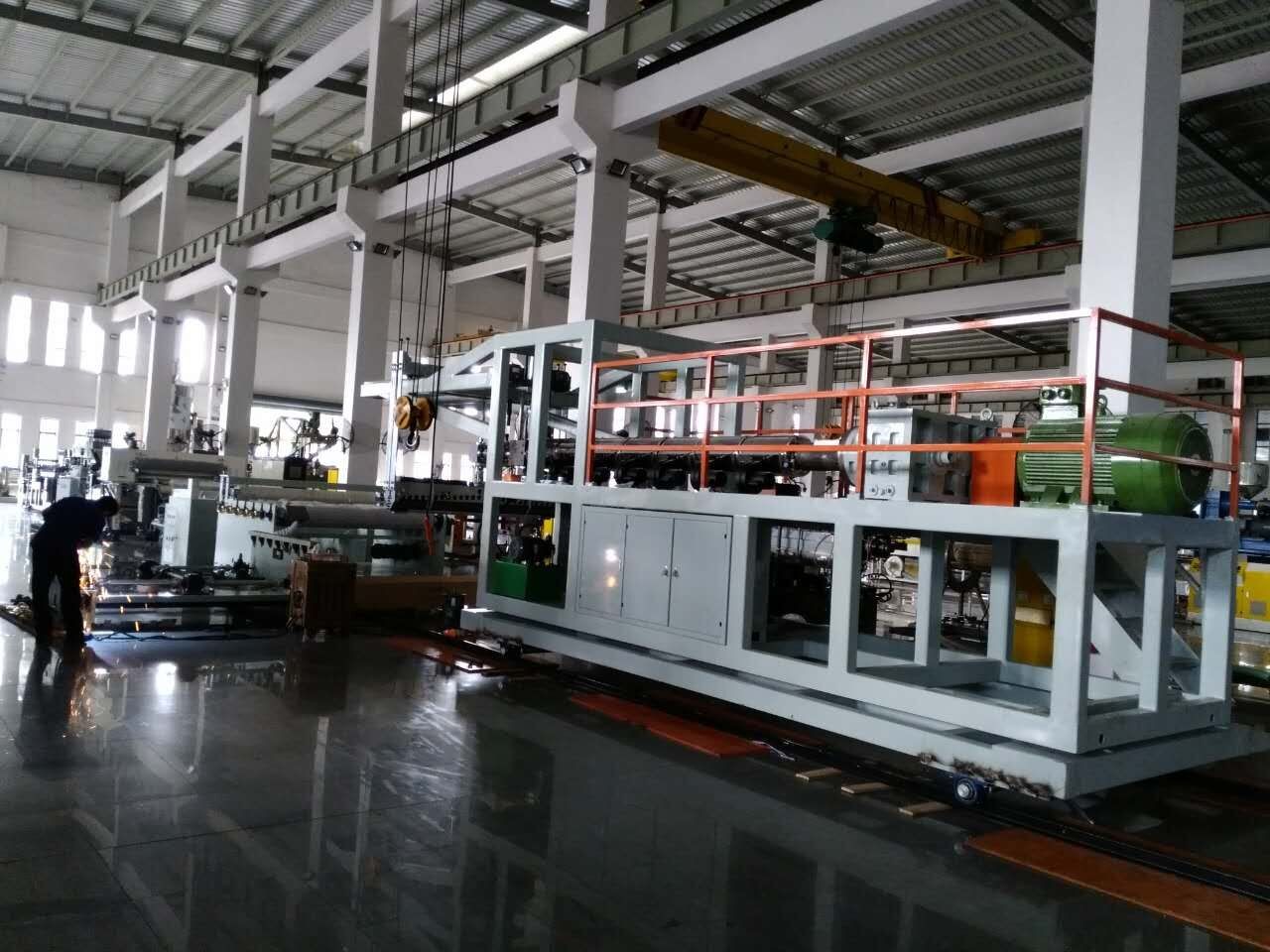

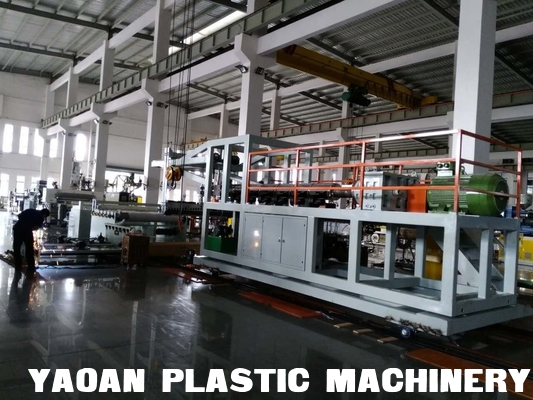

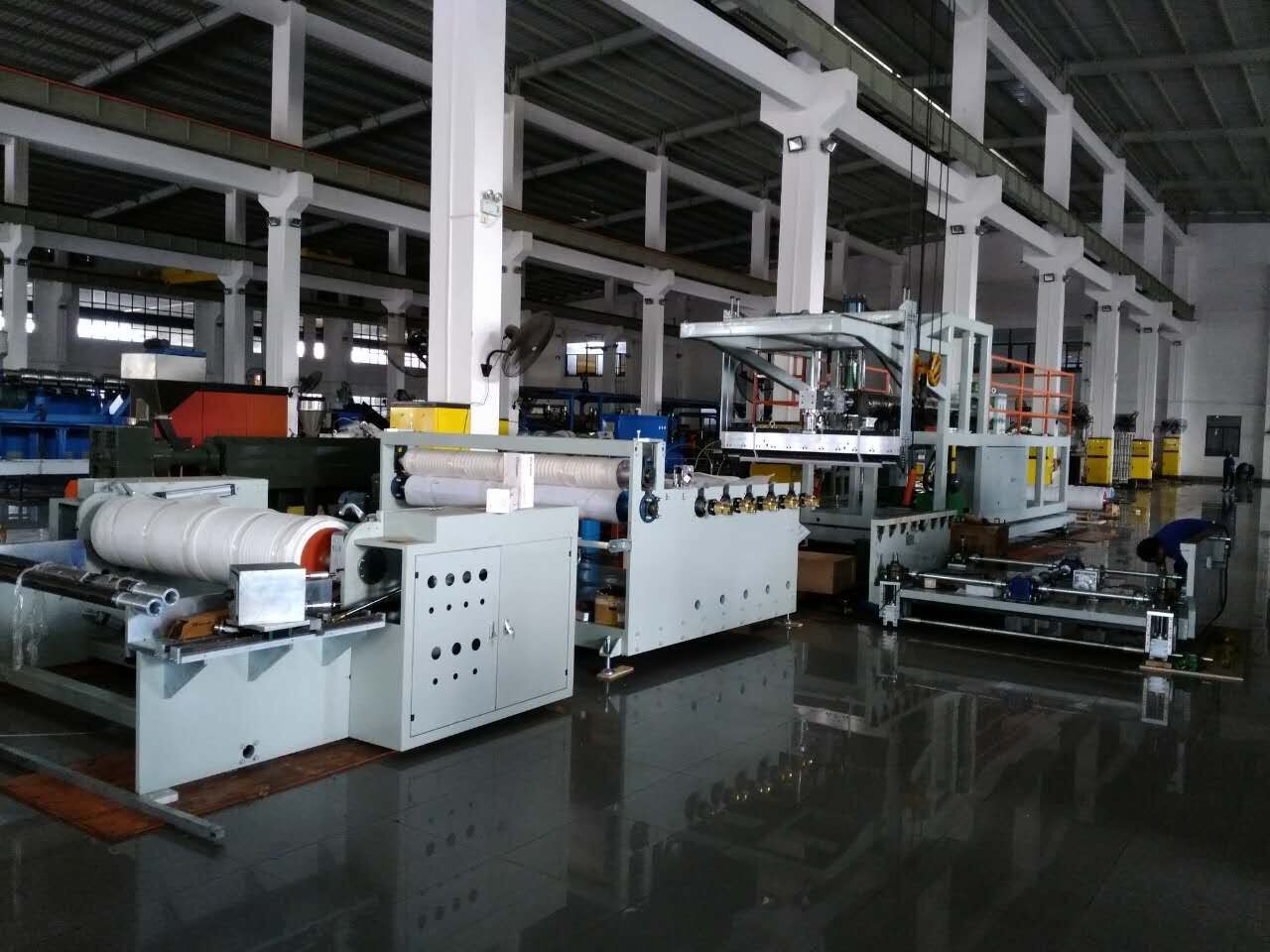

    TPU sheet extrusion machineTPU sheet extrusion machine





    If you are interesting in this machine,please feel free to contact with Mr.Ryan Tan



    Mobile phone:+86-13825752088 (wechat,whatsapp)



    Best Regards



    Ryan Tan
