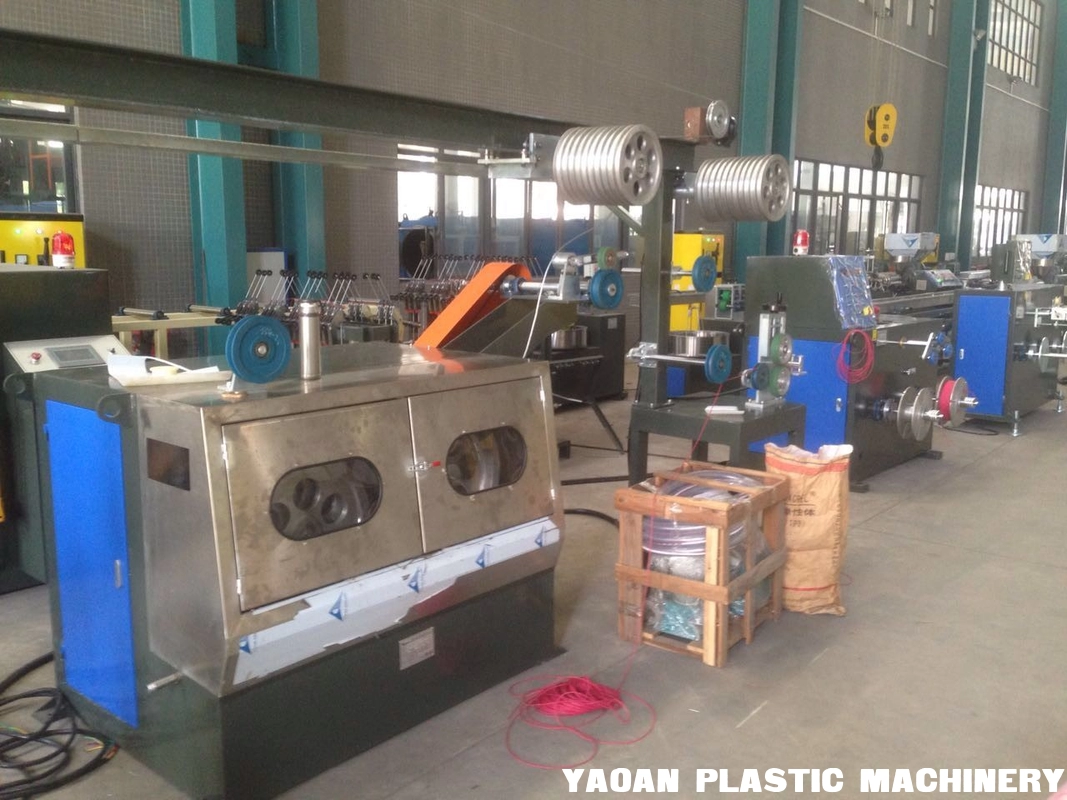

PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine

PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine

    • PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
    • PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
    • PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
    • PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
    • PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
  • PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-55

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Material: PVC, PE Application: Electric Wires, Cables
    Screw Dia.: 70mm Screw L/D: 28:1
    Speed: 200m/min Output: 20-200kg/hr

    PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine

    This kind of extruder has wide application . adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules
    Specifications
    plastic extruding machine
    1.High capacity
    2.Long life
    3.High speed extrusion
    4.Low energy consumption
    The characteristics:
    1) Installed with imported termo controllers, imported inverters or converters.
    2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
    3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
    4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
    5) We also can provide a variety of exhaust-type extruder
    Customer choice:

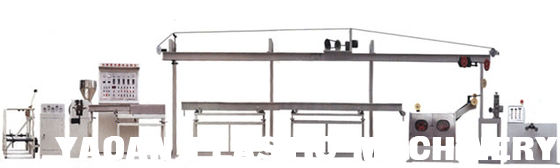

    PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
    Main technical parameter:

    Mode

    Screw Dia.

    Length to
    diameter

    Rotational
    Speed of screw

    Height of center point

    Capacity

    Power
    Drive motor

    SJ-3-/25CY

    30mm

    25:1

    10-160r/min

    1000mm

    19.5kg/h

    2.2kw,3kw

    SJ-45D

    45mm

    20:1

    10-90r/min

    1000mm

    22.5kg/h

    5.5kw

    SJ-45/25CY

    45mm

    25:1

    16-160r/min

    1000mm

    35kg/h

    7.5kw,11kw

    SJ-45/28CY

    45mm

    28:1

    16-160r/min

    1000mm

    40kg/h

    7.5kw,11kw

    SJ-45/25HY

    45mm

    25:1

    16-160r/min

    1000mm

    35kg/h

    11kw

    SJ-50/25HY

    50mm

    25:1

    16-160r/min

    1000mm

    40kg/h

    11kw,15kw

    SJ-65/25HY

    65mm

    25:1

    8-80r/min

    1000mm

    100kg/h

    18.5kw

    SJ-65/28CY

    65mm

    25:1

    15-120r/min

    1000mm

    100kg/h

    18.5kw,22kw

    SJ-65/28HY

    65mm

    28:1

    16-160r/min

    1000mm

    120kg/h

    22kw,30kw

    SJ-65/30CY

    65mm

    30:1

    15-120r/min

    1000mm

    120kg/h

    22kw,30kw,37kw

    SJ-65/34CY

    65mm

    34:1

    15-120r/min

    1000mm

    120kg/h

    22kw,30kw,37kw

    SJ-70/25HY

    70mm

    25:1

    8-80r/min

    1000mm

    120kg/h

    22kw

    SJ-90/25HY

    90mm

    25:1

    10-100r/min

    1000mm

    155kg/h

    30kw,45kw,55kw

    SJ-120HY

    120mm

    25:1

    30-90r/min

    1000mm

    250kg/h

    75kw


    PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine

    PVC PE Electric Wire Making Machine , Cable Coating Extrusion Machine
    Packaging and shipping


    PACKAGINGplastic film + stretch film + wooden case + drying agent.
    DELIVERYAbout 100 days (all new parts)
    SHIPPINGWe place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
    We care each and every point so that our clients could receive the machines in perfect situation.


    What is our service system?


    PRE-SALEa. Detailed machine introduction;
    b. Suggest suitable turnkey solution as per clients requirements;
    c. Provide test production for reference;
    IN PRODUCTIONa. Supply layout drawing to clients for preparation;
    b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
    c. Keep the clients be informed of the production status;
    AFTER SALEa. Send engineers to overseas for installation ,commissioning and training;
    b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
    c. Offer help if any need from clients like spare parts need etc;
    d. Supply necessary technical support at request;


    Why choose YAOAN MACHINERY?
    1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
    2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
    3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
    4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
    FAQ
    Q1: What is the guarantee of the machine?
    A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
    Q2: What package do you use for the machine?
    A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
    Q3: Do you have instruction manual to guide us if i buy the machine?
    A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
    Q4: What is your service to overseas clients?
    A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
