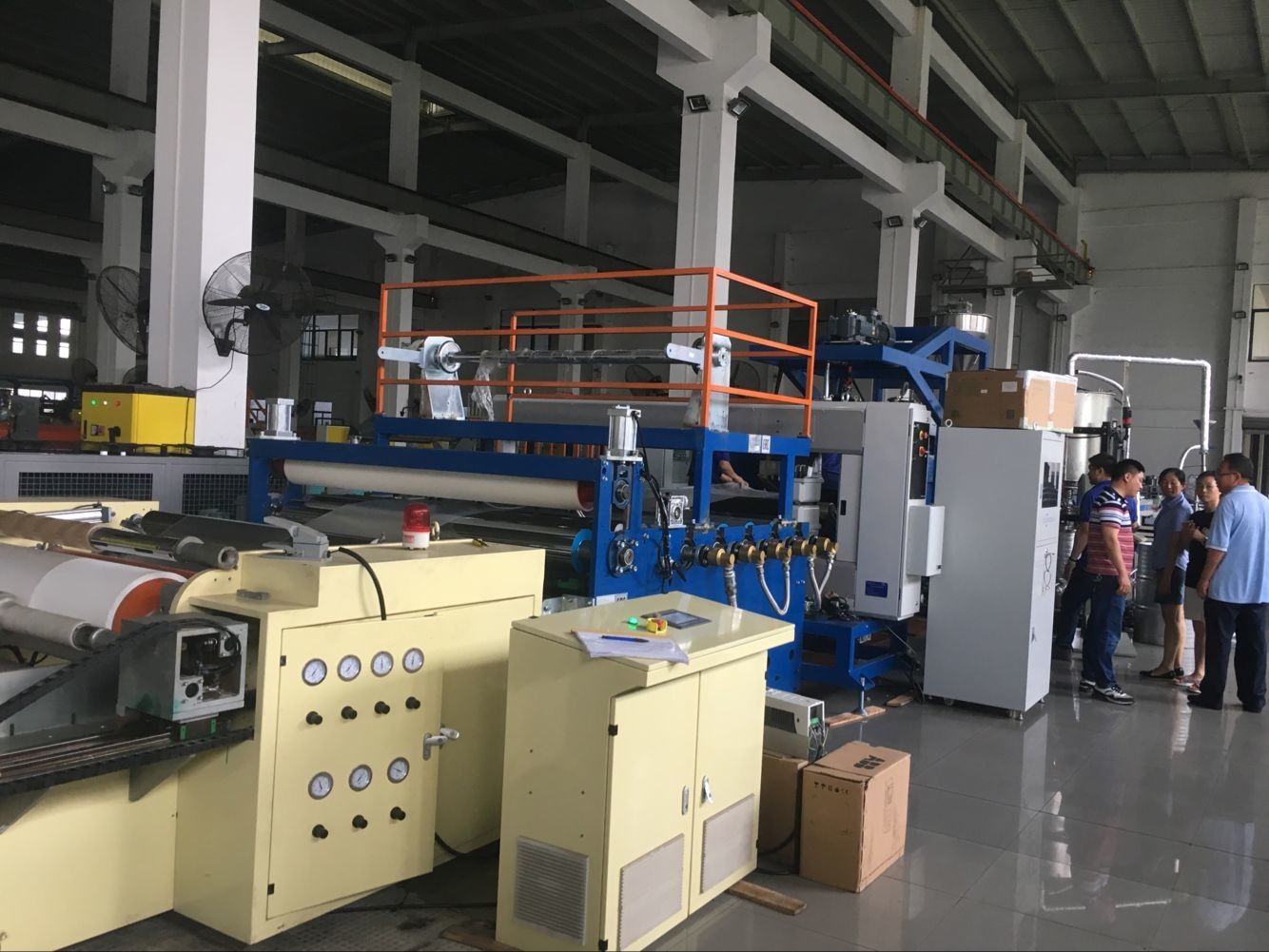

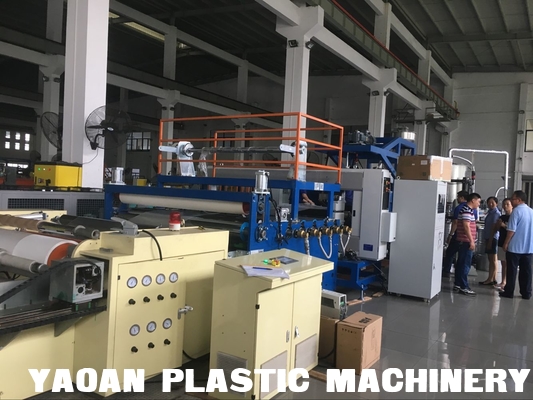

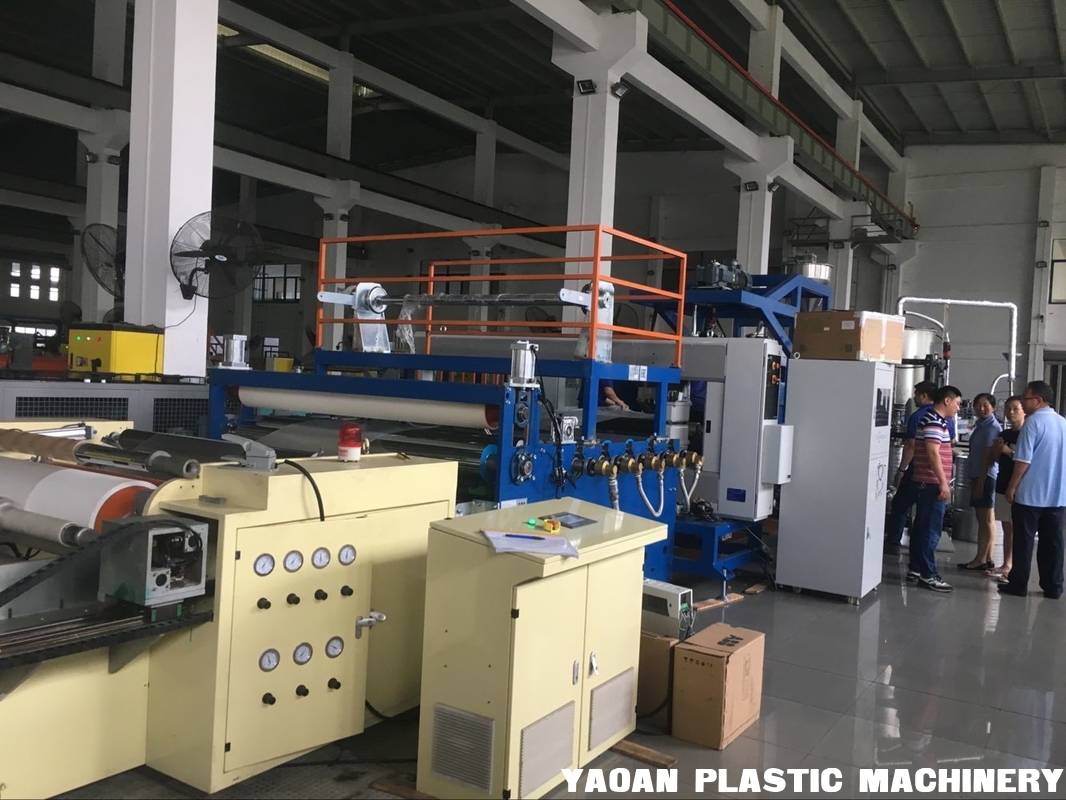

PVB Cast Film Extrusion Machine

PVB Cast Film Extrusion Machine

    • PVB Cast Film Extrusion Machine
    • PVB Cast Film Extrusion Machine
    • PVB Cast Film Extrusion Machine
  • PVB Cast Film Extrusion Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-2000MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Raw Material: PVB Motor: Siemens Brand
    Inverter: ABB Brand Screw: Twin Screw
    Output: 200-400kgs/hr

    Production line speed can reach to 200m/min. Every roll including transitional roll has dynamic test and high smart tension control. High performance winder make sure smoothness of film.
    Film Thickness Range: 0.01-0.15mm
    Range of Finished Width: 600-3300mm
    Processed Polymers: EVA or  PVB


    Line configuration:

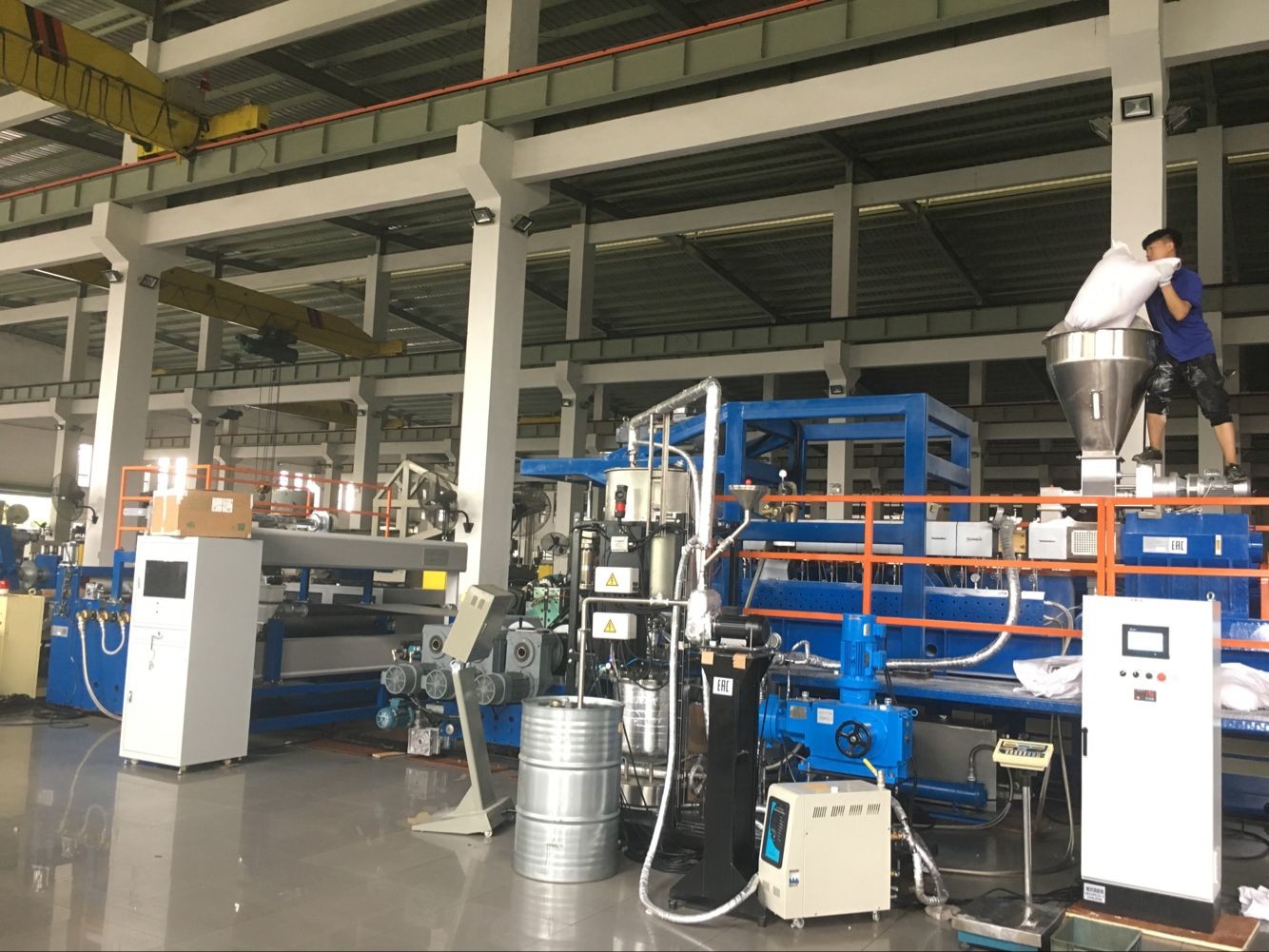

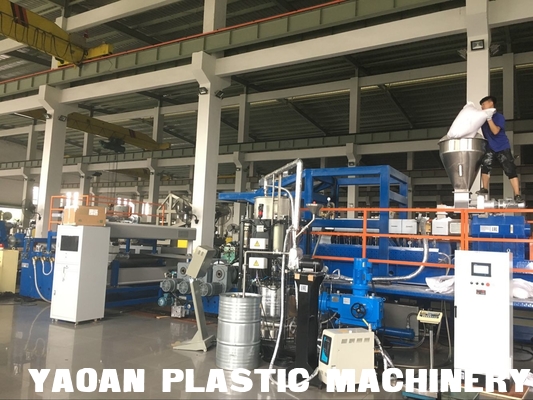

    Raw Material Handling
    Feeding system: Vacuum loaders, Screw loaders
    Extruder Type: parallel twin screw extruder
    Melt Pump: Standard for casting film

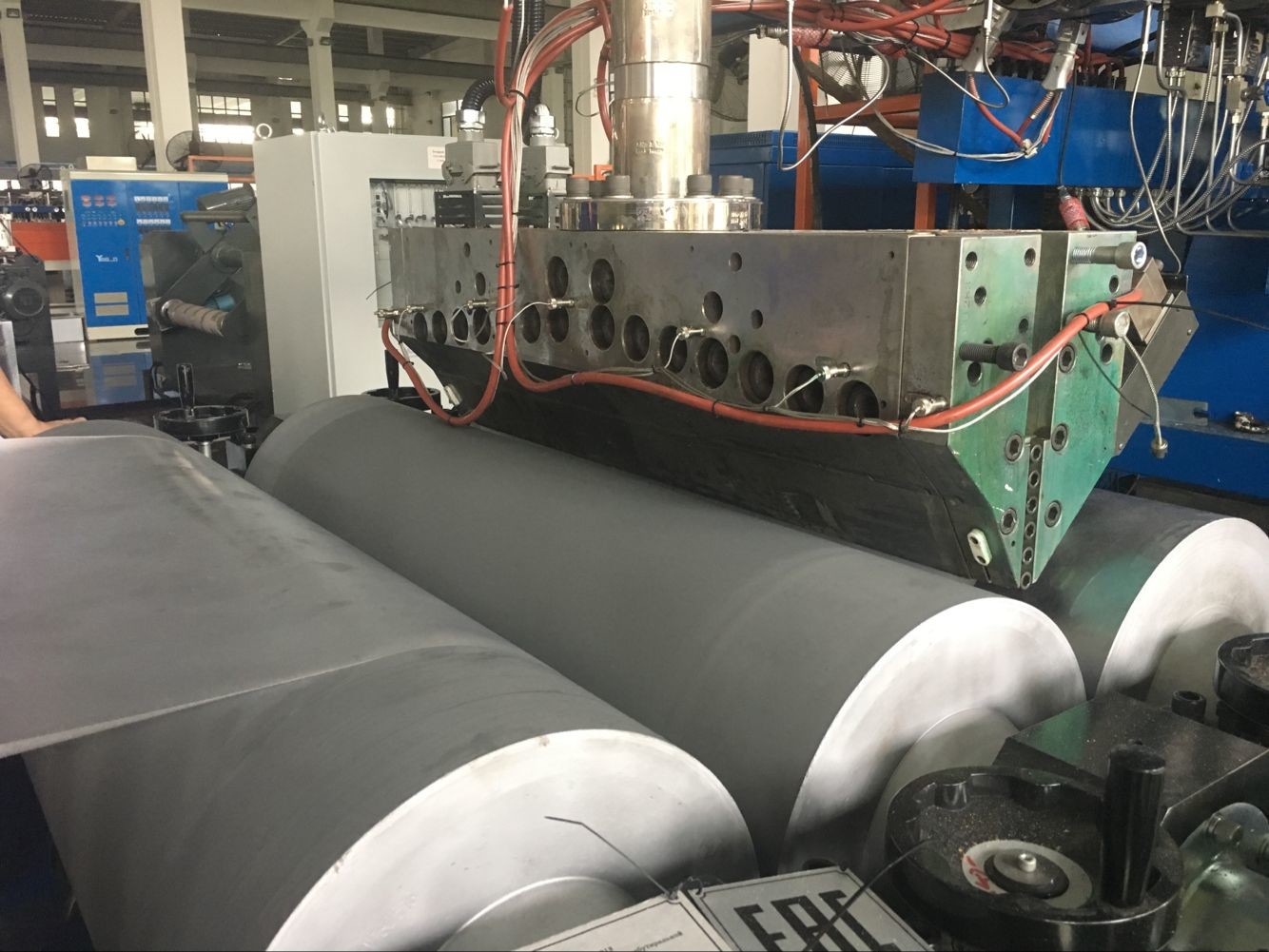

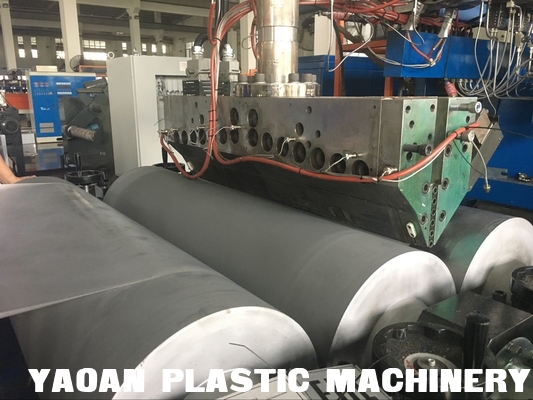

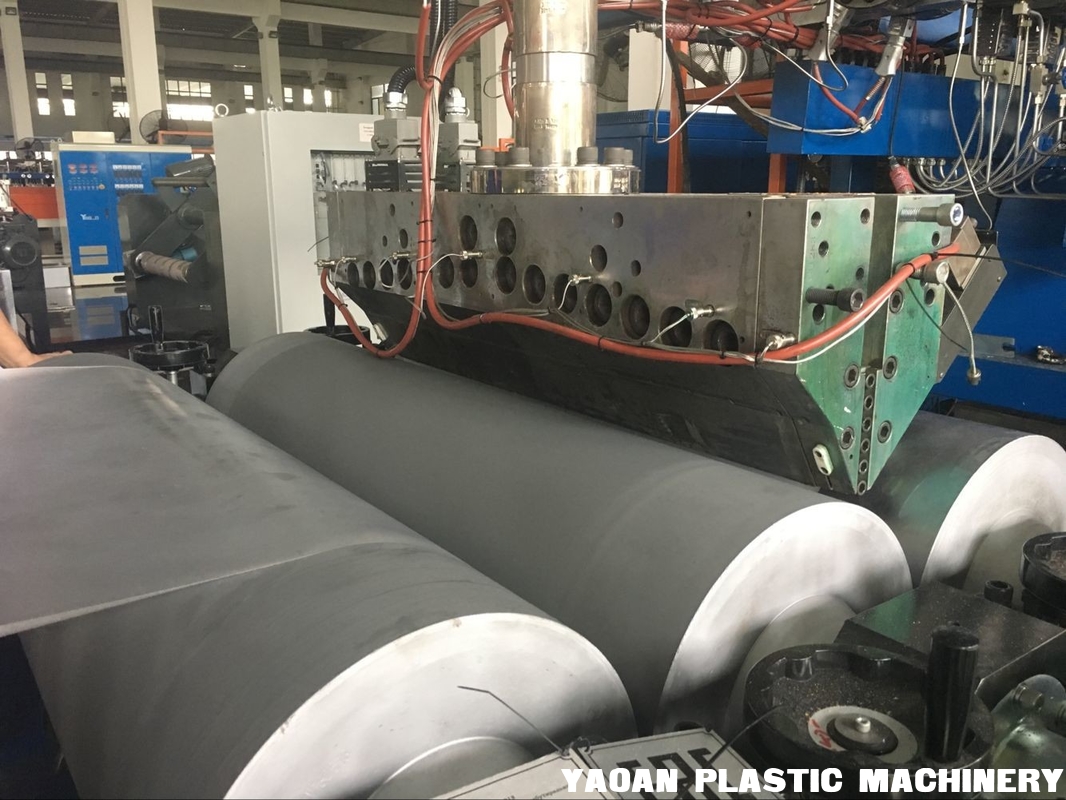

    Flat T-die: Manual or Automatic, Cloth hanger flow-channel
    Downstream
    Cooling forming systemEquipped with vacuum-box, air-knife and cooling forming mirror roller with high flow and big diameter.
    Roll Temperature Control: water Thermoregulators and chiller
    Inline thickness measurement: thickness meter
    Trimming type: With Blades or Motor
    Take off Unit: driven by Servo motor and loop controlled with tension controller
    WinderFully automatic turret winder
    Transverse cutting: Sawing driven by motor or Precise Shear
    Automation: The whole line is controlled with PLC and computer screen, equipped with famous electric parts in the world.



    Till to today, we have sold this machine to Mainland China and also exported other countries.



    If you are interesting in this machine,please feel free to contact with us
