    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Material: PC ,ABS Motor Brand: Famous Brand
    Inverter Brand: ABB Capacity: 200-300kgs/hr
    Warranty: One Year Quality Grade: Class A

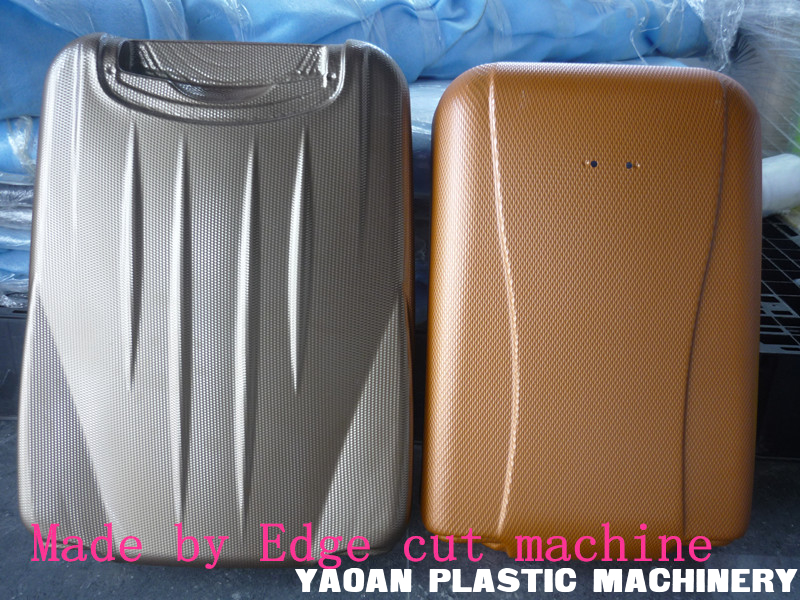

    YAOAN is a leading manufacturer of high performance PC,ABS co-extrusion luggage sheet machines. And we have exported more than ten sets of PC,ABS co-extrusion luggage sheet machine to the other countries worldwidely. PC,ABS co-extrusion luggage sheet is widely used in producing bags, travelling case. YAOAN equipment with it's own know-how, especially on the calibrators and annealing oven.

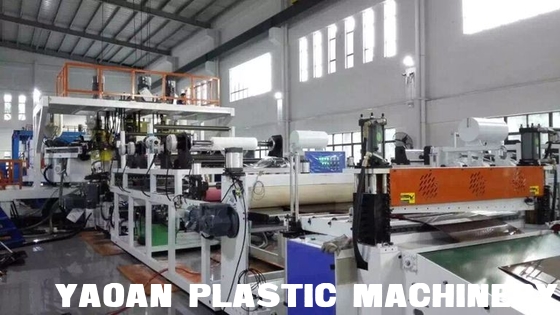

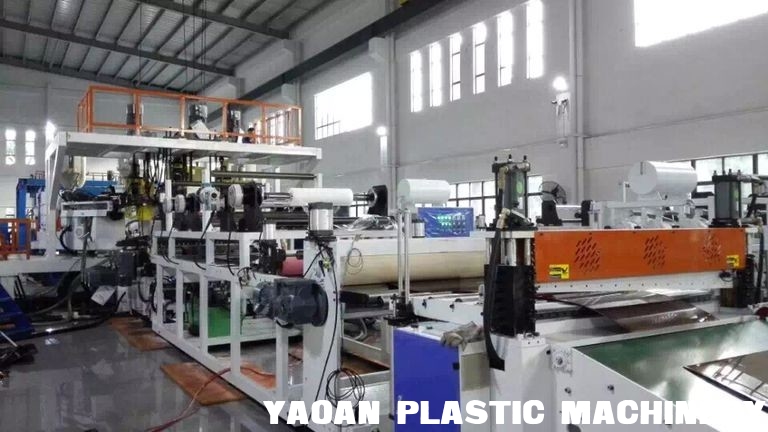

    The top quality multilayer PC ABS co-extrusion luggage sheet machine
    We have rich experienced in ABS luggage sheet machines and PC luggage sheet machines.
    Normally, we have 2 types of this kind of machines: One is horeizon type calander-roll system; The other adopts vertical style calander roll system. The second type is more porpular in this field.
    Start from the beginning of 2000, we started to manufacture this kind of luggage sheet machines, such as machine for ABS luggage sheet and machine for PC luggage sheet.
    During over 10 years, we have supplied over 30 sets of this kind of this kind of machines; For an example,ambassador luggage company(Taiwan background, Located in Shenzhen) have over 6 machines from us;Summit luggage companyhas over 3 sets of 3 layer PC luggage sheet machines from us.



    Main parameters:

    Processed material: PC resin, ABS resin, and PC regrind

    Width of the sheet: 900mm

    Sheet thickness: 1.5-4mm

    Production line dimension:18000mm×8000mm×3000mm

    Machine voltage: 380V/50HZ

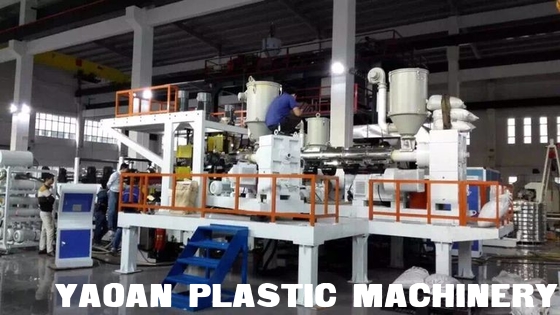

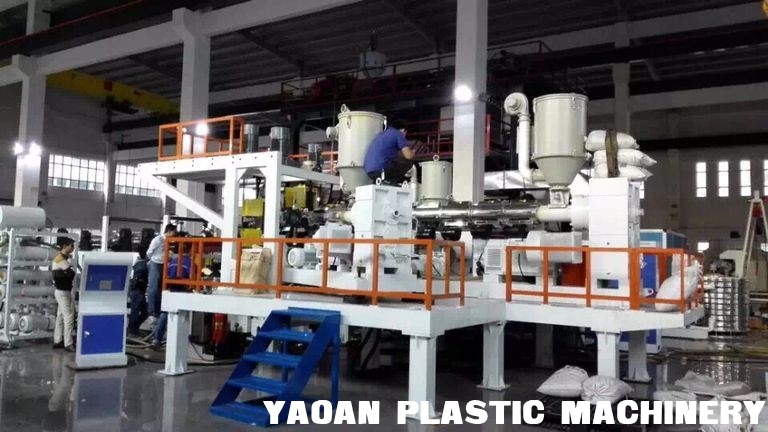

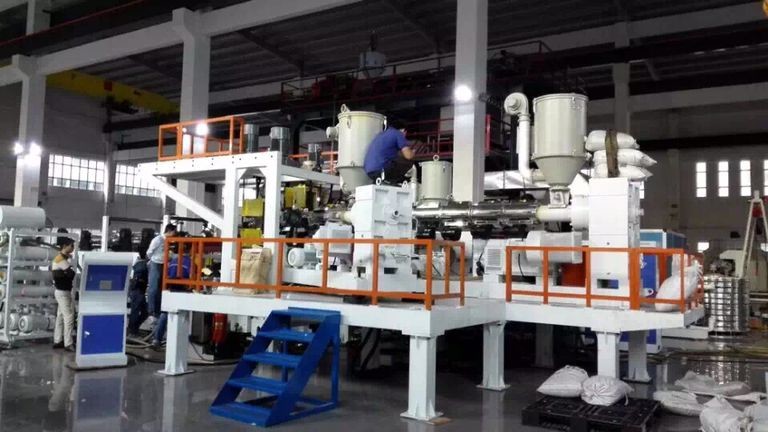

    1.0 Φ120*35 single screw extruder: 1 set

    200KG hopper dryer: one set

    Gearbox: (one set)

    The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.

    Screw: (one set)

    Diameter:120mm

    Screw structure: Vented

    Material: High quality nitrided alloy steel-38CrMoAIA,

    Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.3-0.6mm; fragility is 2 grades.

    Barrels: (one set)

    Material: High quality nitrided alloy steel-38CrMoAIA

    Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.4-0.7mm; fragility is 2 grades

    Motor power: 165kw (D.C MOTOR)





    2.0 Φ80*35 single screw extruder ( one degassing hole): 1 set

    100KG hopper dryer: one set

    Gearbox: (one set)

    The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.

    Screw: (one set)

    Diameter:80mm

    Screw structure: Vented

    Material: High quality nitrided alloy steel-38CrMoAIA,

    Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.3-0.6mm; fragility is 2 grades.

    Barrels: (one set)

    Material: High quality nitrided alloy steel-38CrMoAIA

    Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.4-0.7mm; fragility is 2 grades

    Motor power: 90kw (D.C MOTOR)





    3.0 Φ55*33 single screw extruder ( one degassing hole): 1 set

    75KG hopper dryer: one set

    Gearbox: (one set)

    The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.

    Screw: (one set)

    Diameter:55mm



    4.0 Single flow, double hole screen changer: 3 sets

    Its special internal structure provides a excellent seal effect

    The parts of Screen changer consisting the mould are made of alloy steel, which experienced heat treatment strictly.

    Control style: complete hydraulic pressure



    5.0 Melt pump: one set ( for 120mm extruder)

    Flow: 150cc/min

    The pump body is made of super alloy steel experienced heat treatment and Chrome plating and polishing treatment.



    6.0 Melt pump: one set ( for 80mm and 55mm extruder)

    Flow: 50cc/min

    The pump body is made of super alloy steel experienced heat treatment and Chrome plating and polishing treatment.



    7.0 Pressure sensor: 9 sets

    Before screen changer: 3 sets ( adopt Chinese brand)

    After screen changer: 3 sets ( adopt Chinese brand)

    Melt pump: 3 sets (Dynisco company)



    8.0 High temperature feed block: 1 set



    9.0 Sheet co-extruiso T-die: 1 set

    Material of the mould board is heat resistance alloy steel imported, experienced hardness treatment for the mould board, and the surface of the flow tunnels are plated rigidity chrome and polished; the appearance of the mould is in decorating plated chrome. It adopts the heating inside by bar heaters.

    Total heating power for the flange: 3kw

    The effective width of the mould: 1200mm

    The effective product width:900mm (both sides have decking units, can produce 500mm width product)

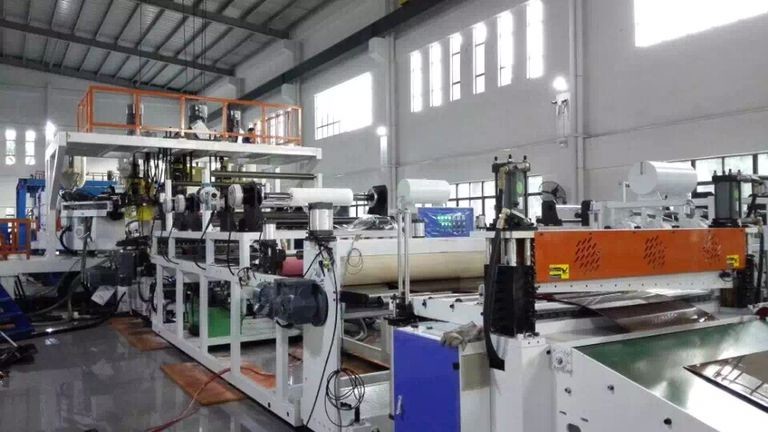

    10.0 Calender roller stack: 1 set

    Structure: vertical

    Diameter of roll:450mm

    Roll length:1200mm

    Wall thickness of the roller: ≧28-30mm

    Centre flat depth:5mm

    Roll material: alloy

    Hardness excluding the surface: HRC60-65(2-3mm)



    11.0 Single side laminating unit: 1 set

    Hot laminating: one set ( double shafts)

    Stair: one set



    12.0 Protection film laminating frame: 1 set

    Protection film frame: one set

    Steel roller: 1 pc

    Rubber roller: 1 pc



    13.0 Cooling stand: 1 set

    Guide roller: 16 pcs

    Diameter of the rollers: Φ68mm

    Roller surface treatment: plated chrome and half-mirror polishing

    Surface treatment: hard chrome plating and half-mirror treatment

    Roller length: 1200mm

    Cooling length stand length: 6m



    14.0 Take-up machine: 1 set

    Steel roller: 1 pc

    Steel roller diameter:Φ240mm

    Steel roller surface treatment:hardness chrome plating and polishing to half mirror.

    Rubber roller: 1 pc

    Rubber roller diameter::Φ240mm

    The lenght of roller: 1200mm

    The surface of treatment of the rubber rollers: corrosion resisting, polishing the rubber

    The reducer adopt SEW brand

    Equipped with a 3.0kw inverter

    Equipped with a synchronousadjusting system with calender rollers,also equipped a individual adjusting system of take up machine

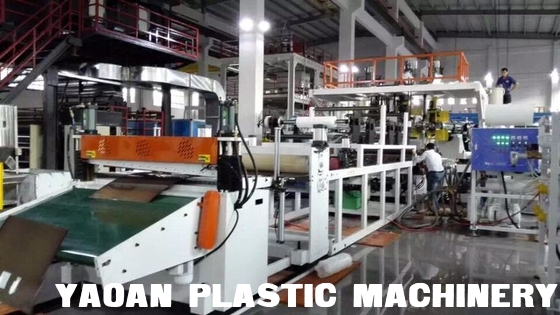

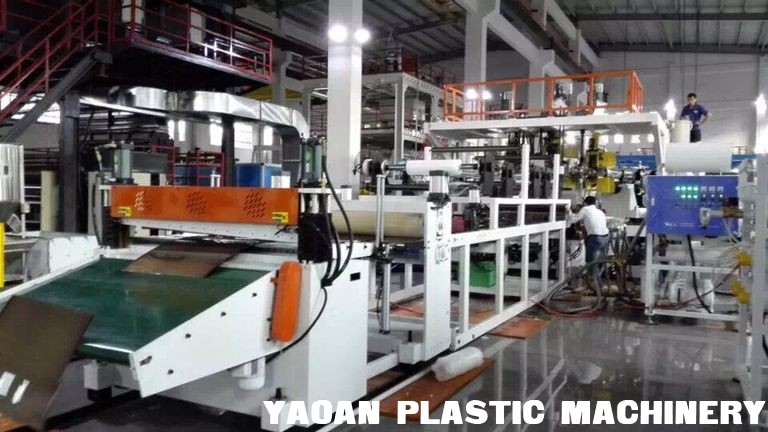

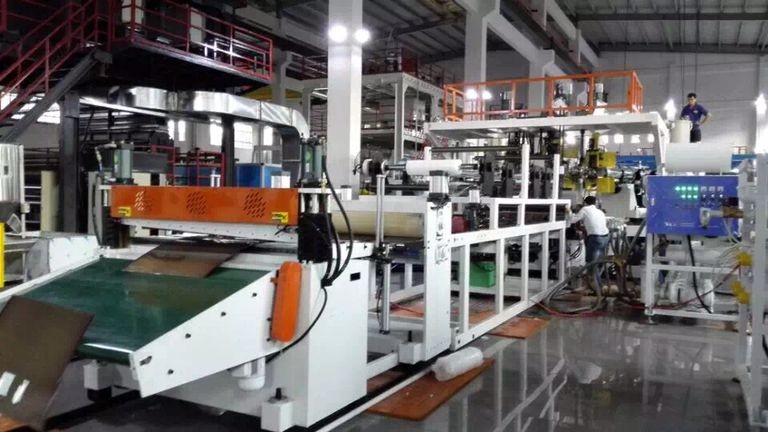

    15.0 Cutting machine and belt conveyor: 1 set

    Discharge machine: one set ( adopt guide roller type, horizontal conveying)

    Discharge method: belt conveyor

    The reducer and motor adopt China famous brand



    16.0 Vertical electric control cabinet: 1 set

    Large scale cabinet, including locks, Security identity

    12 inch control panel: one set (Siemens)

    Siemens PLC (Siemens)



    S.N EQUIPMENT QTY UNIT UNIT PRICE(RMB) TOTAL
    1 AF120*35&80*35&55*33- 900 three layers PC luggage sheet extrusion machine 1 SET
    2 AFCJ-PC luggage vacuum forming machine(rotary type) 1 SET
    3 PC luggage dehumidification & drying system 1 SET

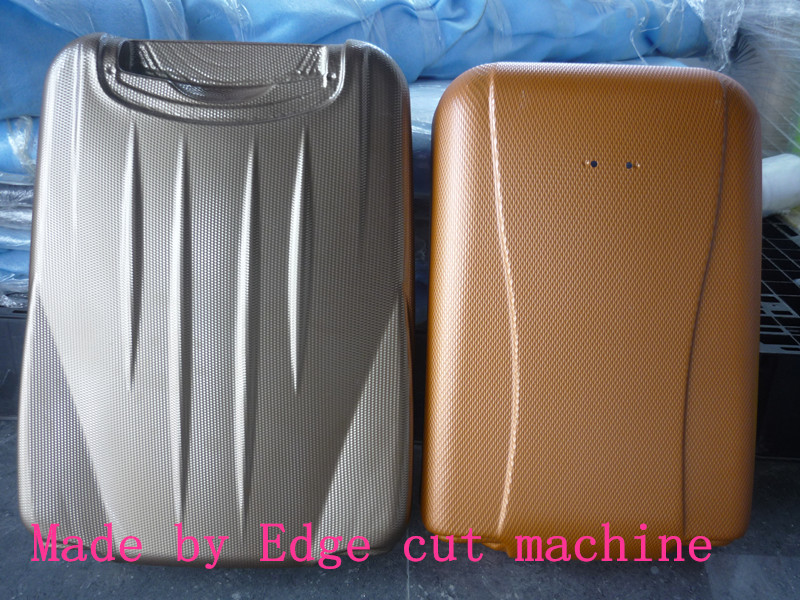

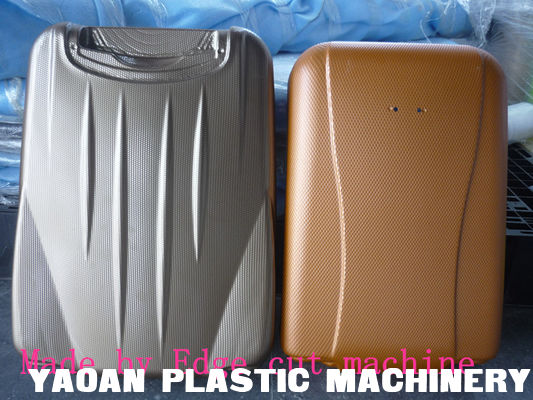

    4 AFF-28 Edge cutting machine 1 SET
    5 vertical mixer 1 SET
    6 50HP crusher 1 SET
    GRAND TOTAL:RMB (17% VAT),EX works

    AF120&80-900mm,Luggage/Trolley Case making/extrusion machine,Top brand in ChinaAF120&80-900mm,Luggage/Trolley Case making/extrusion machine,Top brand in ChinaAF120&80-900mm,Luggage/Trolley Case making/extrusion machine,Top brand in ChinaAF120&80-900mm,Luggage/Trolley Case making/extrusion machine,Top brand in China





    FAQ

    1. Q: Are you a factory or trading company?

    A: We are a factory and giving you the quickest reply in 24 hours.

    2. Q: What's your company mainly in?

    A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 30 years.

    Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.

    (We can produce total production line. )

    3. Q: What's the material should have for our extruder machine( produce luggage purpose)

    A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.

    4. Q: How's your strength of your company?

    A: Has a group of senior technical personnels, strong technical force, we have the

    whole running system, including design, development, production, installation,service.

    One year quality guarantee, life-time service.

    5. Q: If your company has passed some certificates?

    A: Yes, we have passed CE, ISO.
