The best quality Razor lubrication strip machine made in China

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-20
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now

Yaoan plastic machinery is the Top brand in China,who makes lubrication strip production lines



we have supplied this machine to world famous companies.

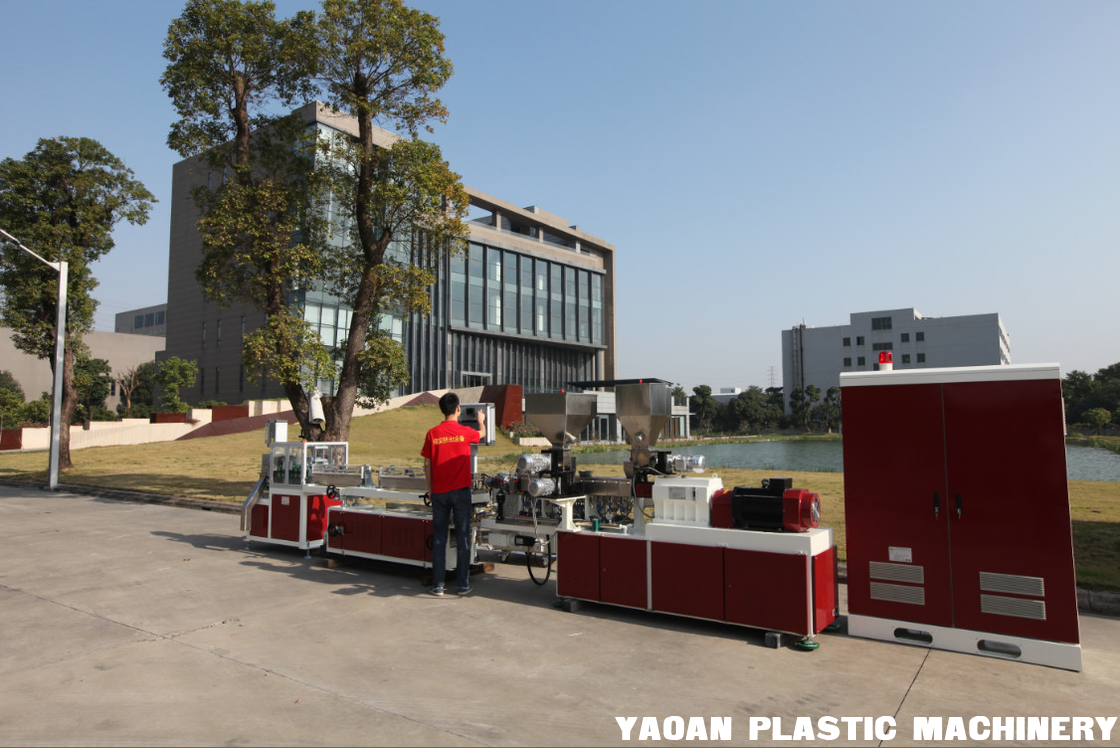

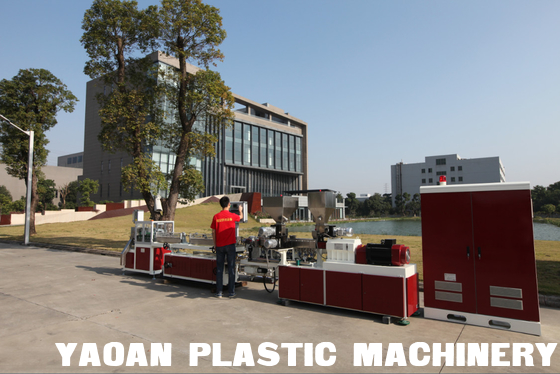

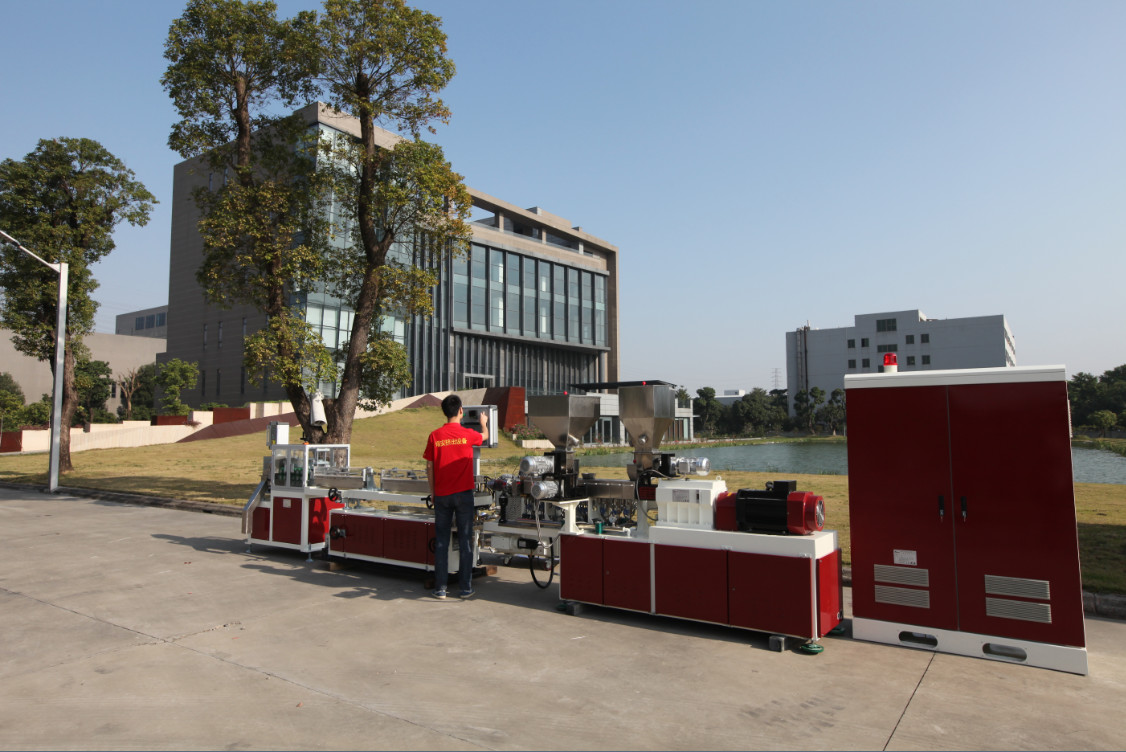

φ 20 twin screw single - color lubrication strip extrusion production line configuration and quotation:

Note: The configuration is reduced, the precision of the product size should be reduced also, the precision error of the cutting length 3~30.6 is reduced to ±0.5~±0.8mm

Ⅰ.The equipment consists of:

A. Extrusion system B. extrusion die head: 1 set

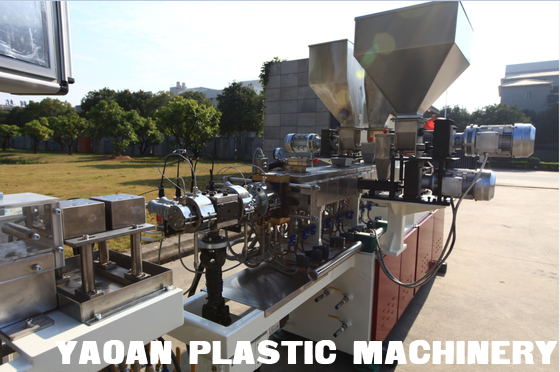

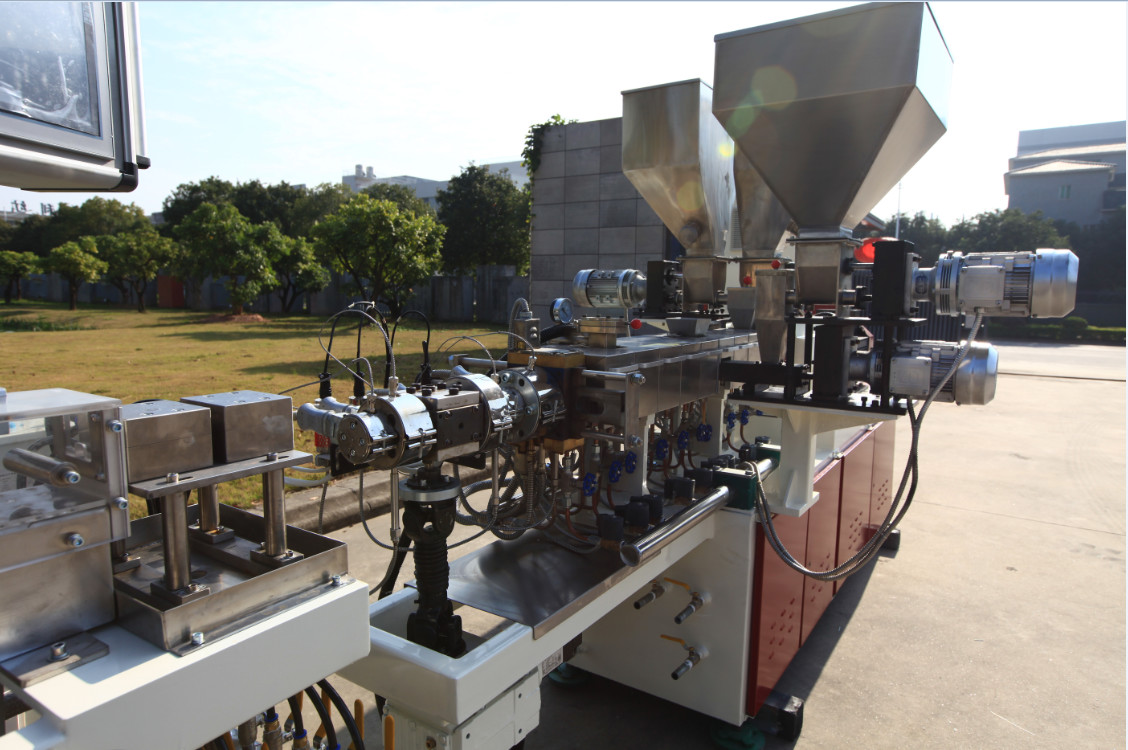

1).Twin Screw Extruder: 1 set

2).Melt pump: 1 set



C. Traction system

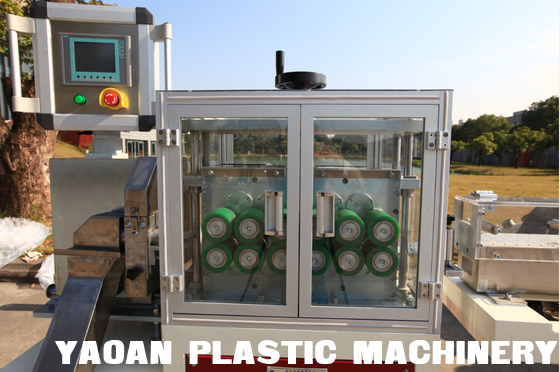

1).Wheels traction machine: 1 set

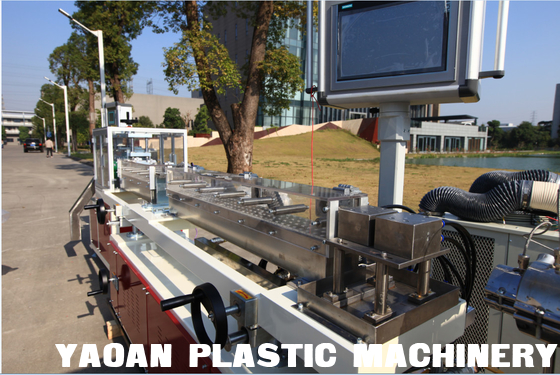

2).back and forth cooling tank: 1 set



D. Precision wheels traction machine: one set



E. Cutting system

Flying Cutting: 1 set



F. air cooling system

Air-cooling unit: 1 set



G. PLC control system



Note:

1, installed power: ~28kw

2, the installation size (length * width * high):7000*2000*1650mm

3, water: 0.2~0.4, MPa, the maximum water consumption: 03m3/h

4, gas source: 0.3~0.6mpa, the maximum gas consumption: 3L/min
