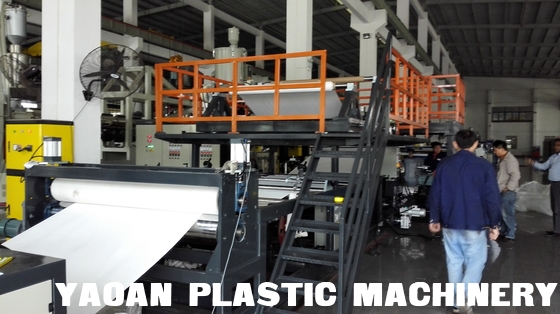

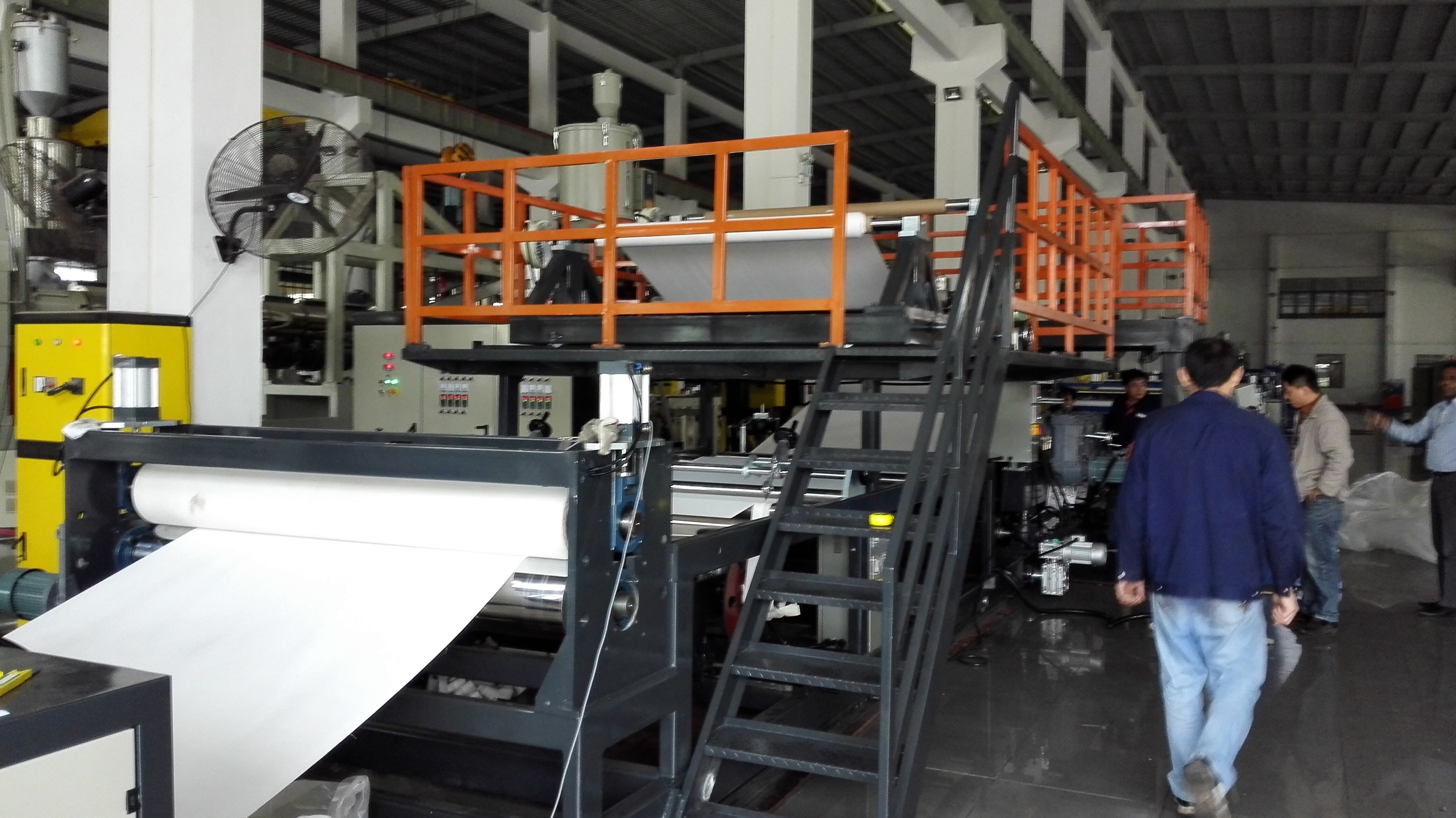

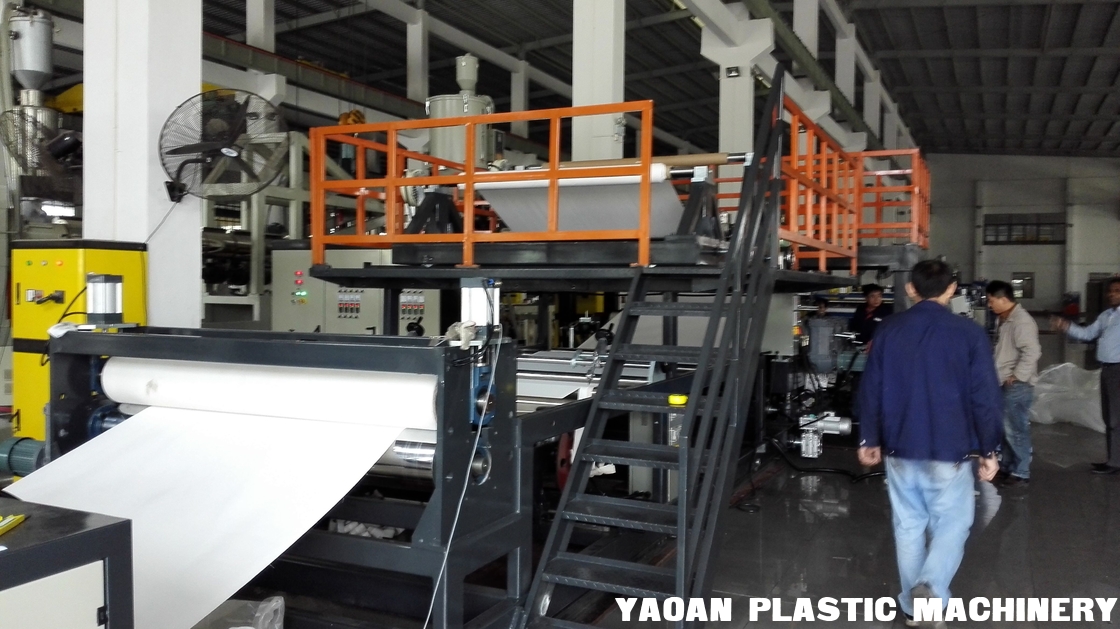

Automatic non-woven fabric laminating machine

Automatic non-woven fabric laminating machine

    • Automatic non-woven fabric laminating machine
    • Automatic non-woven fabric laminating machine
  • Automatic non-woven fabric laminating machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-1600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description

    Product Description:



    1.Cooling roller adopts high degree of finish roller, which can eliminate bubbles produced during the compounding process.

    2. Silicone roller and cooling roller adopt screw-type cooling structure,to make cooling quickly and laminating easily.

    3.Compounding roller is drived by one vector frequency electric motor





    Technical Parameter

    1.Applicable coating film resin: Coating grade like LDPE ,PP ,EVA,EAA etc .

    2.Based material:paper (30~425g/m2 ) , textile fibre ,non-woven fabric, Knited mesh, BOPP. BOPET . interlayer :aluminiumfoil,CPP ,BOPP

    3.Max working speed: 80~150m/min

    4.Max width of coating film: 1550mm

    5.Thickness of coating film: 0.01–0.11mm

    6.Inaccuracy thickness of coating film: ±6%

    7.Setting range of Auto-tension : 10-200kg/entire width (constant tension)

    8.Max extrusion: 260kg/h

    9.Compound cooling roller: Φ510×1600mm

    10,Total power:about 110 kw

    11,Max rewinding diameter: Φ1300mm

    12,Inside diameter of base material: Φ76

    13,Machine total weight: about 18000kg

    14,Overall dimension: 9600mm×9000×3250mm(L×W×H)

    15,Machine colour: can choose
