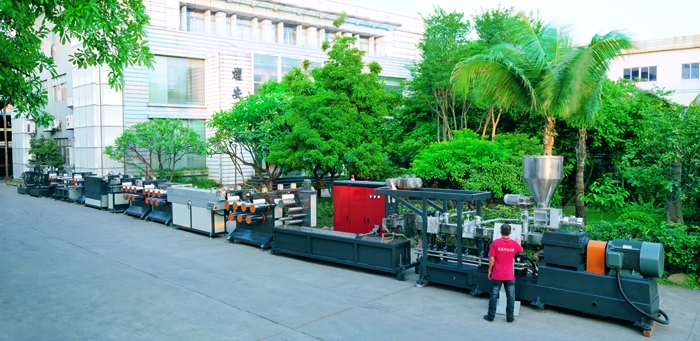

AFSJ-65 PET strap machine

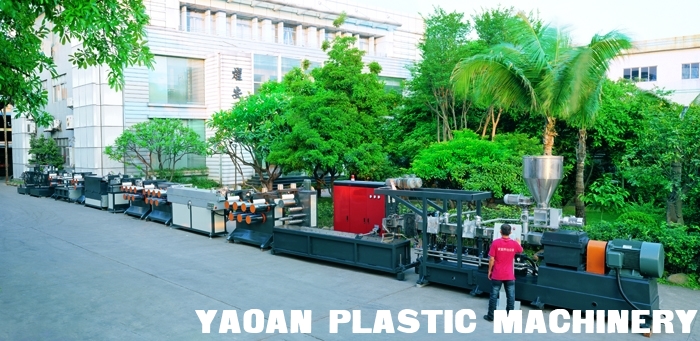

AFSJ-65 PET strap machine

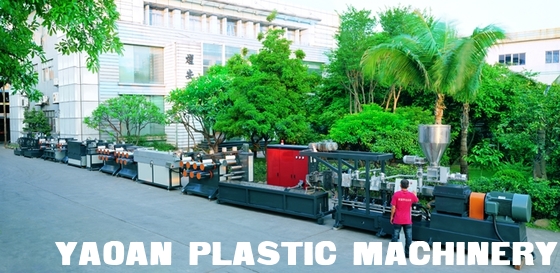

AFSJ-65 PET strap machine

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-65

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

AFSJ-65 PET strap machineAFSJ-65 PET strap machine

SPECIFICATIONS:

MODEL

AF-75

AF-100

Feature

Material

PET (IV 0.8 and up)

PET(IV 0.8 and up)

Quantity of line

1

2

Layflat width

mm

9.5 / 13 / 16 / 19

9.5 / 13 / 16 / 19

Extruding output range

kg/hr

40 - 100

80 - 220

Extruder

Screw

75

100

Screw L/D

27 : 1

27 : 1

Driving motor

HP

AC 50 hp + Inverter

AC 75 hp + Inverter

Heater capacity

kw

67

101

Auto temperature controller

sets

6

10

Quenching equipment

Stainless steel quenching bath

set

1

1

Water removal device

Water removal air blower

HP

2 HP x 1 set

2 HP x 2 set

Pre-heat unit

Take up roller

mm

213 x 1pc

213 x 3pc

Motor

HP

1 HP (inverter) x 1 set

2 HP (inverter) x 1 set

Roll dimension, stainless steel

mm

510 x 4 pcs

510 x 4 pcs

Driving motor

HP

3 HP (Inverter) x 1set

3 HP (Inverter) x 1set

Speed range

M/mm

12 x 24

12 x 24

Temperature controller

sets

4

4

Stretching unit No.1

Heating controller

set

1

1

Temperature controller

set

1

1

No. of roll

pc

5

7

Driving motor

HP

10 HP(Inverter)

20 HP (Inverter)

Speed range

M/min

50-120

50-120

Disco

set

1 (with cooling system)

1 (with cooling system)

Stretching unit No.2

Heating controller

set

1

1

Temperature controller

set

1

1

Roll dimensions (stainless steel)

mm

213

213

No. of roll

pc

5

7

Speed range

M/min

50 -120

50 -120

Air compressor

HP

1 HP x 1 set

1HP x 1 set

Embossing unit

Embossing roller

set

1 (Pneumatic type)

1 (Pneumatic type)

Motor

hp

DC torque 3 hp

DC torque 3 hp x 2

Thermo setting unit

Heating oven

set

1

1

Temperature controller

set

1

1

Stainless quenching batch

set

1

1

Water removal air blower

set

2 HP x 1

2 HP x 2

Take up unit

Motor

hp

DC Torque 3 hp x 1

DC Torque 3 hp x 2

Roll dimension

mm

213 x 1pc

213 x 2pc

Winding unit

No. of spindle

pc

2

4

Motor

hp

DC Torque 1 HP x 2

DC Torque 1HP x 4

Winding width range

mm

152 , 200

152, 200

Core bobbin

mm

200.400

200.400

Others

Total electricity

kw

165

250

Machine weight

ton

14

20

Machine dimension

m

28.8 (L)

35.16 (L)

All specifications and design characteristics are subject to change without prior notice.
