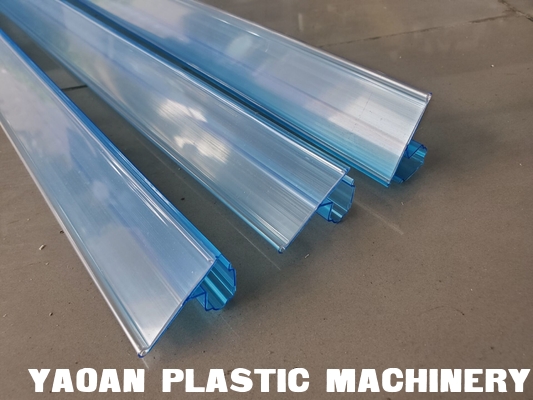

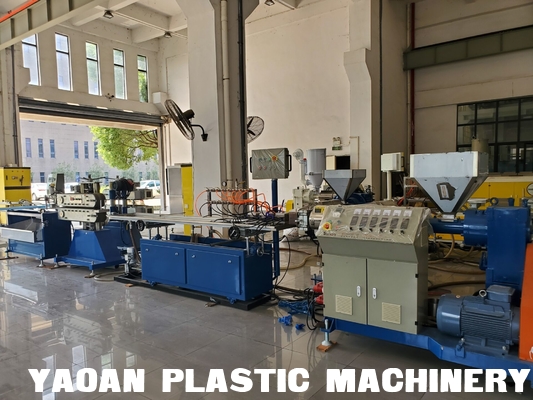

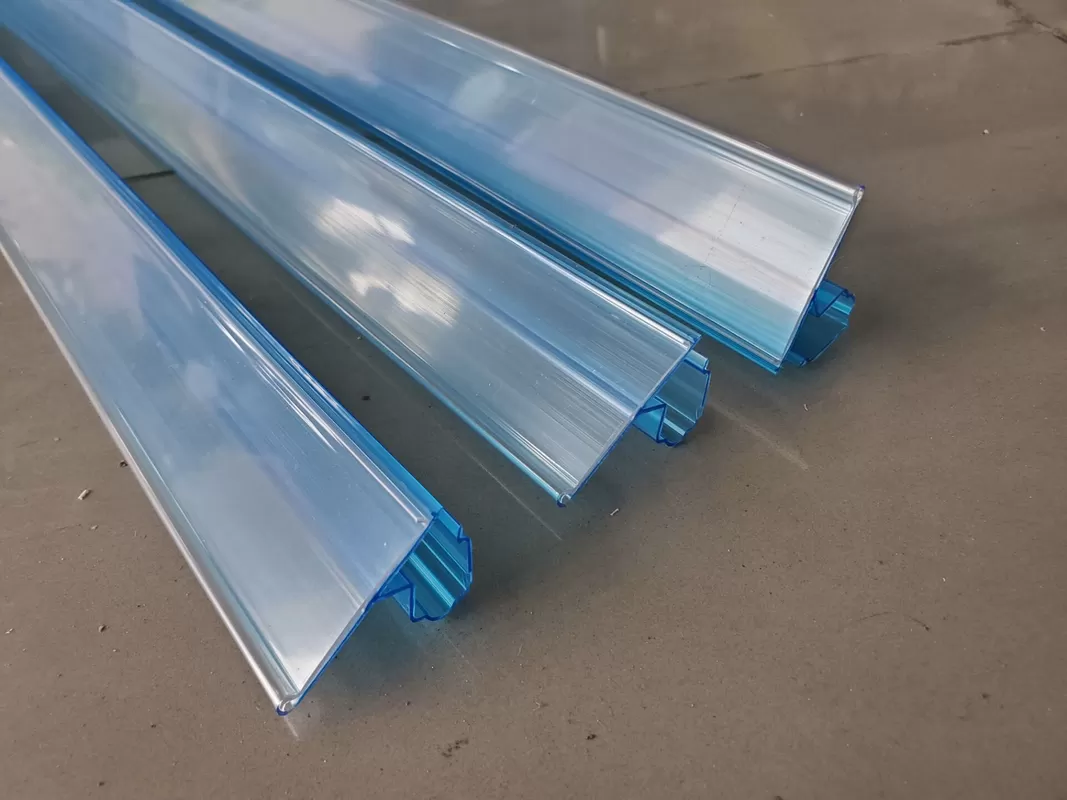

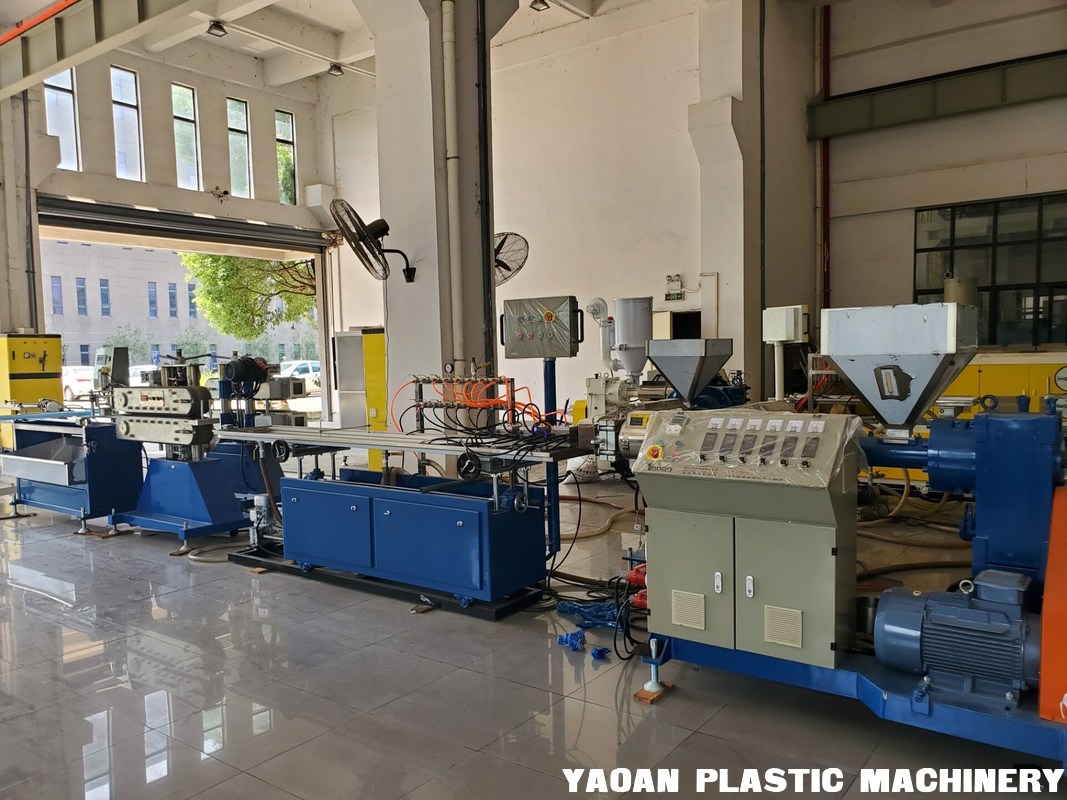

Layout of pvc price tag holder extrusion machine:
extruder---Mold---Vacuum calibration Table---Traction Machine---Cutting Machine---Stacking Table
Details of pvc price tag holder extrusion machine:

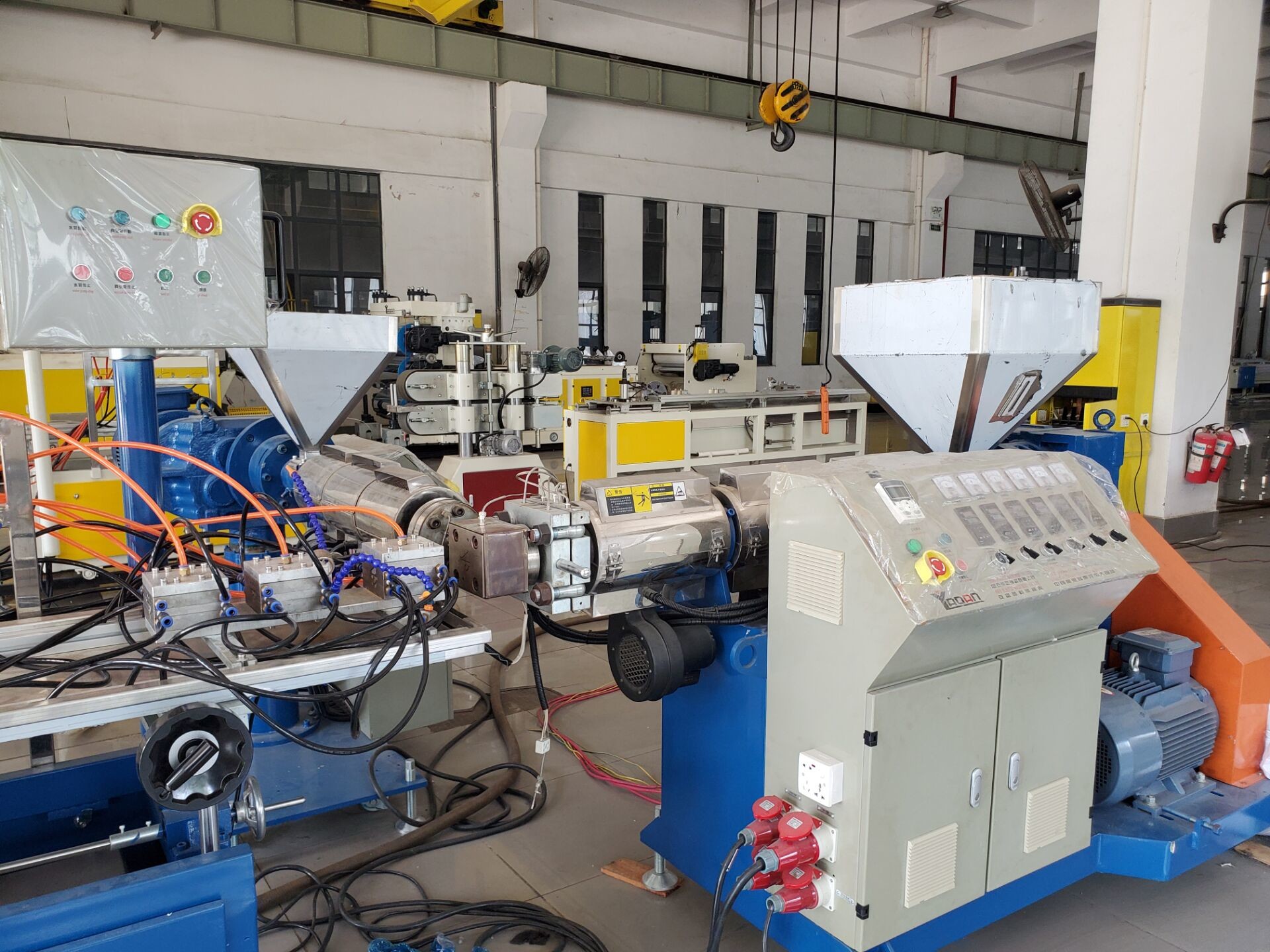

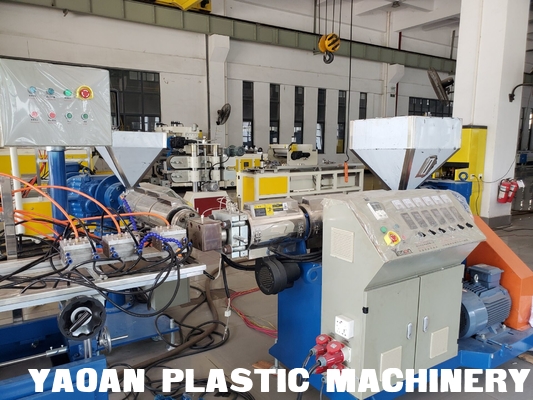

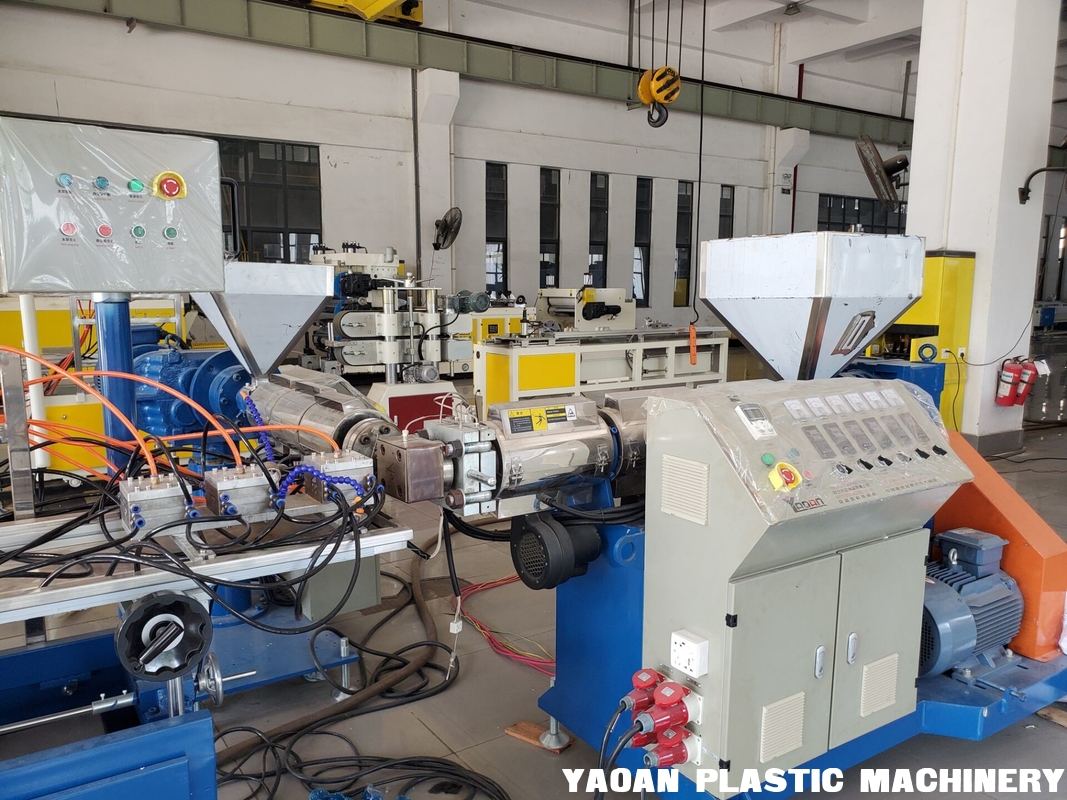

1. Single screw extruder machine:
(1) Screw diameter: 45-65mm; L/D: 28:1; Material: 38CrMoAIA;
Surface treatment: nitrogenization treatment, nitrogenization layer thickness: 0.4~0.7mm; Hardness:HV850~940;
(2) Special speed reducer gearbox: gear material 20CrMnTi (Hard tooth surface, with grinding);
(3) Drive motor power: 7.5~15KW; Frequency convertor control; Temperature control meter: intelligent double PID type;
(4) Heating control zone: 7 zone (barrel 4 zone, extruding die 3 zone);

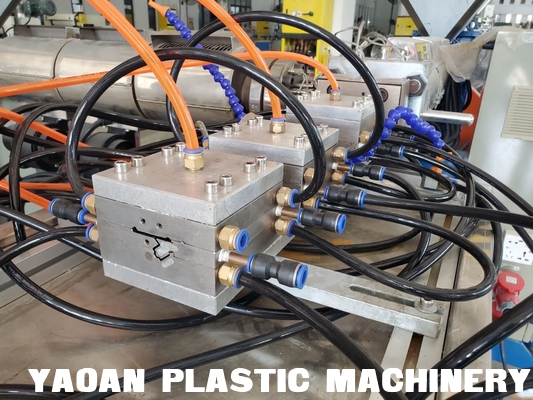

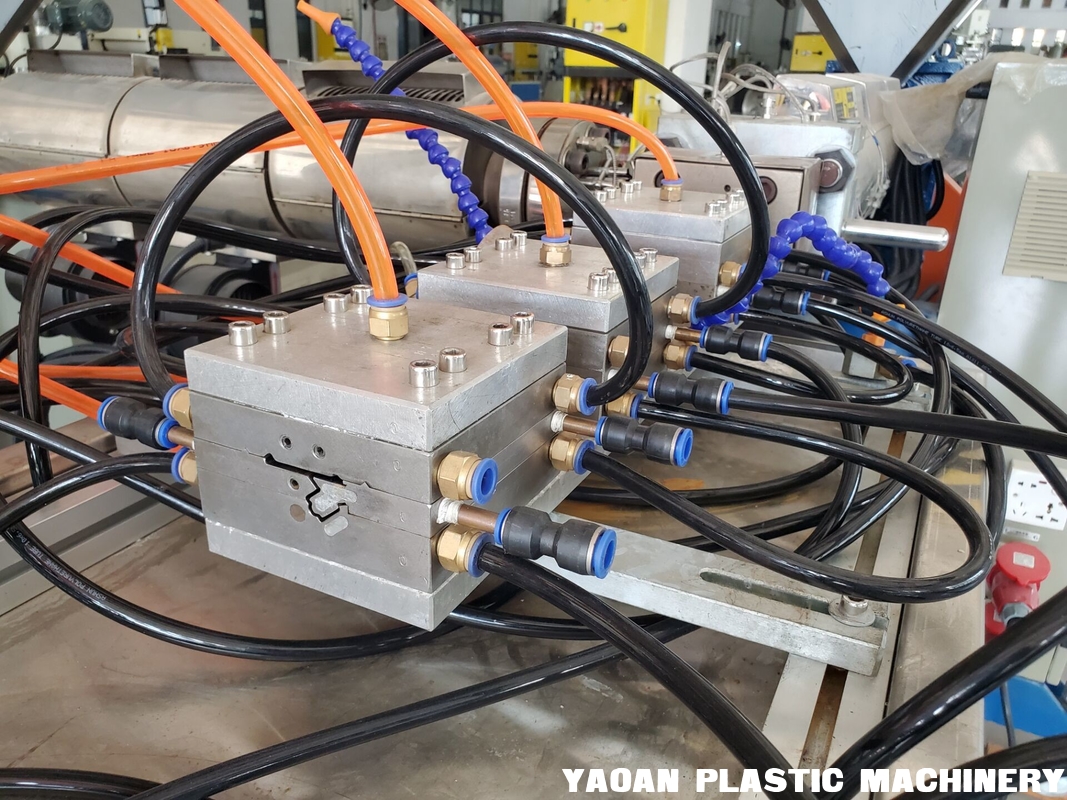

2. Extruding die:
It consists of extruding die head and calibration die, Special S136H mirror surface steel for dies;
3. 3 dimensional electric driven cooling calibration tank:
3D adjusting machine frame, with12-way vacuum, 12-way cooling water joint, which is quite general;
Water-loop type vacuum pump 1.5KW;
Water tank length: 1.5~3meters.
4. Belt type haul off unit:
Open-close, up-down adjusting, workable length 1meter,constant stable tractor, high wear-resistant surface foamed PU multi-wedge belt, frequency conversion controller, tractor speed 0-15m/minute stepless adjustable. Power: 1.5~3KW.

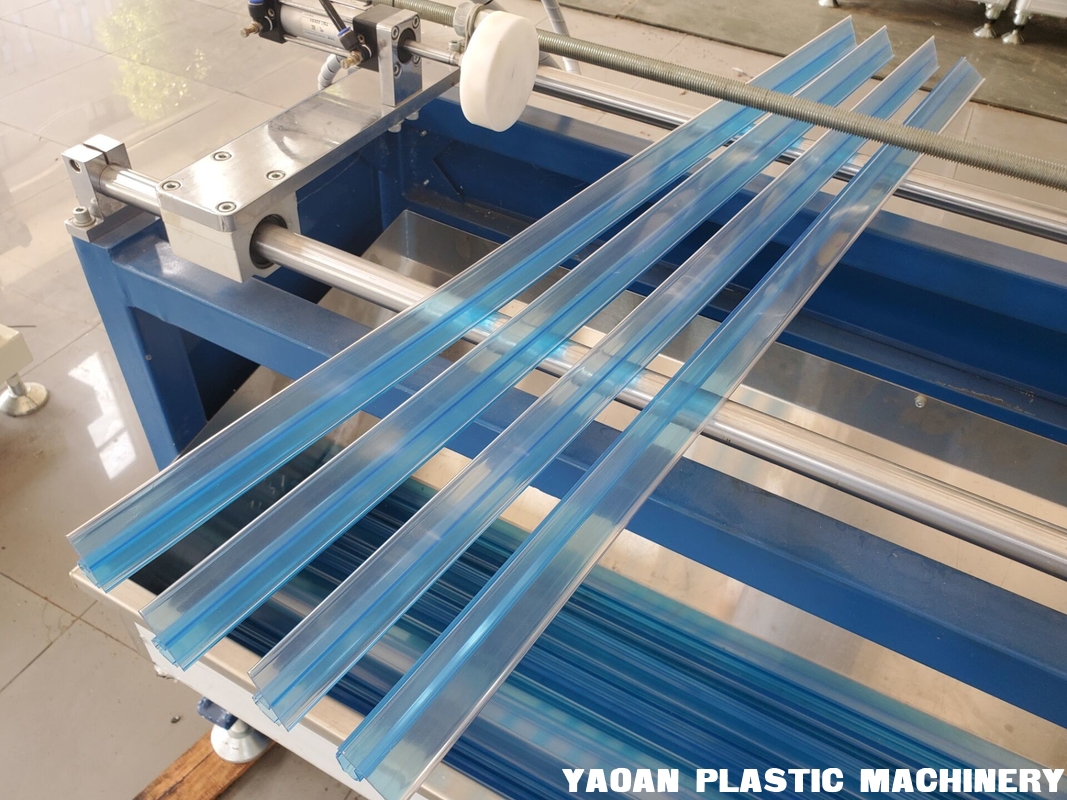

5. Automatic cutter with collection stand:
Pneumatic cutter machine, alloy blade, with blade heating device, neat cut end, without white mark;
Automatic meter counting, automatic reciprocating platform, online cutting positioning precisely;

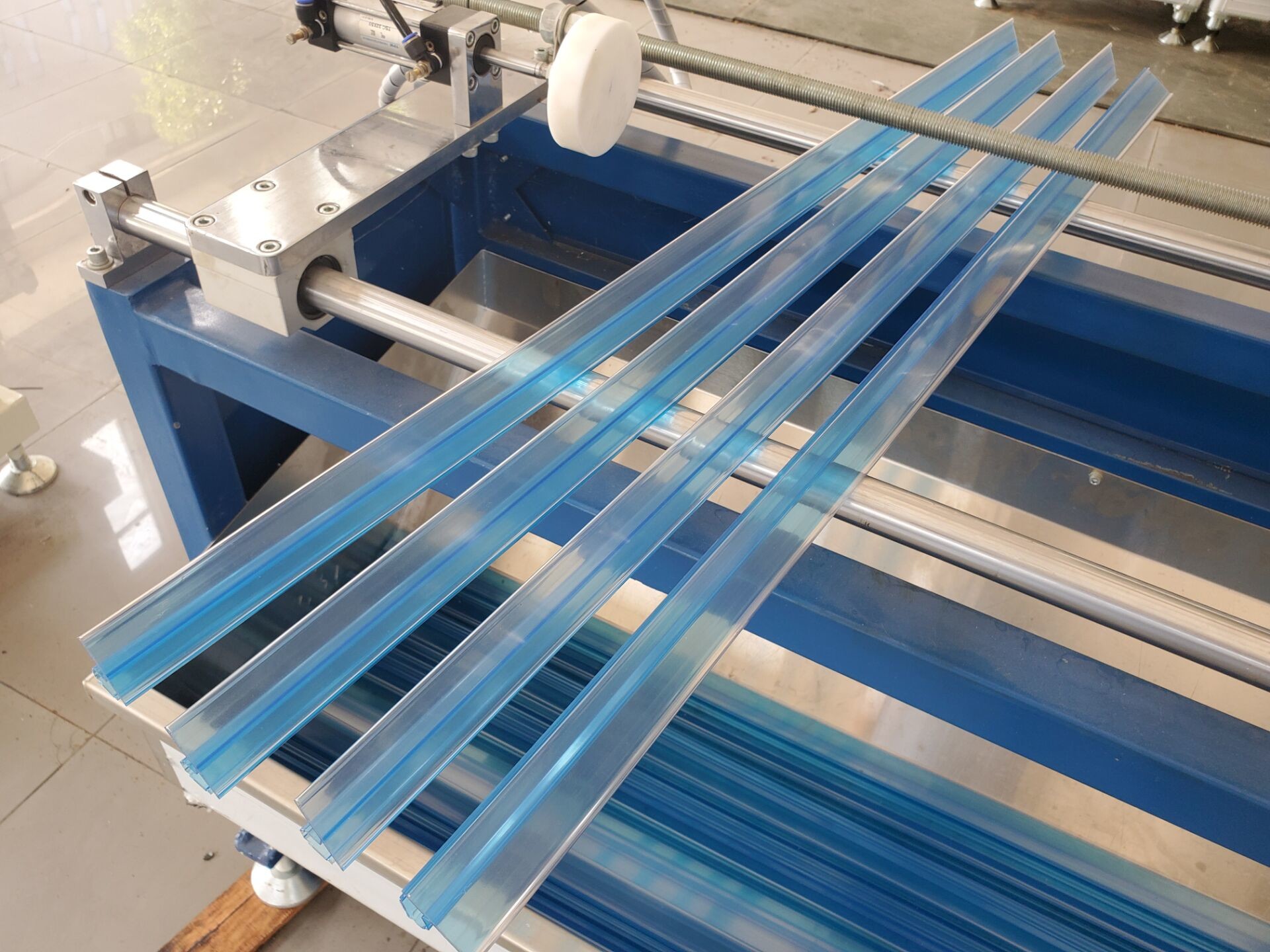

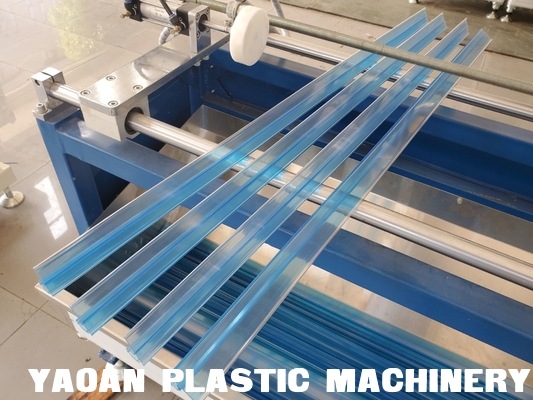

with collection stand, finish cutting and collection automatically, high automation.
Packaging and shipping
|PACKAGING||plastic film + stretch film + wooden case + drying agent.|
|DELIVERY||About 90 days (all new parts)|
|SHIPPING||We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.
What is our service system?
|PRE-SALE||a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
|IN PRODUCTION||a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
|AFTER SALE||a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
|Material:||PVC Granular||Motor:||AC Motor|
