    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-1220, 915mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Raw Material: PP Chips Product Thickness: 8-18mm
    Machine Color: Customized Dimension: 240000*4000*2300mm
    Operator: 2-3 Persons HS Code: 8477209000
    Warranty: 1 Year Total Power: 250kw

    PP Hollow Building Formwork Production Line For Building Material , PP Hollow Construction Formwork Machine

    Application:

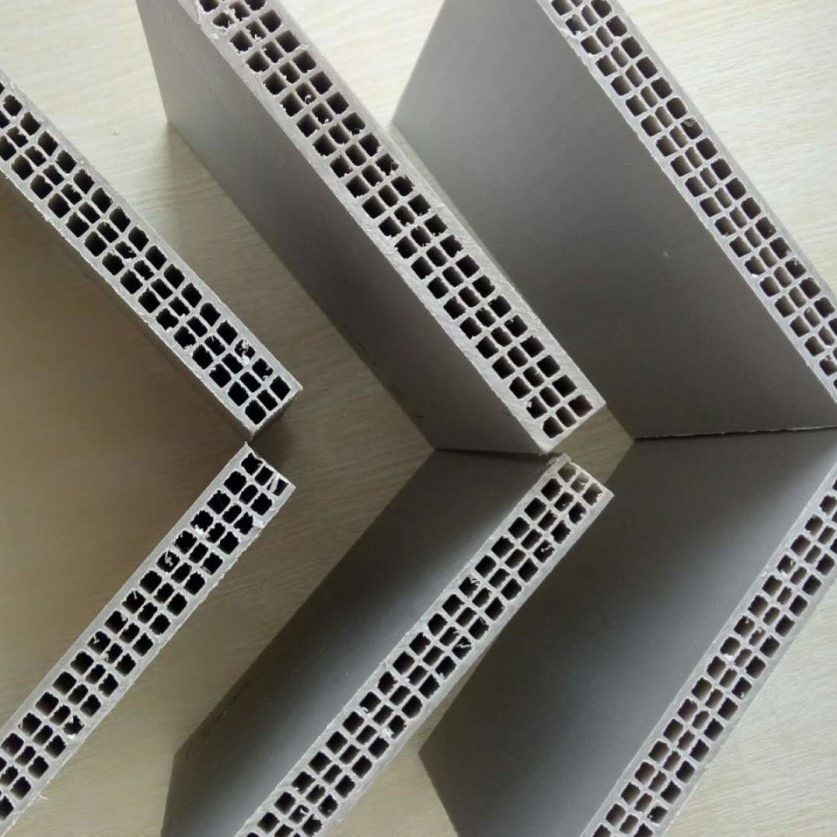

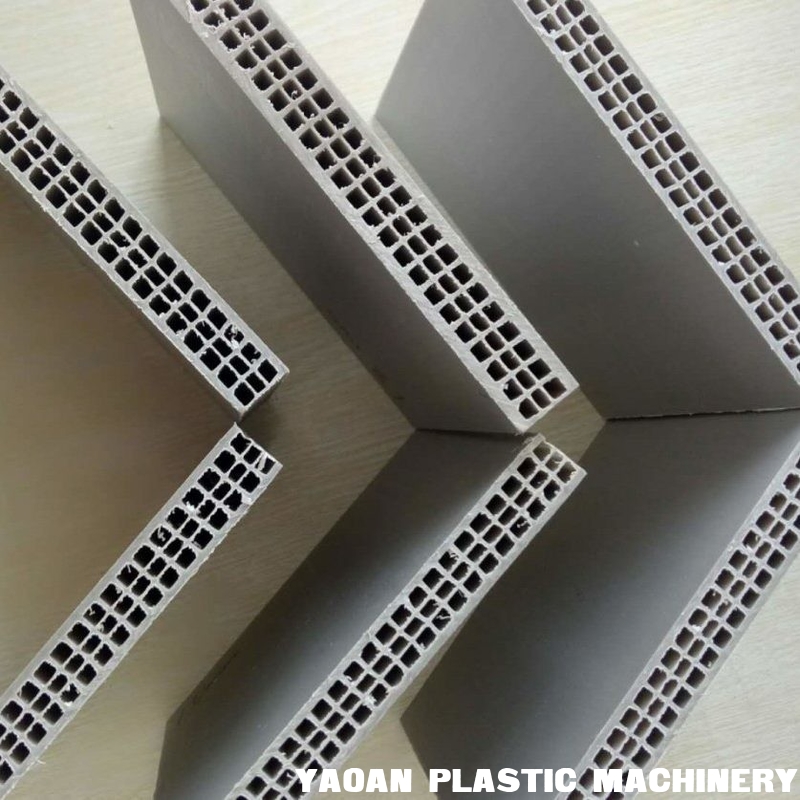

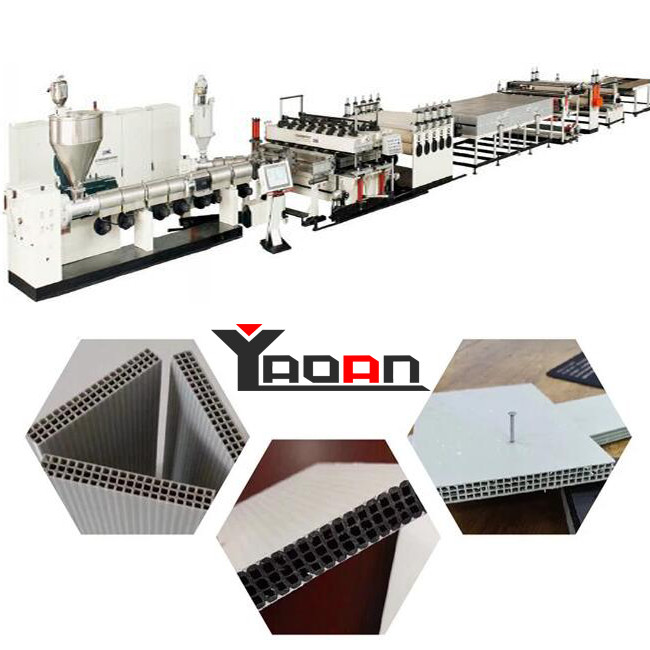

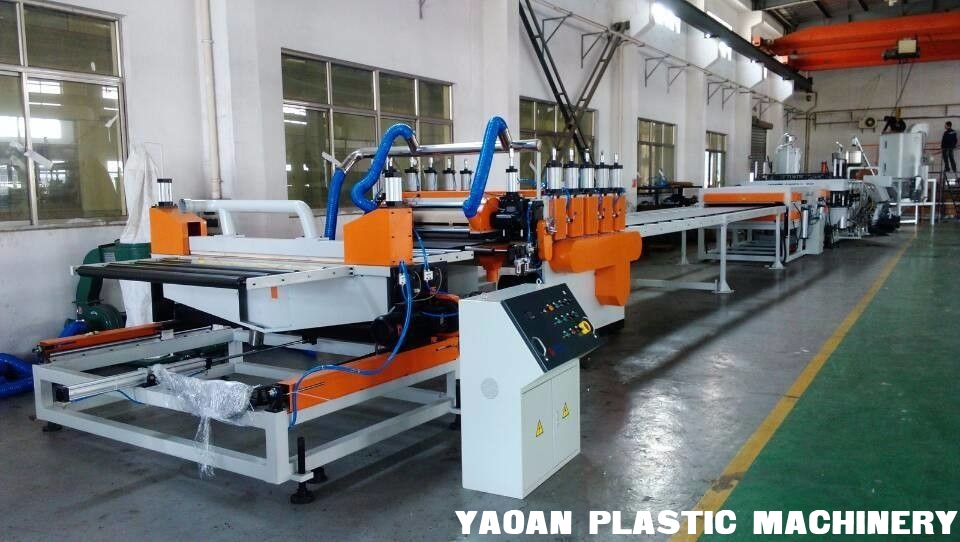

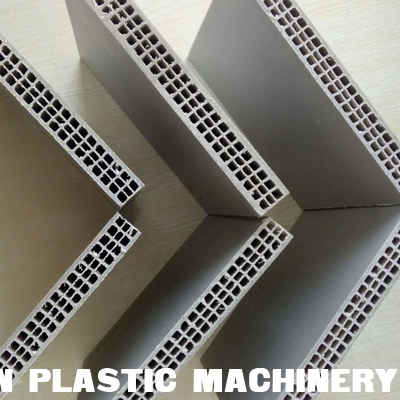

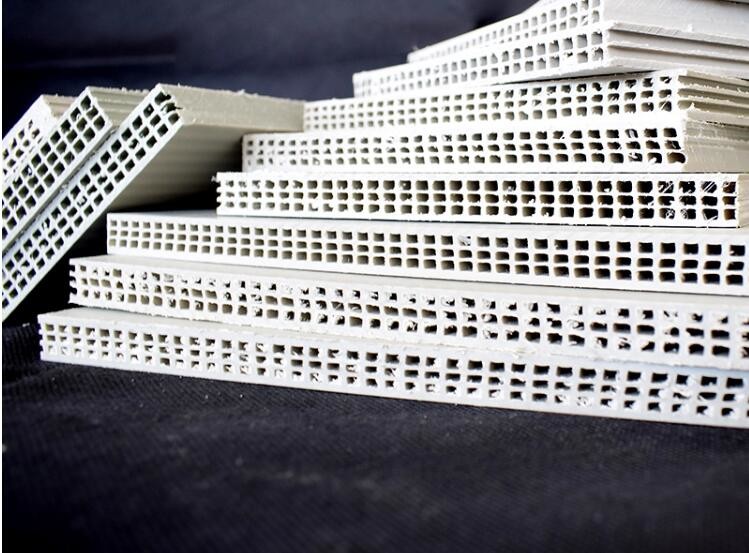

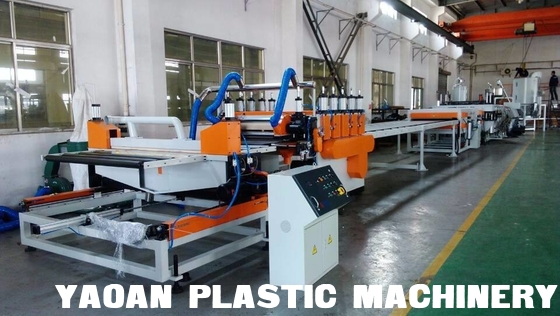

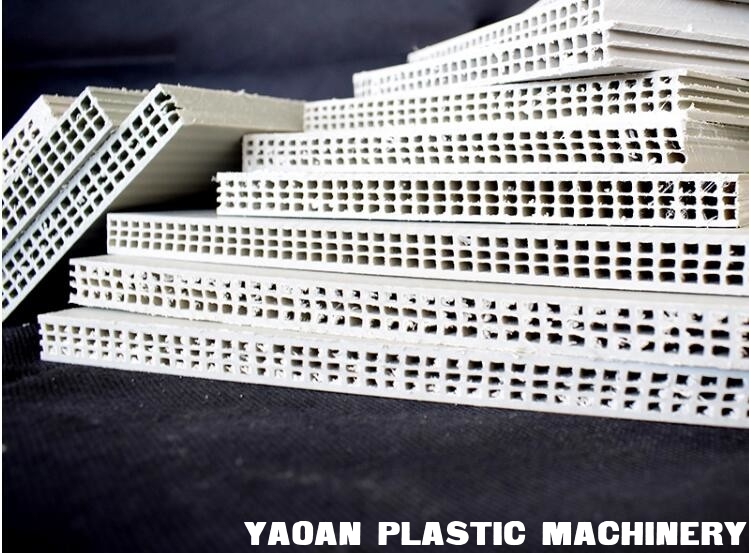

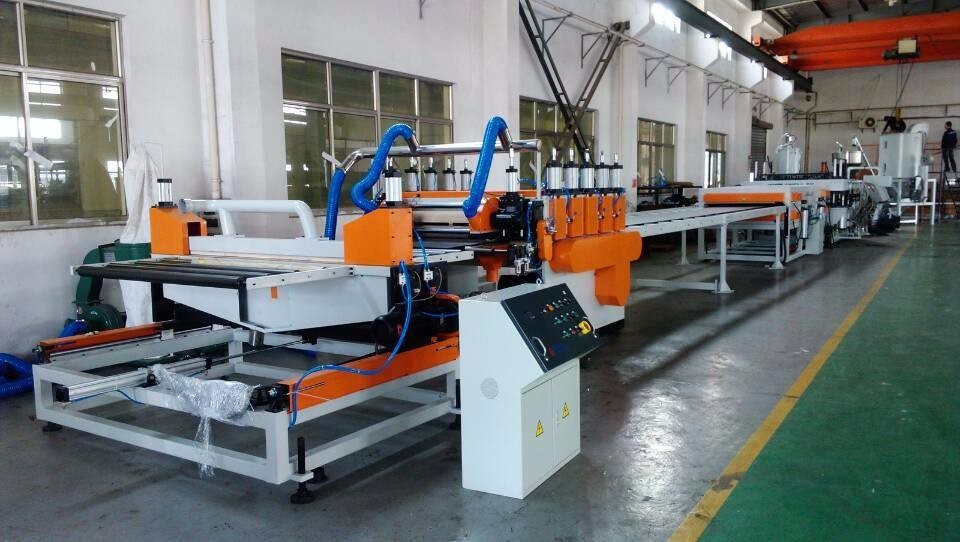

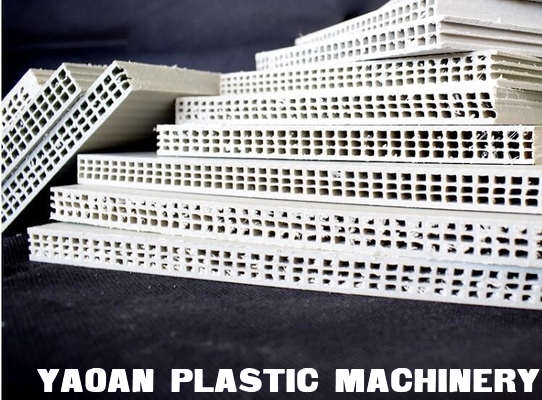

    PP new hollow building formwork production line This unit has a single screw extruder consisting of hydraulic screen changer, mold, primary traction machine, annealing furnace, cooling section, secondary traction machine, cross cutting machine and conveyor. In the industry, the initial O-shaped hollow structure was changed to the m-shaped, V-shaped, N-shaped, and well-shaped type, and finally changed to a grid type. The grid-shaped structure is accepted by the market in terms of material usage and structural properties. The surface of the produced product is smooth and has small dimensional error, and has many advantages such as nailing, planing, corrosion resistance and flame retardancy.

    PP Hollow Building Formwork Production Line For Building Material , PP Hollow Construction Formwork Machine

    Compared with traditional building templates, PP building templates have the following advantages:

    1. Good water resistance. Even if it is completely immersed in water for many days, it will not be deformed by moisture. It is resistant to acid and alkali, corrosion-resistant, and will not rot and rust. It is especially suitable for use in wet environments such as basement engineering, road railways and bridge piers.

    2. It is not compatible with cement, it is easy to demould after construction, and the page will not be deformed by cement adhesion.

    3, the plastic template surface is smooth, smooth, no need to apply mold release agent, reducing cleaning and maintenance costs. The surface of the building with which it is constructed is smooth and flat, and no secondary modification is necessary.

    4. Light weight, high efficiency, convenient support, low labor intensity and high construction efficiency.

    5, the support strength is high, not easy to deform, but impact, and wear.

    6, low cost. Long service life, the number of turnovers can reach more than 100 times. The used scrap plates and scraps can be recycled and reused, saving costs and reducing pollution. The combined use cost can save more than 30% compared with traditional wood formwork.

    7, long life, repeated use times. The final damaged plastic formwork can still be crushed again, re-processed into a new formwork, saving resources and meeting the requirements of “green industry”.

    8, good insulation, is conducive to shorten the construction period.

    9. Various methods can be used for the home wood method, and welding can also be carried out, so the secondary processing can be flexibly performed at the construction site.

    10, plastic template can be processed, can be planed, sawable, nailable, can be used together with wood formwork

    11. The process is saved and the construction efficiency is improved. The two surfaces (smooth surface or tread surface) of the PP hollow plastic building template have different use effects. If the surface of the carcass is smooth and smooth after the concrete is poured by using the smooth surface, the surface of the carcass is clean and smooth, and the requirements of the decorative surface and the decorative water are not required. The second time is used, the material is saved, the cleaning and maintenance costs are reduced, and the quality of the concrete after molding is reduced. Stable and save time. If a tread is used, it is advantageous to combine with the plaster layer. In particular, the first two piers are achieved by using a tread surface.

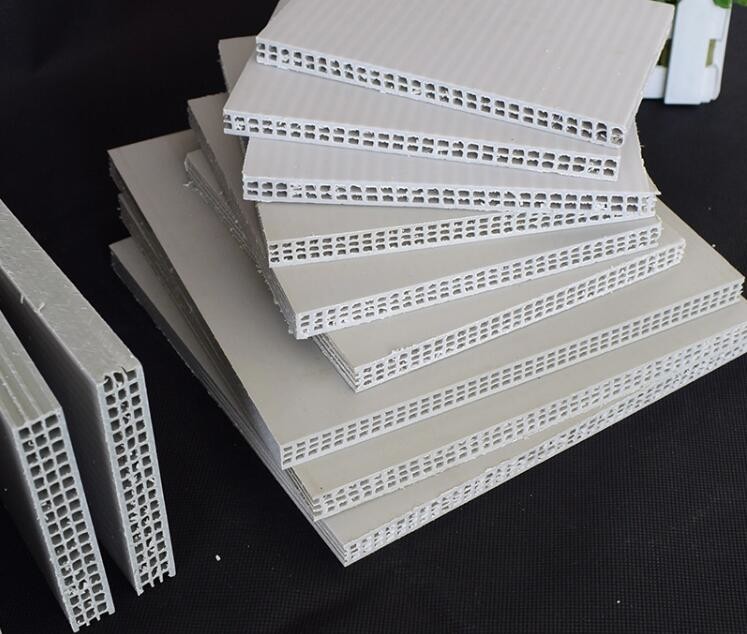

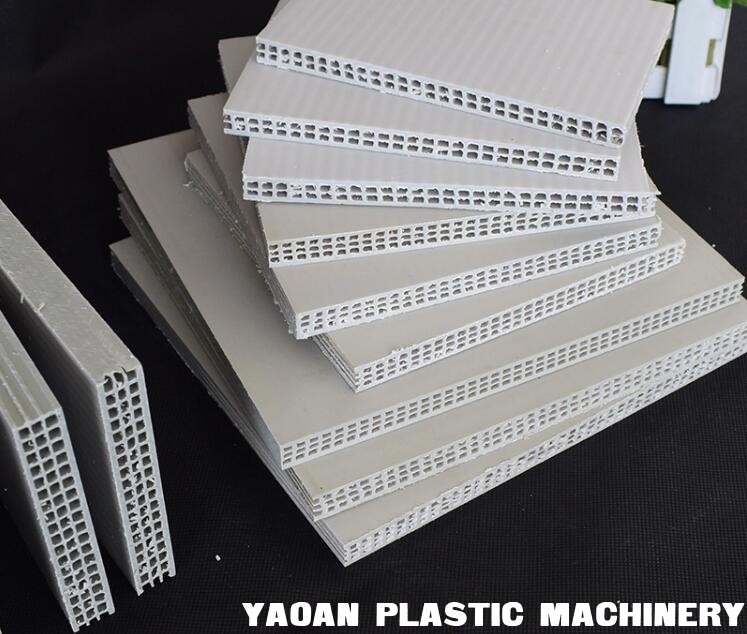

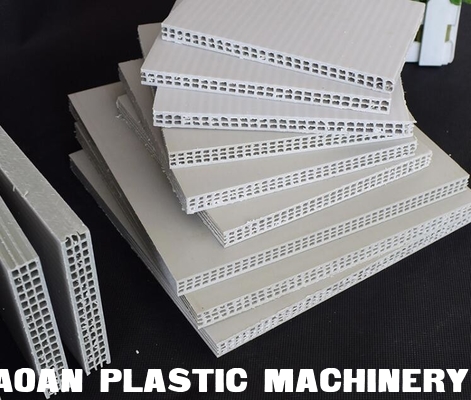

    PP Hollow Formwork Standard Size (Customizable)
    Thickness(mm)
    Width*Length(mm)
    Weight(kg)
    15
    915*1830
    14-15
    16
    915*1830
    15-16
    17
    915*1830
    16-17
    18
    915*1830
    17-18
    15
    1220*2440
    24-25
    16
    1220*2440
    26-27
    17
    1220*2440
    27-28
    18
    1220*2440
    29-30

    PP Hollow Building Formwork Production Line For Building Material , PP Hollow Construction Formwork Machine

    PP Hollow Building Formwork Production Line For Building Material , PP Hollow Construction Formwork Machine

    PP Hollow Building Formwork Production Line For Building Material , PP Hollow Construction Formwork Machine

    PP Hollow Building Formwork Production Line For Building Material , PP Hollow Construction Formwork Machine

    Packaging and shipping

    PACKAGING plastic film + stretch film + wooden case + drying agent.
    DELIVERY About 90 days (all new parts)
    SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
    We care each and every point so that our clients could receive the machines in perfect situation.

    What is our service system?

    PRE-SALE a. Detailed machine introduction;
    b. Suggest suitable turnkey solution as per clients requirements;
    c. Provide test production for reference;
    IN PRODUCTION a. Supply layout drawing to clients for preparation;
    b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
    c. Keep the clients be informed of the production status;
    AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
    b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
    c. Offer help if any need from clients like spare parts need etc;
    d. Supply necessary technical support at request;

    Why choose YAOAN MACHINERY?
    1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

    2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

    3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

    4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

    FAQ
    Q1: What is the guarantee of the machine?
    A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

    Q2: What package do you use for the machine?
    A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

    Q3: Do you have instruction manual to guide us if i buy the machine?
    A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

    Q4: What is your service to overseas clients?
    A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
