    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-1200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Raw Material: PP PE PC Chips Product Thickness: 2-12mm
    Line Speed: 2-6m/min Machine Color: Customized
    Sheet Weight: 400-2000GSM Dimension: 240000*4000*2300mm
    Operator: 2-3 Persons HS Code: 8477209000
    Warranty: 1 Year Sheet Width: 1200-2500mm

    Premuim Quality Hollow Profile Sheet Machine (AF-1600/ 1800/ 2100/ 2400)



    YAOAN Adopted suitable screw design and machine configuration, it is widely used in manufacturing PP or PC hollow profile boards of various specifications(Max. Width: 2500mm; Thickness range: 2mm-12mm). It is widely used in the fields of advertisement, decoration, sound-proof, packing. Because it is featured by light-weight, strong, damp proof, anticorrosive advantages, it trends to replace the paper carton gradually and become the first choice to make packing cases.

    Extruder: The special designed screw and the advanced temperature control system ensure the good plasticizing, stable extrusion and high output.

    Screen changer: It is of hydraulic style fast screen changer and ensures the short course of the exchanging filters. Double filters and special leakage-proof structure guarantee its stable performance.

    Die: Made of super quality alloy and adopted adjustable restrictor bars, provide the even pressure of the plastic flow at the die lips. It ensures even thickness of the board with adjustable lips

    Vacuum calibrator: The vacuum system and calibrating system including a heat-convection system array interleaved. This kind of design guarantees the high precise degree of the calibration. The vacuum system consists of two independent subsystems, which is equipped with many pieces three point type closed loop vacuum line. Each closed loop is equipped with vacuum regulating system and vacuum display system. This guarantees the good calibration and the smooth surface of the board.

    Take-off unit: There are two haul-off units. First one consists of multi-rolls and is driven by a strong motor with a speed reducer with a big gear ratio. It has strong take-off strength and performs well at slow speed so that it can draw the board up from the calibrator evenly and synchronically. Second one is put after the infrared stabilizing oven. The slit unit fixed on the take-off unit ensures the smooth cut of the edges.

    PC PP flute hollow profile sheet board extrusion machine extruder models:



    No

    Machine model



    Hollow Sheet Width
    1

    AF-1200



    1200mm
    2

    AF-1800



    1800mm
    3

    AF-2500



    2500mm


    PC PP flute hollow profile sheet board extrusion machine extruder details photo:

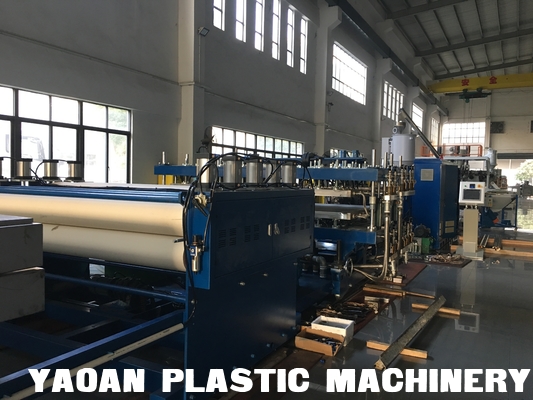

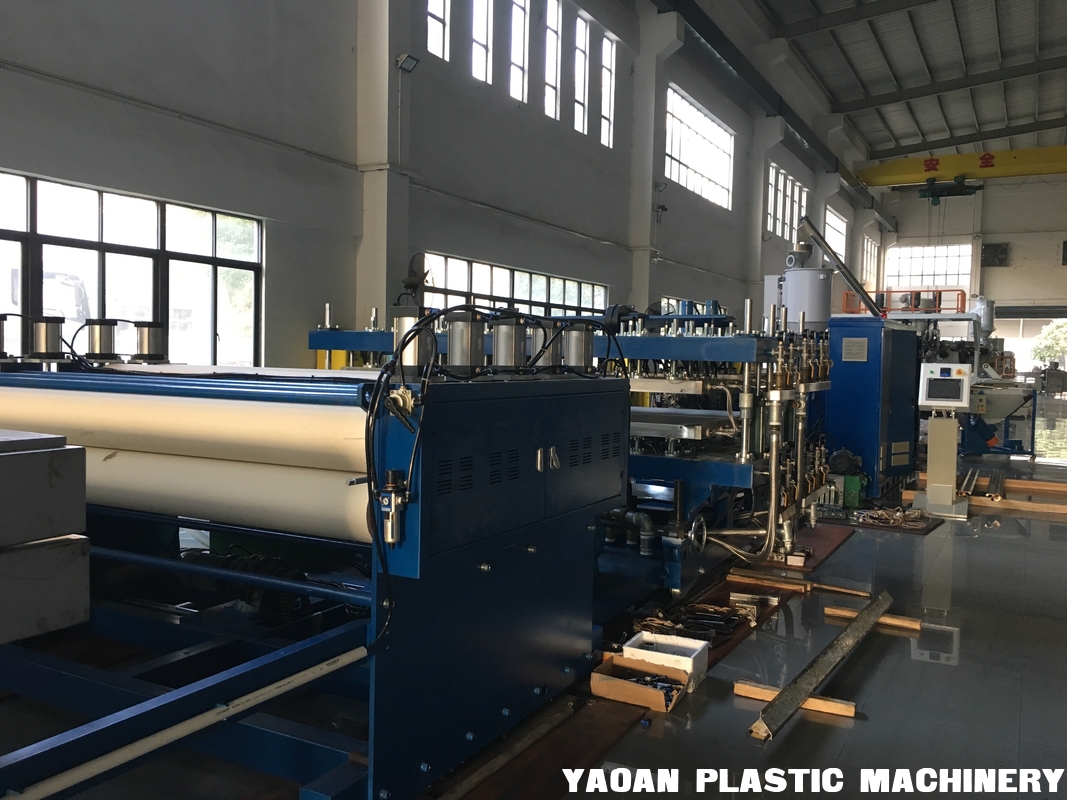

    PLC control panel, mould, calibration table. etc:


    PC PP Flute Hollow Profile Sheet Board Extrusion Machine Extruder

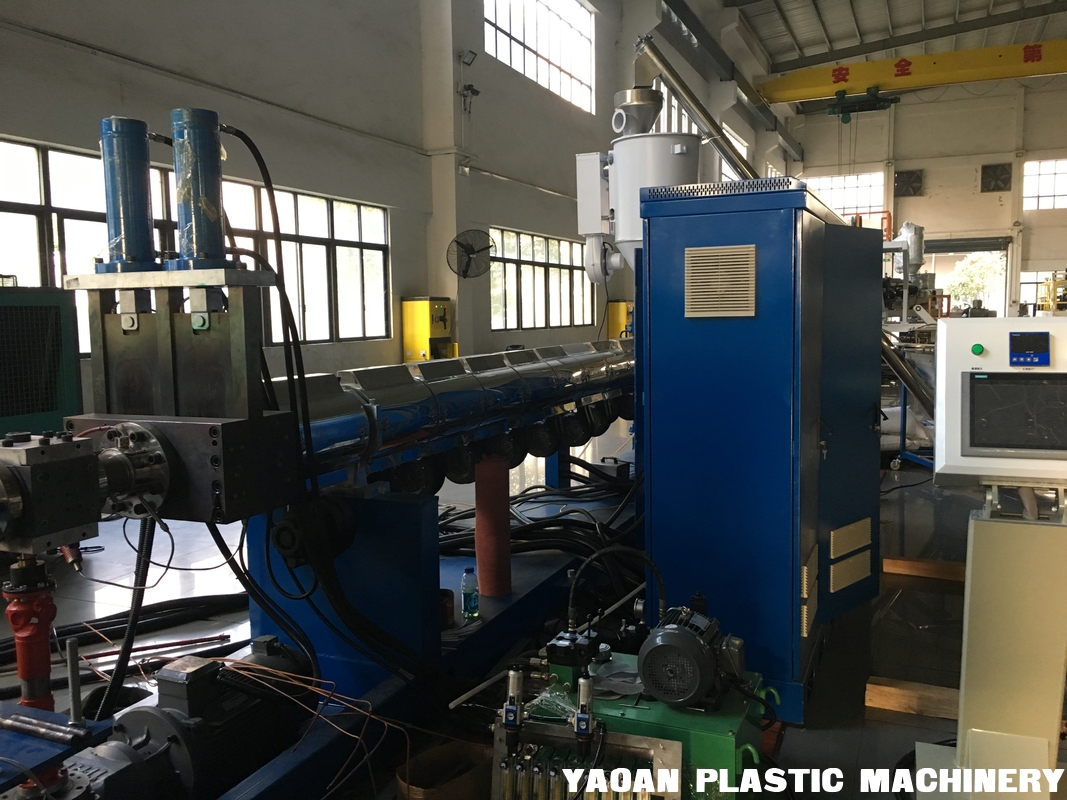

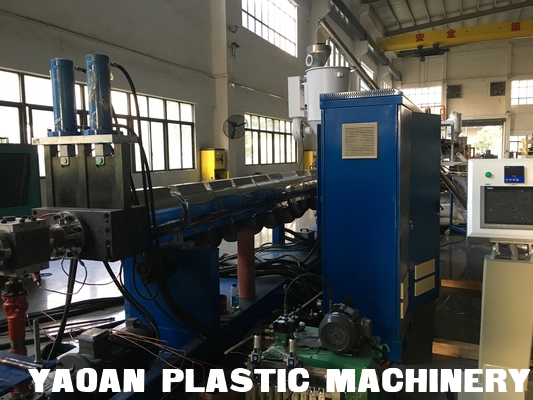

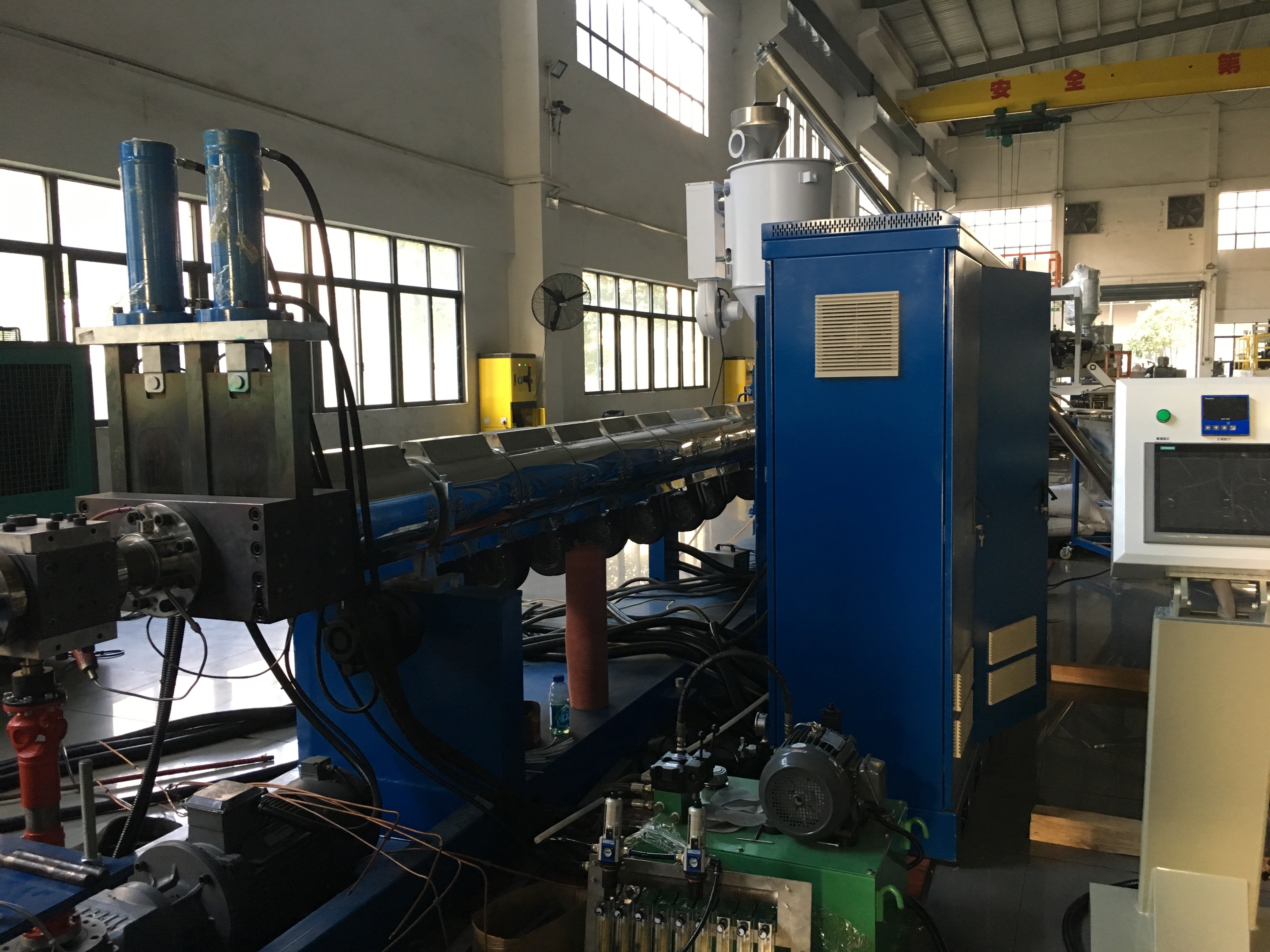

    Filter, melt pump, mould, calibration table etc:


    PC PP Flute Hollow Profile Sheet Board Extrusion Machine Extruder

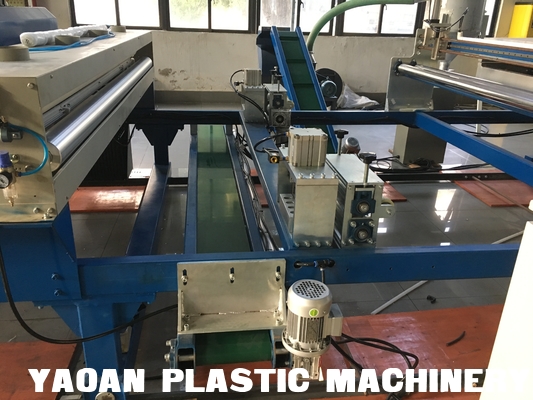

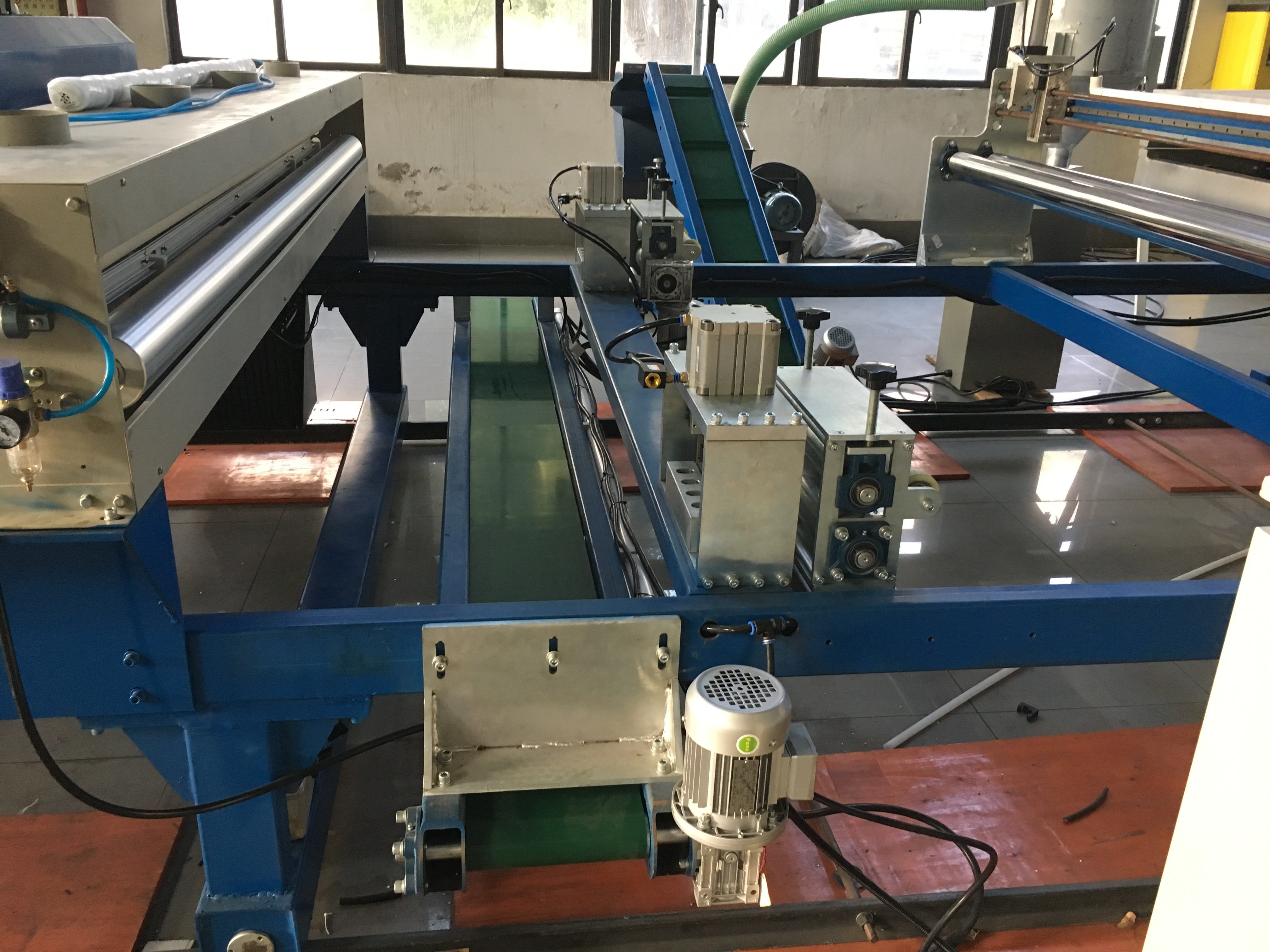

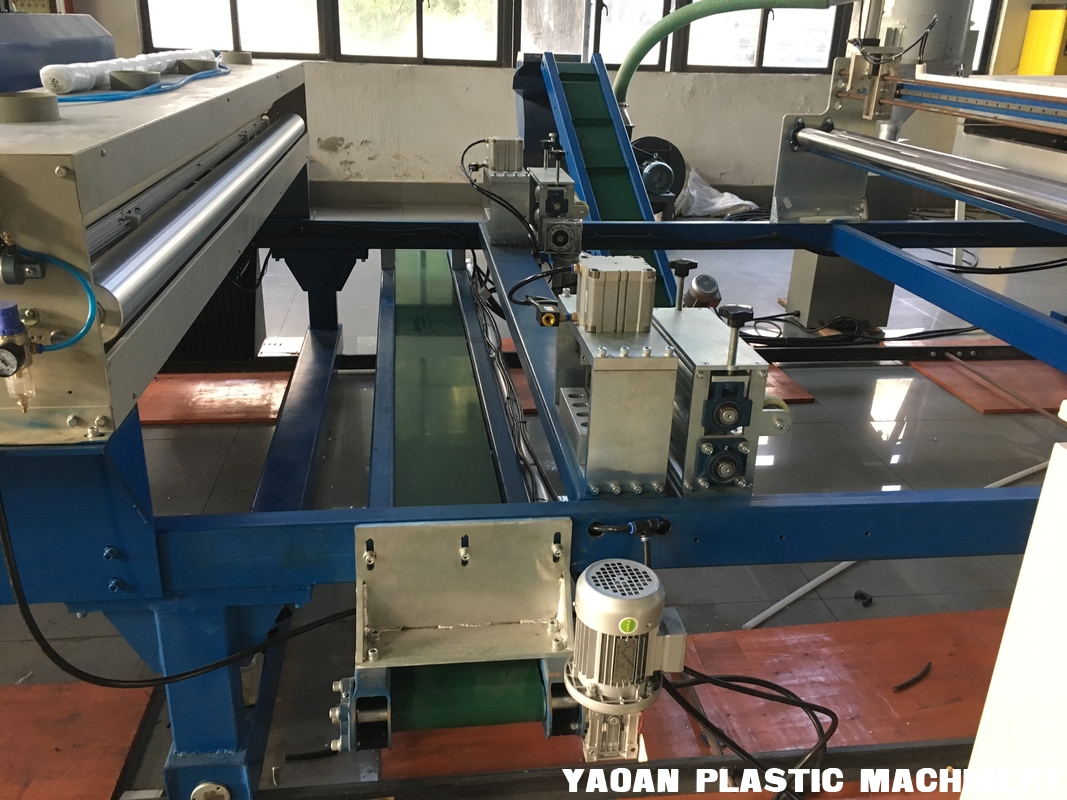

    Cooling frame, corona treatment, slitting unit, cutter:


    PC PP Flute Hollow Profile Sheet Board Extrusion Machine Extruder

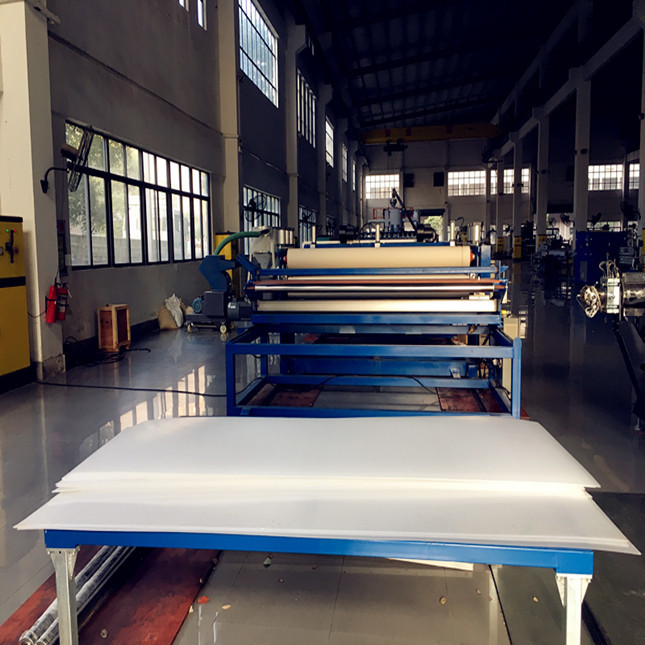

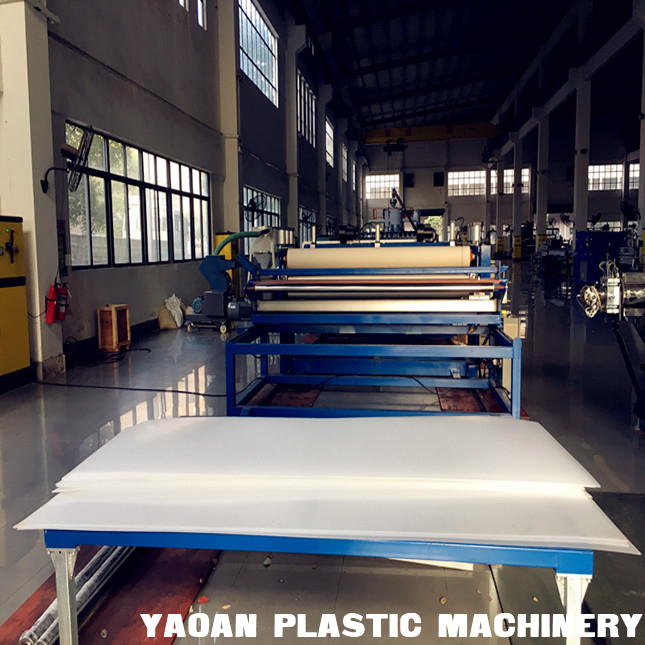

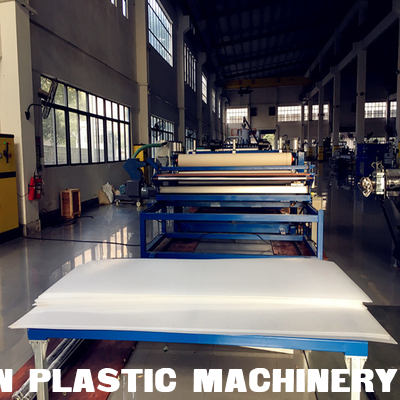

    PE PP PC Hollow Profile Sheet Board photo and application:
    PC PP Flute Hollow Profile Sheet Board Extrusion Machine Extruder

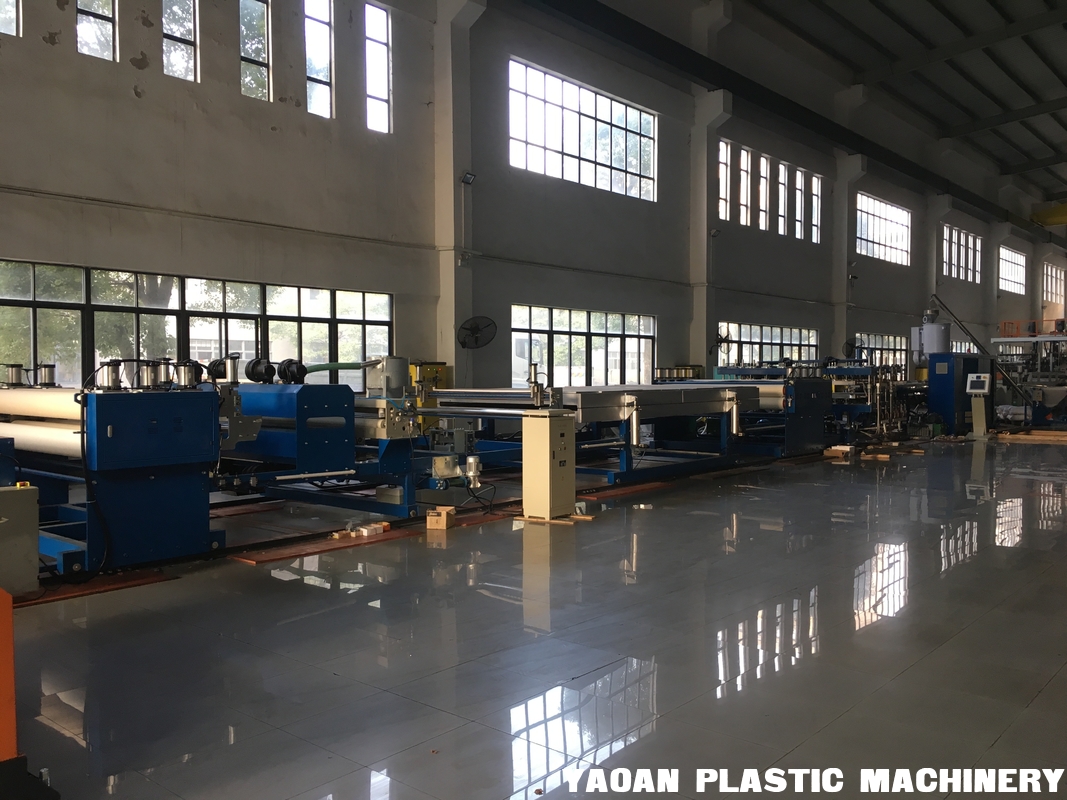

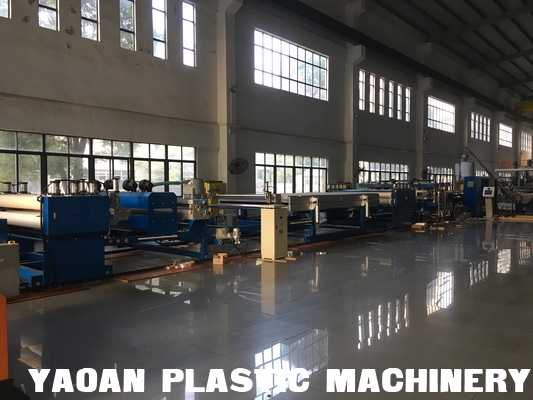

    YAOAN factory complete view:


    PC PP Flute Hollow Profile Sheet Board Extrusion Machine Extruder


    FAQ
    Q1: What is the guarantee of the machine?
    A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

    Q2: What package do you use for the machine?
    A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

    Q3: Do you have instruction manual to guide us if i buy the machine?
    A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

    Q4: What is your service to overseas clients?

    A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
