    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: Straw Packing Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Packing Material: BOPP Film Power: 0.75kw
    Dimension: 2800×1200×2350mm Warranty: 1 Year
    Straw Diameter: 3-8mm Straw Length: 100-250mm

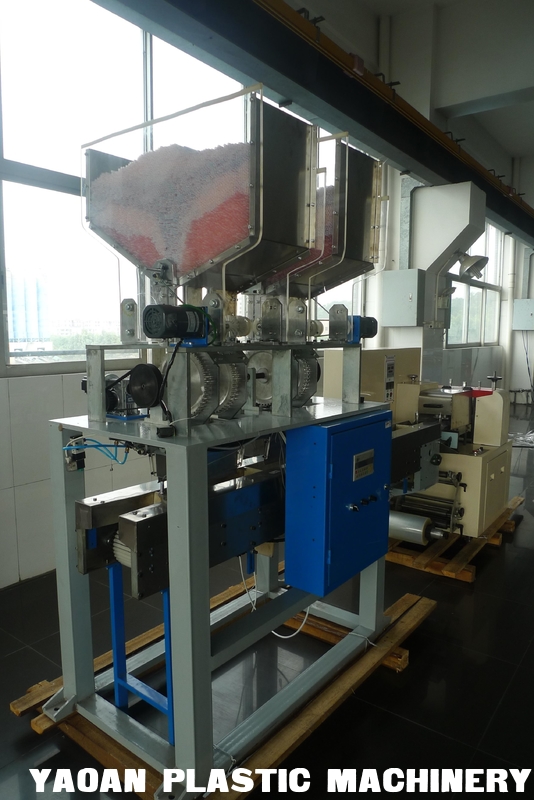

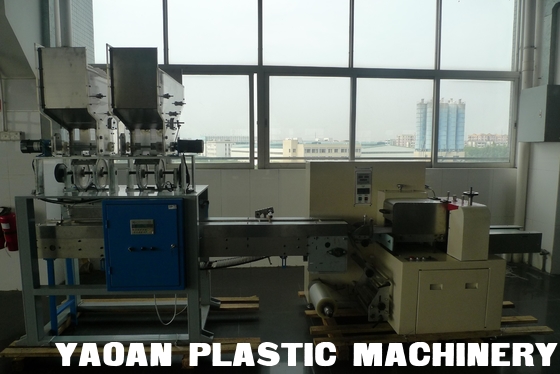

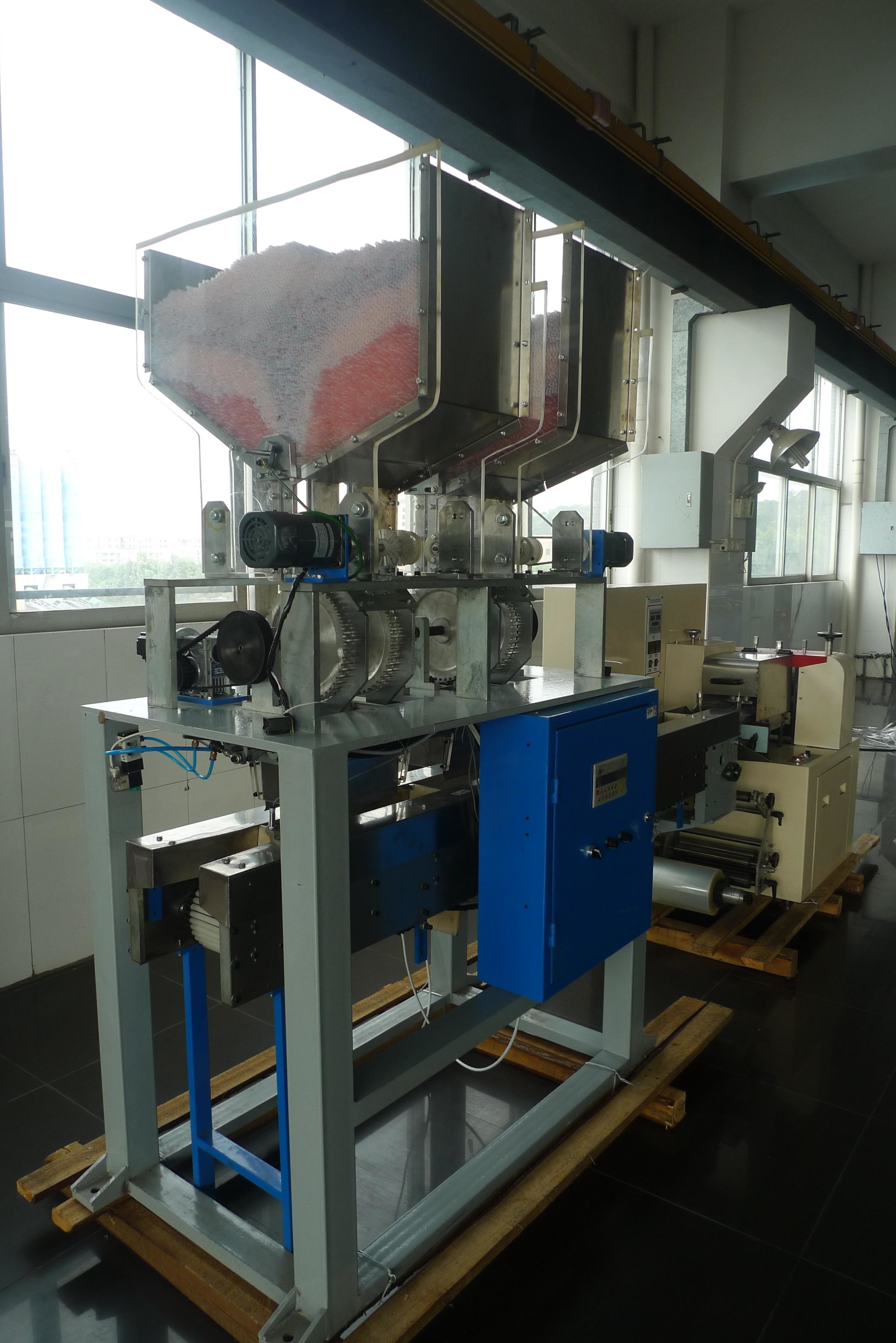

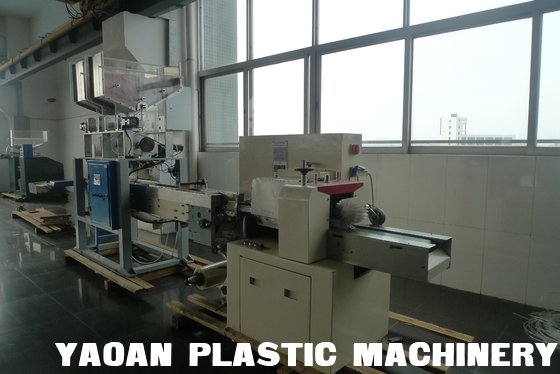

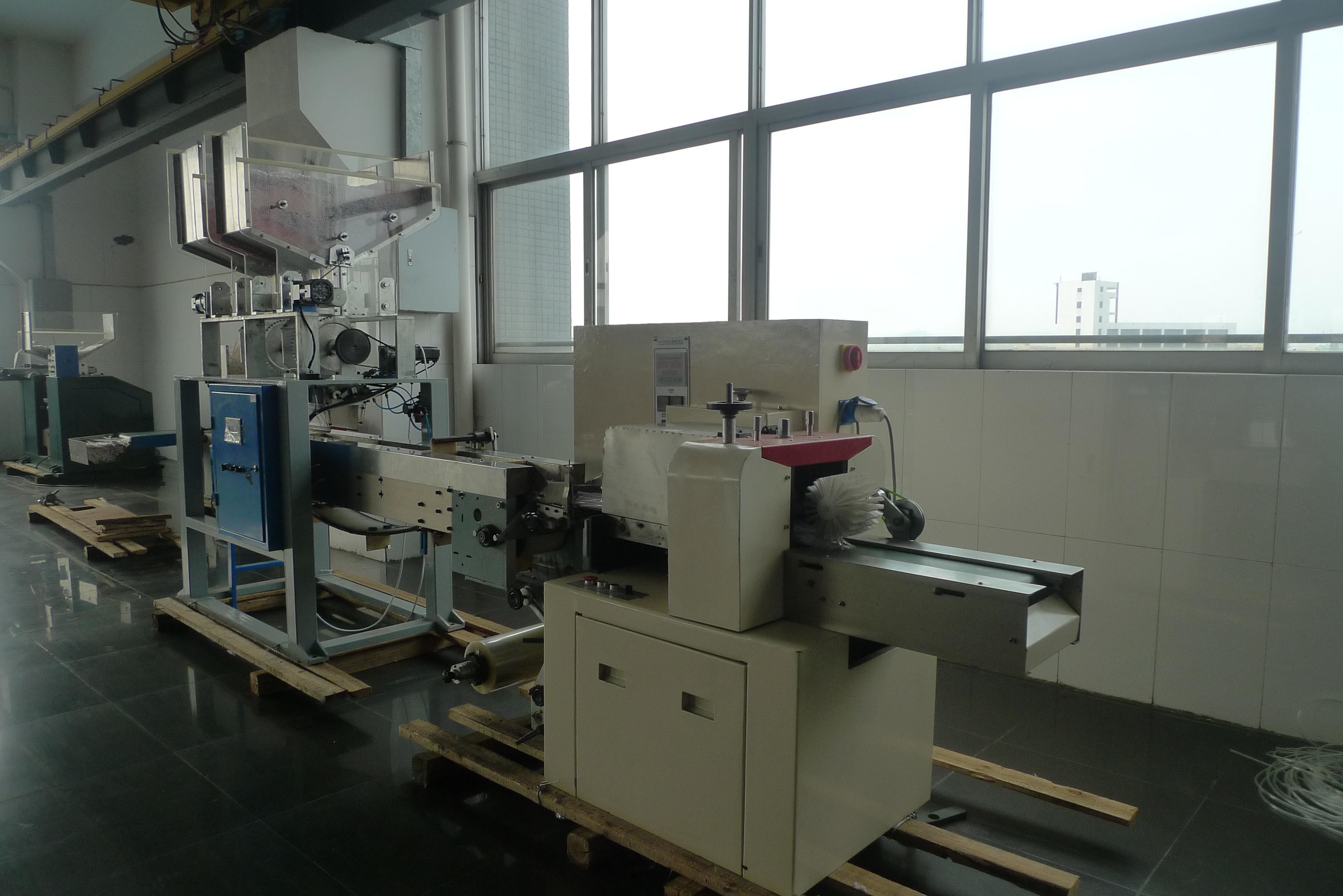

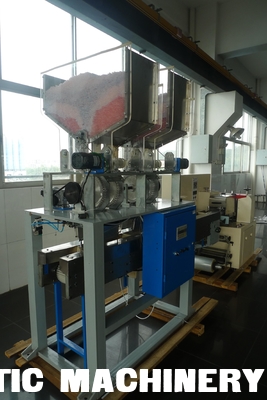

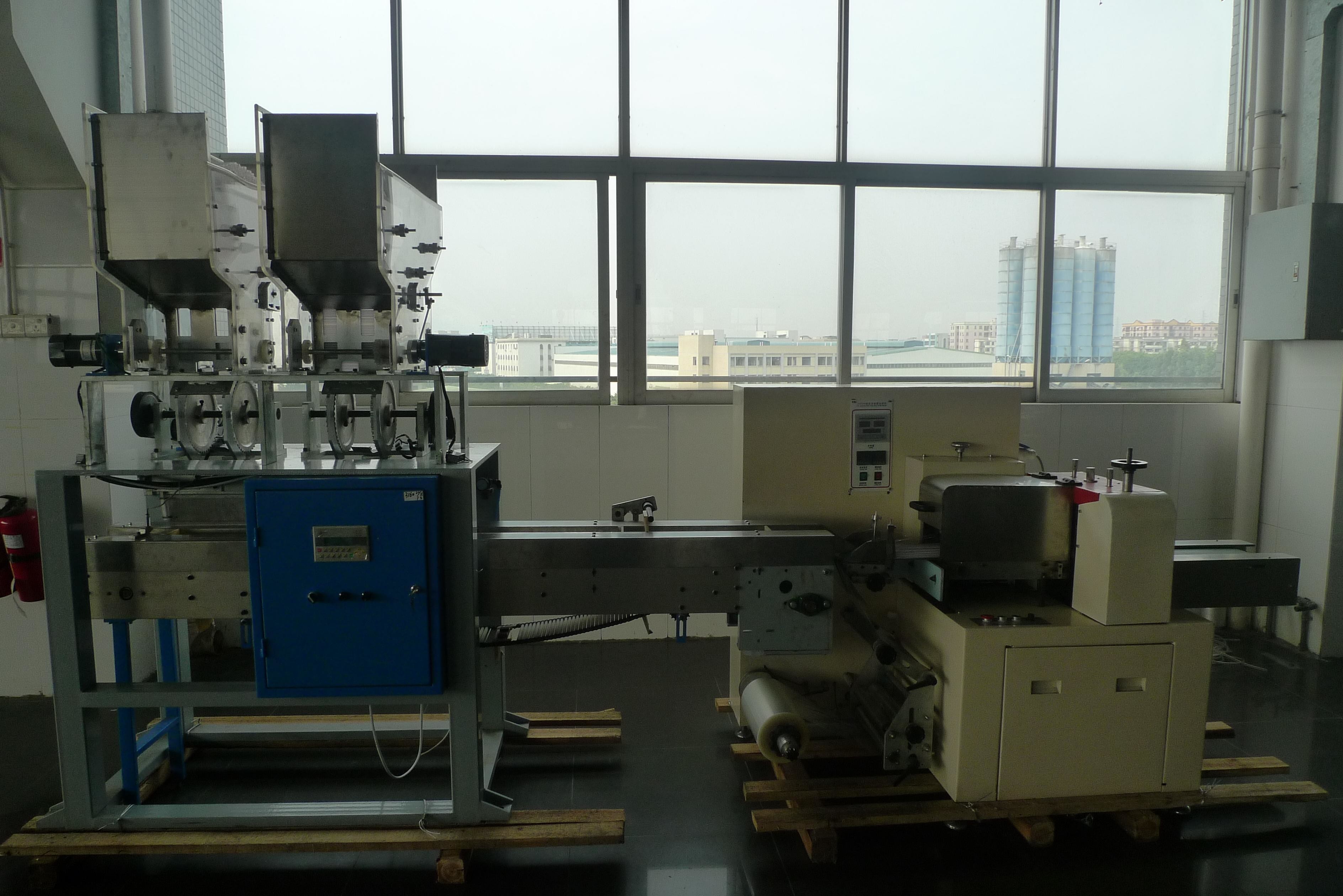

    AFX-200 Group Straw Packing Machine , Max. 250 Pieces Straws Packing

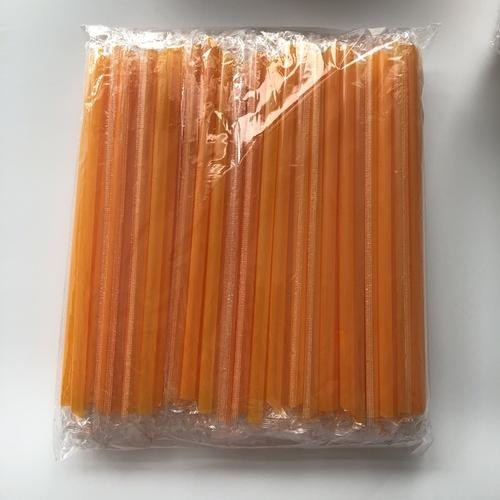

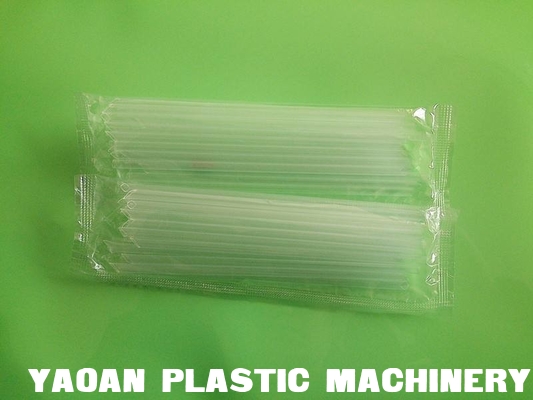

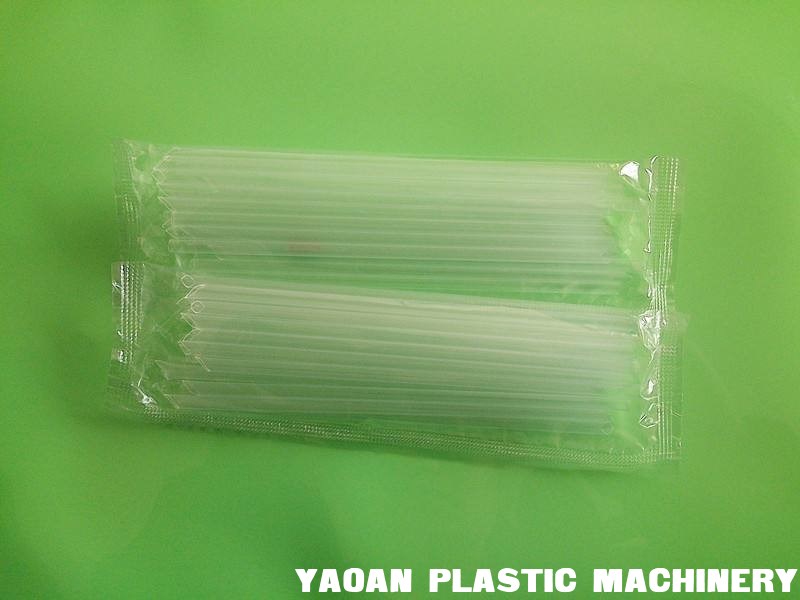

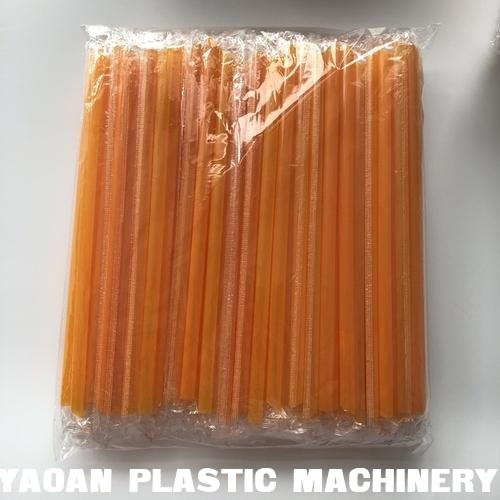

    This machine is used to pack the straws in a group in a poly bag by the BOPP film,4 sides sealing.

    It can pack Max.250 peices straw in one plastic bag.





    Main performance:

    1. Touch screen, convenient adjustment

    2. PLC controller, accurate calculation

    3. Photoelectric detection, great precision

    4. The length is automatic detected and set, without manual

    5. Unlimited speed, the scope of speed and length are very wide range

    6. Trilateral closure H (pillow sealing)

    Features:

    1. Automatic counting, feeding and packing.

    2. Calculated by counting wheel, more accurate

    3. Counting wheel can be replace

    4. Straws counting and packaging is the two independent parts, can be operated alone.

    Scope of application:

    Φ 6mm Max.L 250mm MAX. 250/bag

    Φ 8mm Max.L 250mm MAX. 200/bag

    Specification:

    AFX-200 Group Straw Packing Machine , Max. 250 Pieces Straws Packing

    Model AFX-200
    Packaging film thickness 18-60Mircon
    Max. film width 550mm
    Bag length 150-600mm
    Packaging width 80-260mm
    Packaging height 30-70mm
    Packing speed(Depend on packing material) 8-28bag/min
    Machine dimension 2800×1200×2350mm
    Machine weight 650kg




    Configuration
    NO Appliance Brand
    1 Touch Screen WEINVIEM from Taiwan
    2 Frequency converter SUNFAR from China
    3 PLC control unit PANASONIC from Japan
    4 Motor DASU from China
    5 Servo Motor DORNA from China
    6 Speed Motor HOULE from China
    7 Temperature controller YKEYANG from China
    8 Power switch DELIXI from China
    9 Photoelectric detection sensor JULONG/CNHENW from China
    10 Rotay encoder OMRON
    11 Proximity sensor OMRON
    12 Air cylinder ZHUOYI from China
    13 Electromagnetic valve ZHUOYI from China
    14 Solid state relay LONGLIVE from China
    Standard Accessories
    NO Name quantity
    1 Electric heating tube 2 units
    2 Thermocouple wire 2 units
    3 Plastic brush 5 units
    4 brass wire brush 1 units
    5 spanner 1 set
    6 screw-driver 1 set
    7 Manual 1 set

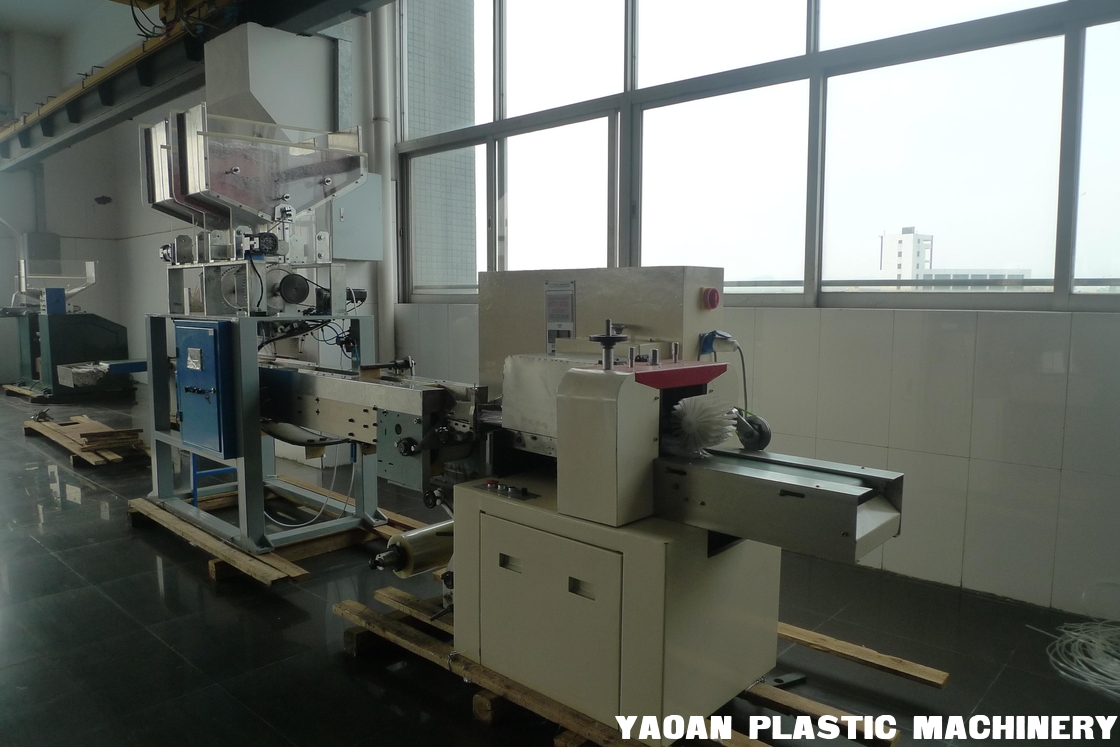

    AFX-200 Group Straw Packing Machine , Max. 250 Pieces Straws Packing

    Packaging and shipping



    PACKAGING

    plastic film + stretch film + wooden case + drying agent.



    DELIVERY

    About 30 days (all new parts)



    SHIPPING

    We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
    We care each and every point so that our clients could receive the machines in perfect situation.




    What is our service system?



    PRE-SALE

    a. Detailed machine introduction;
    b. Suggest suitable turnkey solution as per clients requirements;
    c. Provide test production for reference;



    IN PRODUCTION

    a. Supply layout drawing to clients for preparation;
    b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
    c. Keep the clients be informed of the production status;



    AFTER SALE

    a. Send engineers to overseas for installation ,commissioning and training;
    b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
    c. Offer help if any need from clients like spare parts need etc;
    d. Supply necessary technical support at request;




    Why choose YAOAN MACHINERY?
    1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

    2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

    3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

    4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

    FAQ
    Q1: What is the guarantee of the machine?
    A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

    Q2: What package do you use for the machine?
    A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

    Q3: Do you have instruction manual to guide us if i buy the machine?
    A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

    Q4: What is your service to overseas clients?
    A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
