High Output 4 Layers PC Luggage Sheet Extrusion Machine for Making Hard Trolley Cases

High Output 4 Layers PC Luggage Sheet Extrusion Machine for Making Hard Trolley Cases

    • High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases
    • High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases
    • High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases
    • High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases
    • High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases
  • High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Raw Material: PC Capacity: 300-400kgs/Hr
    Motor: Siemens Inverter: ABB
    CE: Yes Warranty: 1 Year
    Sheet Surface: Mirror,Embossing, Film Sheet Quality: Super Flat And Shining

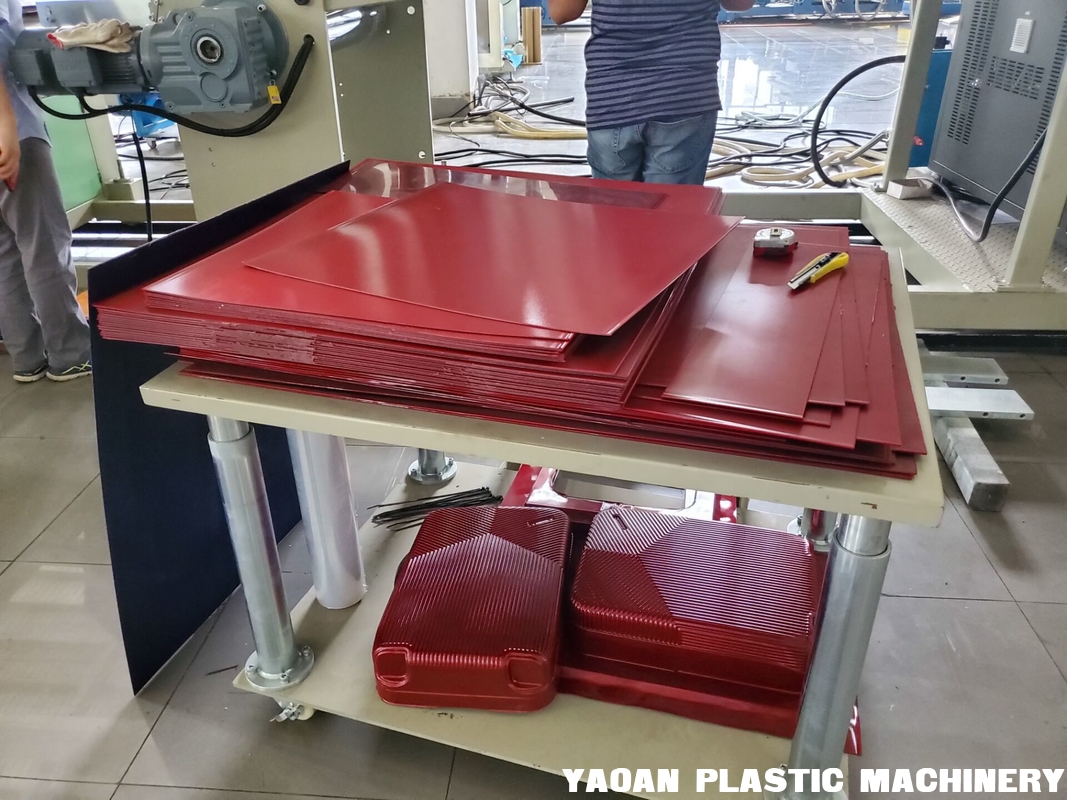

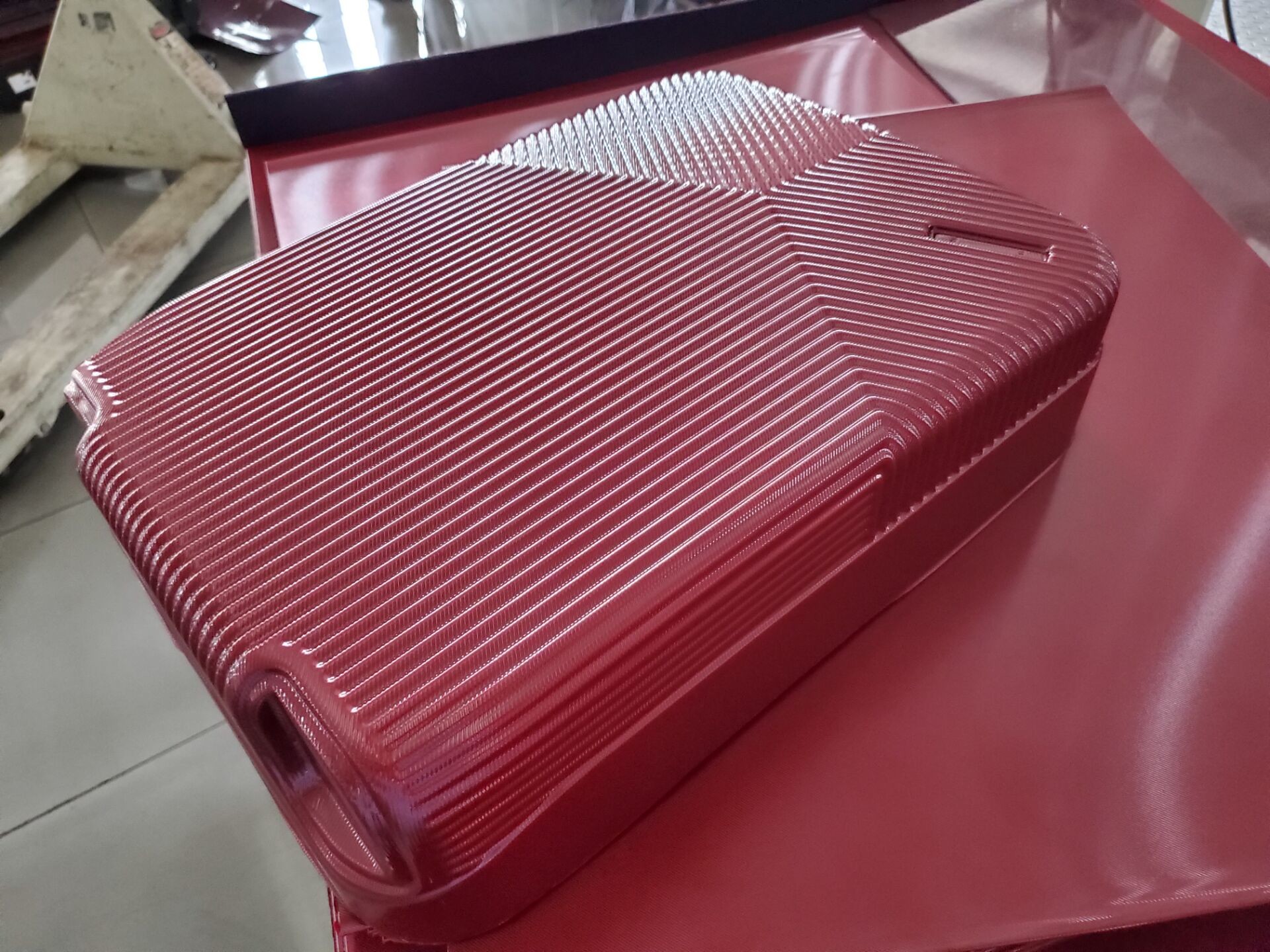

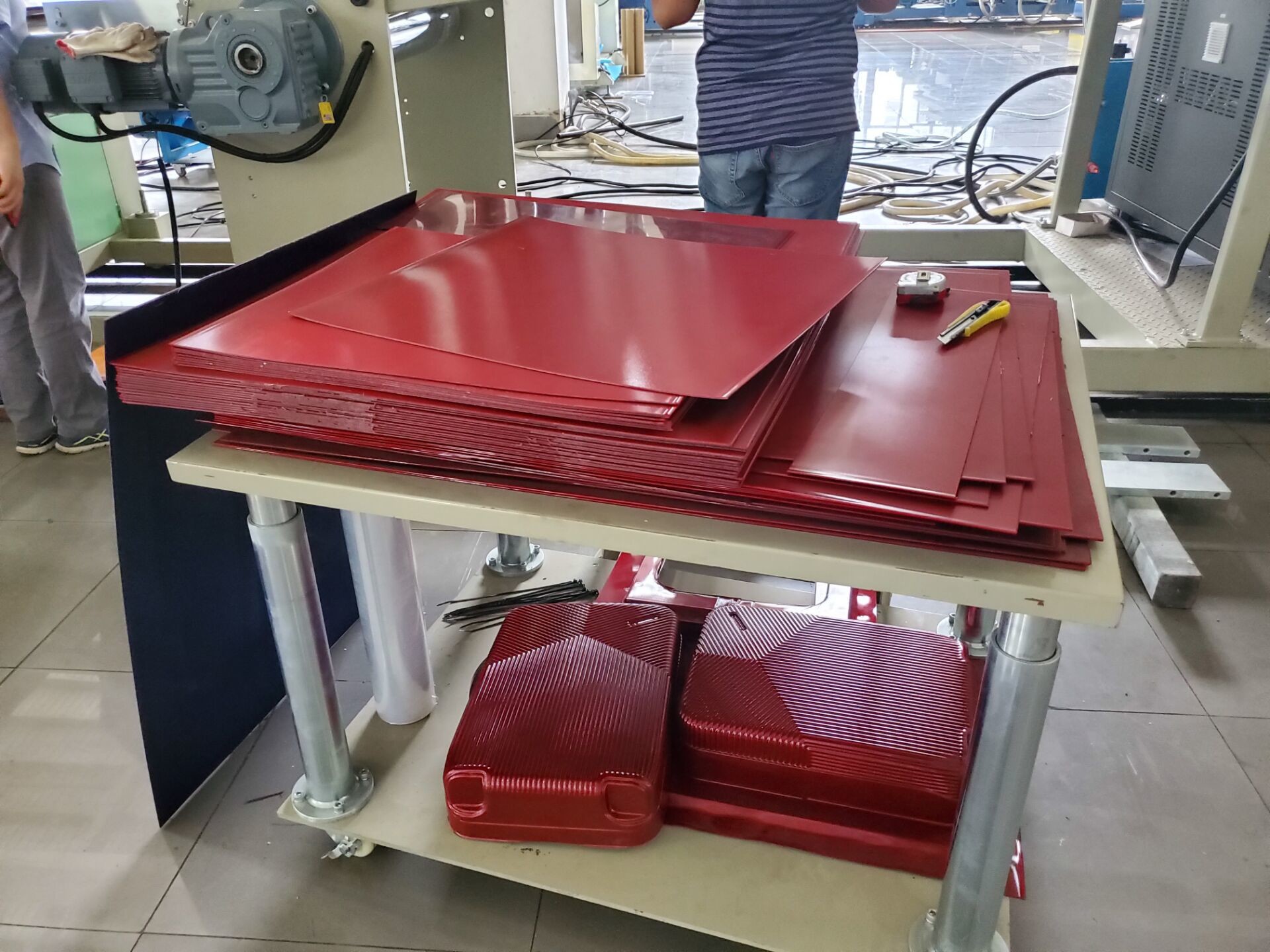

    Sheet Per Day: 2000-5000PCS Sheet Application: Luggage Case, Trolley Case, Suitcase
    Machine Dimension: 22000*5000*3000mm HS Code: 8477209000
    Luggage Size: 20, 24, 28 Inch Computerized: Siemens PLC

    High Output 4 Layers PC Luggage Sheet Extrusion Machine for Making Hard Trolley Cases

    20+ GLOBAL MARKETS
    YAOAN (ANFU) nonwoven machines have already been provided to over 20 countries and regions.

    300+ LINES RUNNING
    So far, over 300 sets of PC ABS luggage sheet machines have been installed all over the world.
    YAOAN is a leading manufacturer of high performance PC co-extrusion sheet line. and we have exported tens of the lines to the other countries worldwidely. PC co-extrusion sheet is widely used in producing luggage bags, travelling case. YAOAN equipment with it's own know-how, especially on the extrusion technology and product extrusion design.



    GOOD PRICE
    We provide you high quality PC ABS sheet extrusion machine with good price, help you to get a great start of your luggage case, trolley case business. Machine price is also negotiable to reach your budget.



    MANY YEARS OF EXPERIENCE
    In 1998, YAOAN (ANFU) started working on manufacture of PC ABS sheet extrusion machine. So far, over 300 lines have been installed all over the world. In China market, 80% luggage case manufacturer is using our company luggage case machines and luggage thermoforming machines.

    QUALITY SERVICE
    We match your needs and help you execute your individual production process with as few unexpected interruptions as possible.


    Machine features:
    Screw with special mixing and plasticization function;
    Clothes hanger type die with two throttle designs which enable to regulate the sheet thickness accurately; ±1 temperature control make the plasticizing process and sheet thickness control more accurate;
    Horinzontal and vertical incline type three rollers calenders may be lifted freely;
    Sheet thickness shall be regulated by screw and pressing roller;
    Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness; Exact slicing machine, board length and quantity;
    Winder with big torque motor, and its speed and tension force adjustable;
    Automatic metering to set the length of product.


    Luggage case PC ABS sheet structures:

    Sheet layers extruder size sheet structure sheet width thickness Machine output
    Single layer AF-120 A 800mm-1000mm 1-4mm 300-400kgs/hr
    Two layers AF-100&AF-80 AB 800mm-1000mm 1-4mm 300-400kgs/hr
    Three layers AF-120&AF-80&AF-50 ABC 800mm-1000mm 1-4mm 300-400kgs/hr
    Five layers AF-120&AF-80&AF-80 ABCBA 800mm-1000mm 1-4mm 300-400kgs/hr

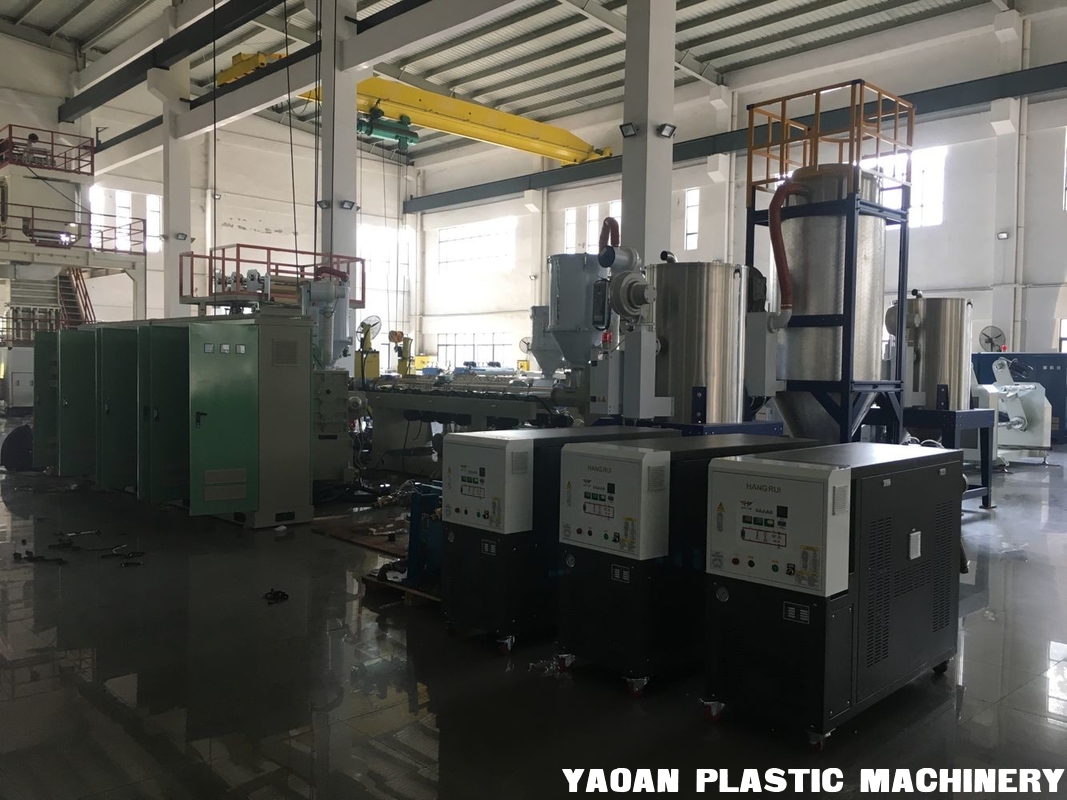

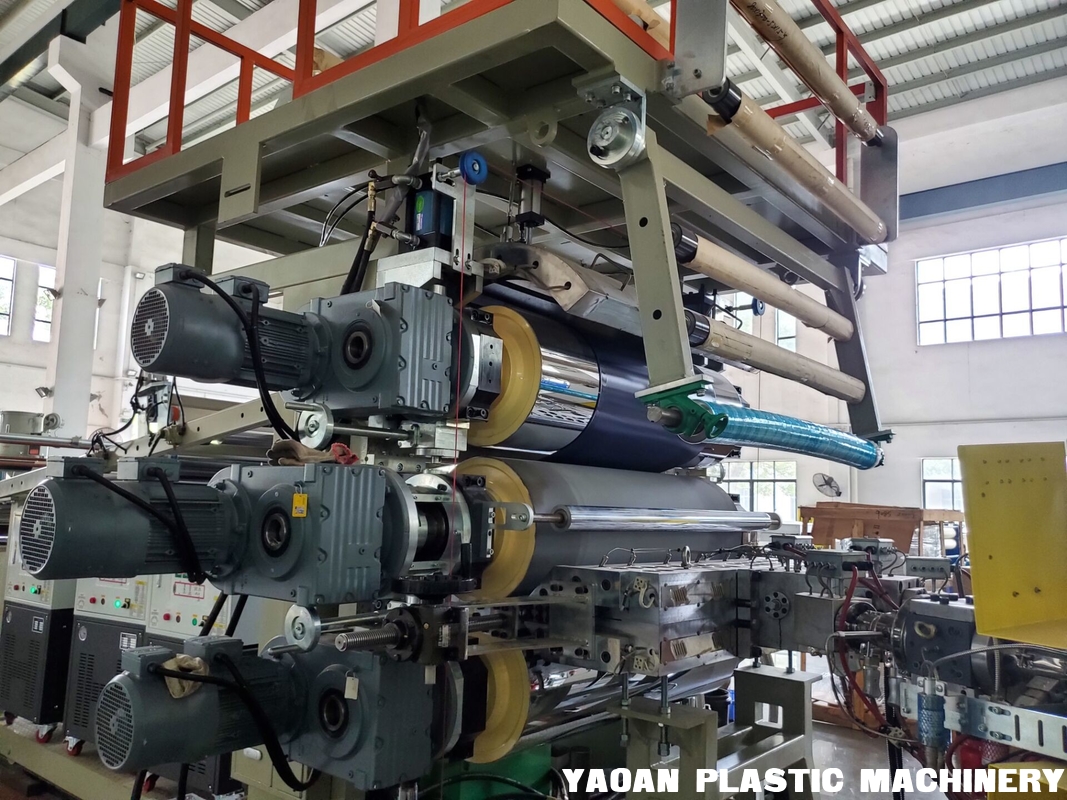

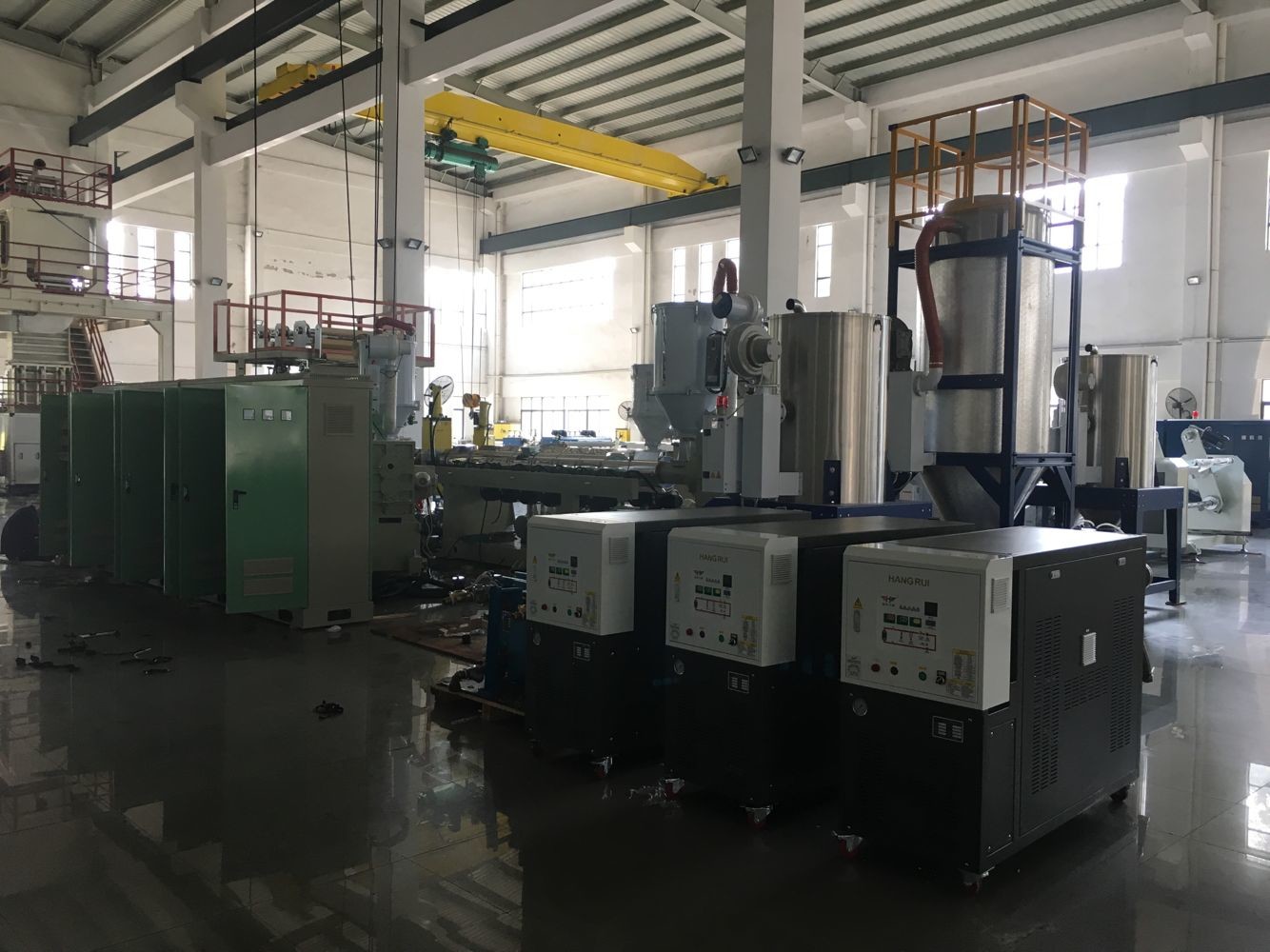

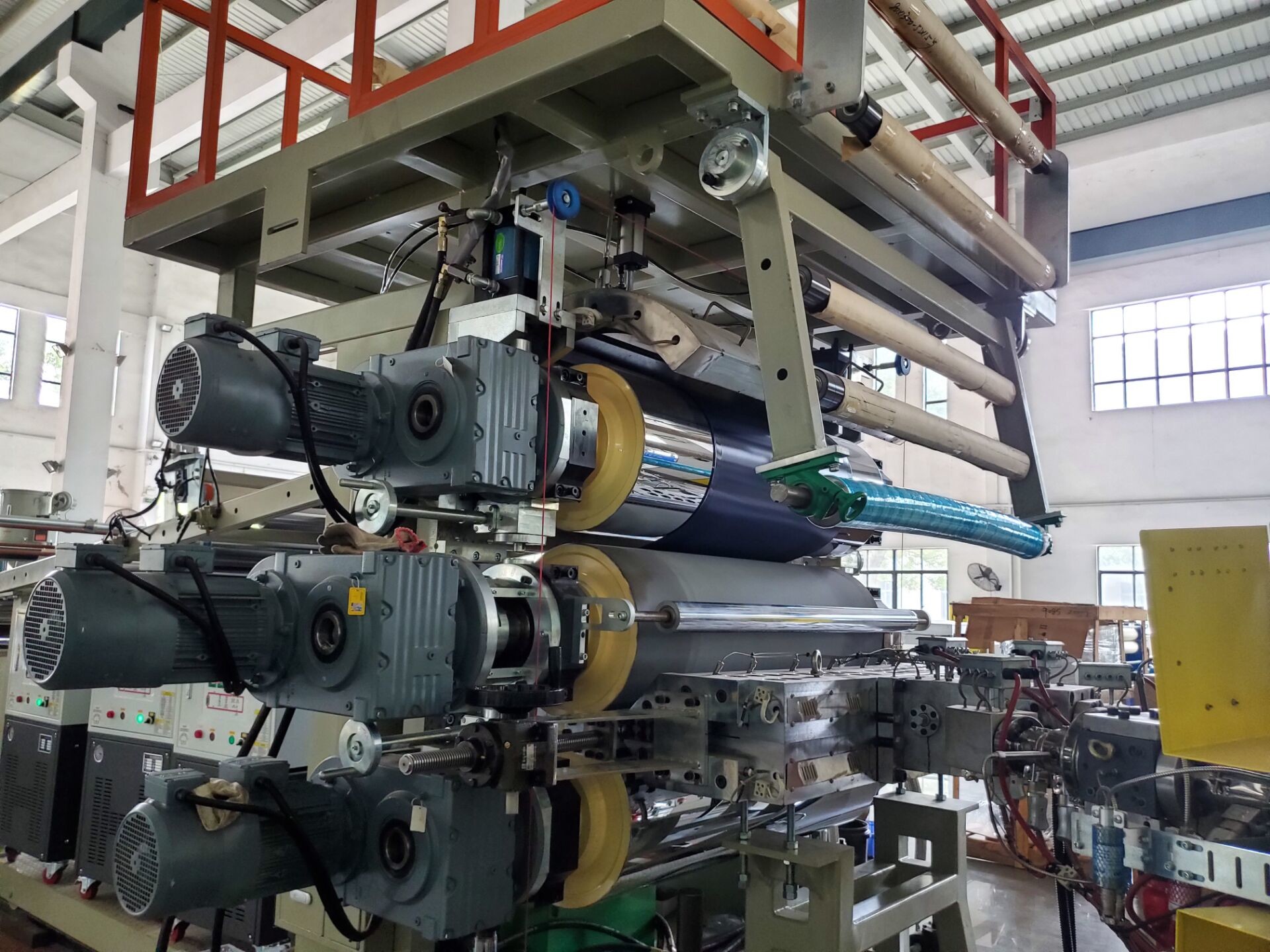

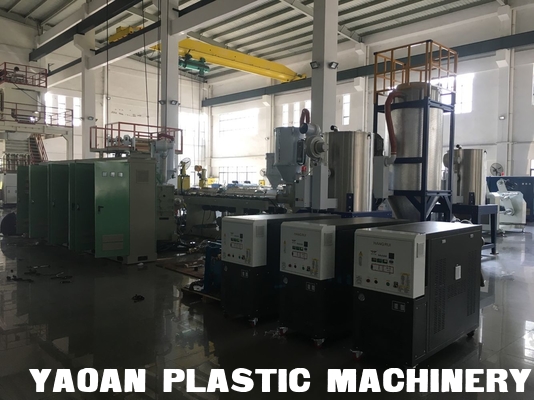

    4 layer PC ABS sheet extrusion machine detail photos:
    High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases
    High Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley CasesHigh Output 4 Layers PC Luggage  Sheet Extrusion Machine for Making Hard Trolley Cases

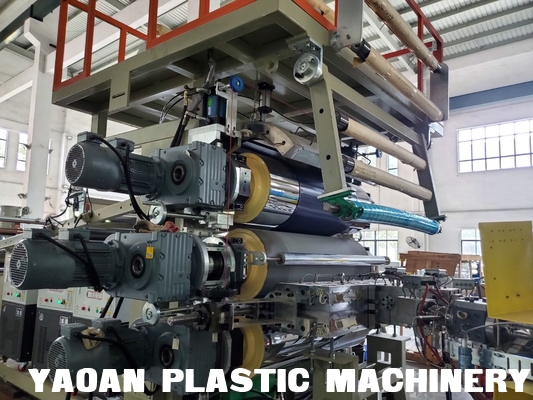

    Vertical calender:
    Three Layer PC ABS Sheet Extrusion Machine for Making Baggage Luggage Case
    Three Layer PC ABS Sheet Extrusion Machine for Making Baggage Luggage Case

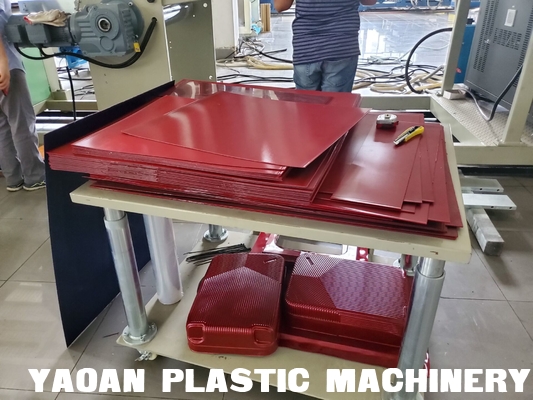

    Sheet thermoforming machine:
    Three Layer PC ABS Sheet Extrusion Machine for Making Baggage Luggage Case

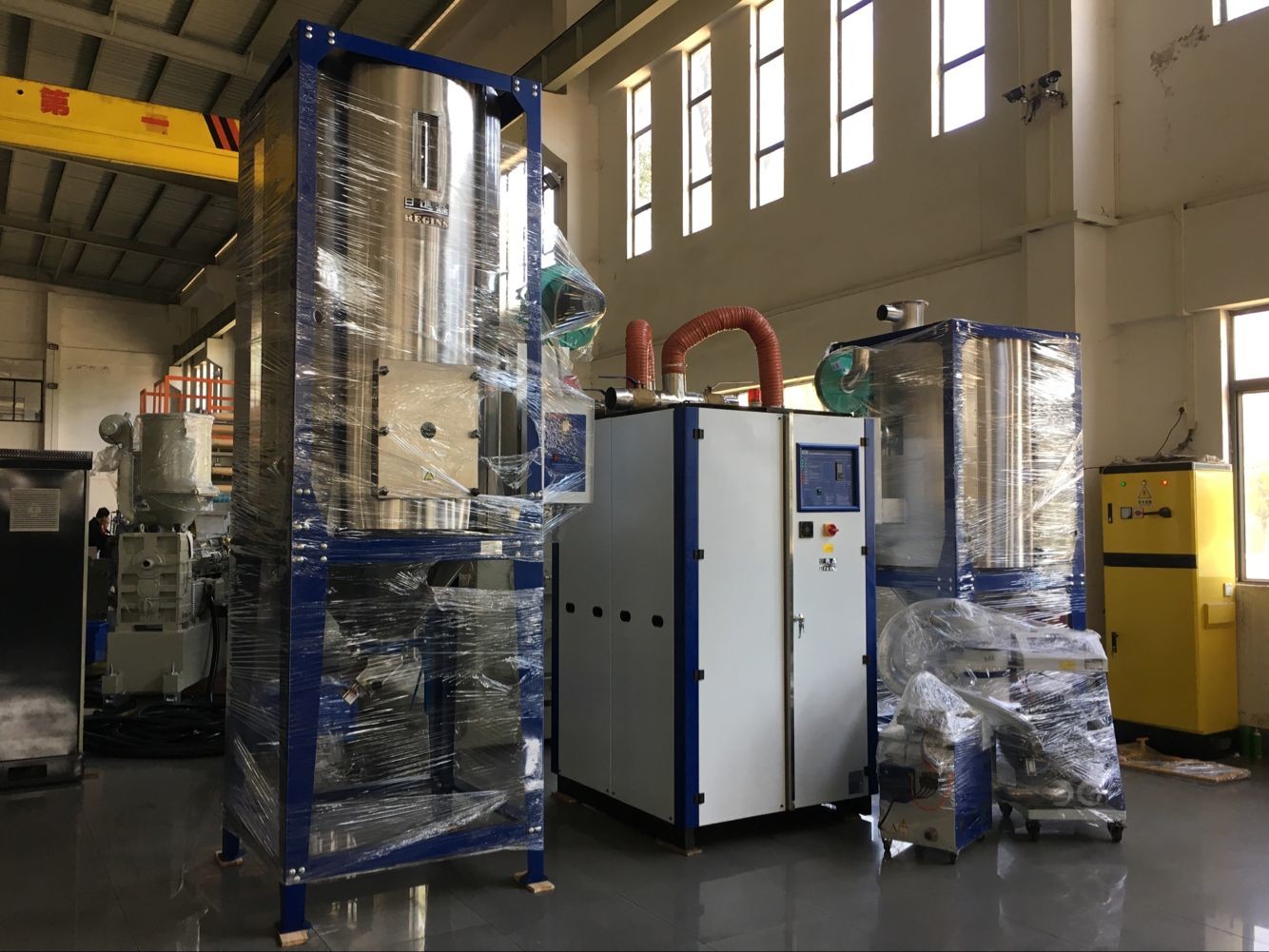

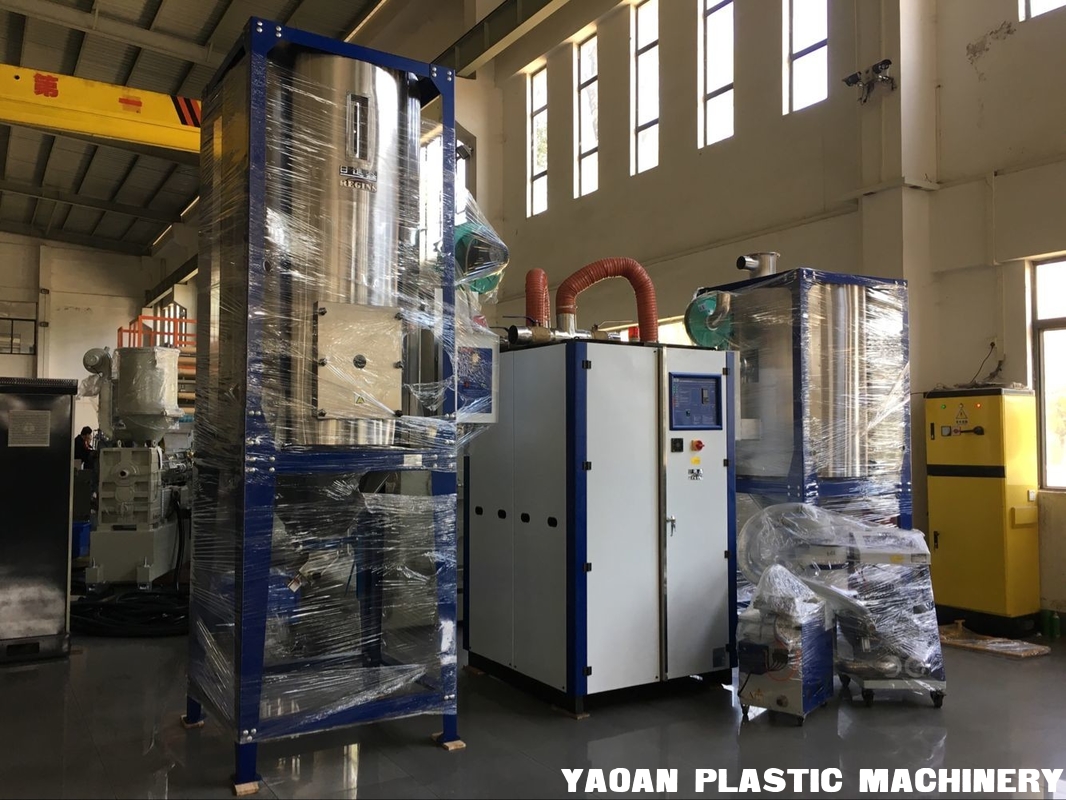

    Our machine shipment:
    Three Layer PC ABS Sheet Extrusion Machine for Making Baggage Luggage Case

    Packaging and shipping

    PACKAGING plastic film + stretch film + wooden case + drying agent.
    DELIVERY About 100 days (all new parts)
    SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
    We care each and every point so that our clients could receive the machines in perfect situation.


    What is our service system?

    PRE-SALE a. Detailed machine introduction;
    b. Suggest suitable turnkey solution as per clients requirements;
    c. Provide test production for reference;
    IN PRODUCTION a. Supply layout drawing to clients for preparation;
    b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
    c. Keep the clients be informed of the production status;
    AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
    b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
    c. Offer help if any need from clients like spare parts need etc;
    d. Supply necessary technical support at request;


    Why choose YAOAN MACHINERY?
    1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

    2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

    3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

    4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

    FAQ
    Q1: What is the guarantee of the machine?
    A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

    Q2: What package do you use for the machine?
    A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

    Q3: Do you have instruction manual to guide us if i buy the machine?
    A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

    Q4: What is your service to overseas clients?
    A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
