|Place of Origin:||CHINA|
|Model Number:||AF-110 & 65|
|Minimum Order Quantity:||1|
|Packaging Details:||WOODEN BOX|
|Delivery Time:||30-90 DAYS|
|Supply Ability:||100 SETS PER MONTH|
|Raw Material:||ABS ,PC||Capacity:||200-300kgs/Hr|
|Sheet Surface:||Mirror,Embossing, Film||Sheet Quality:||Super Flat And Shining|
|Sheet Per Day:||2000-5000PCS||Sheet Application:||Luggage Case, Trolley Case, Suitcase|
|Machine Dimension:||22000*5000*3000mm||HS Code:||8477209000|
|Luggage Size:||20, 24, 28 Inch||Computerized:||Siemens PLC|
2 Layers PC ABS Luggage Sheet Extrusion Machine for Making Baggage Luggage Case
We provide you high quality PC ABS sheet extrusion machine with good price, help you to get a great start of your luggage case, trolley case business. Machine price is also negotiable to reach your budget.
MANY YEARS OF EXPERIENCE
In 1998, YAOAN (ANFU) started working on manufacture of PC ABS sheet extrusion machine. So far, over 300 lines have been installed all over the world. In China market, 80% luggage case manufacturer is using our company luggage case machines and luggage thermoforming machines.
We match your needs and help you execute your individual production process with as few unexpected interruptions as possible.
20+ GLOBAL MARKETS
YAOAN (ANFU) nonwoven machines have already been provided to over 20 countries and regions.
300+ LINES RUNNING
So far, over 300 sets of PC ABS luggage sheet machines have been installed all over the world.
YAOAN is a leading manufacturer of high performance PC co-extrusion sheet line. and we have exported tens of the lines to the other countries worldwidely. PC co-extrusion sheet is widely used in producing luggage bags, travelling case. YAOAN equipment with it's own know-how, especially on the extrusion technology and product extrusion design.
Screw with special mixing and plasticization function;
Clothes hanger type die with two throttle designs which enable to regulate the sheet thickness accurately; ±1 temperature control make the plasticizing process and sheet thickness control more accurate;
Horinzontal and vertical incline type three rollers calenders may be lifted freely;
Sheet thickness shall be regulated by screw and pressing roller;
Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness; Exact slicing machine, board length and quantity;
Winder with big torque motor, and its speed and tension force adjustable;
Automatic metering to set the length of product.

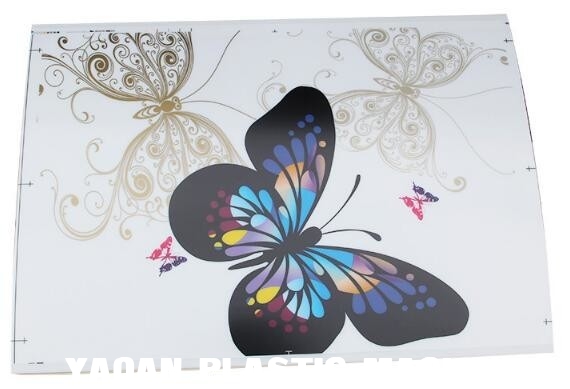

Luggage case PC ABS sheet structures:
|Sheet layers||extruder size||sheet structure||sheet width||thickness||Machine output|

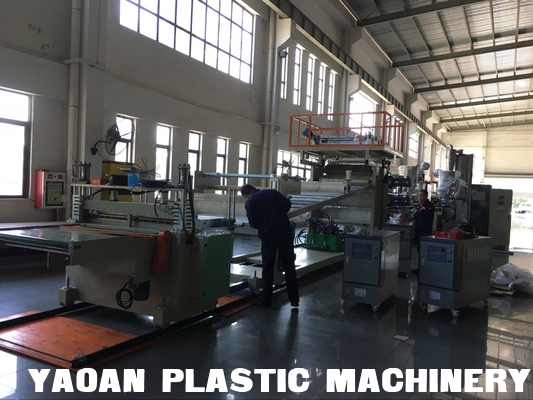

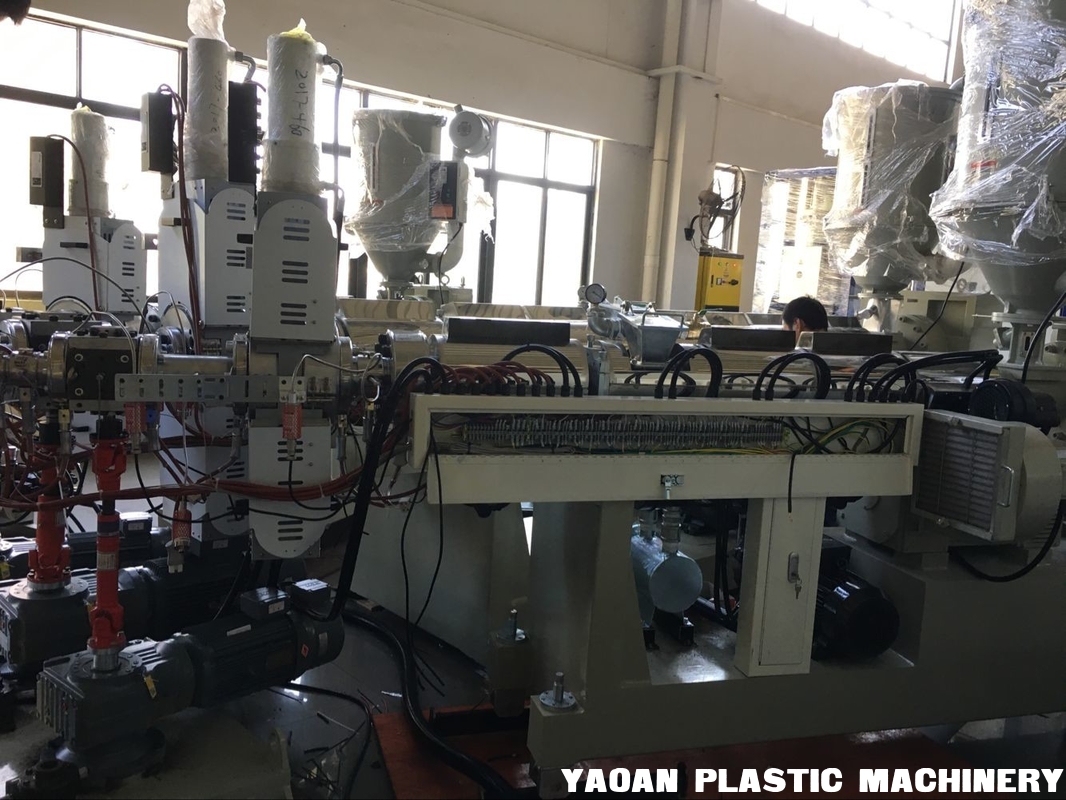

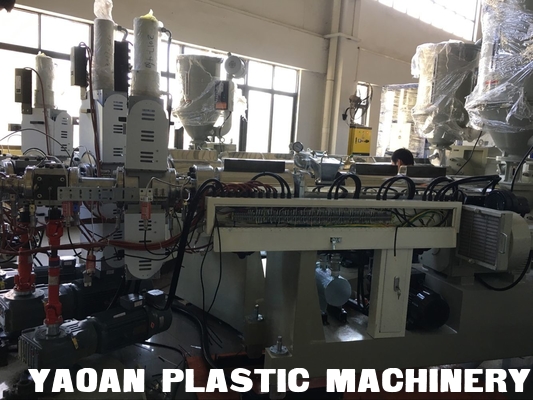

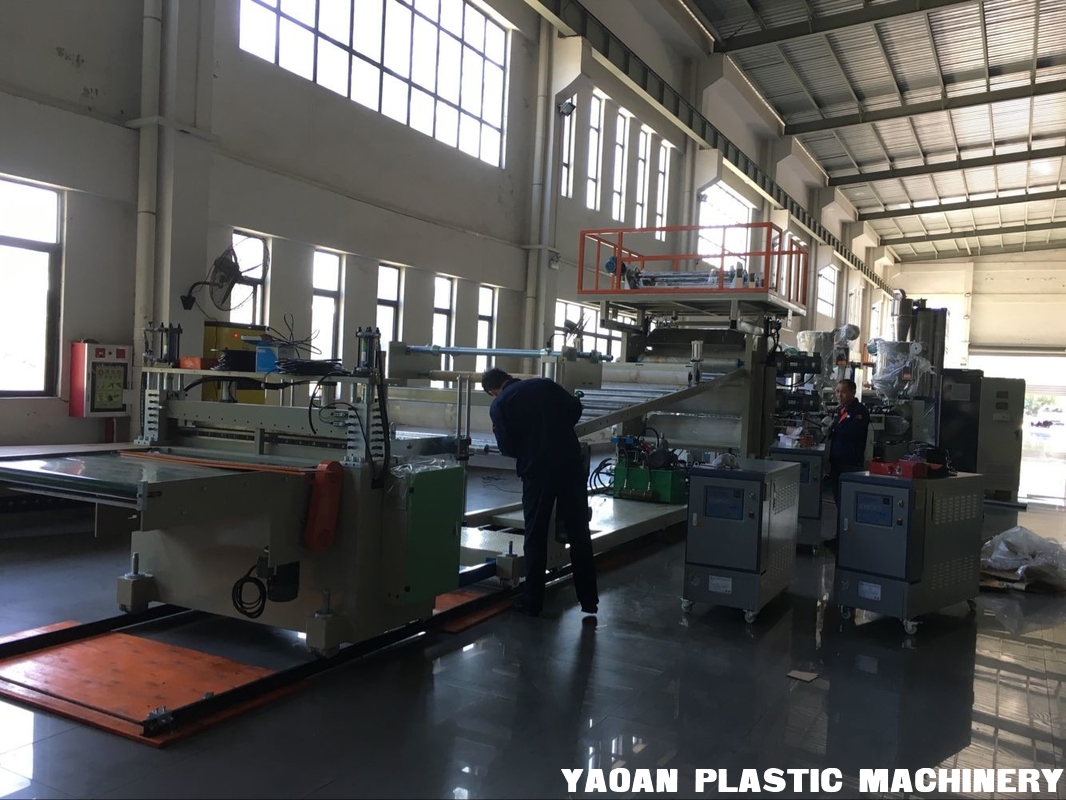

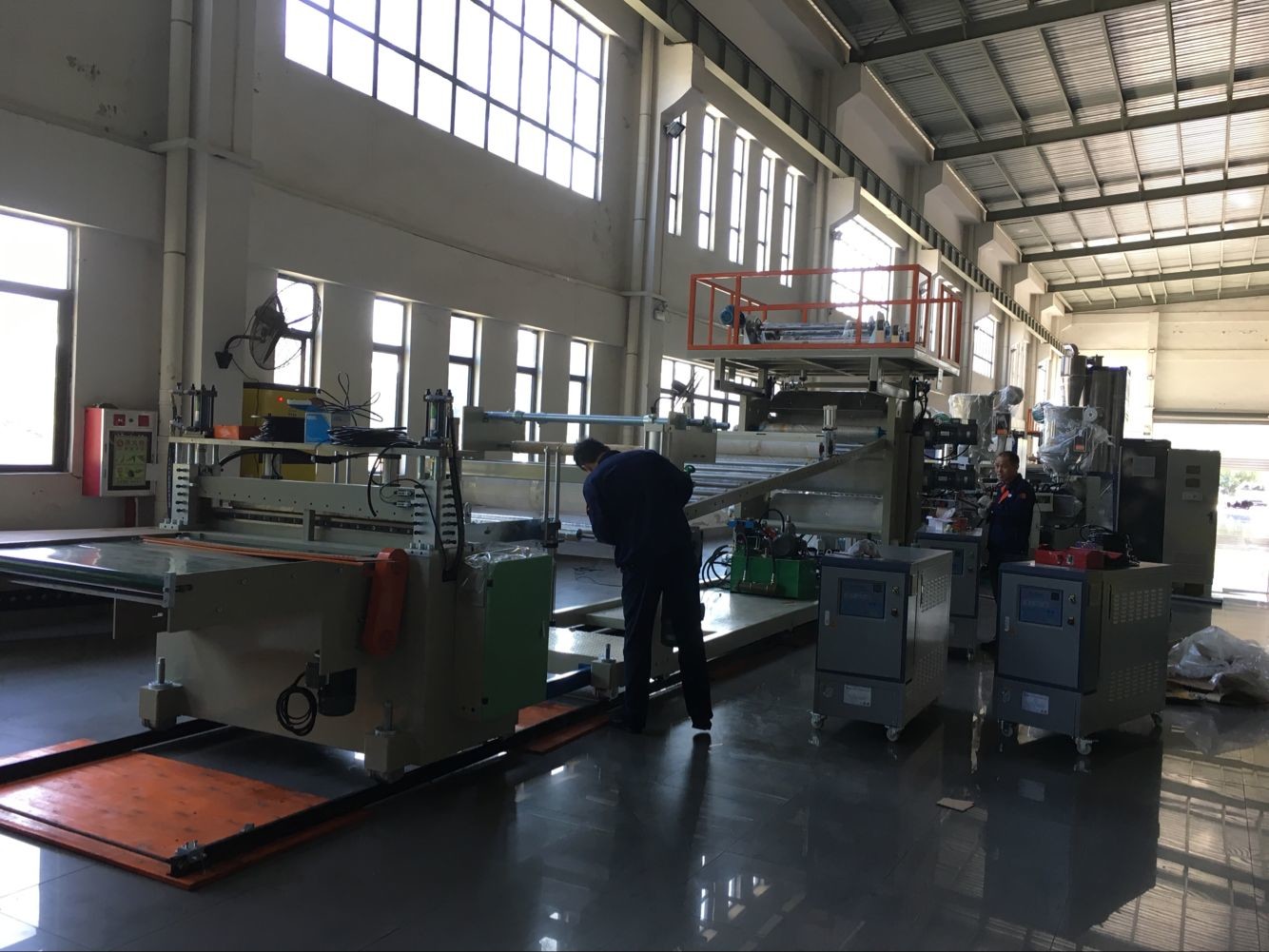

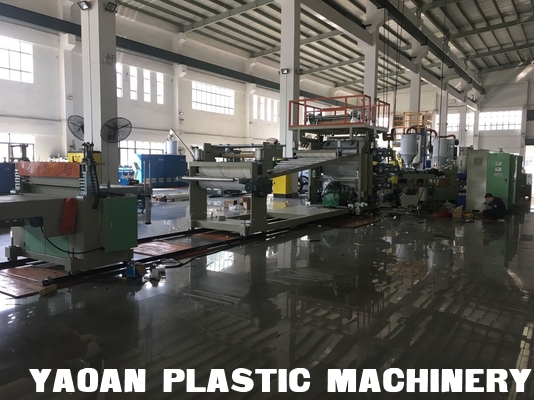

PC ABS sheet extrusion machine detail photos:

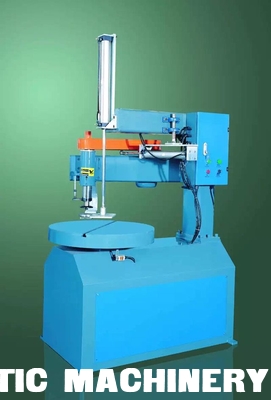

Sheet thermoforming machine:
Our machine shipment:
Packaging and shipping
|PACKAGING||plastic film + stretch film + wooden case + drying agent.|
|DELIVERY||About 100 days (all new parts)|
|SHIPPING||We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.
What is our service system?
|PRE-SALE||a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
|IN PRODUCTION||a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
|AFTER SALE||a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
