AF-50 Single Color Pen Filter Making Machine

AF-50 Single Color Pen Filter Making Machine

    • AF-50 Single Color Pen Filter Making Machine
    • AF-50 Single Color Pen Filter Making Machine
    • AF-50 Single Color Pen Filter Making Machine
    • AF-50 Single Color Pen Filter Making Machine
  • AF-50 Single Color Pen Filter Making Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Material: PP CE: Yes
    Screw Size: 50mm L/D: 28:1
    Warranty: 1 Year Capacity: 30-50kg/hr

    AF-50 Single Color Pen Filter Making Machine

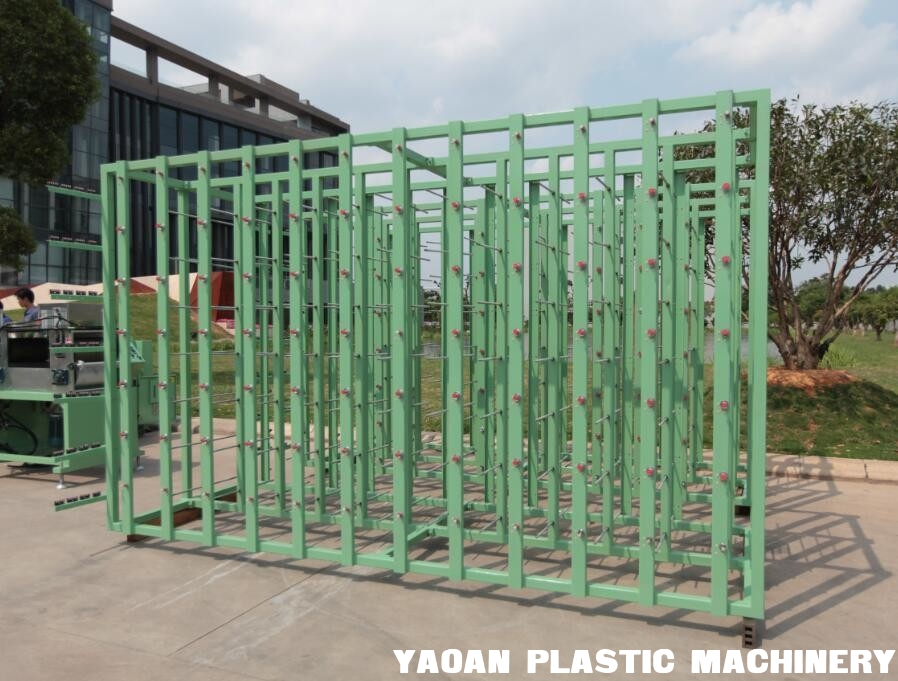

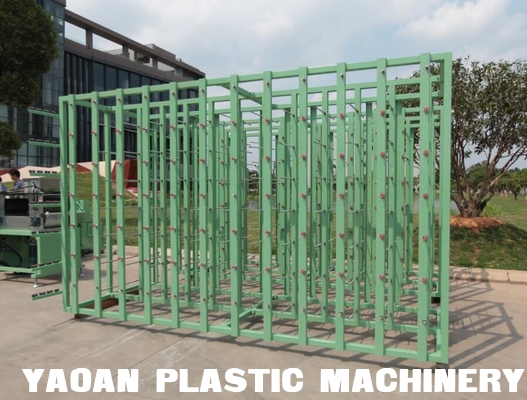

    Rewinding stand: one set

    Shafts: 320pcs



    4 rollers stretch unit: one set

    Rubber rollers: 2pcs

    Diameter: 400mm, length: 220mm



    Φ50 extruder: one set

    Hopper: one set

    Screw diameter: 50mm

    Screw L/D: 28:1

    Screw structure: special for PP

    The screw and the barrels are all made of high quality nitrided steel-38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness: screw≧740HV;barrels≧940HV. Nitration depth: screw: 0.4-0.6mm, barrel: 0.6-0.7mm, fragility is 2 grades

    Gear box (one set)

    The gear box materials is made of alloy cast steel, contract surface of up, down box deal with precision tempering, quenching heat treatment, the teeth deal with grinding and peeling eventually, the teeth surface harshness is Ra 0.8, and provided with damping, antifriction, low-noise etc. characteristics.

    Control power: 11kw

    Control style: frequency conversion

    Heating zone: 5 zones

    Cooing zone: 3 zones

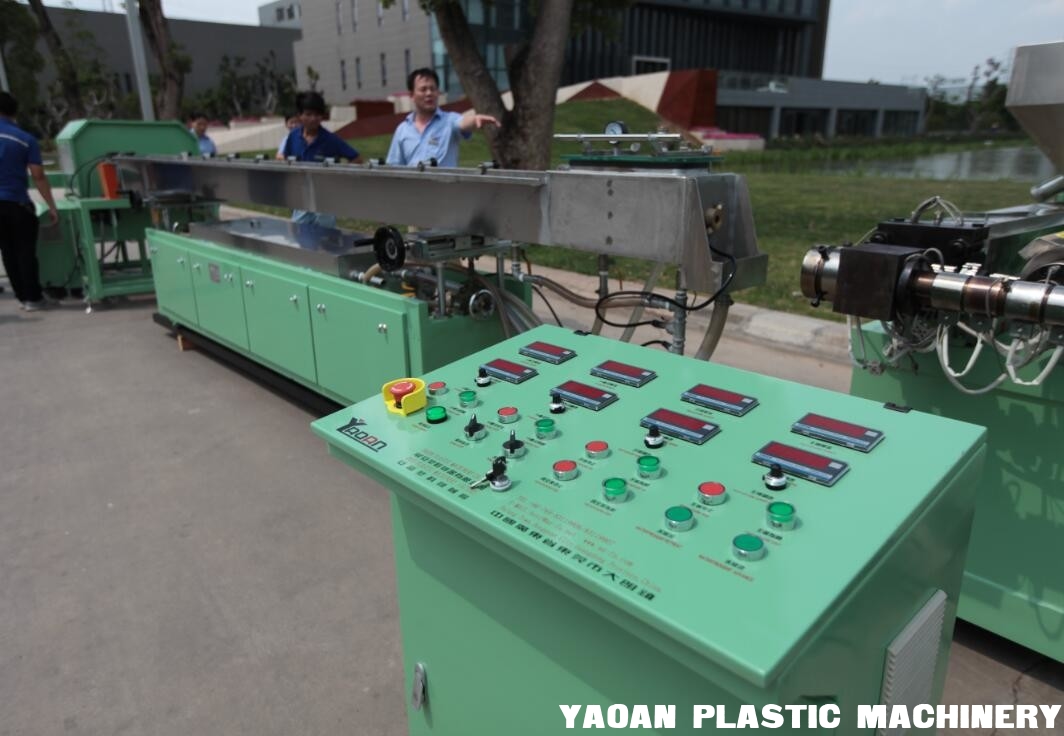

    Electric control cabinet: one set

    Include stretch unit speed control, extruder speed control, water tank movement control, vacuum control, water pump control, vacuum dewater unit control



    Extruding die: one set

    Include die lip, mandrel, copper sleeve and cutting sleeve.

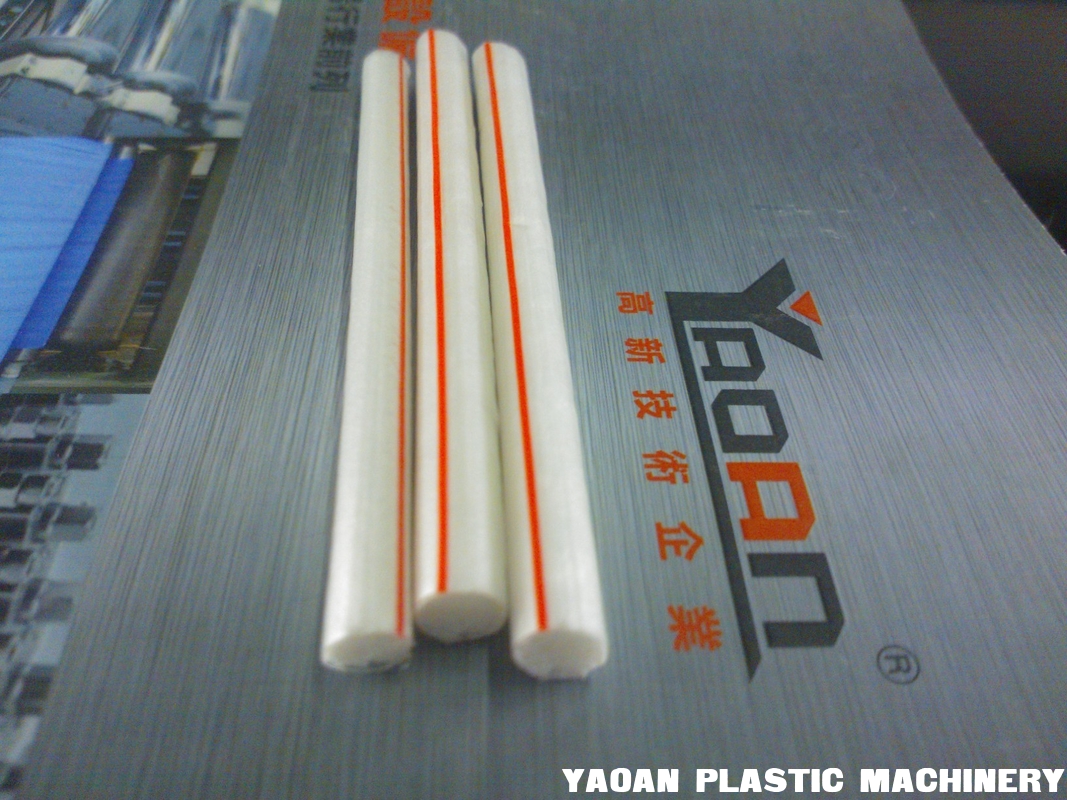

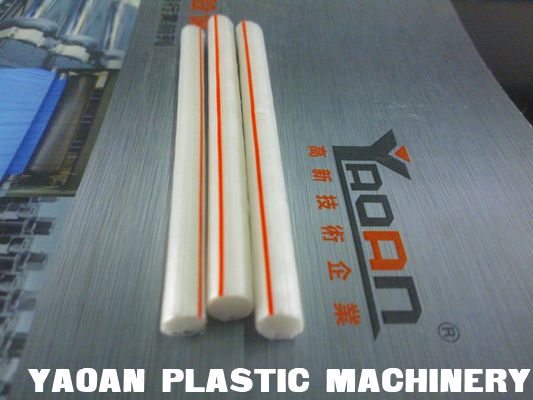

    Diameter: 4.5mm or according to customer requirements



    5m stainless steel vacuum cooling water tank: one set

    Tank size: L5000mm*W220mm*H200mm

    Water tank frame: one set



    Four rollers hauls off/cutting combination machine (one set)

    Roller material: PU, hardness about

    Haul off control power: 1.5kw (Mitsubishi servo motor)

    Haul off control style: servo controller

    Cutting unit control power: 1.5kw (Mitsubishi servo motor)

    Cutting unit control type: servo controller

    Cutter speed: 200-1600RPM

    Cutting length: 40-120mm



    AF-50 Single Color Pen Filter Making Machine

    AF-50 Single Color Pen Filter Making Machine
