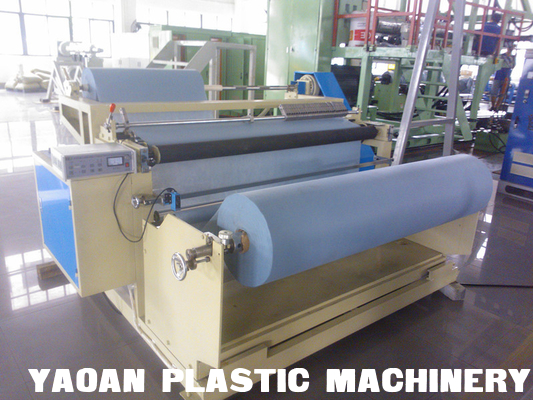

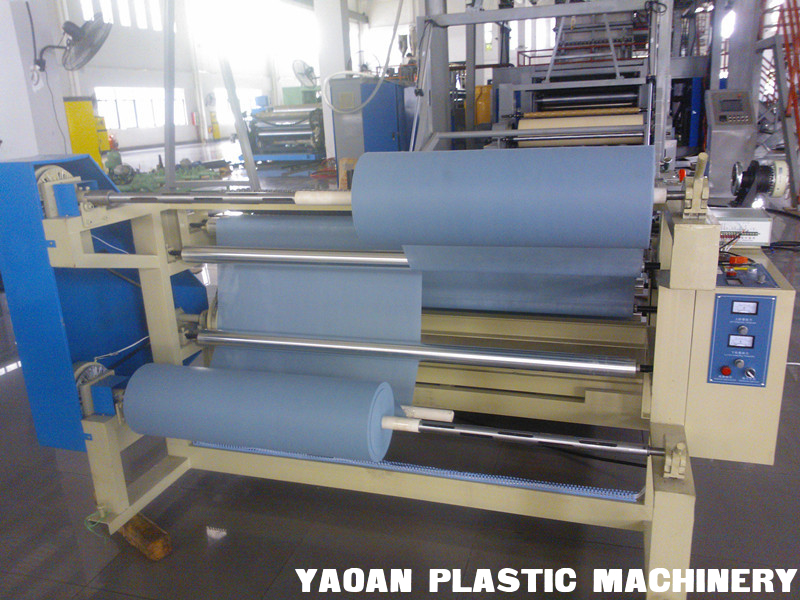

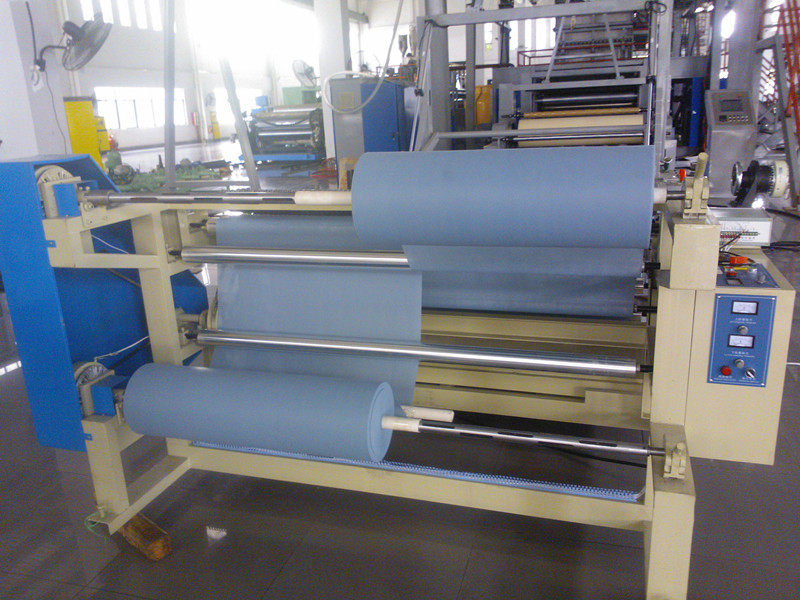

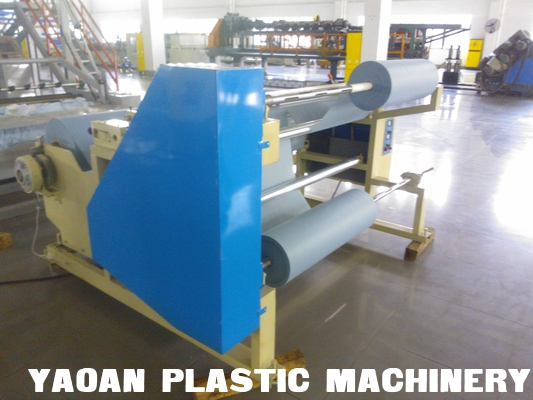

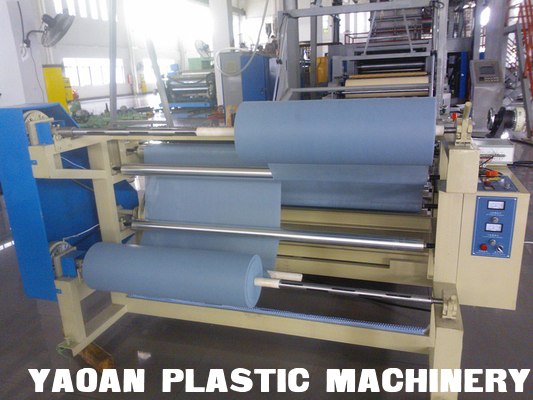

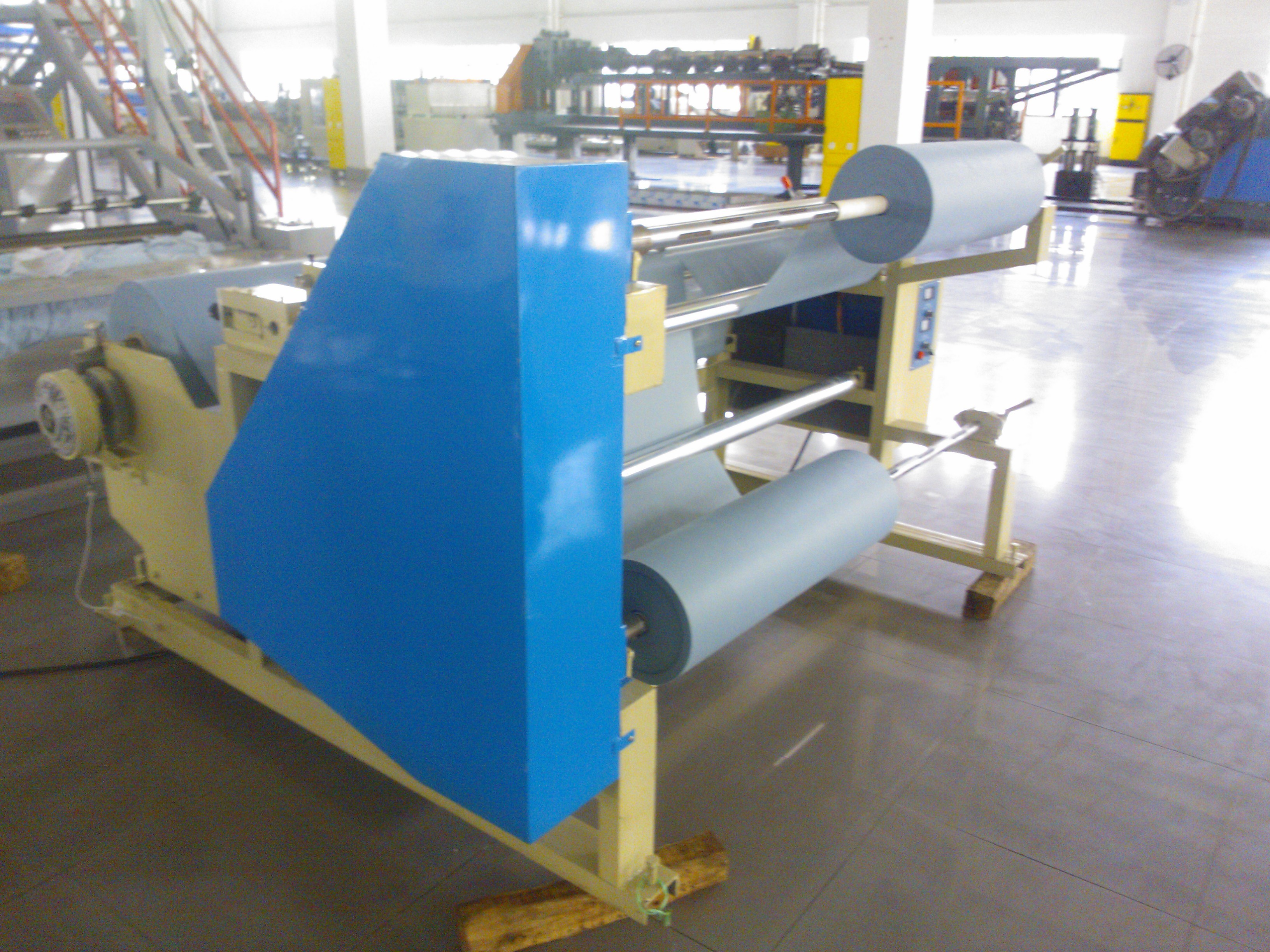

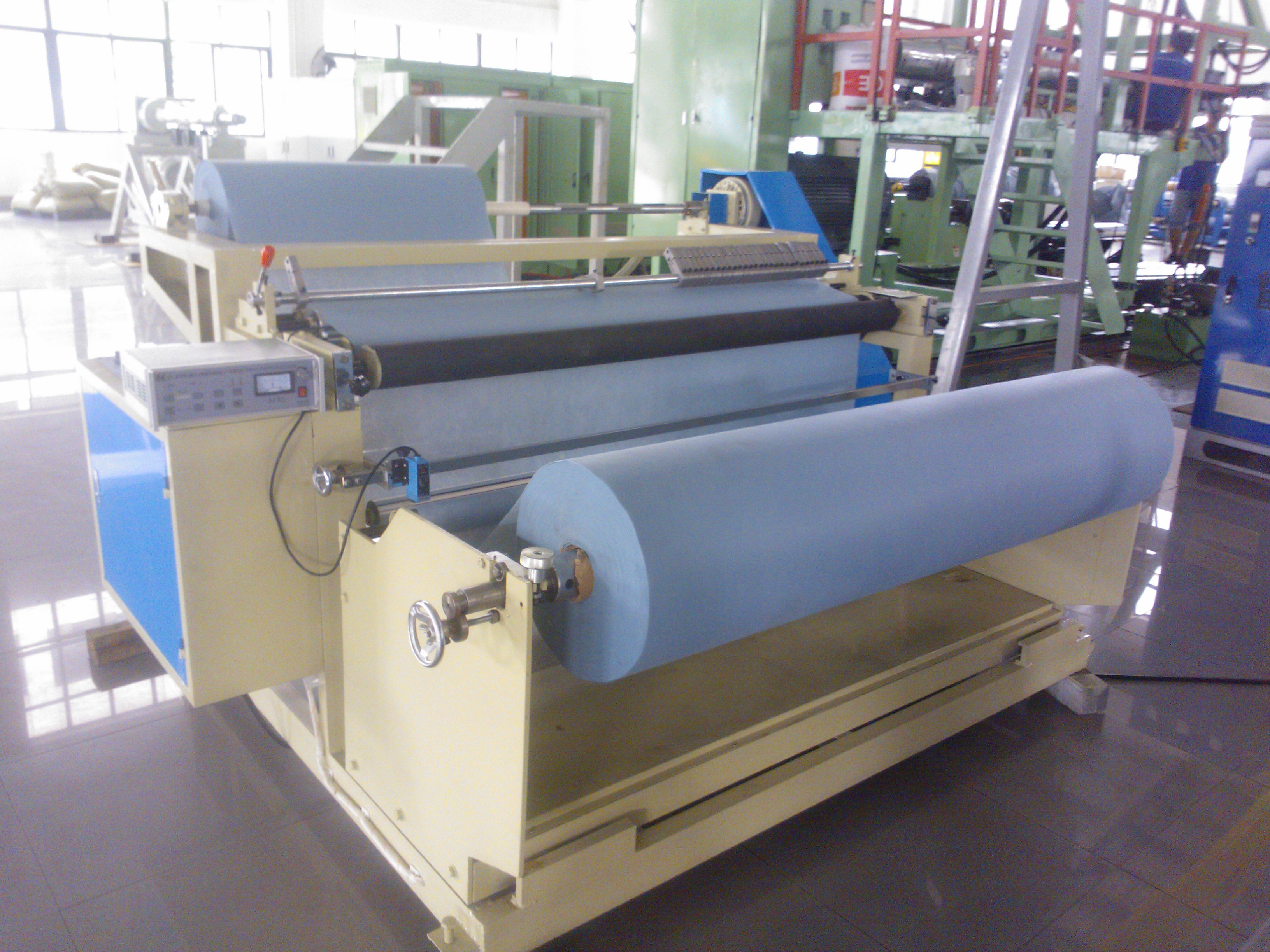

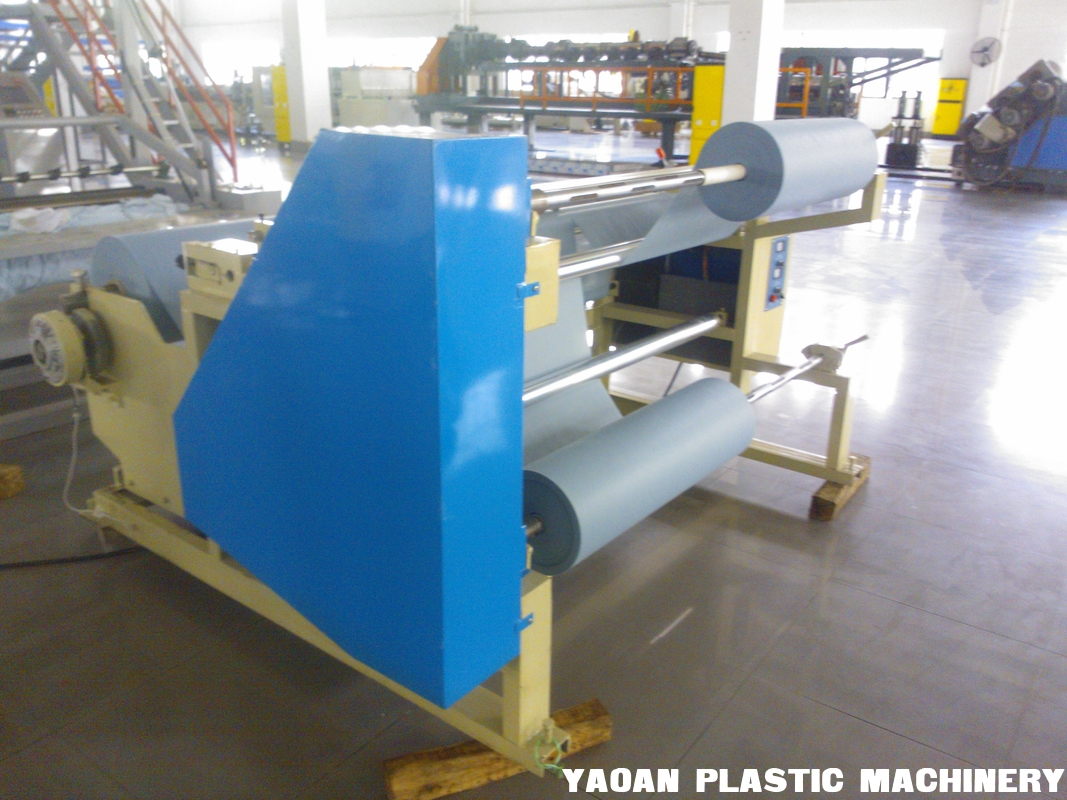

PP Spunbond Nonwoven Fabric Slitting Machine

PP Spunbond Nonwoven Fabric Slitting Machine

    • PP Spunbond Nonwoven Fabric Slitting Machine
    • PP Spunbond Nonwoven Fabric Slitting Machine
    • PP Spunbond Nonwoven Fabric Slitting Machine
    • PP Spunbond Nonwoven Fabric Slitting Machine
  • PP Spunbond Nonwoven Fabric Slitting Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-1600,2400,3200

    Payment & Shipping Terms:

    Delivery Time: 30 DAYS
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description

    This kind slitting machine is suitable for slitting various plastic film, glassine, nonwoven fabric, aluminum foil, paper, photo-sensitive material etc. Microcomputer control, adopts machinery-electronics integration controller, automatic rectifying deviation, automatic counting, auto-stop when reach to preset meter, constant tension controller and step less speed regulator, high speed, slitting materials neatly and so on.

    Parameter:

    Unwinding length: 1600mm,2400mm,3200mm
    Max.diameter of unwinding: 800mm
    Max.diameter of rewinding: 600mm
    Slitting size: minimum 30,38,40mm
    Speed: 20—80m/minute

    Total power: 2.2kw
    Weight: 1000kg

    Overall dimension (l*w*h):2500mm*1800*1200mm



    Configuration:

    Slitting machine (slitter one big roll into small roll)

    Unwinding materials: unwinding material fixed by air cylinder

    Unwinding material: left and right could be adjusted.

    Rewinding tension adopt 5kg magnetic powder brake, rewinding up and down

    Cutter: 30 pieces
    Edge correction motor: meifeng
    Converter motor: kewo

    Electrical: chint
    Pneumatic: SNS

    Magnetic powder: shengda

    Spare parts:
    socket wrench
    monkey wrench
    screwdriver
    oil gun
    panel switch
    knife: 30



    PP Spunbond Nonwoven Fabric Slitting MachinePP Spunbond Nonwoven Fabric Slitting Machine
