    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: PS-72

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Raw Material: EVA Capacity: 200-500kg/hr
    Machine Color: Grey Product: Granular
    Extruder Type: Twin Screw Extruder

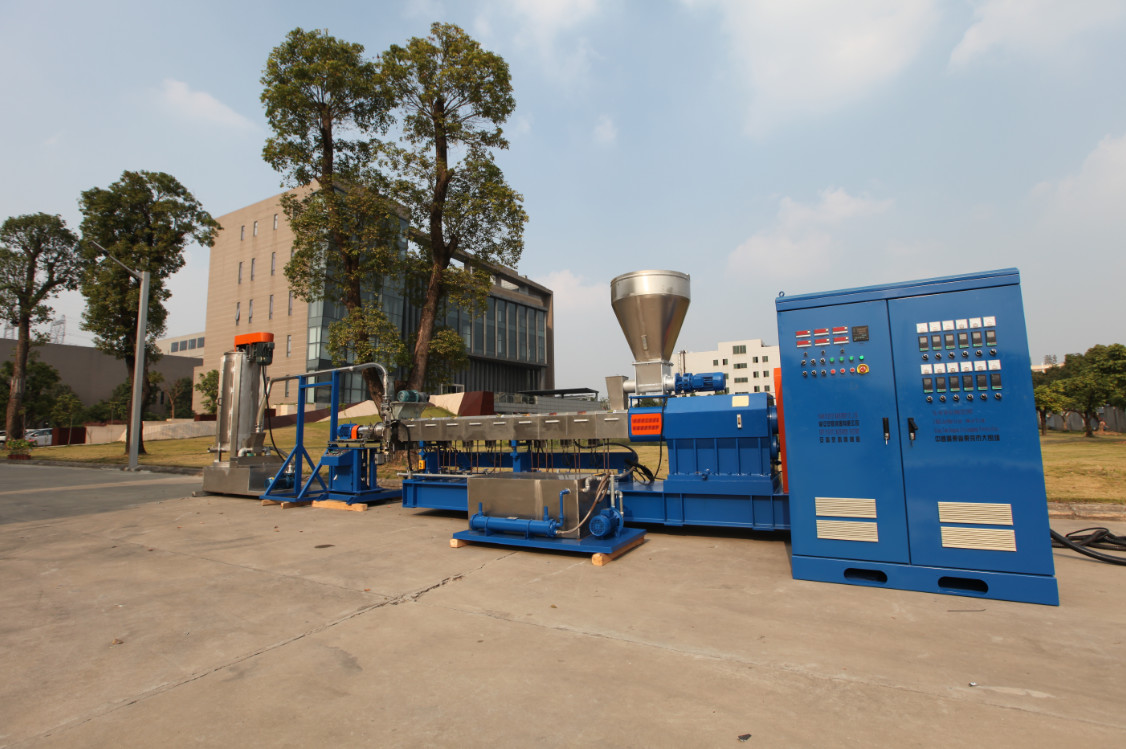

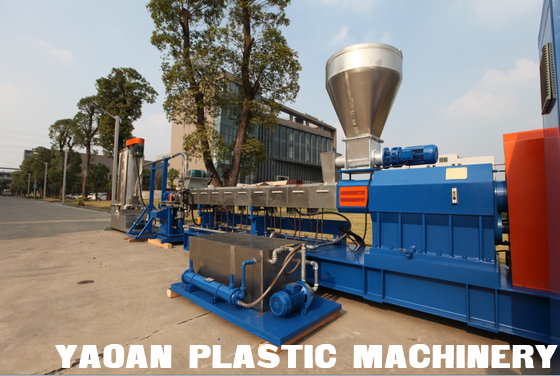

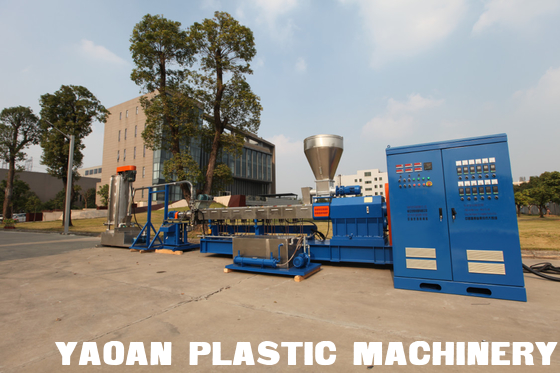

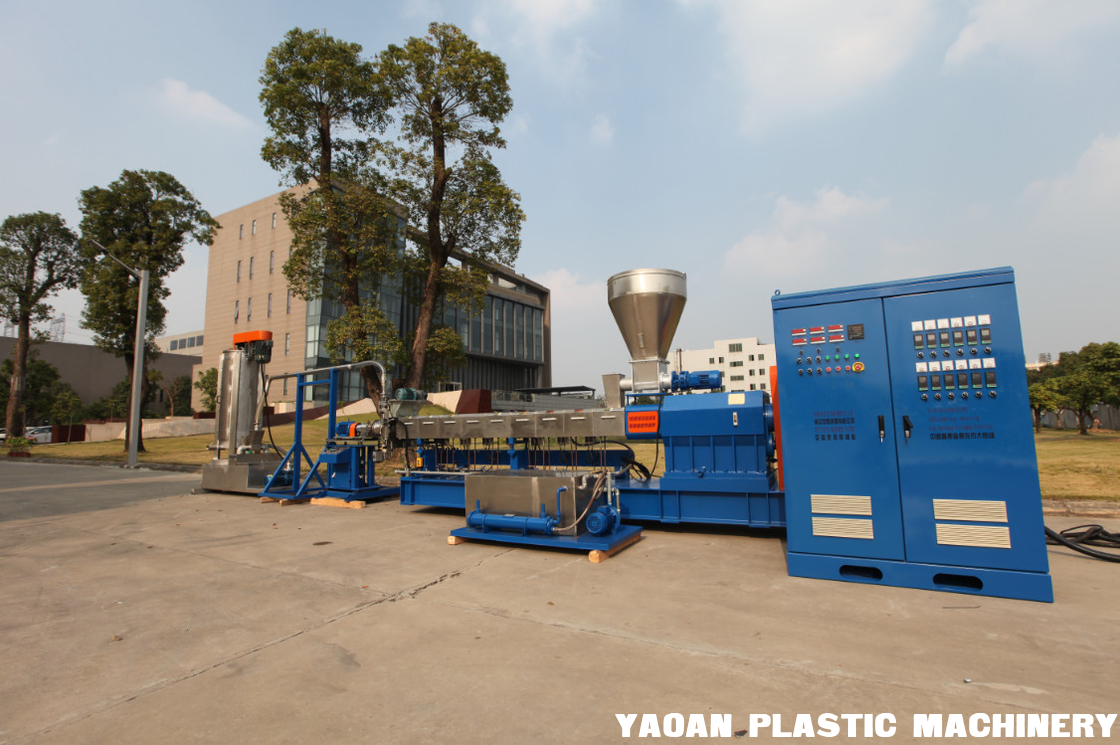

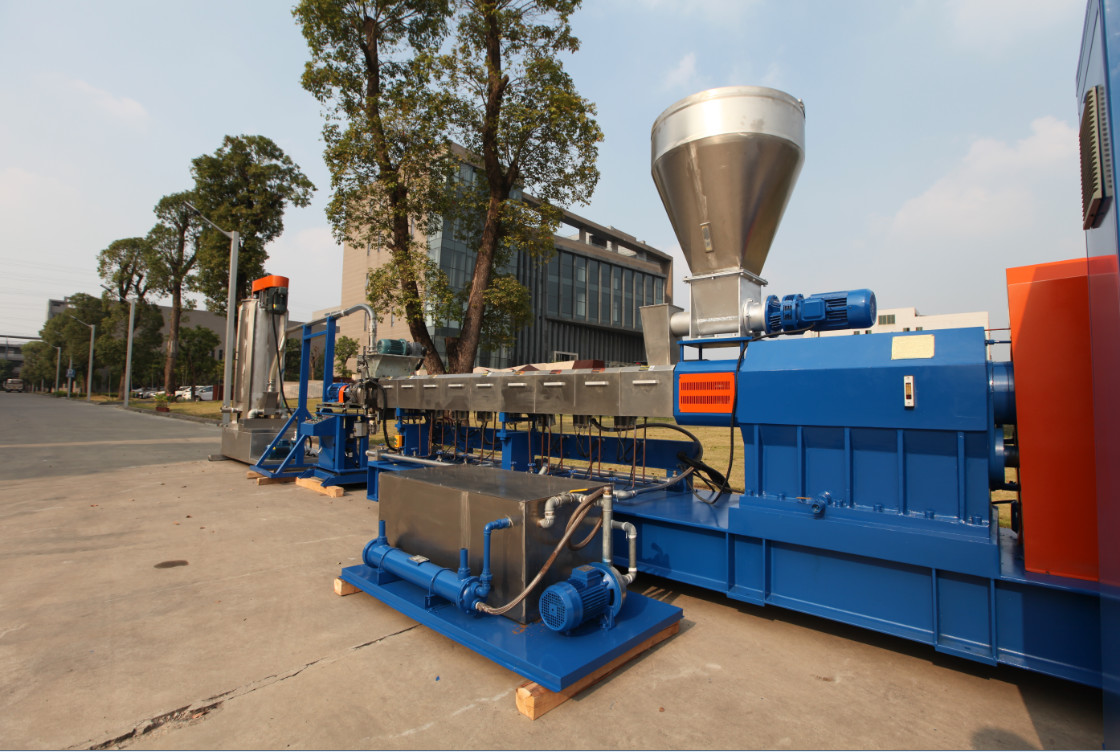

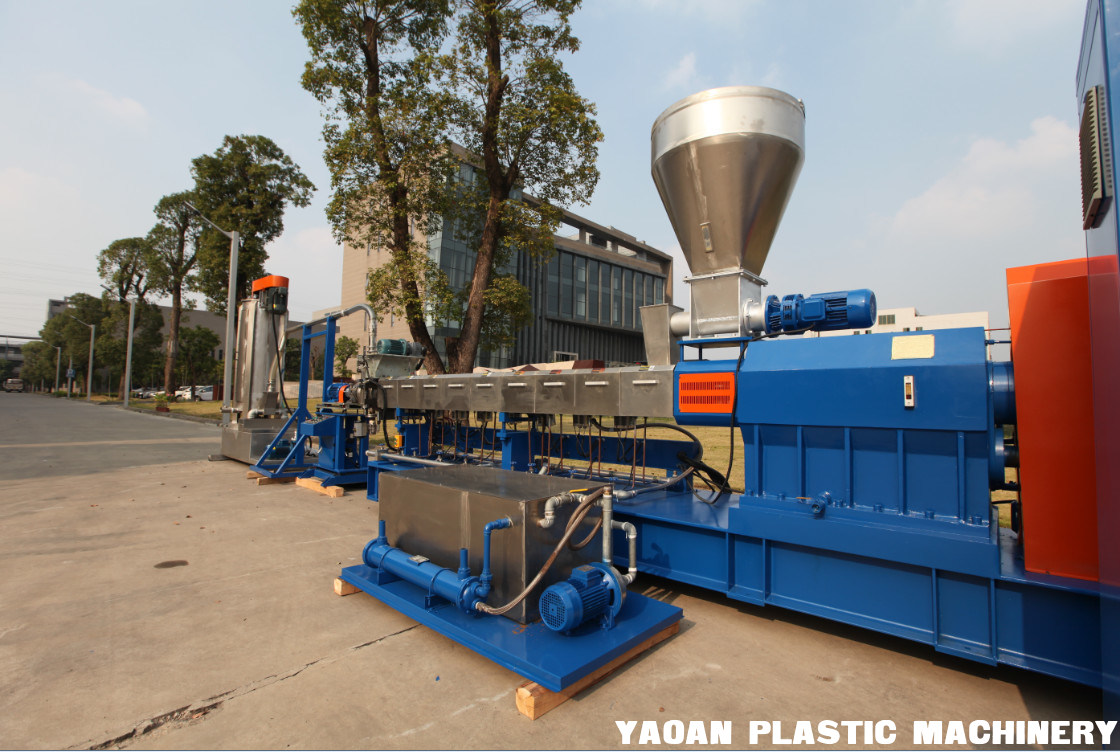

    EVA hot melt granular underwater pelletizing machine



    AF-72 EVA underwater pelletizing machine configuration and specification:

    1. Dosing feeder: one set

    Motor power: 1.5kw (AC). Speed regulation system adopts ‘ABB’ inverter.

    The horizontal style agitator ensures a steady continual adding material, feeding material, no bridge.



    2. AF-72Twin-screw extruder: one set

    Screw

    Type: Co-rotary twin-screw type

    Screw dia: 72mm, L/D=36/1

    Material: M6Mo5Cr4V2

    Treatment: Regulated, nitrified, hardness HRC60-64

    Gearbox

    Characteristics: Combination of reducer system and torque distributing system. High torque

    Barrels:

    Barrel type: air exhausted type

    Material: M6Mo5Cr4V2

    Cooling style: cycling-water cooling.

    Vacuum degassing unit: one set

    Degassing hole: one set

    Vacuum pump power: 2.2kw

    Extrusion capacity: 300-500kg/hr

    Driver power: 110kw

    Control style: frequency conversion

    Electric heater: first zone and second zone and the die are equipped with cast copper heaters. Power: 5kw/section. The rest are cast aluminum heaters with power 3kw/section.

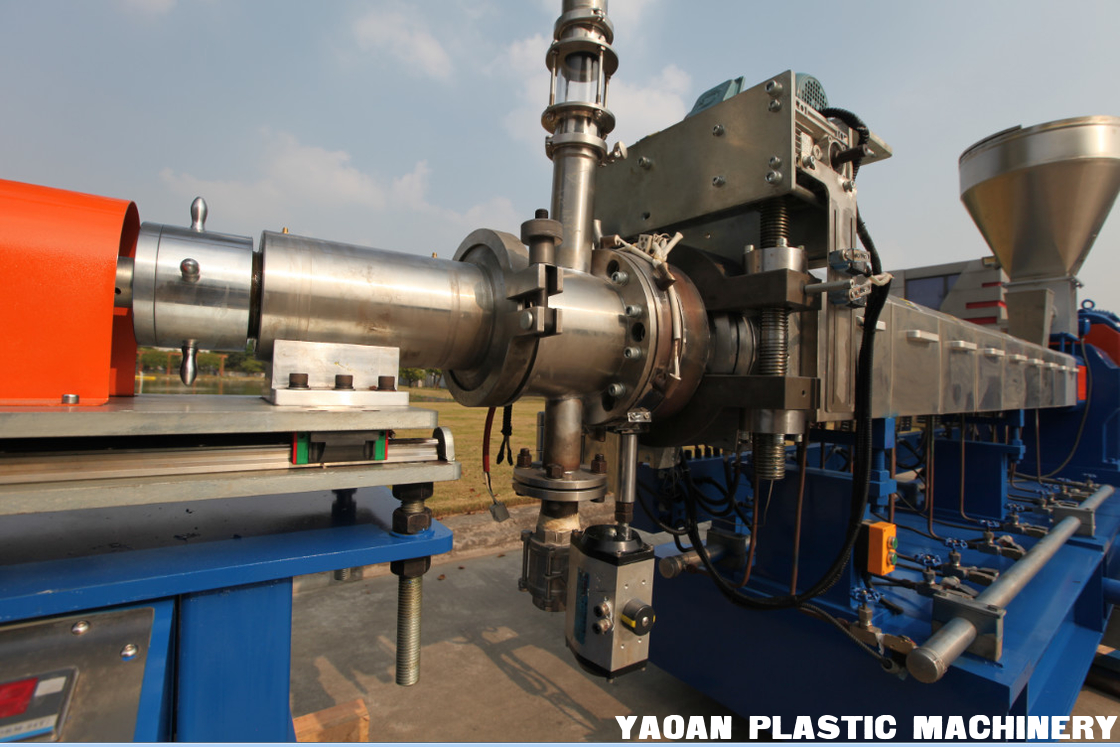

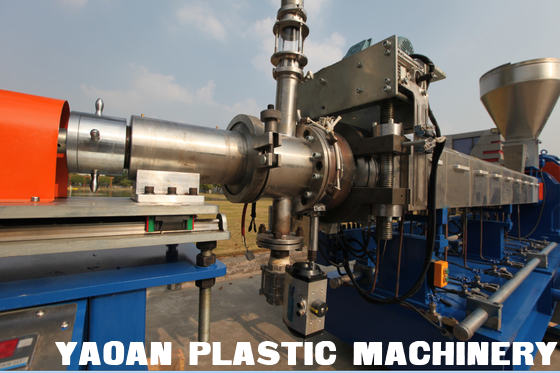

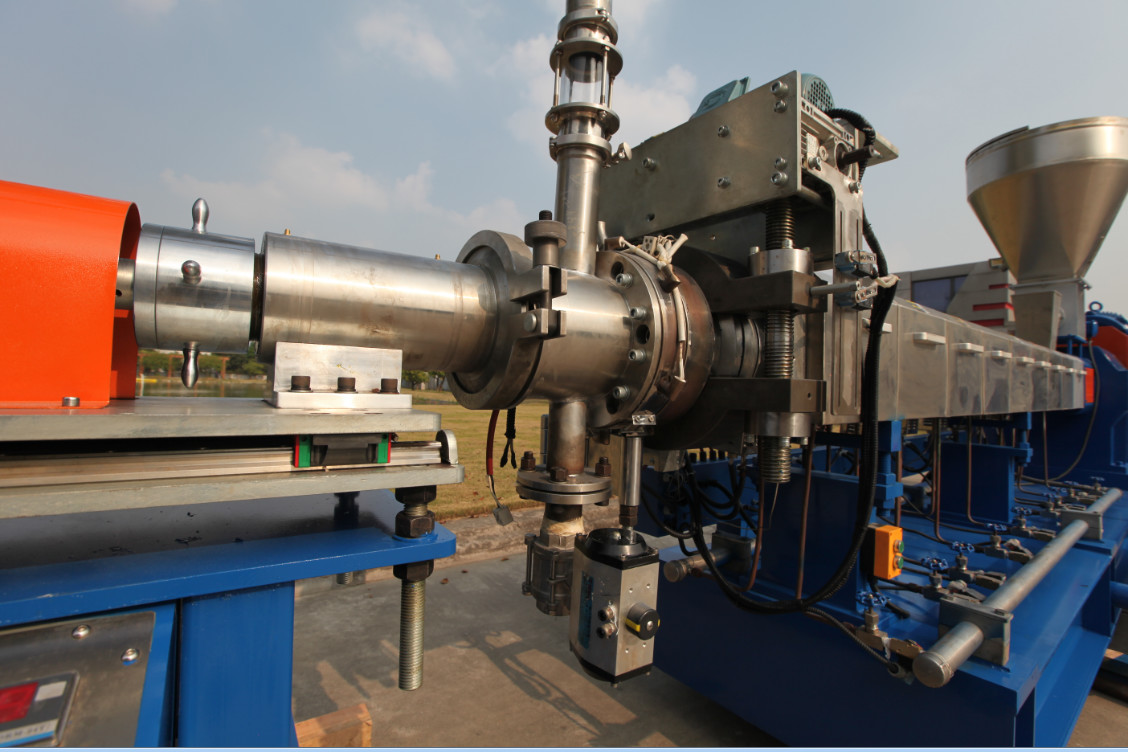

    3. Underwater cutting unit and mould: one set

    Motor power: 3.7kw

    Control type: frequency conversion

    Cutting blade: 3pcs

    Mould material: Tungsten

    Cutting chamber: one set

    With hot water return system, and with side view window.

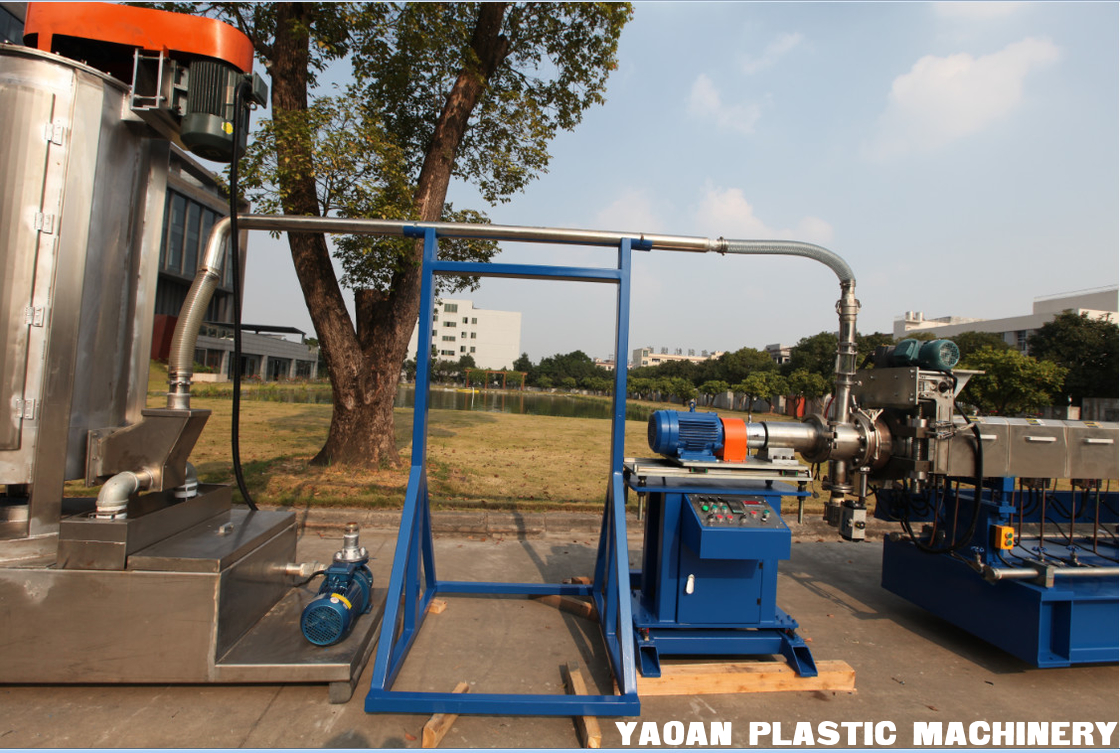

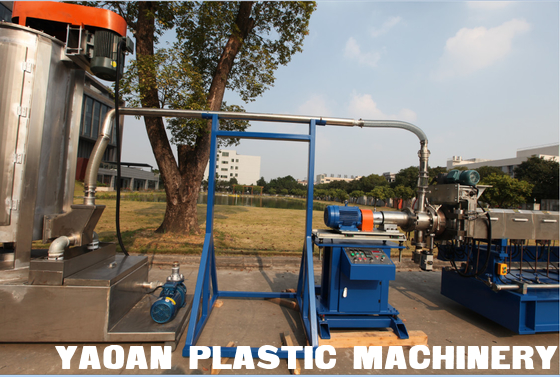

    4. Vertical dewater unit: one set

    Control power: 7.5KW

    With hot water tank, water level control. Heating power: 7.5kw

    Water pump: 1.5kw

    Connection pipes: one set





    Power supply: 3 phase 380V 50HZ

    Machine size about: 9m*3*2m

    Power consumption about: 150kw actual consumption: 90kw/hr

    Output capacity about: 200-500kg/hr (depends on customer’s material)

    EVA hot melt granular underwater pelletizing machine
