    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-45

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1USD
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    Raw Material: PLA,ABS,PP,PE, Line Speed: 200m/min
    Machine Output: 10-30kg/hr Motor Brand: Siemens
    Inverter: ABB

    Features:

    1,Material:PLA/ABS/HIPS



    2,Diameter :1.75mm-3.0mm



    3,Shape:round



    4,Color:bule,red,orange,yellow,green .



    5,Usage:be applied to a variety of 3D printer, Makerbot, Mendel, Prusa, Huxley, BFB series, etc..



    Material PLA/ABS/Hips
    Filament diameter 1.75mm-3.0mm
    Machine color  Any color is available



    Specificaitons as below:

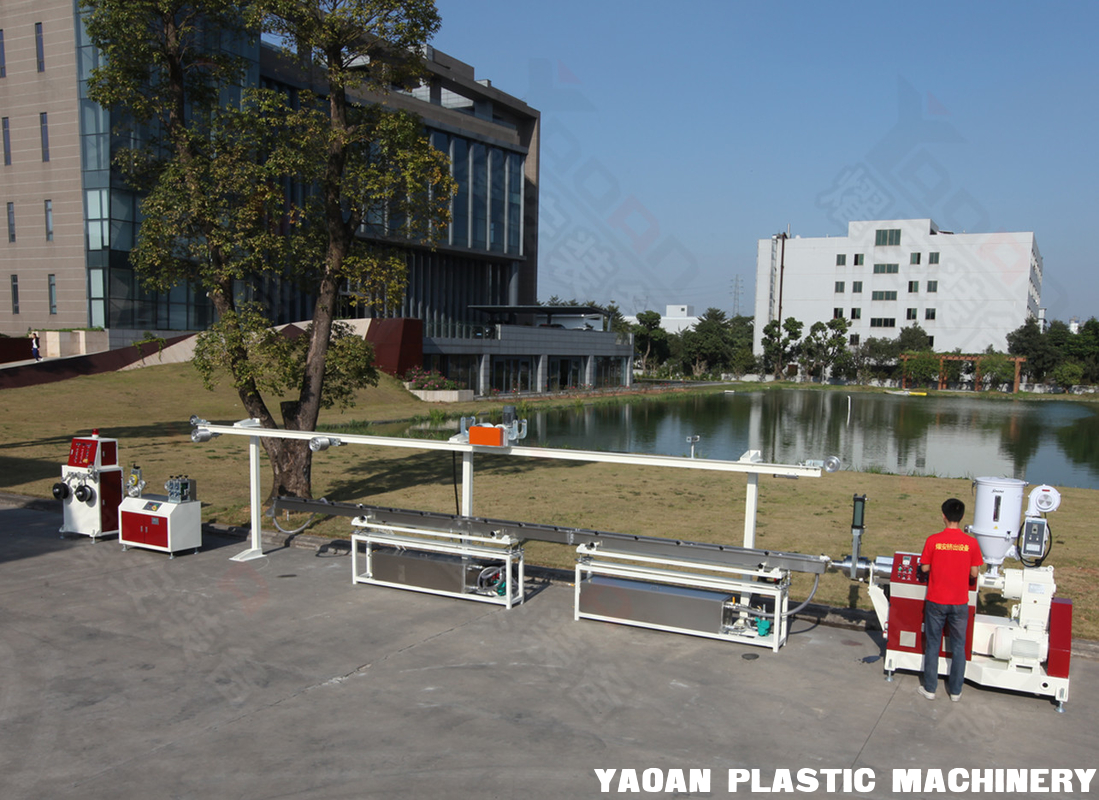

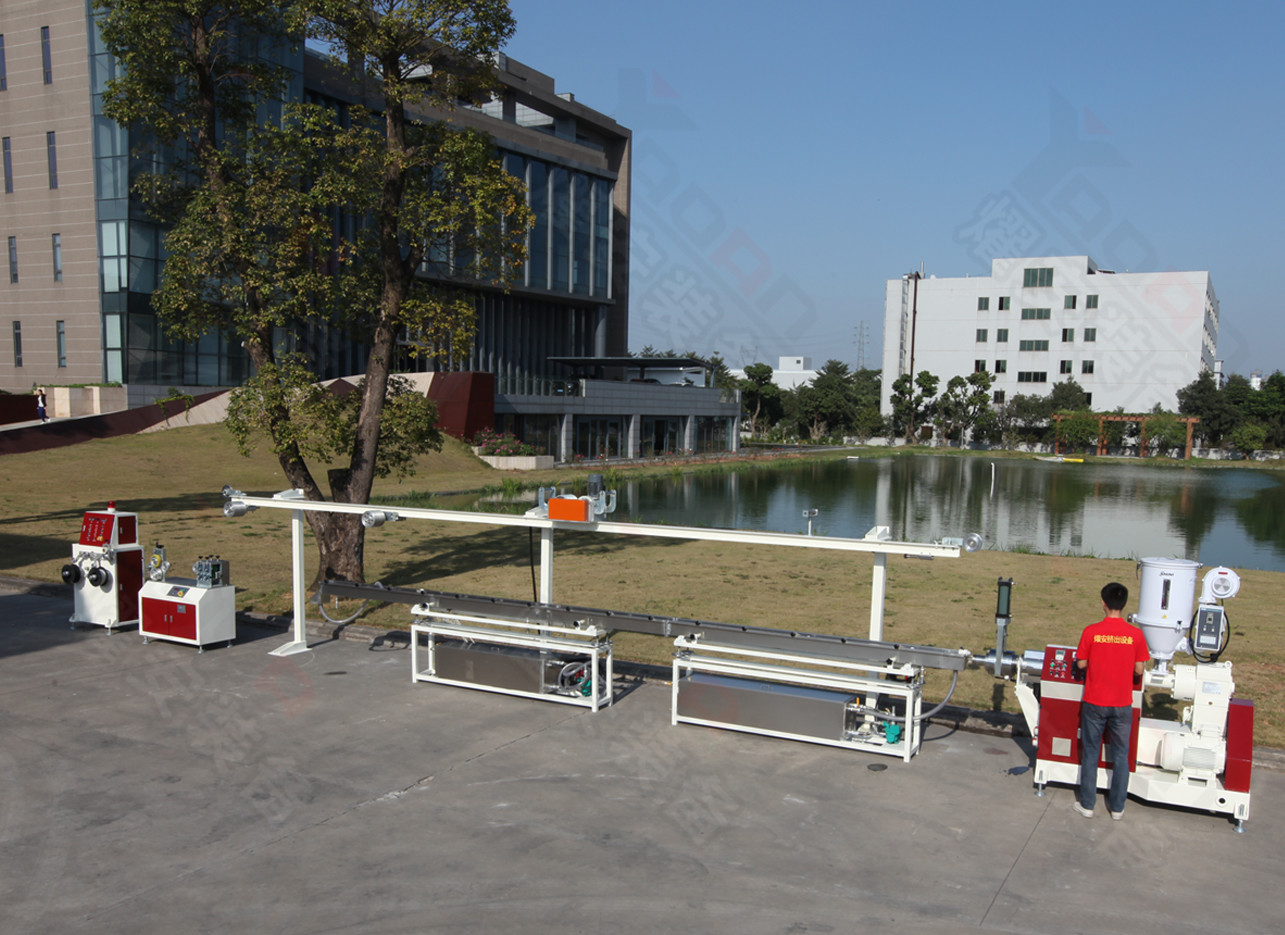

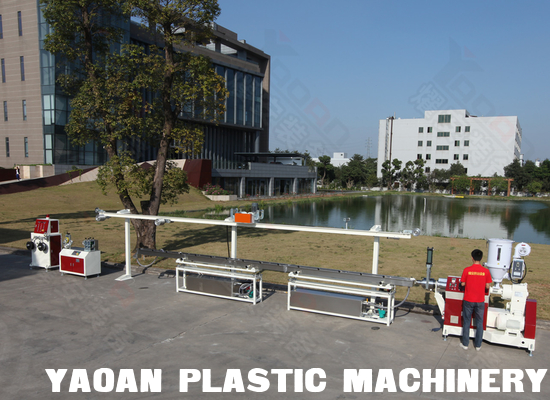

    AF-45 filament making machine configurations and quotation:



    Φ45extruder (one set)

    50kg hopper dryer: one set

    Auto-loader: one set

    Screw diameter:45mm

    Screw L/D: 28:1

    Screw structure: special

    Reducer unit (one set)

    Control power:11kw

    Use China named brand DONGGUAN MOTOR control

    Control style: frequency conversion (TAIWAN DELTA)

    Belt transmission between motor and gear box.

    Thermostat zones: 5 zones 2 kw for each zone

    Use stainless steel heater

    Use Japan RKC temperature controller

    Cooling zones: 3 zones 0.18 kw for each zone

    Used TAIWAN named brand blower

    Electrical control box (one set)

    Flange: one set

    AFSJ-45 PLA,ABS plastic 3D printer filament Making machine,Exported to Europe

    Extruding die: one set

    Roundfilamentdiameter: Ø1.75-3.0mm



    6m stainless steel cooling water tank:one set

    Water tank stand: one set

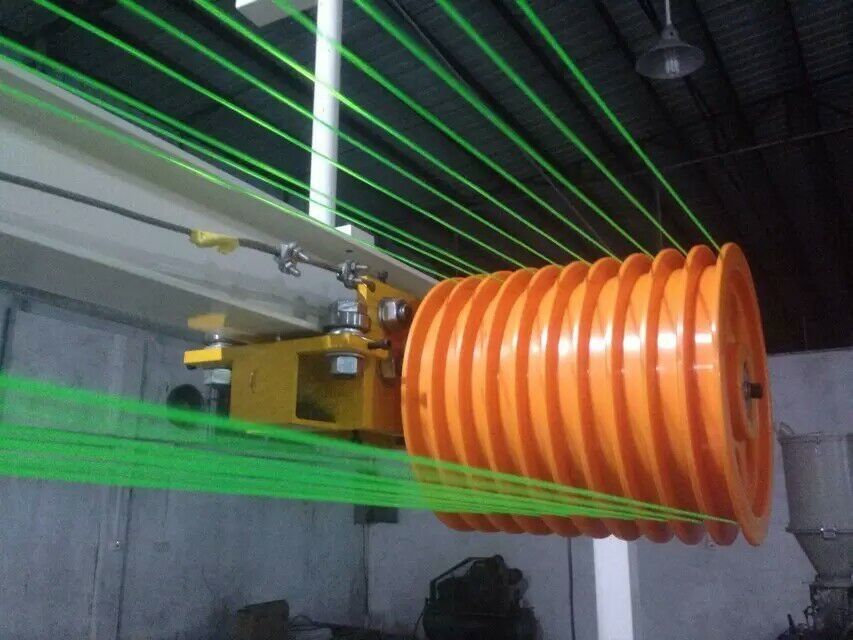

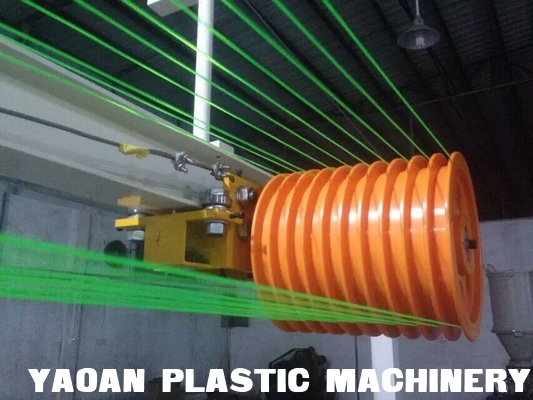

    Double shafthaul off unit: one set

    Haul off control power:0.75kw*2

    Control style:frequency conversion

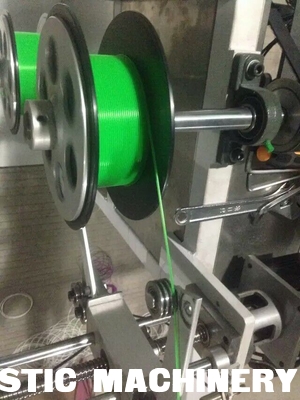

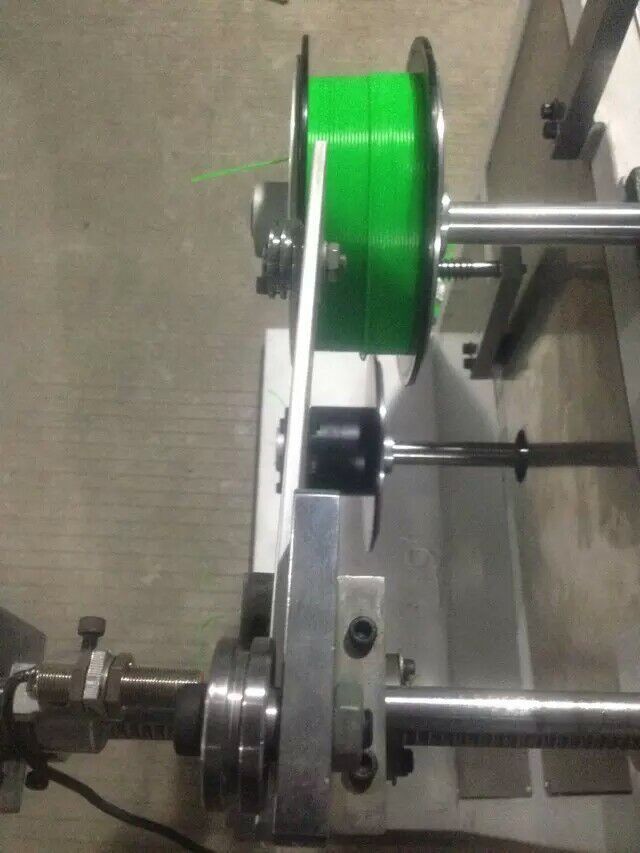

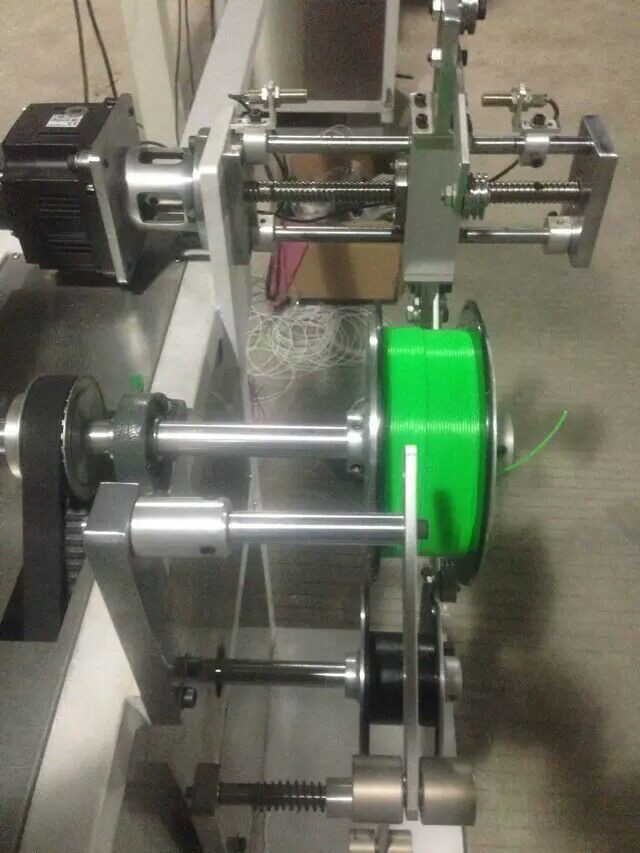

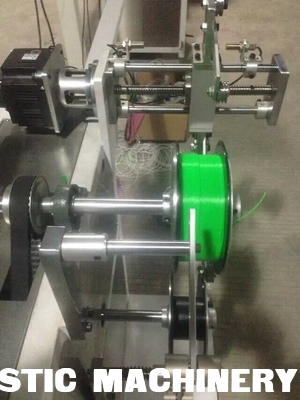

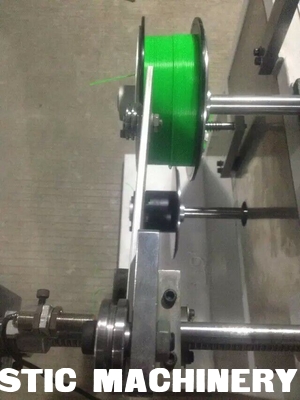

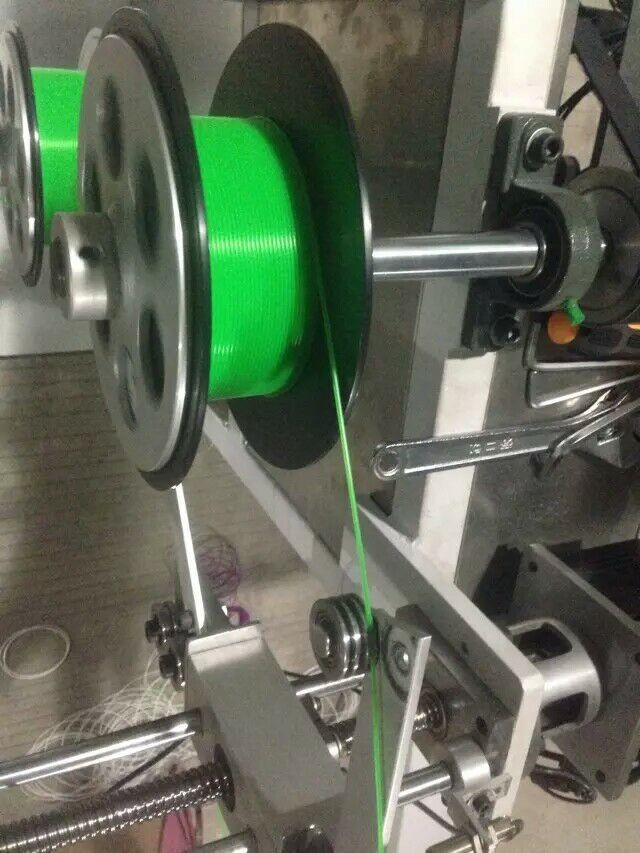

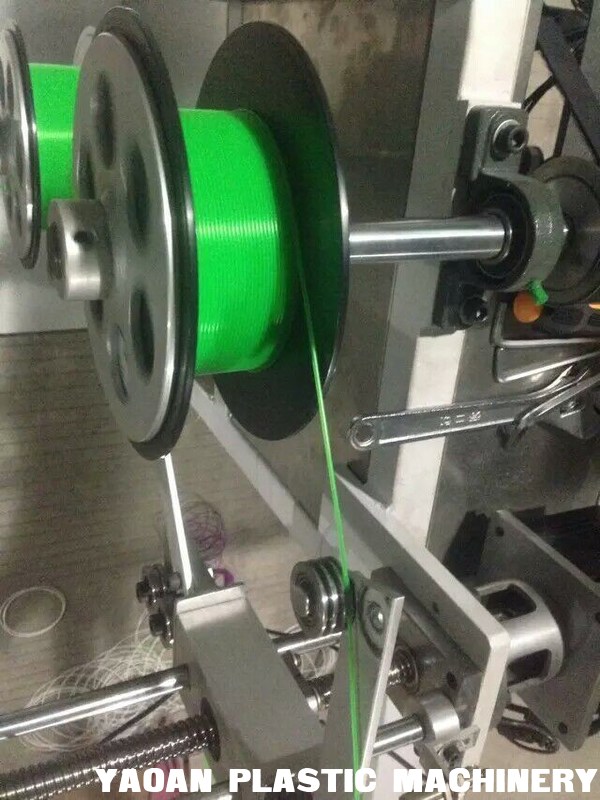

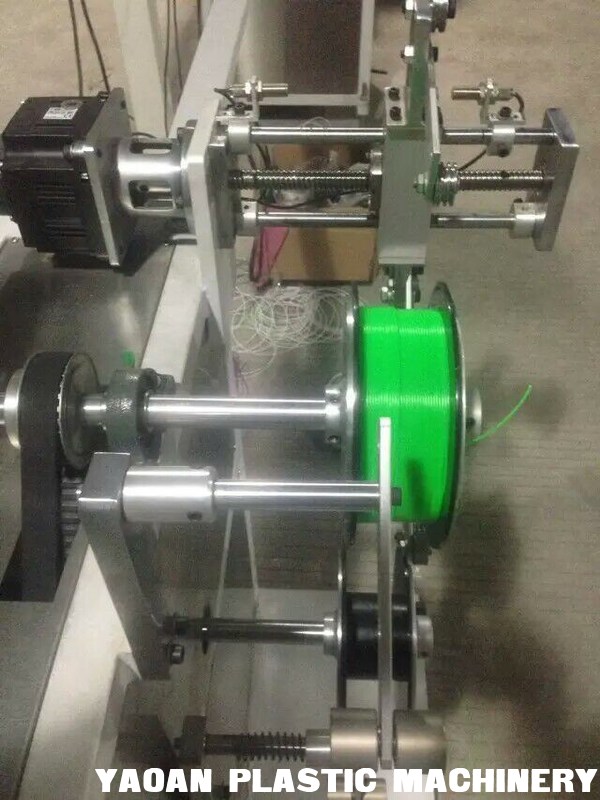

    Winding unit:oneset

    Work shaft:2

    Motor power: 0.75KW

    Control style:moment motor control

    Encoder can control the length of winding, it will stop and warning when winding enough.

    AFSJ-45 PLA,ABS plastic 3D printer filament Making machine,Exported to Europe

    AFSJ-45 PLA,ABS plastic 3D printer filament Making machine,Exported to Europe

    AFSJ-45 PLA,ABS plastic 3D printer filament Making machine,Exported to Europe
