Home ProductsPlastic Sheet Extruder Machine

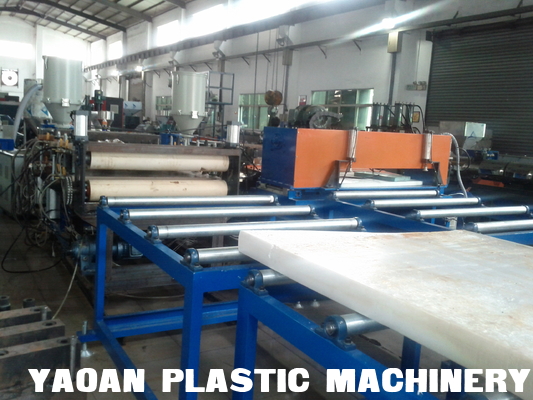

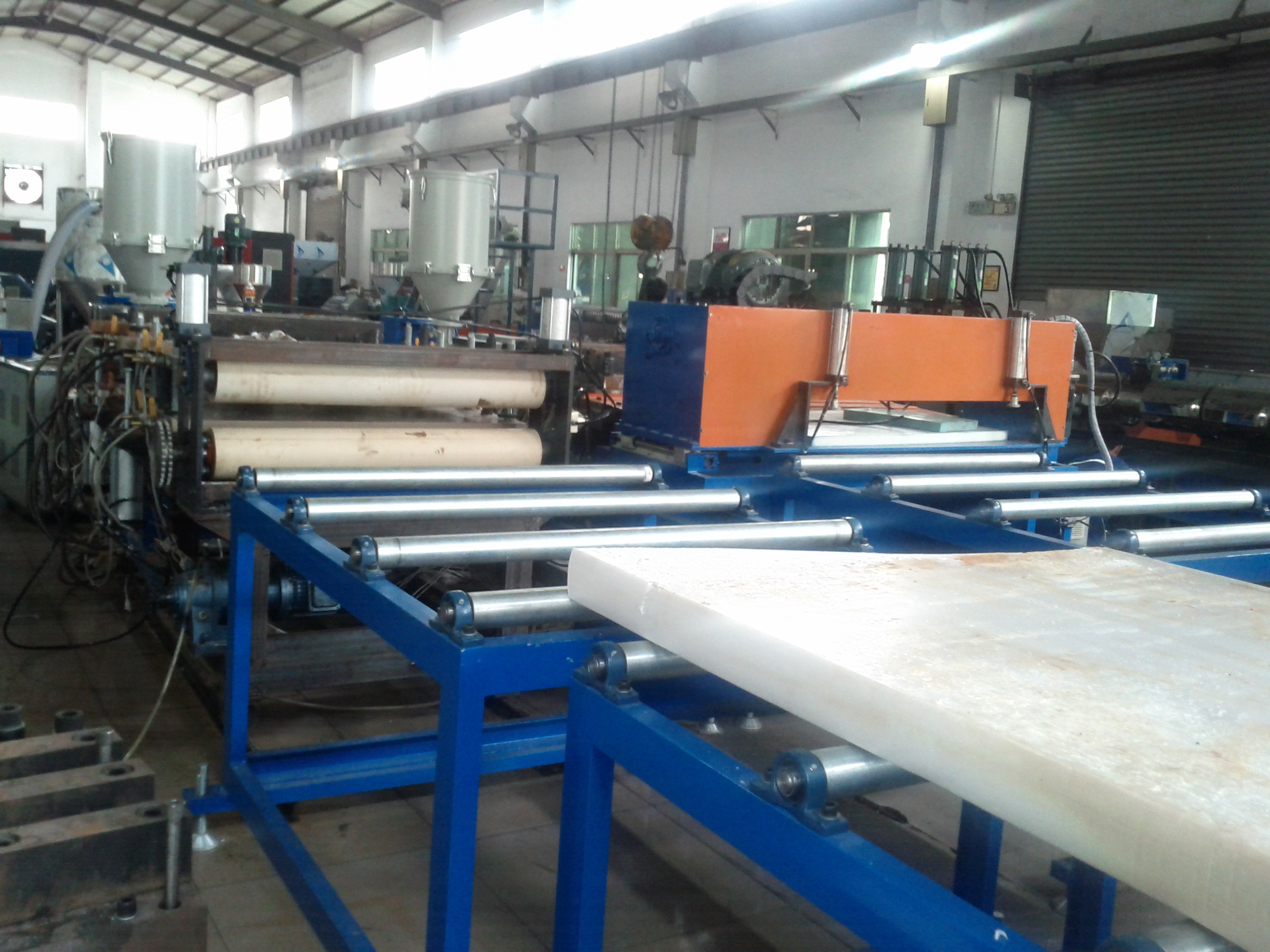

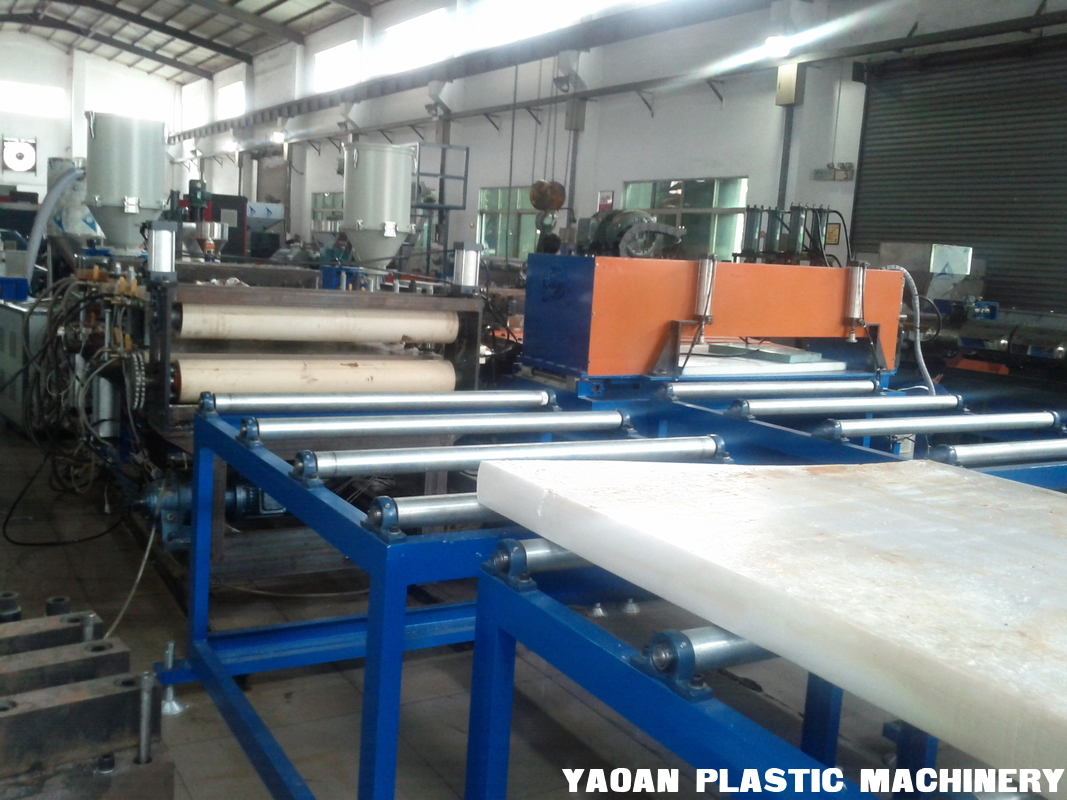

HDPE thick sheet extrusion machine

HDPE thick sheet extrusion machine

HDPE thick sheet extrusion machine

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-65

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description

Φ65 solid HDPE sheet product line configuration and quotation

Size of product:

Thickness: 25-300mm

Width: 800-1600mm



Φ65mmextruder: one set

Screw diameter: 65mm

Screw L/D: 28:1

Screw type: special screw

Gear box: one set

Control power: 22KW

Control style: frequency conversion

Thermostat zones: 11 zones (4zones for mould)

Radiator zones: 4zones

Electrical control box: one set



Extrusion mould: one set

Cooling style: coldby water



Stand for nature air cooling: one set

Length: 10 meters

Material: stainless steel



Sawcuttingmachine: one set

Motor power: 5.5kw



Stacking machine: one set

Length: 3 meters

Material: stainless steel



Capacity:40-80kg/hr

HDPE thick sheet extrusion machine
