Co-extrusion line for spiral suction/discharge hoses

Co-extrusion line for spiral suction/discharge hoses

Co-extrusion line for spiral suction/discharge hoses

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description

pvc suction hose extrusion line/PVC pipe machine line

pvc spiral reinforced hose machine

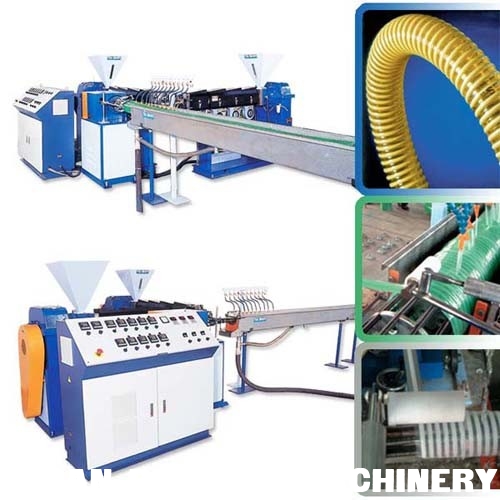

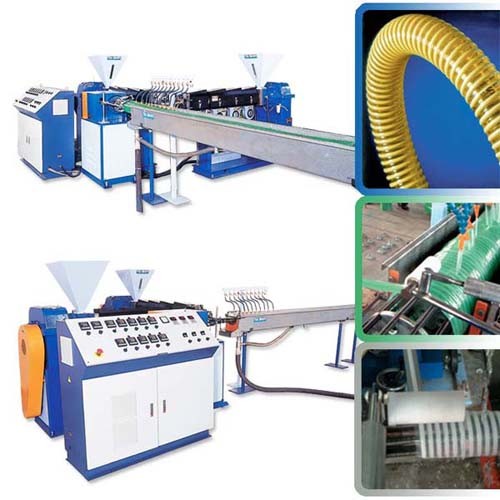

     This line is designed to produce PVC spiral reinforced hose, it consists two extruders, forming unit, bath, winder, the wall of which is soft PVC and rigid PVC helix as reinforced, featuring extrusion resistance, corrosion resistance, regative pressure resistance, anti-bending, good negotiability, so it is suitable to conveying gas, liquid and powder, widely used in industry, agriculture, construction and irrigation etc.



 Work process:

 Raw and additive---mixed ---feed —heating ---enter the extruder.---- extrude the mould–adjust diameters- –cooling –hauling-cutting -stacking –packing.





Technical Data:



Type SJ45 SJ65
Extruder 45×25 65×28
Pipe diameter scope 25-50mm 64-150mm
Capacity 31kw 58.6kw
Average energy consumption 21.7kw 35.1kw
Overall dimensions(L× W× H) 15000×4000×1500mm 18000×5000×2000mm
Overall weight about 4ton about 5ton

Co-extrusion line for spiral suction/discharge hoses

Co-extrusion line for spiral suction/discharge hoses
