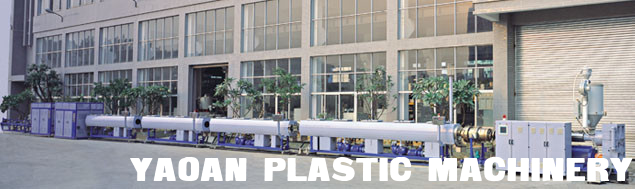

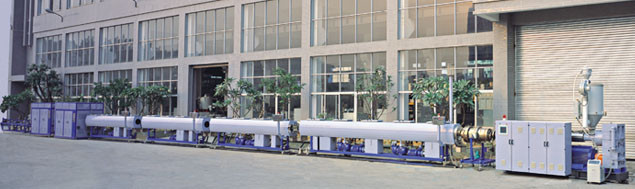

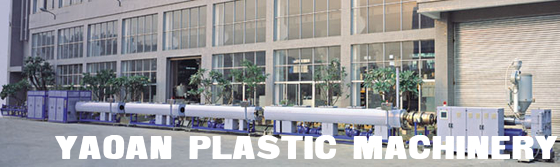

HDPE Pipe Extrusion Line

HDPE Pipe Extrusion Line

HDPE Pipe Extrusion Line

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description

● This production line is made up of extruder for square pipe, sub-extruder for welding strip, twisted pipe forming machine and cutting machine.
● Adopted suitable configurations, it is capable to produce pipes among the range of ¢200-300mm. Supporting by an excellent forming technology, special designed high speed single screw extruder can produce products in good quality at a high speed. Various control systems are available for different customer's special requirements.





Main Technical Parameter:

Model

Main extruder

Extruder for weld strip

main motor

Weld motor

Twisting motor

Cutting Motor

forming specification

(kg/h)
Output

TP65

65/32

55/28

55KW

37KW

3KW

2.2KW

200-600

230-280

TP90

90/32

65/28

90KW

45KW

4KW

2.2KW

700-1500

380-480

TP120

120/32

90/28

132KW

55KW

5.5KW

4KW

1500-2200

480-560
