PU, PE, PVC medical tube machine

PU, PE, PVC medical tube machine

PU, PE, PVC medical tube machine

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 55

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description
Plastic Processed: PVC Application: Pipe
Screw Design: Single-screw

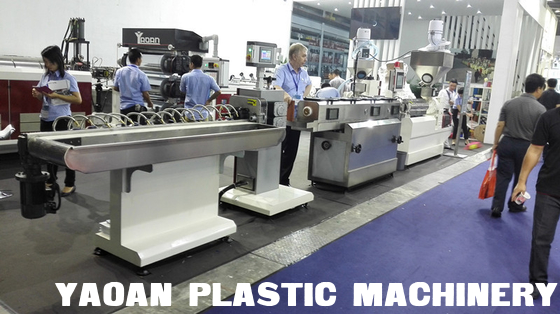

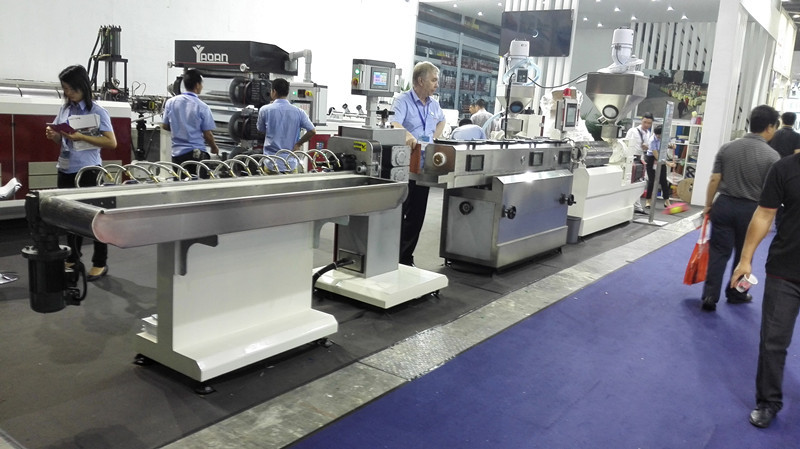

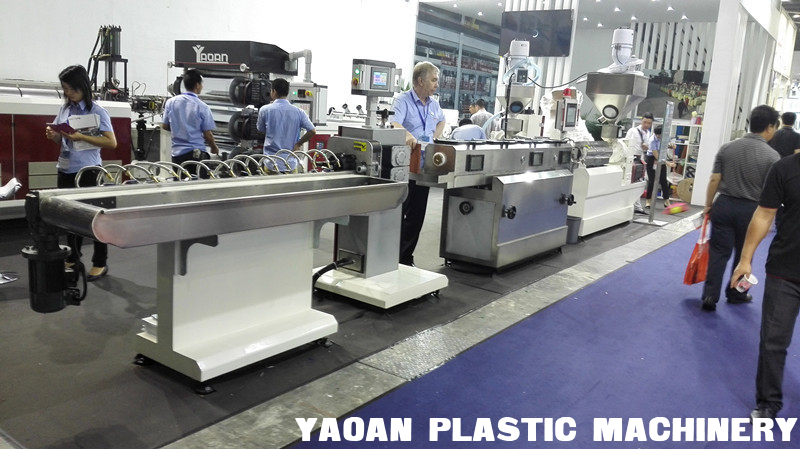

PU, PE, PVC medical tube extrusion line

Extruder: One set

  1. Screw:

    Type: Evolution screw High-strength steel nitride, electroplated hardness chrome.

    Material: 38CrMoALA alloy steel

2. Barrel:

    High-strength alloy nitride, high-precision machining with a round grinding, hard chrome plating

    Barrel cooling method: air-cooled

Cylinder wall: to prevent the resin burned, required wall surface treatment

  3. Driving devices:

     High-precision worm gear reducer high efficiency and low noise

 Main heating:

     High efficiency heater

     Solid-state relay control

     Germany SIEMENS PLC temperature control module (PROGRAMMABLE LOGIC CONTROLLER)

     Germany SIEMENS PLC Inverter Motor Speed Control Module

     German SIEMENS HMI HMI (HUMAN MACHINE INTERFACE)

     Taiwan more than wing ultra quiet high-efficiency air-cooled fan control



Extruding mould: 1 set (contain one type of product)

   Die lip: one

   Core bar: one

   Calibration unit: one



Vacuum calibration trough

Length of trough: 4M

   Main body of the trough: 304# stainless steel, treated with bended and welded.

   Material of the trough Cover: high strength and transparent steel glass

   Vacuum chamber: consists of 1.5kw vacuum pump, stainless steel chamber.

   Tri-dimension movable water tank stand



Haul off machine

High effective and stable hauling off with the wedge-shaped strap, the surface coving the foam PU

High effective and stable reducer transmission

Mitsubishi high-precision servo motor drive (SERVO MOTOR)

  Mitsubishi high-precision servo controller (SERVO MOTOR CONTROLLER)

  Japan NEMICON rotary encoder feedback control (ROTARY ENCODER)



CUTTER

Aluminum alloy with low inertia rotary knife arm

 Mitsubishi high-speed high-precision low inertia servo motor-driven response (SERVO MOTOR)

 Mitsubishi Servo Controller (SERVO MOTOR CONTROLLER)

 EVIEW HMI (HUMAN MACHINE INTERFACE)

 Japan's Mitsubishi PLC controller to cut off the length of products

 Product length tolerance: ± 1mm-1.5mm
