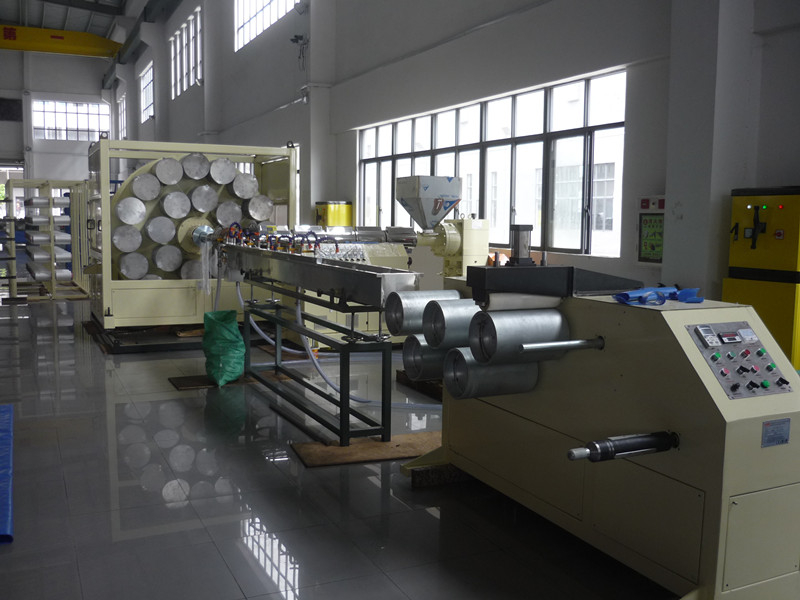

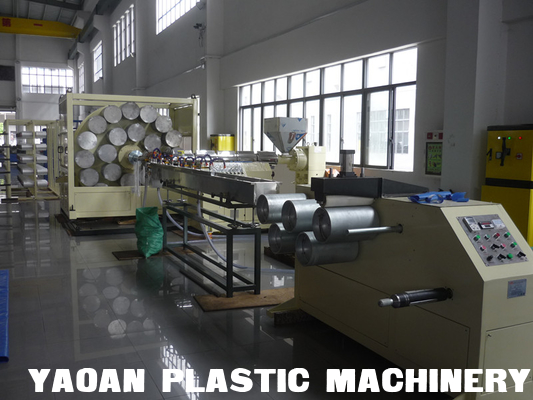

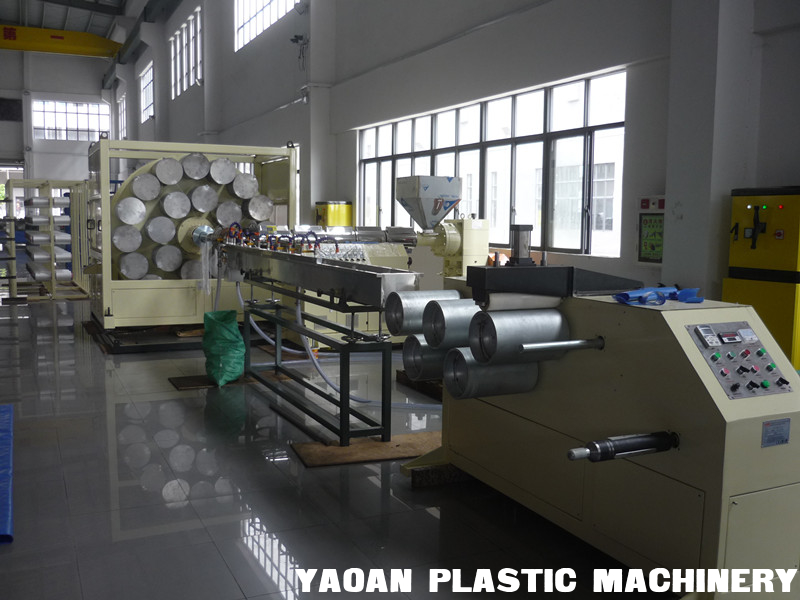

PVC hose machine for lay flat fire hose

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-65
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now

PVC hose machine for lay flat fire hosePVC hose machine for lay flat fire hose

PVC Flat Water Hose Making Machine

Φ55extruder: one set(Thefirst extruder)

Screw:

Screw diameter:55mm

Screw L/D: 28:1

Screw style: special

Material: High quality nitrided alloy steel-38CrMoAIA

Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.4-0.6mm; fragility is 2 grades.

Barrels:

Material: High quality nitrided alloy steel-38CrMoAIA

Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.6-0.7mm; fragility is 2 grades

A cooling system at inlet of extruder from hopper

Driver:

Rated power:11kw

Control style: frequency conversion

Heating:

Heater style: band heater for barrel

Bar heater for mould and joint parts

Temp.Controller zones:5zones

Thermo sensor: thermocouples

Cooling system for Barrels

Cooling style: centrifugal fans

No. of fans:3

Electric control box: one

Ampere meter

Temperature controller

Inverter driver

Buttons

Electric control box: one

Extruding mould: 1 set(the size according to customer’s requirement)

3m stainless water trough with sprayer system: one set

Water trough stand: one

Haul off machine: one

Style: caterpillar

Haul off control power: 1.5kw

Haul off control style: frequency inverter

Effective haul off length: 1000mm

Φ55extruder: one set(Thesecond extruder)

Screw:

Screw diameter:55mm

Screw L/D: 28:1

Screw style: special

Material: High quality nitrided alloy steel-38CrMoAIA

Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.4-0.6mm; fragility is 2 grades.

Barrels:

Material: High quality nitrided alloy steel-38CrMoAIA

Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.6-0.7mm; fragility is 2 grades

A cooling system at inlet of extruder from hopper

Driver:

Rated power:11kw

Control style: frequency conversion

Heating:

Heater style: band heater for barrel

Bar heater for mould and joint parts

Temp.Controller zones:5zones

Thermo sensor: thermocouples

Cooling system for Barrels

Cooling style: centrifugal fans

No. of fans:3

Electric control box: one

Ampere meter

Temperature controller

Inverter diver

Buttons

Electric control box: one

Mould for outside-layer of the pipe: 1 set

3m stainless steel water trough with sprayer system: one set

Trough stand: one

Haul-off machine: one

Style: caterpillar

Haul off control power: 1.5kw

Haul off control style: frequencyconversion

Effective length: 1000mm

Two-position winder: one set

Drive control: tri-phase AC torque motor speed regulator.

Two coils work alternatively; the coil is token down by hand; the packing is easy (diameter of coil is decided by customers) It is equipped with a coder, will alarm and when reach preset length.

Lear speed: 3-12m/min (it’s upon the wall thickness of different size)

Output capacity: 25-60kg/hr
