AFSJ-45 PLA,ABS plastic 3D printer filament Making machine

AFSJ-45 PLA,ABS plastic 3D printer filament Making machine

AFSJ-45 PLA,ABS plastic 3D printer filament Making machine

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-45

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

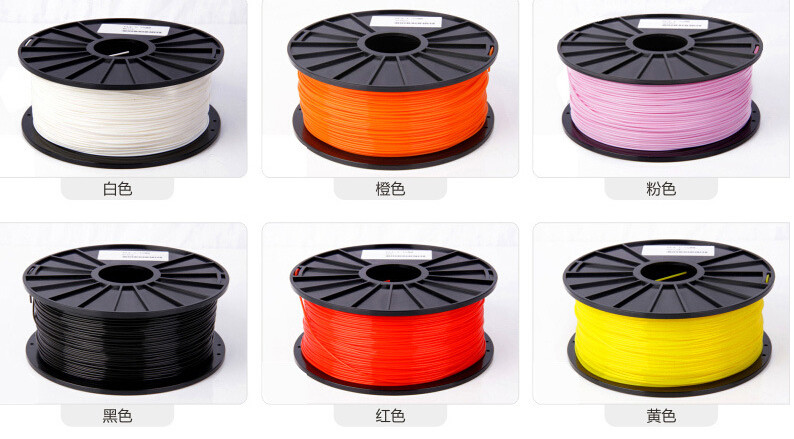

Features:

1,Material:PLA/ABS/HIPS



2,Diameter :1.75mm-3.0mm



3,Shape:round



4,Color:bule,red,orange,yellow,green .



5,Usage:be applied to a variety of 3D printer, Makerbot, Mendel, Prusa, Huxley, BFB series, etc..



Specificaitons as below:



AF-45 filament making machine configurations and quotation:



Φ45extruder (one set)

50kg hopper dryer: one set

Auto-loader: one set

Screw diameter:45mm

Screw L/D: 28:1

Screw structure: special

Reducer unit (one set)

Control power:11kw

Use China named brand DONGGUAN MOTOR control

Control style: frequency conversion (TAIWAN DELTA)

Belt transmission between motor and gear box.

Thermostat zones: 5 zones 2 kw for each zone

Use stainless steel heater

Use Japan RKC temperature controller

Cooling zones: 3 zones 0.18 kw for each zone

Used TAIWAN named brand blower

Electrical control box (one set)

Flange: one set



Extruding die: one set

Roundfilamentdiameter: Ø1.75-3.0mm



6m stainless steel cooling water tank:one set

Water tank stand: one set



Double shafthaul off unit: one set

Haul off control power:0.75kw*2

Control style:frequency conversion



Winding unit:oneset

Work shaft:2

Motor power: 0.75KW

Control style:moment motor control

Encoder can control the length of winding, it will stop and warning when winding enough.
